2X 8S 24V 100A LiFePO4 Battery Protection Board Same Port

2X 8S 24V 100A LiFePO4 Battery Protection Board Same Port Description

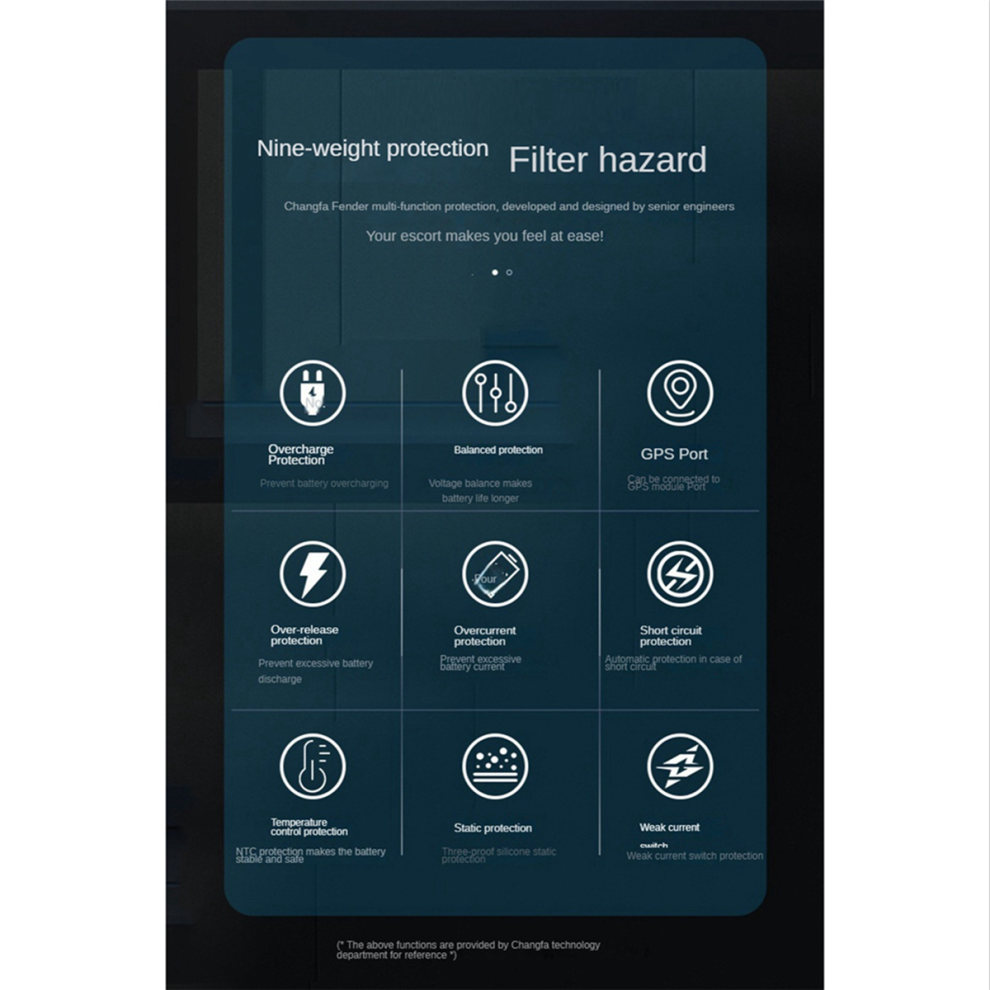

Overcharge and discharge protection to prevent overcharge and discharge of the battery. Overcurrent protection to prevent abnormal high current of battery
Balance protection, battery voltage balance, make battery life longer

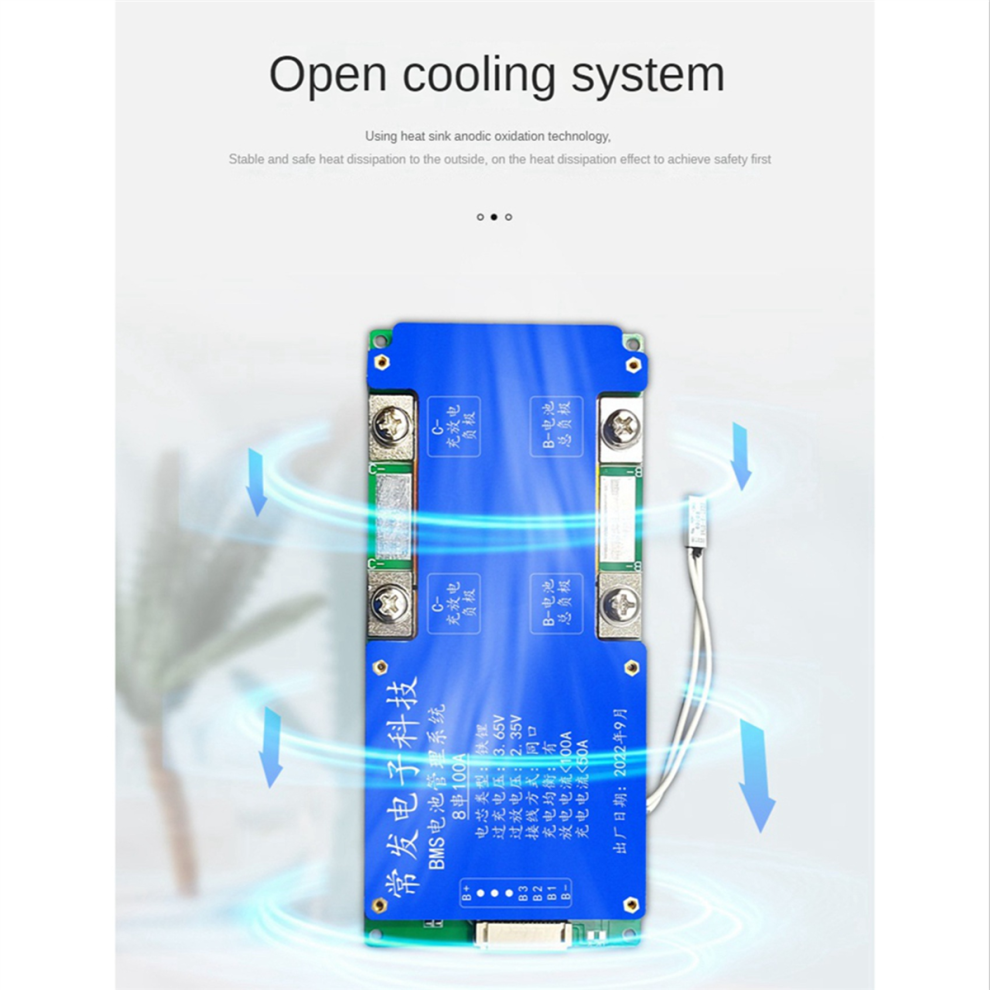

Stable heat dissipation, stable heat dissipation of the aluminum substrate,
safety protection absorbs anti-high voltage, reduces MOS tube breakdown, ultra-low internal resistance MOS
Suitable for most electric tools on the market, electric scooters, electric bicycles, electric tricycles, electric motorcycles, electric vehicles, electric tools, etc.

Product name: Lithium battery protection board
Product type: 8S 24V 100A (with Equalization temperature control)
Specifications: 8S Lithium Iron 24V 100A
Iron lithium battery nominal: 3.2V
Overcharge: Iron Lithium 3.650.025V
Overdischarge: Iron Lithium 2.350.1V
Equalization: Iron Lithium 3.50.025V
Current: 100A
Charging current (same port): 50A
Main circuit on-resistance: 5MΩ
Discharge overcurrent protection: 60010A
Temperature control protection: charge at 75C, discharge at 75C
Working temperature: -20/+80
Short circuit protection: 350US
Self-consumption: 40UA
Product application range: for Inverter, solar street lamp, electric tool, photovoltaic energy storage UPS, etc,

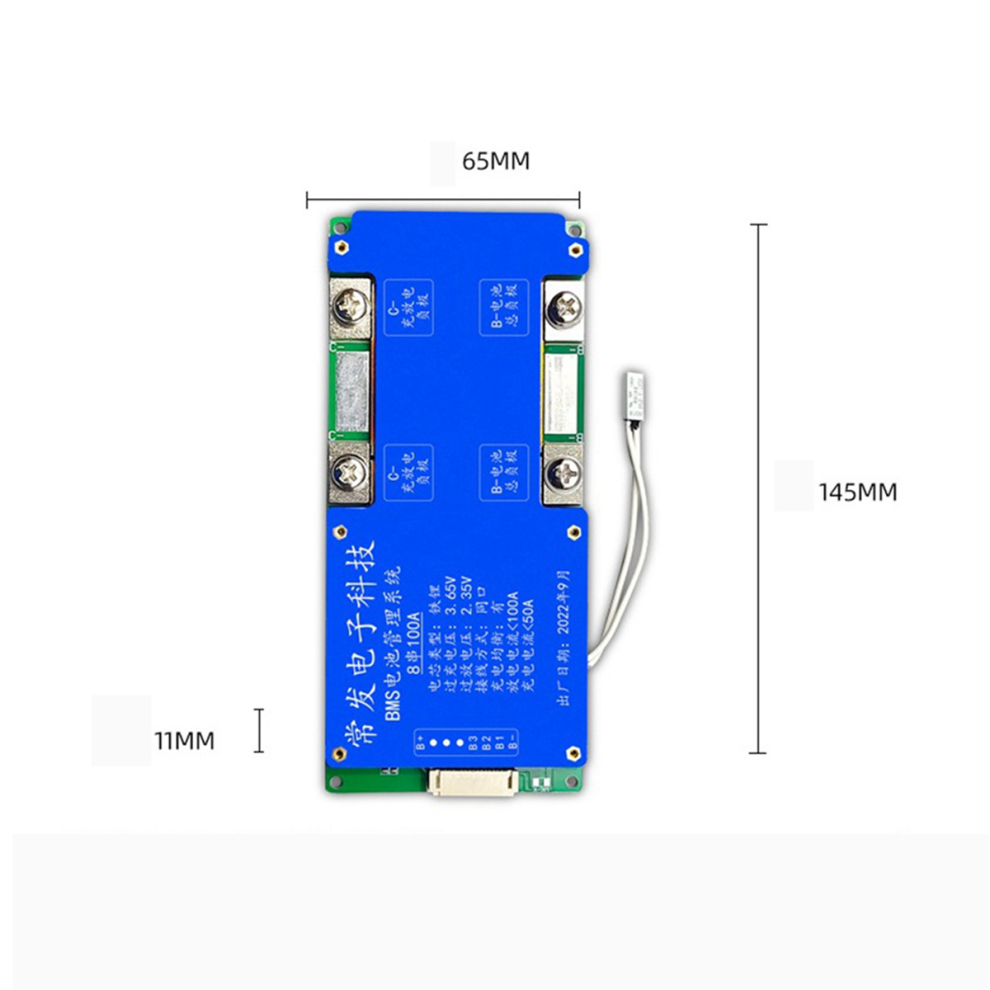

Product size: 145 x 65 x 11mm
color:Blue
Material:PCB+Metal

Package Contents:
2 x lithium battery protection board
2 x cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
