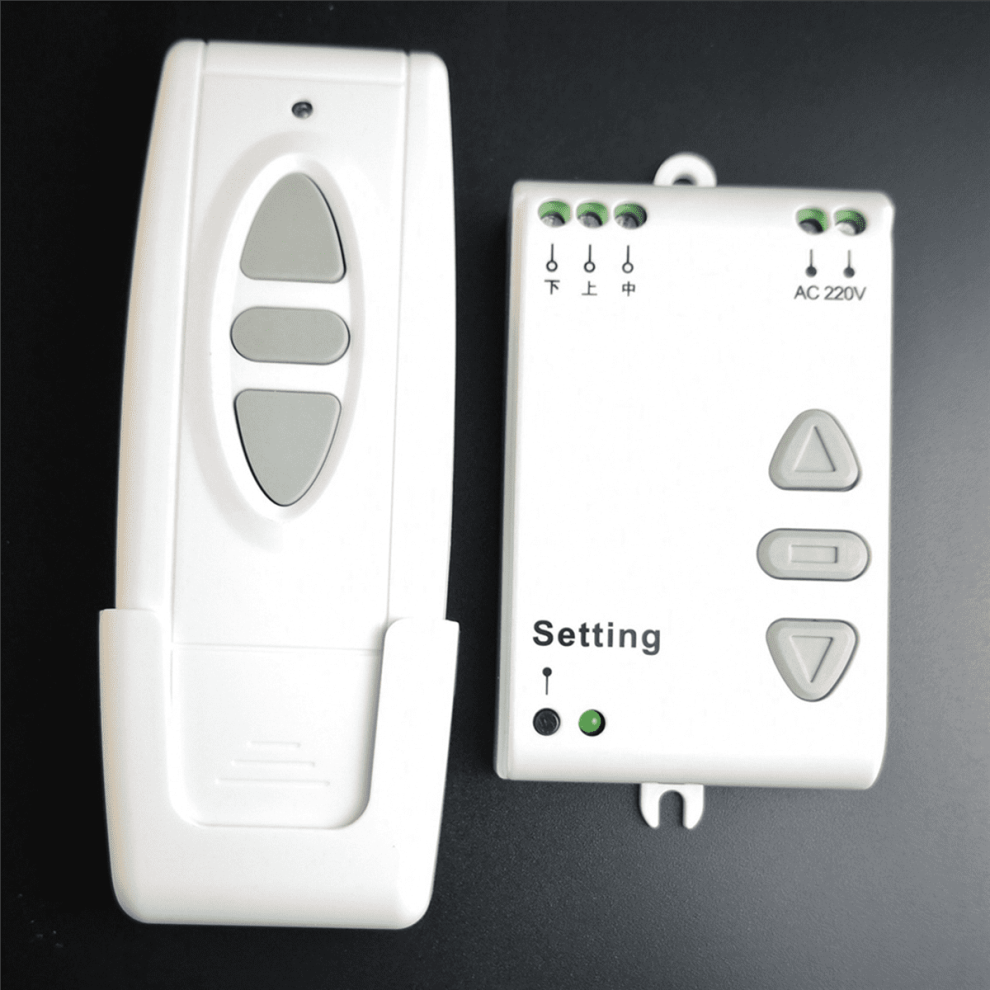

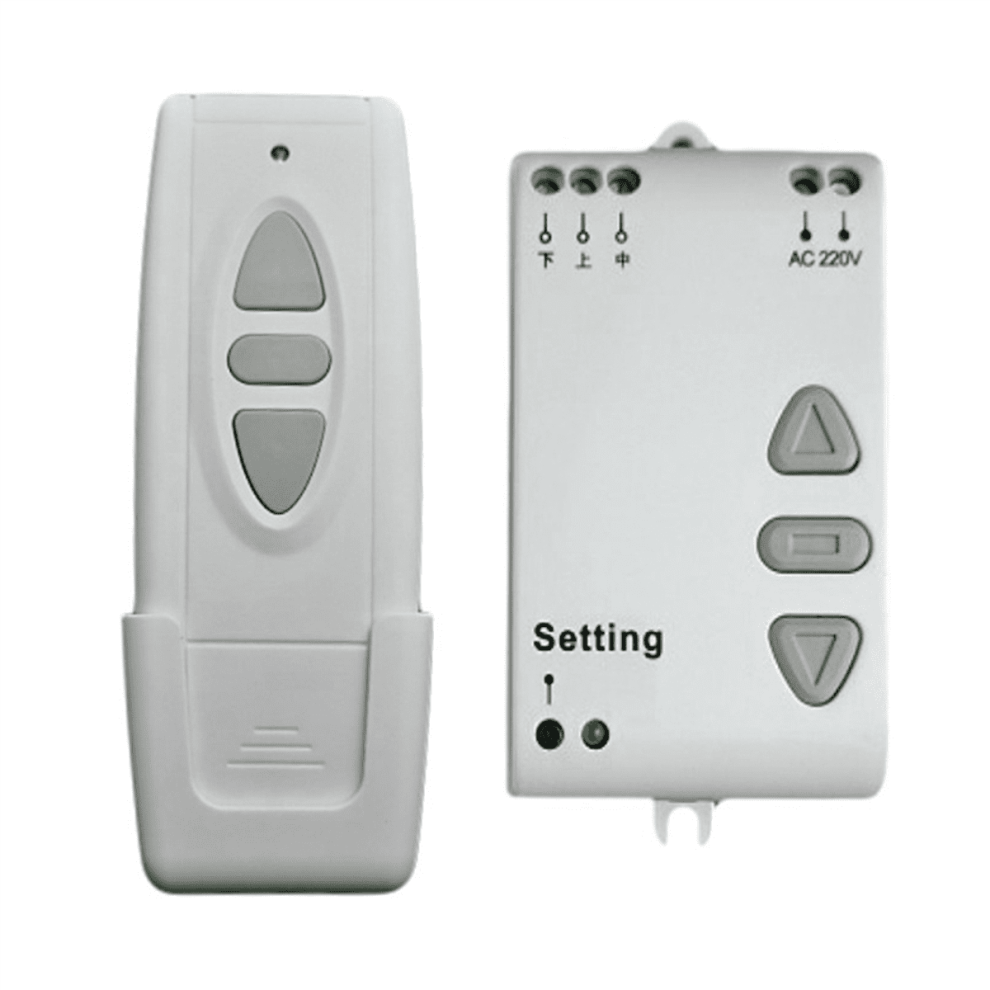

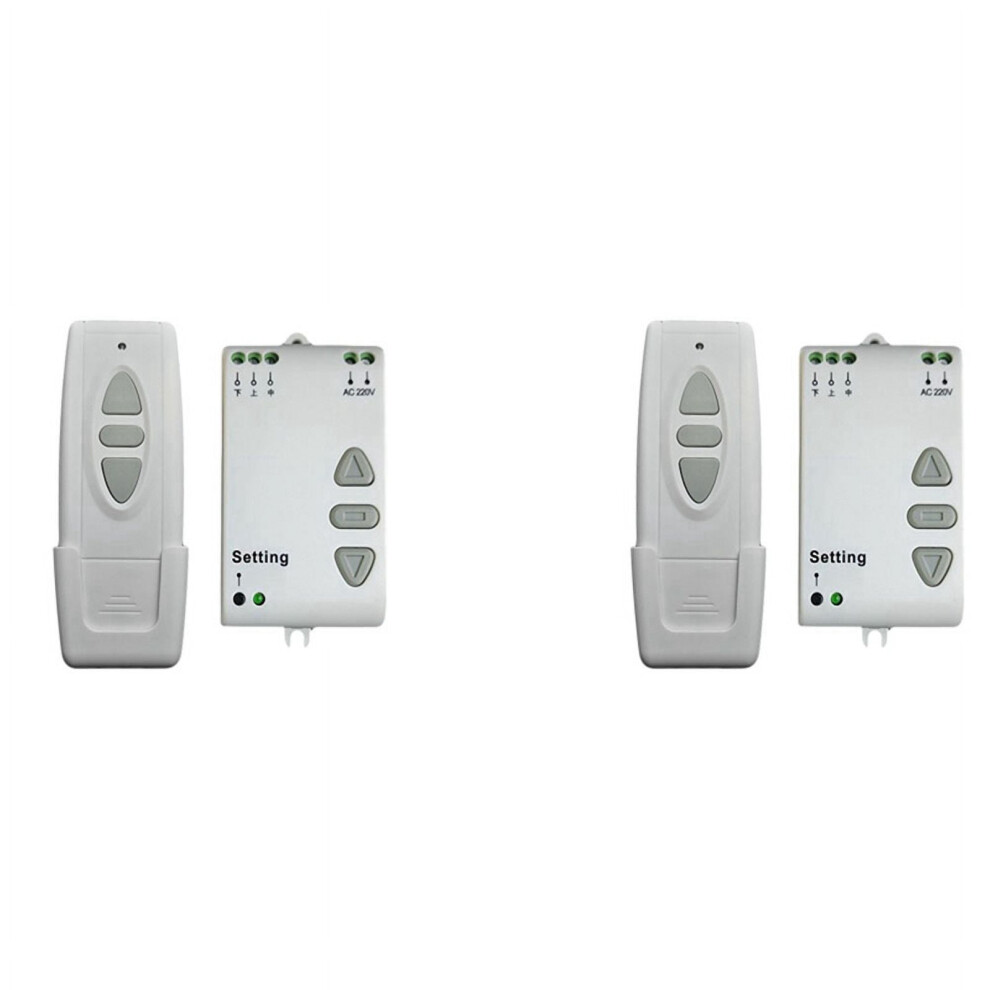

2X AC220V Motor Remote Projection Screen Motor Wireless Switch 433MHz UP Down Stop Forwards Reverse

2X AC220V Motor Remote Projection Screen Motor Wireless Switch 433MHz UP Down Stop Forwards Reverse Description

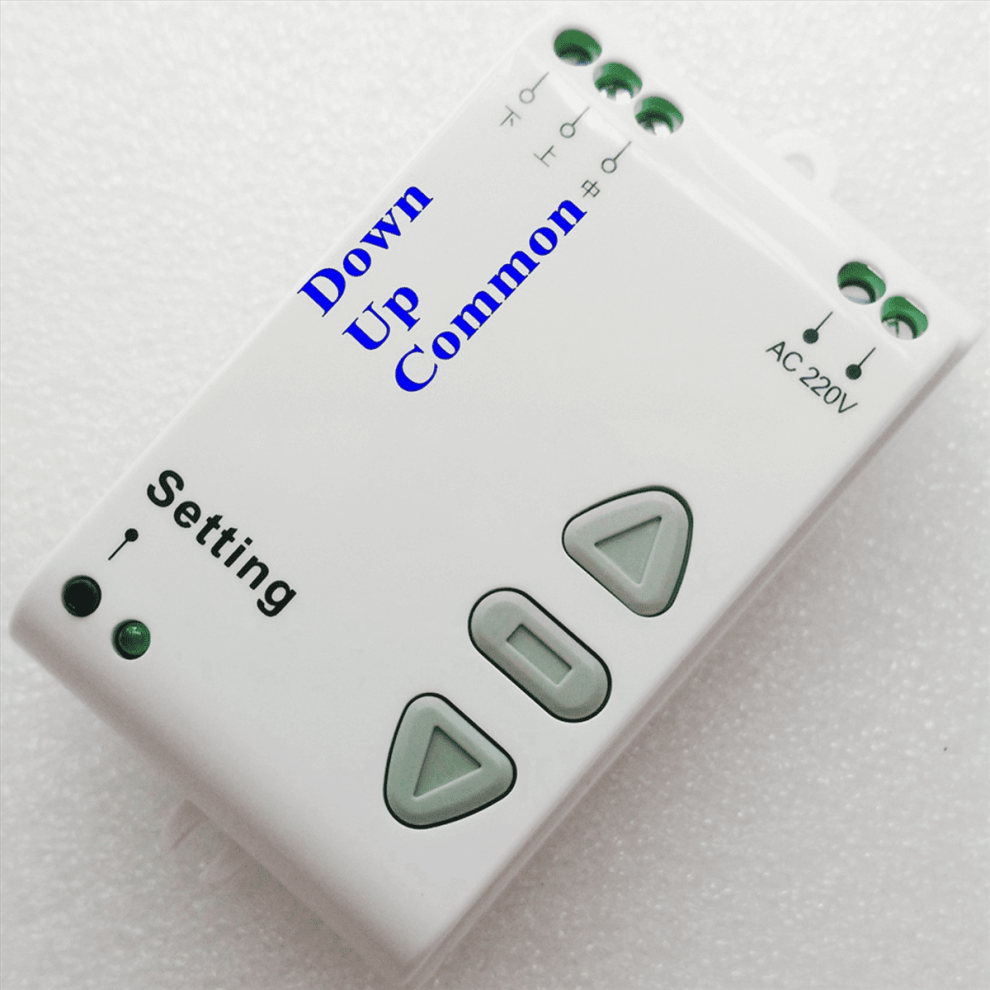

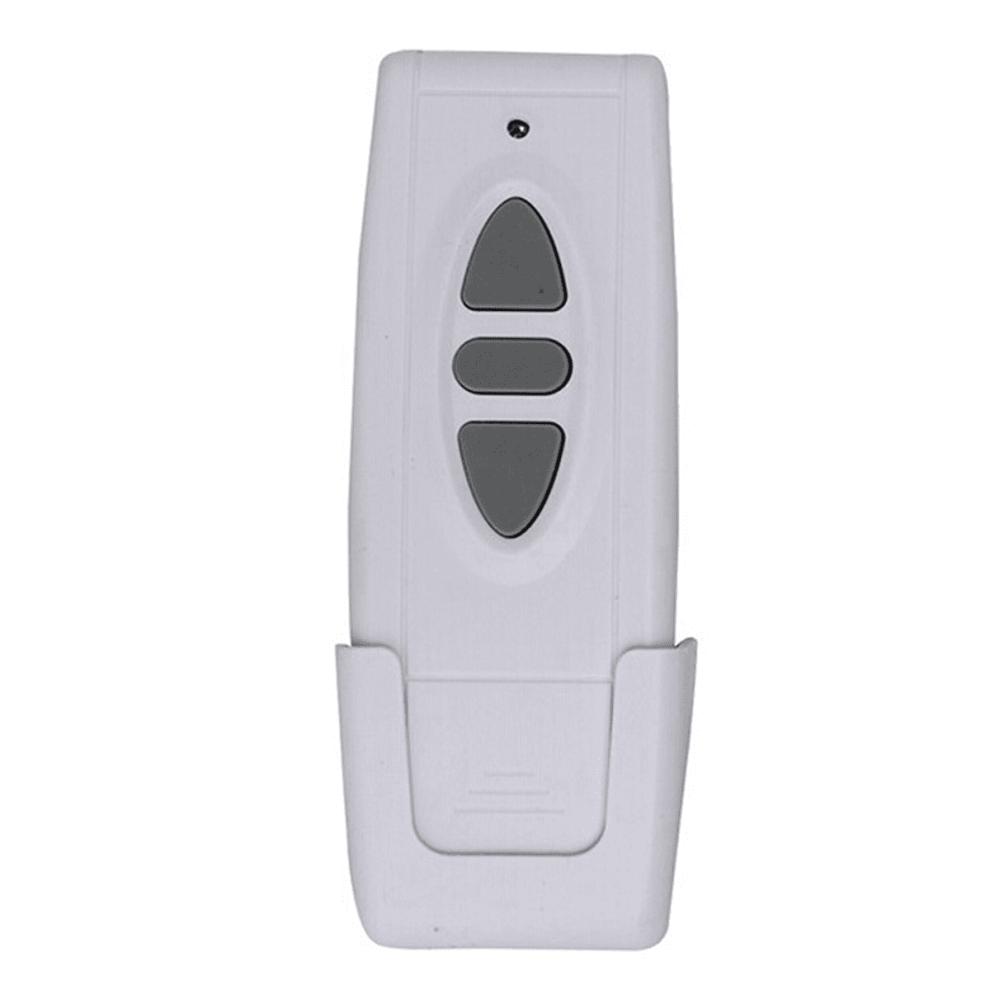

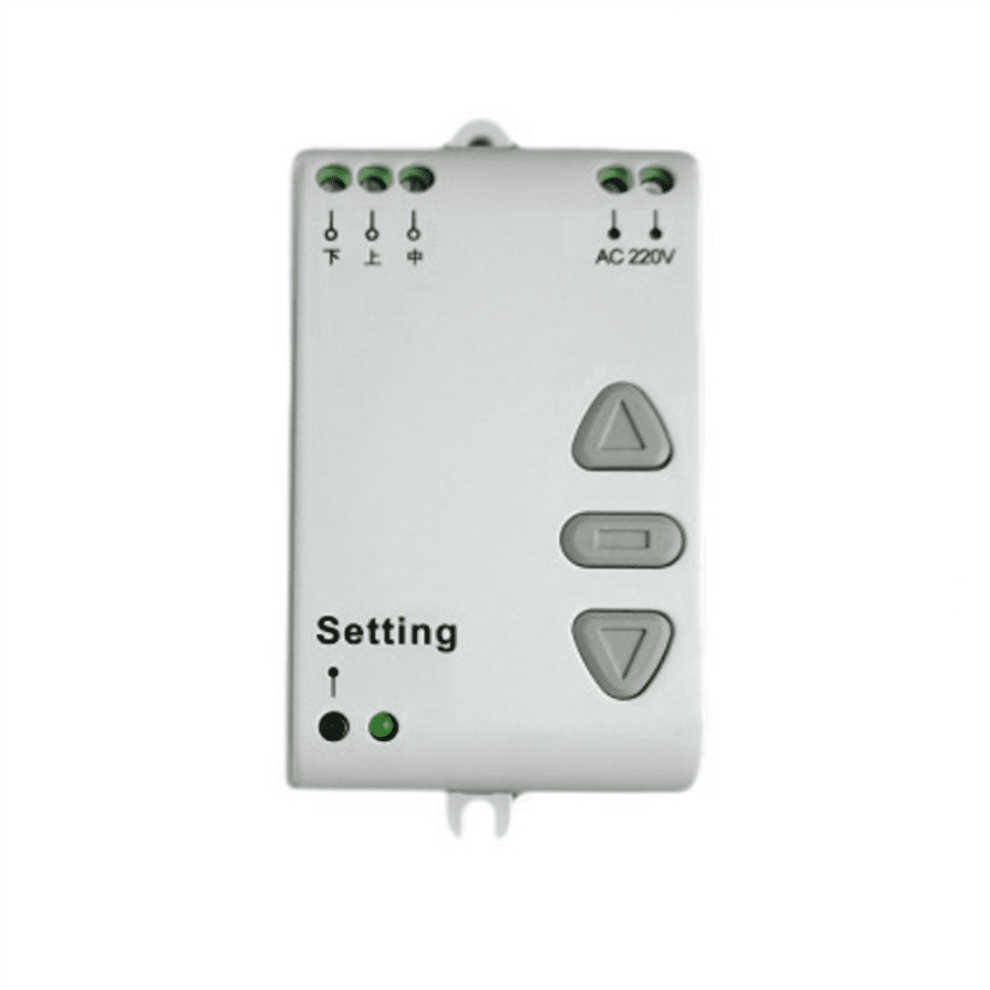

Output State: Latched Latched------------------ Press button"Up Triangle", the Motor Forward, Press Button "Square" is stop. Press Button " Down Triangle" , the Motor Reverse, Press Button"Square"is stop Encoding Type: Learning Code (Learning Button to add Transmitter) Receive Size: 83 x 51 x 24mm (L x W x H) Transmitter Size: 120 x 45 x 18mm (L x W x H) Transmitter: 50m Transmitter with a base for fixed it Learning Code Input AC220V for the receiver, press the receiver learning button, the LED indicator flash, then press the transmitter button, the LED indicator OFF, it means the learning is successfully. When you press the Up Stop Down Button, you will hear the sound of the relay. This Controller Perfectly suitable for Tubular Motor, the controller Terminal for Tubular Motor 4 pcs Lines,( Tubular Motor Yellow Green Line connect to GND).This controller with no limited switch Terminal, Tubular Motor itself with Limited Switch Precautions 1. The bottom plate is live, please do not touch it after power on 2. If the motor does not work after installation, you can try to exchange the direction line Colour:White Material:ABS Package Contents: 2 x Wireless Remote Controller(1X 12V 23A battery not included) 2 x Receiving Controller Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm. 2. Output Voltage: 2 pcs Live Line 4. Transmitter & Receiver Button for "Up Triangle" Up/Motor Forward; Button " Down Triangle" for Down/Motor Reverse; Button "Square" for Stop; 3. Function: Manual & Remote Control 1. Input Voltage: AC220V 5. Applicative Motor: AC220V 500W or less Forward Reverse Motor (Forward Line +Reverse Line+ COM Line)
