2X AD8317 High Speed Logarithmic Detector RF Log Detector RF Signal Log Output Power Meter 1M-10000MHz Controller

2X AD8317 High Speed Logarithmic Detector RF Log Detector RF Signal Log Output Power Meter 1M-10000MHz Controller Description

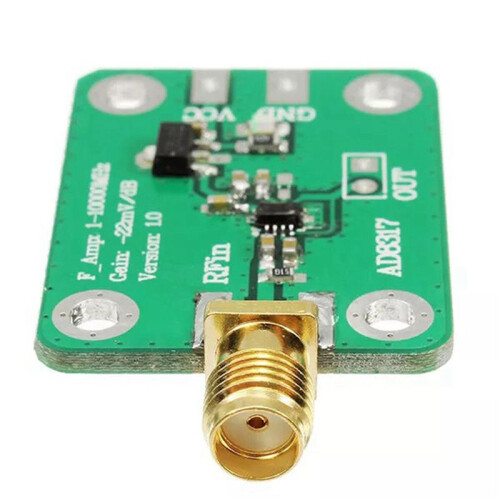

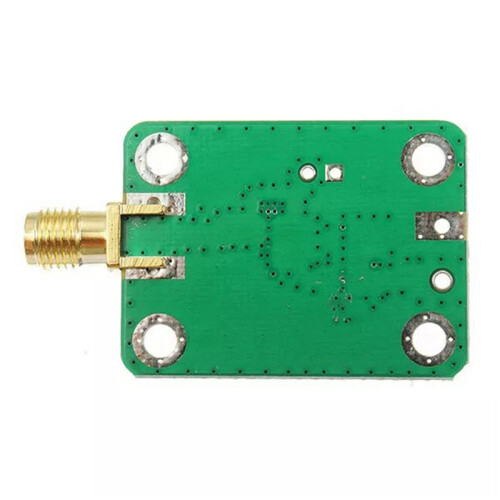

This power meter is designed with for ADI's AD8317 chip and used for RF signal power detection.
Detection frequency range is 1M-10GHz, which can detect an RF signal with a power of -55dBm to -0dBm, and convert this RF signal into voltage output.
The greater the RF signal amplitude or power, the higher the output voltage, and the output voltage is proportional to the logarithm of the input signal amplitude, which expands the dynamic range of the detected signal by 55dB.
Widely applied to RF signal detection, signal power measurement, environmental field strength detection, and can also be used as an integral part of automatic gain control and automatic level control.
This logarithmic detector can withstand high and low temperatures, stable and durable.

Item Type: Logarithmic Detector
SPI interface is easy to connect with arno and single chip microcomputer with 2.54mm pitch pins
Temperature Measurement Range: 0 to 1024
Converter Temperature Resolution: 0.25
Working Voltage: 3. 0~5. 5V
Working Current: 50mA
Operating Temperature Range: -20~85
Colour: green
Material: plastic

Package Contents:

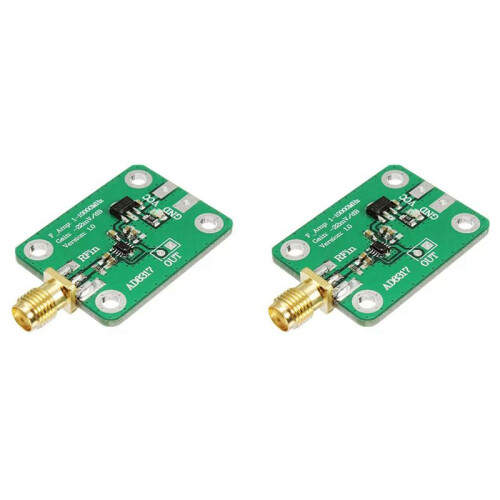

2 x RF Log Detector
