2X ES9018K2M Audio Decoder HIFI USB Sound Card Decoding Support 32Bit 384KHz for Power Amplifier Home Theater

2X ES9018K2M Audio Decoder HIFI USB Sound Card Decoding Support 32Bit 384KHz for Power Amplifier Home Theater Description

The part adopts ES9018K2M decoding of American company. The decoding chip supports 32bit/384kHz, and DSD, with excellent dynamic DNR: 127dB; low distortion +N 120dB
USB decoding chip supports 24bit 96kHz
Multiple sets of LDOs are used to avoid interference between different circuits, digital-to-analog separation of ground lines, and reduction of interference
The op amp part is powered by positive and negative voltage, and 3 op amps are used. Two (TI NE5532) are responsible for I/V conversion and LPF. One (TI TL072) is responsible for differential single-ended, the bottom of the op amp. The installation of Taiwan Zhengling 's socket not only ensures good contact, but also facilitates the replacement of different styles of op amps by fans.
Power supply mode: USB power supply

Support XP/VISTA, 7/8/10; OS; Plug and Play

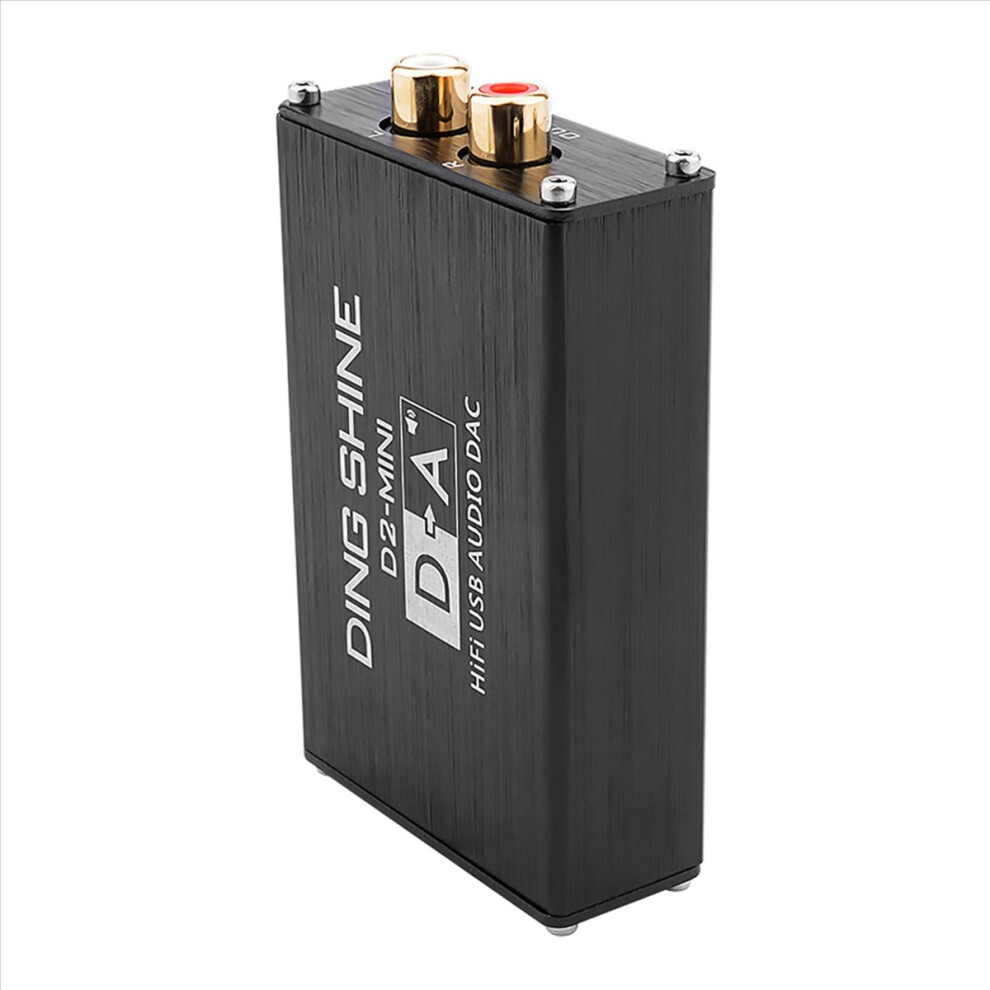

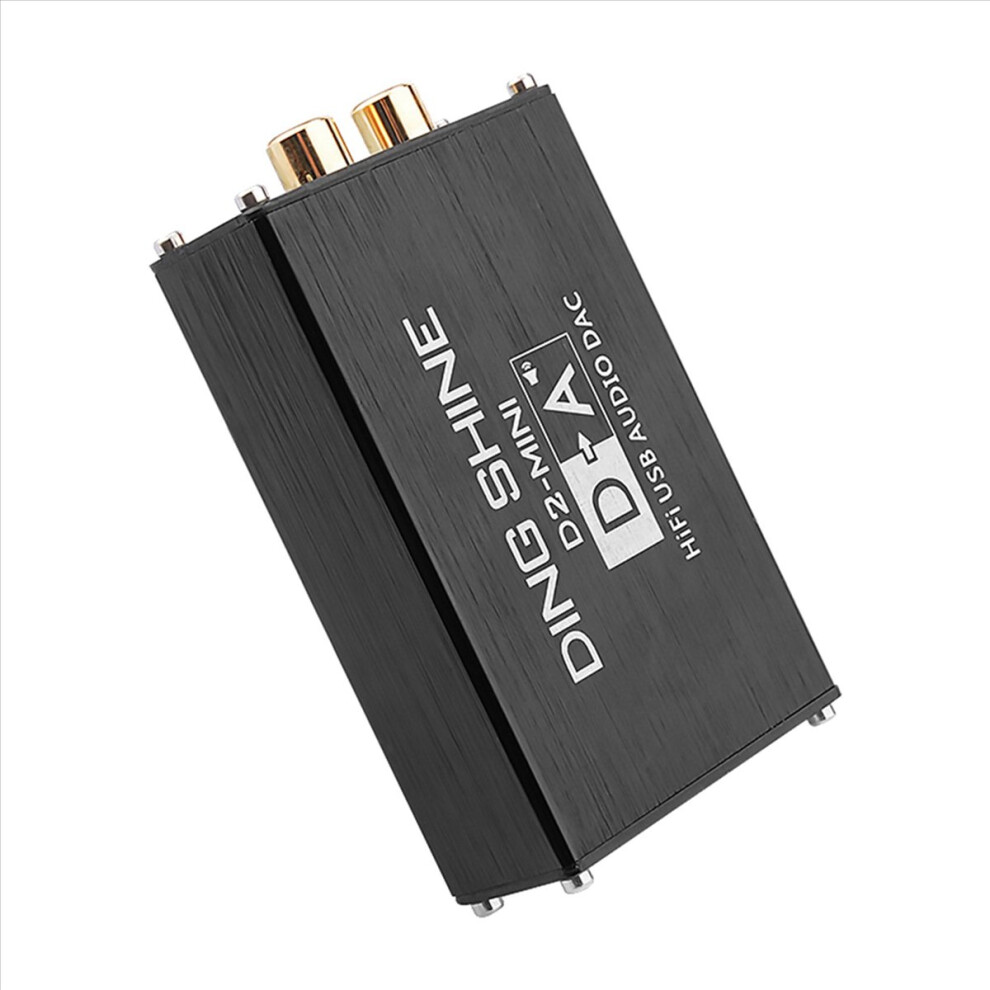

Ribbed process chassis, the appearance of throwing away from the same price machine , gold-plated terminal output. line output on the board, can be connected to active speakers or amplifiers, can not directly connect passive speakers

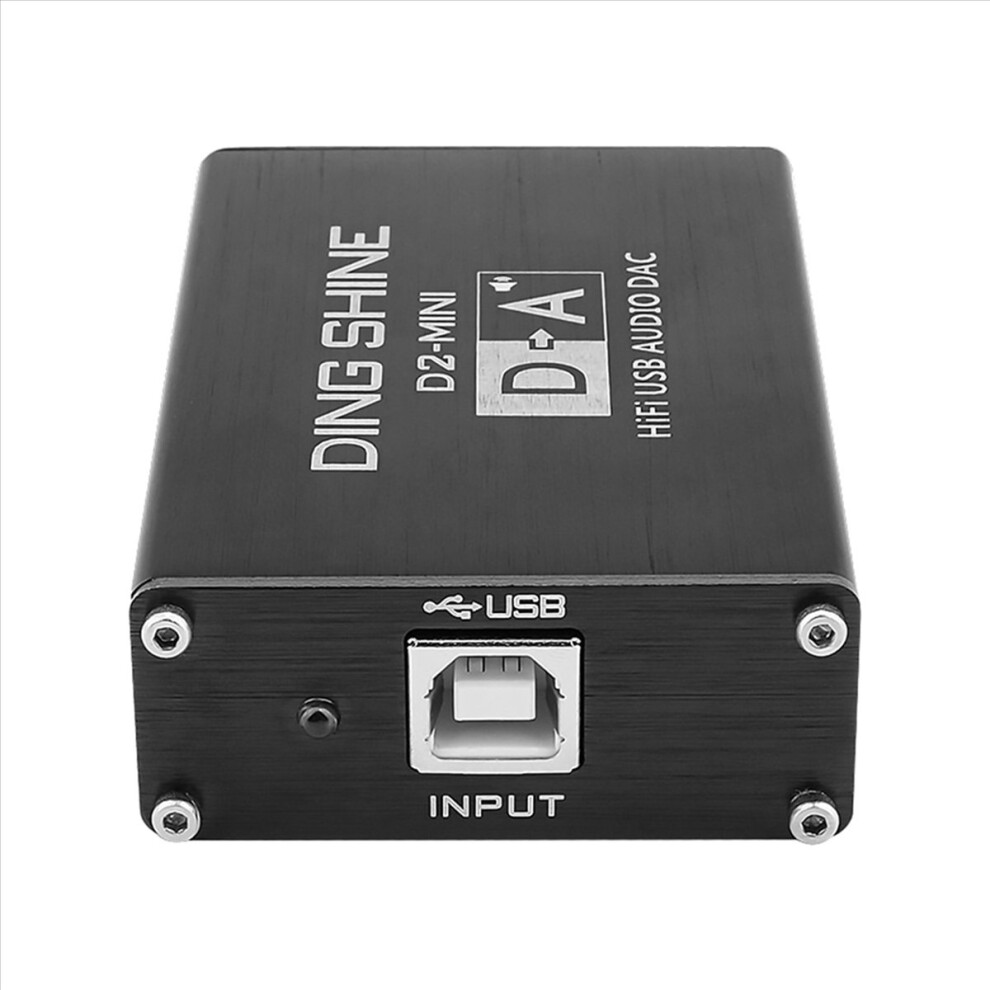

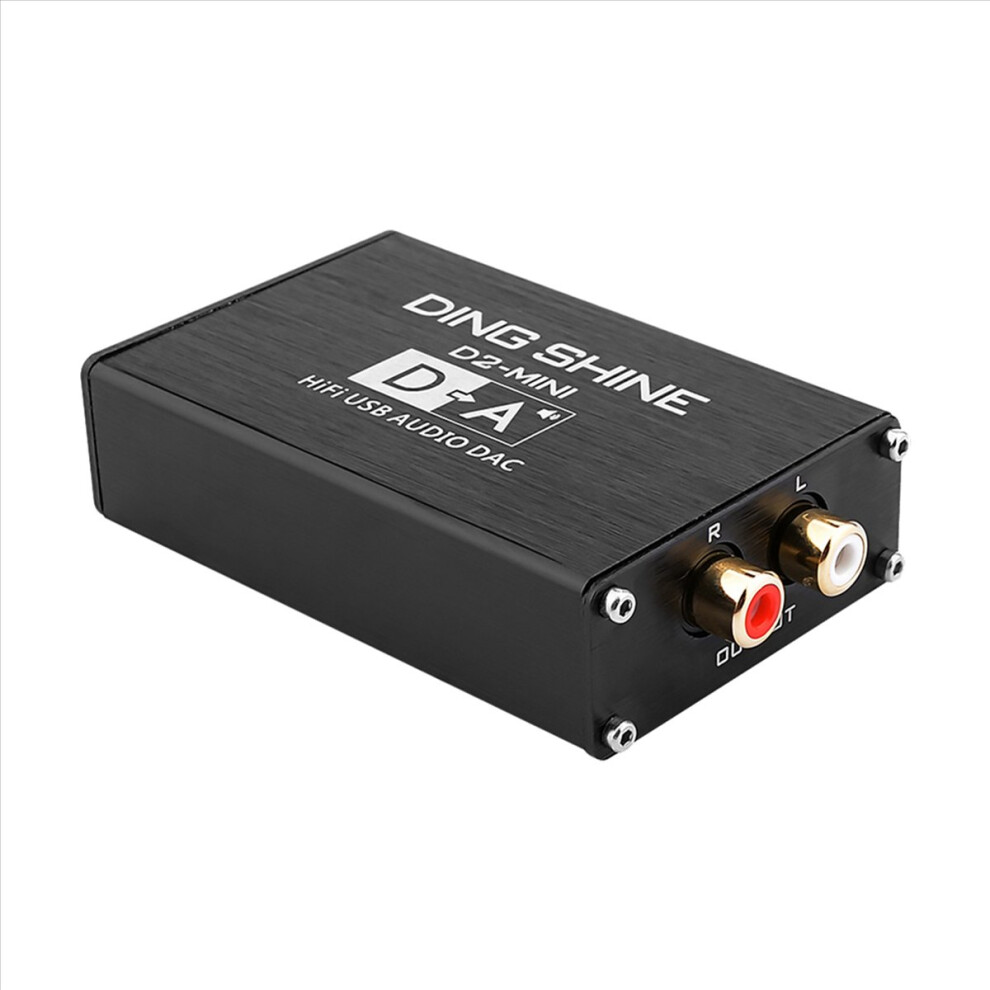

Input: USB interface; Output interface: (double lotus)

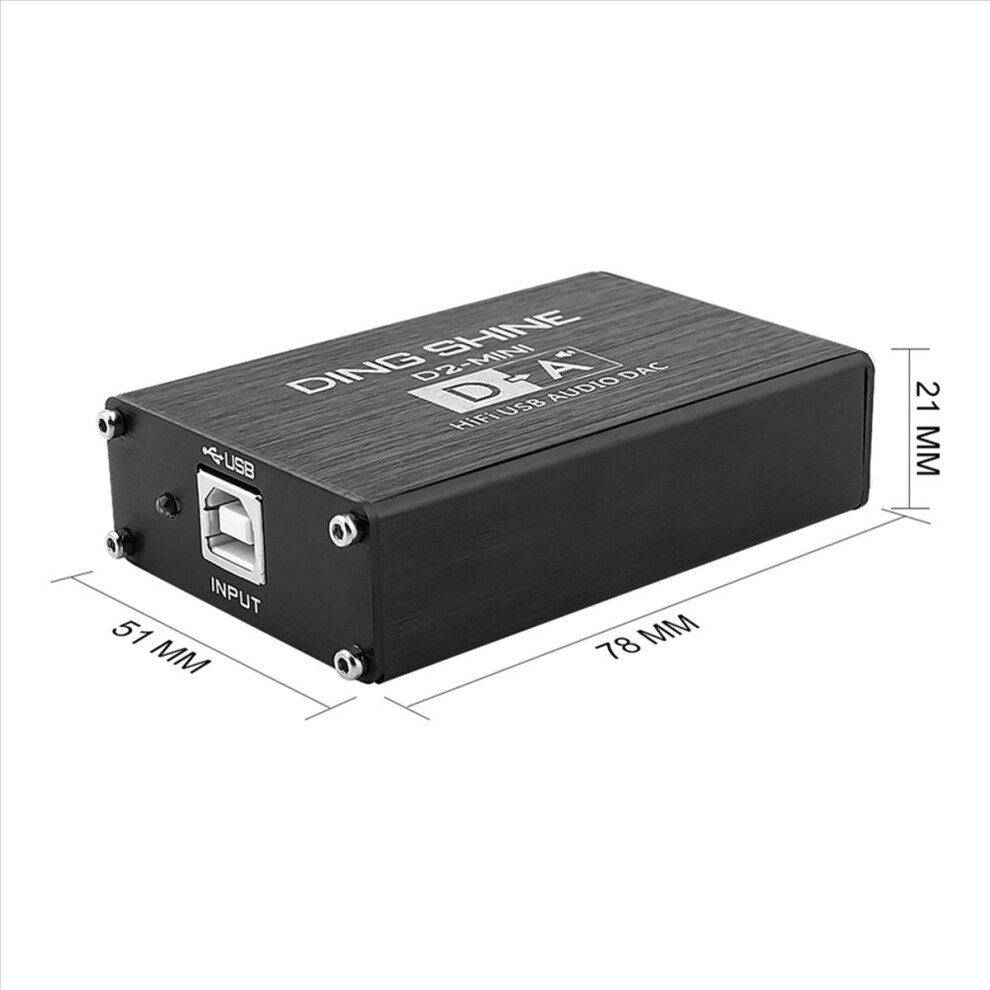

Size: length 78mm x width 51mm x 21mm
Colour: As Shown
Material: ABS

Package Contents:

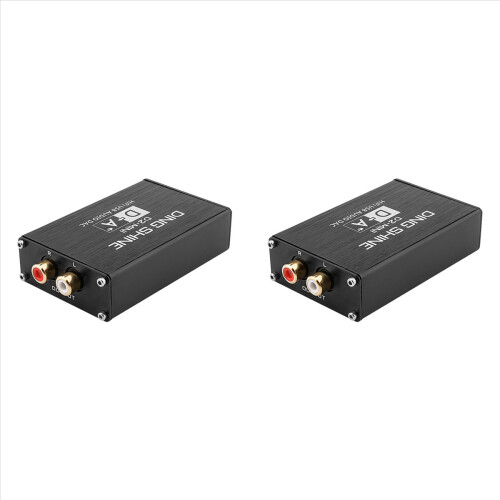

2 x Audio Decoder

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
