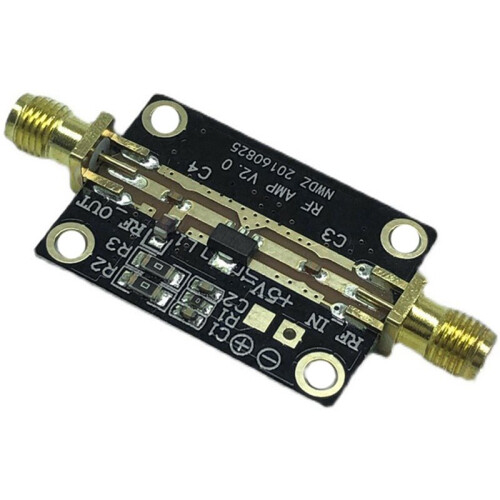

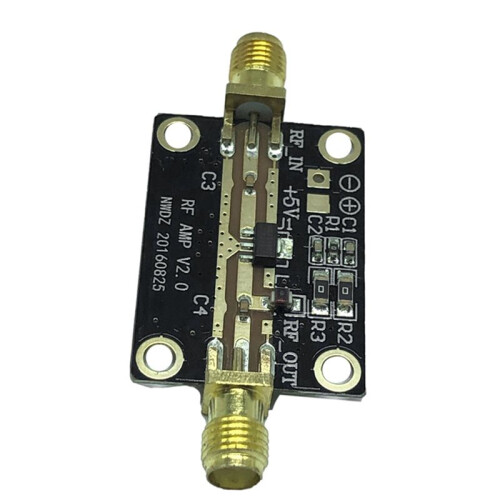

2X High Linear Broadband RF Amplifier 0.05-6G High Performance Medium Power Amplifier Module
Brand Bobotron
New
£16.39
Similar Products we think you'll like
Would you like us to let you know when it's back?
Description & Details
Summary
- 1. Power supply voltage: typical+5V (typical current value 90mA)
- 2. Gain: typical 20dB@2G Input and output impedance: 50 ohms
- 3. Maximum output power: P1db+20dBm (@ 2GHz
- 4. Input signal:Less than +10dBm (output signal is distorted when input is greater than+10dBm)
- 5. Bandwidth: 0.05-6GHz (the gain varies at different frequencies, please refer to S21 curve index for details)
2X High Linear Broadband RF Amplifier 0.05-6G High Performance Medium Power Amplifier Module Description
1. Power supply voltage: typical+5V (typical current value 90mA)
2. Gain: typical 20dB@2G Input and output impedance: 50 ohms
3. Maximum output power: P1db+20dBm (@ 2GHz
4. Input signal:Less than +10dBm (output signal is distorted when input is greater than+10dBm)
5. Bandwidth: 0.05-6GHz (the gain varies at different frequencies, please refer to S21 curve index for details)
Noise figure: 4.1dB@1GHz
Material: PCB
Color as shown
Package Contents:

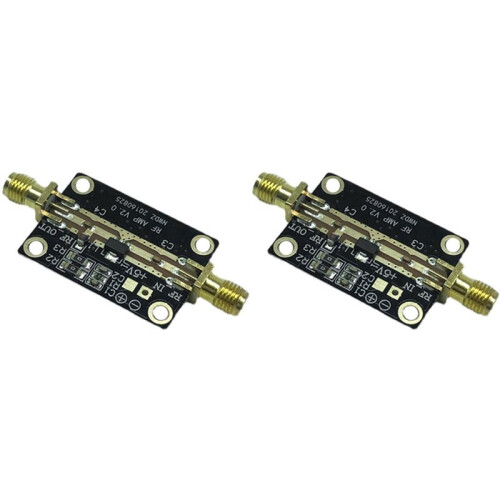

2 x RF module
Details
| OPC | PWHQQV6 |
|---|---|
| Brand | Bobotron |
| Codes | 6031290792294 (EAN) |
Product Data
| Height | 2cm |
|---|---|
| Width | 2cm |
| Length | 5cm |
| Weight | 0.016kg |
| Colour | As Shown |
| Material | PCB |
