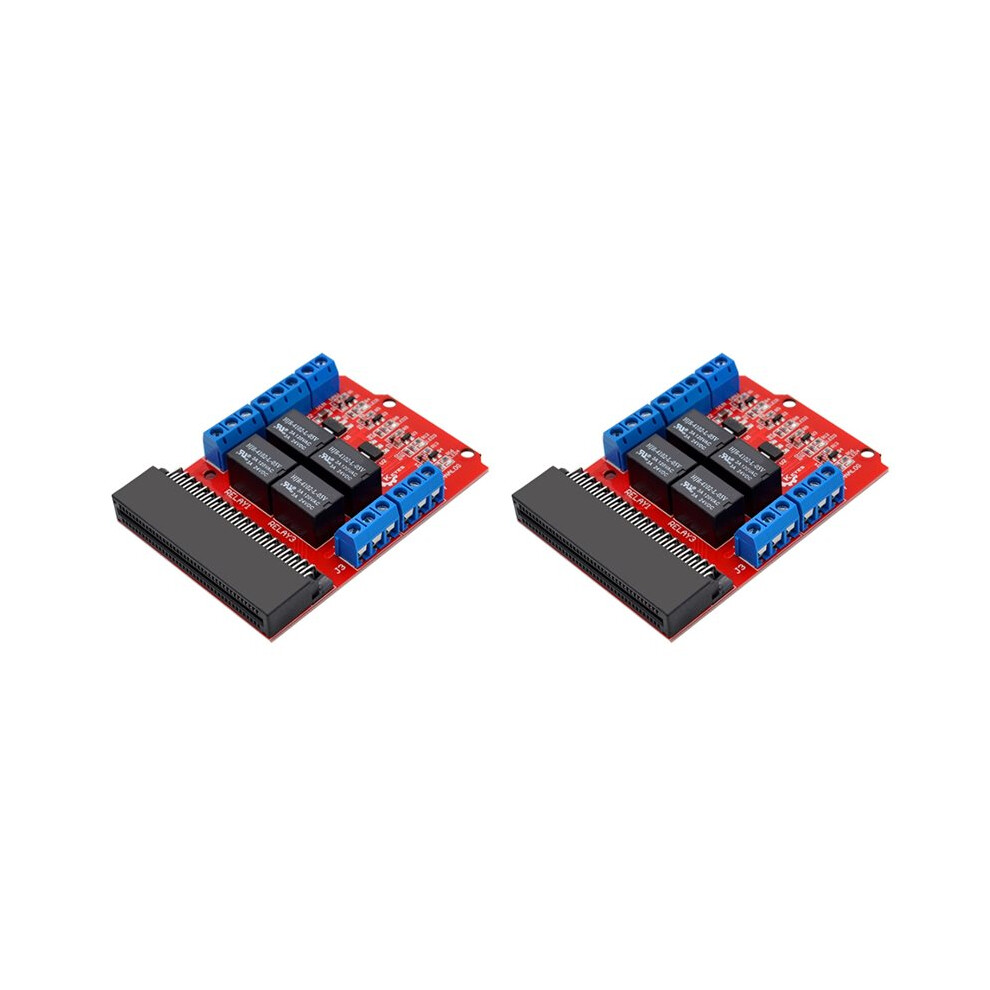

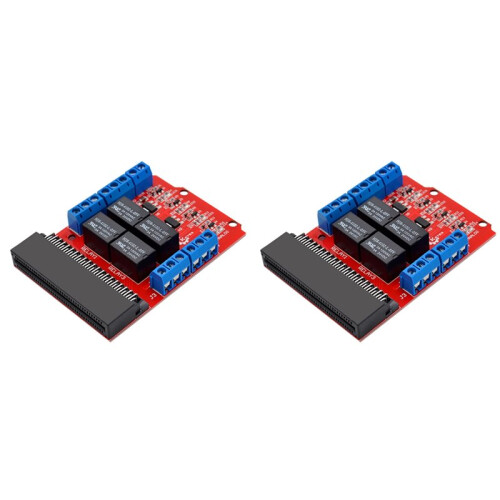

2X Microbit 4 Channel Relay Module Shield 5V High Trigger Programming Educational Kids Teaching Microbit Expansion Board
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (£1.54) | Sat 18th - Fri 24th Jul
Returns: 30 days
180-day payment protection
Most Popular in Trackpads
Summary
- Product Overview: micro: bit is an entry level development board designed by BBC for teens programming education.
- It supports the PXT graphical programming interface developed by Microsoft and can be used under FOR Windows, MacOS, IOS, Android and many other operating systems without downloading the compiler.
- It has integrated a 4-way 5V relay module, fully compatible with for micro: bit development board.
- It can work by inserting micro: bit into keyes relay shield, then inputting DC 5V voltage on the relay VIN GND port, pretty simple and convenient. 4-way relay on the board is active at High.
- Its control terminals are respectively connected to P4, P3, P7 and P6 of the micro: bit development board. You only need to control the high or low output level of P4, P3, P7 and P6, thus control the 4 relay on/off.
2X Microbit 4 Channel Relay Module Shield 5V High Trigger Programming Educational Kids Teaching Microbit Expansion Board Description
Product Overview: micro: bit is an entry level development board designed by BBC for teens programming education.
It supports the PXT graphical programming interface developed by and can be used under FOR Windows, MacOS, IOS, Android and many other operating systems without downloading the compiler.
It has integrated a 4-way 5V relay module, fully compatible with for micro: bit development board.
It can work by inserting micro: bit into keyes relay shield, then inputting 5V voltage the relay VIN GND port, pretty simple and convenient. 4-way relay the board is active at High.
Its control terminals are respectively connected to P4, P3, P7 and P6 of the micro: bit development board. You only need to control the high or low output level of P4, P3, P7 and P6, thus control the 4 relay /off.
Description:
Voltage input: 5V
Working Mode: active at High level
Contact Capacity: AC120V/3A; DC24V/3A
Material: plastic
colour: red black
Package Contents:
2 x Microbit Expansion Board
Details
| OPC | PVPHCP2 |
|---|---|
| Codes | 6034215228755 (EAN) |
Product Data
| Height | 4cm |
|---|---|
| Width | 6cm |
| Length | 9cm |
| Weight | 0.108kg |
| Colour | Red Black |
| Material | Plastic |
