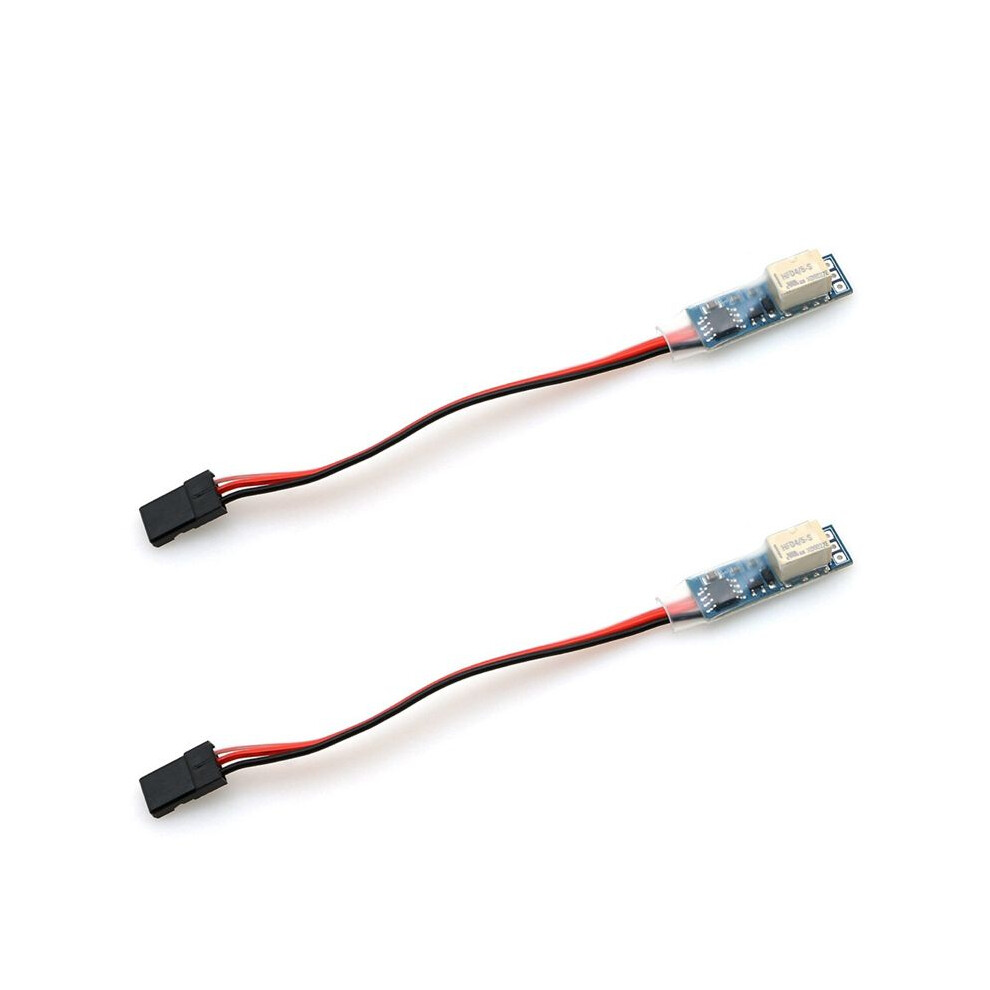

2X PWM Relay 5V Receiver 20A Electronic Controller Module DIY Model Universal -Off for FPV RC Drone
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 130,000 Trustpilot reviews and an 'Excellent' rating
£12.14
£20.03
39% off!
+£1.04 Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£1.04) | Mon 10th - Sat 15th Aug
Returns: 30 days
180-day payment protection
Most Popular in Remote Controlled Drones
Description & Details
Summary
- This product is PWM controlled relay switch, different from the field effect tube, it is directly established physical line connection, so can adapt to higher DC voltage, but also can connect to AC.
- Control terminal: Input voltage 5v (connected to receiver)

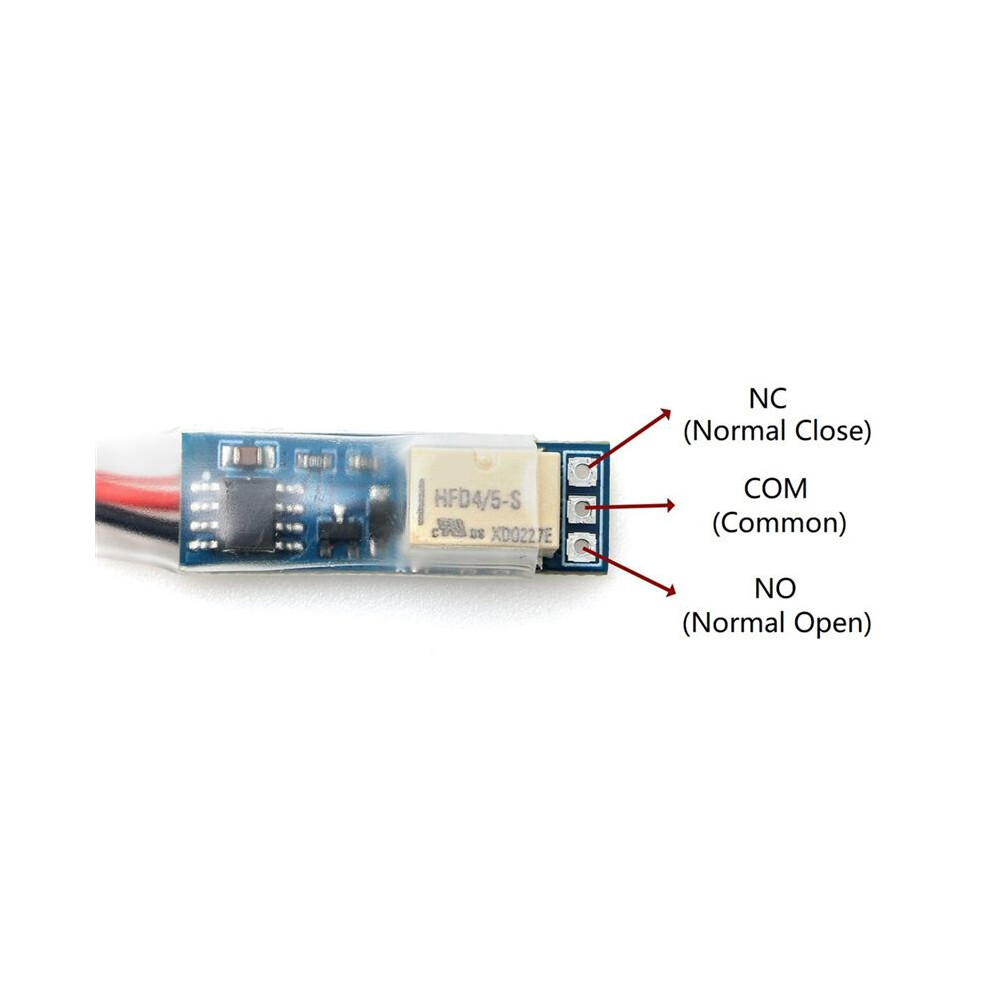

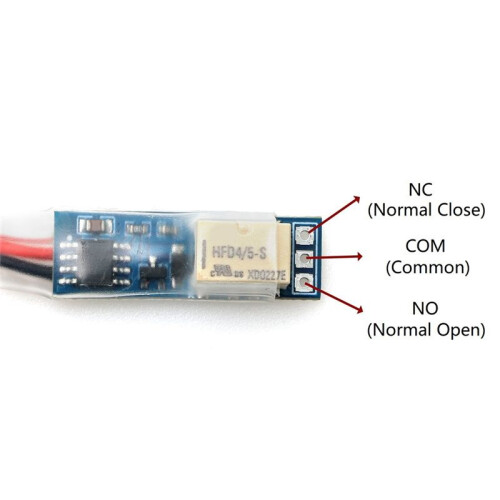

- PWM control: at high ( Greater than 1750us), NO(Normal Open) and COM(Common) are connected (at the same time, NC(Normal Close) and COM(Common) are disconnected).
- (This means that NC(Normal Close) and COM(Common) are connected at all times except Greater than 1750us)

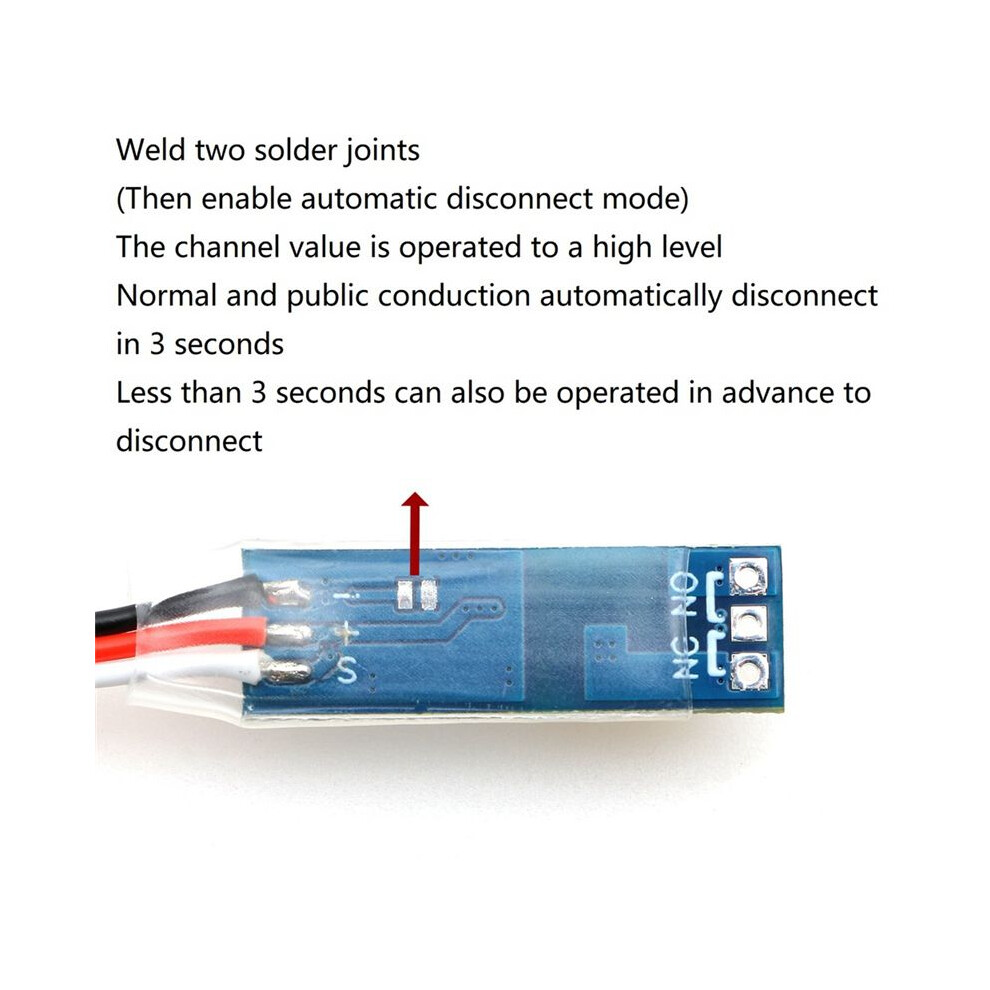

- Here PWM is the steering gear signal, can turn the steering gear, you can use this device There are solder joints can be set to delay 3 seconds, automatic disconnect Connecting end 30V DC allowed current 2A, 125V AC allows current 0.5A
2X PWM Relay 5V Receiver 20A Electronic Controller Module DIY Model Universal -Off for FPV RC Drone Description
This product is PWM controlled relay , different from the field effect tube, it is directly established physical connection, so can adapt to higher voltage, but also can connect to AC.
Control terminal: Input voltage 5v (connected to receiver)
PWM control: at high ( Greater than 1750us), NO(Normal Open) and COM(Common) are connected (at the same , NC(Normal Close) and COM(Common) are disconnected).
(This means that NC(Normal Close) and COM(Common) are connected at all times except Greater than 1750us)
Here PWM is the steering gear signal, can turn the steering gear, you can use this device There are solder joints can be set to delay 3 seconds, automatic disconnect Connecting end 30V allowed current 2A, 125V AC allows current 0.5A

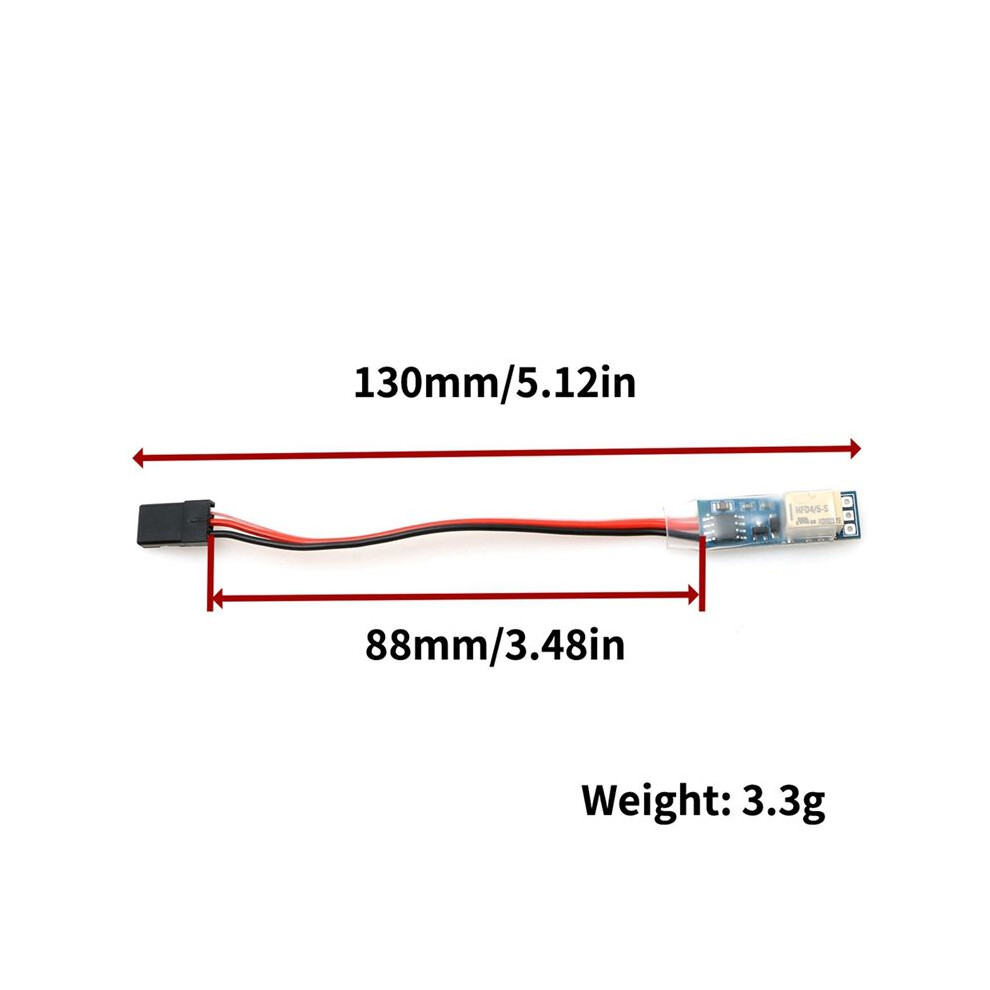

Motherboard size: length width height 29 x 9 x 8 mm
White Relay size only: 10 x 6.5 x 5.4 (mm)
The power consumption of the relay coil is about 140mW
Color: As Shown
Material: composite material
Package Contents:

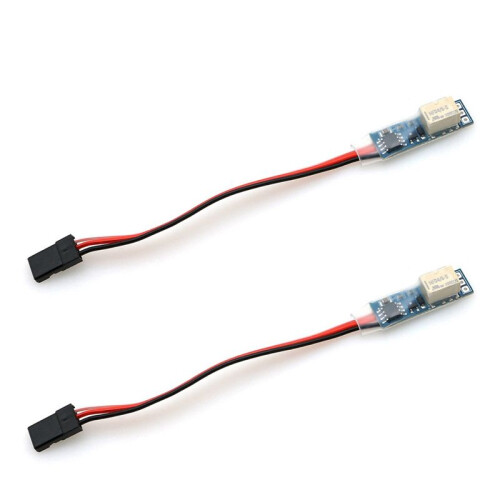

2 x PWM Relay
Details
| OPC | PQ5TKDF |
|---|---|
| Codes | 6031261185698 (EAN) |
| Links | FPV Drones |
Product Data
| Height | 2cm |
|---|---|
| Width | 1cm |
| Length | 3cm |
| Weight | 0.009kg |
| Colour | As Shown |
| Material | composite material |
