2X -SMC01 Stepper Motor Driver and Controller DC 5-30V Reverse Pulse Speed Control Board Programmable PLC Serial

2X -SMC01 Stepper Motor Driver and Controller DC 5-30V Reverse Pulse Speed Control Board Programmable PLC Serial Description

Wide range of applications
LCD display
Automatic manual multi-mode
TTL serial communication

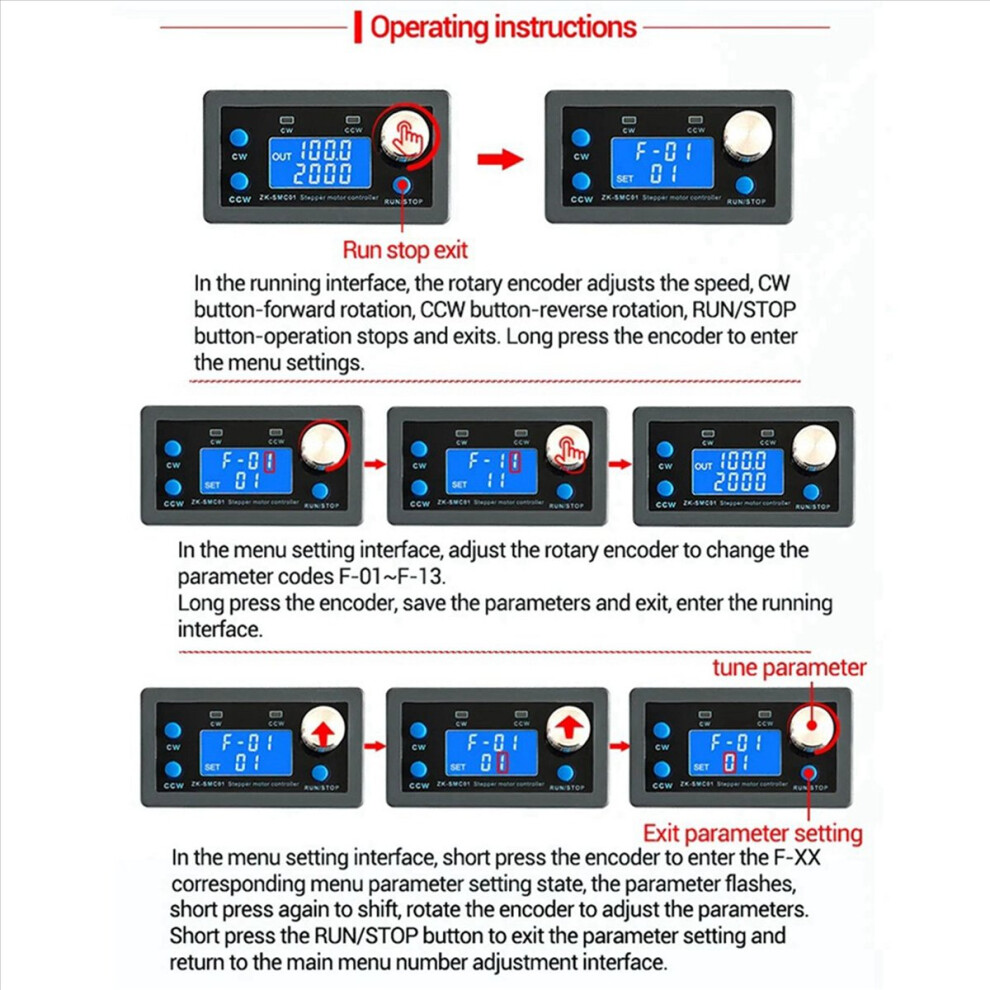

The main functions of the system: automatic, manual, setting, serial port control

This is an operation control module specially designed for single- stepper motors.The module has built-in multiple fixed operation modes,and the user can quickly select the appropriate motion trajectory.You can save and set distance/speed/delay/cycle times when power off.It can run independently as a module,or it can be used in conjunction with other systems.It can be used in general industrial control occasions,but cannot be used in special industries such as medical-treatment and fire protection or in life-critical field

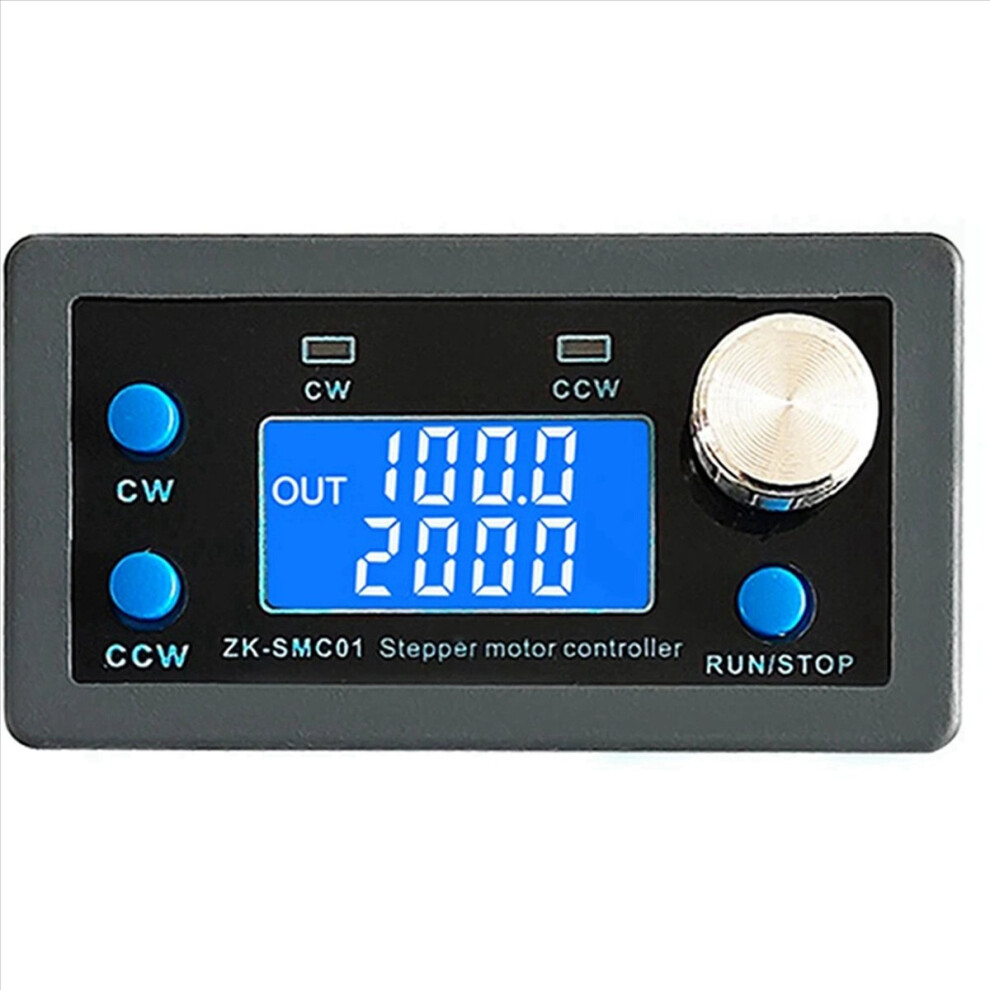

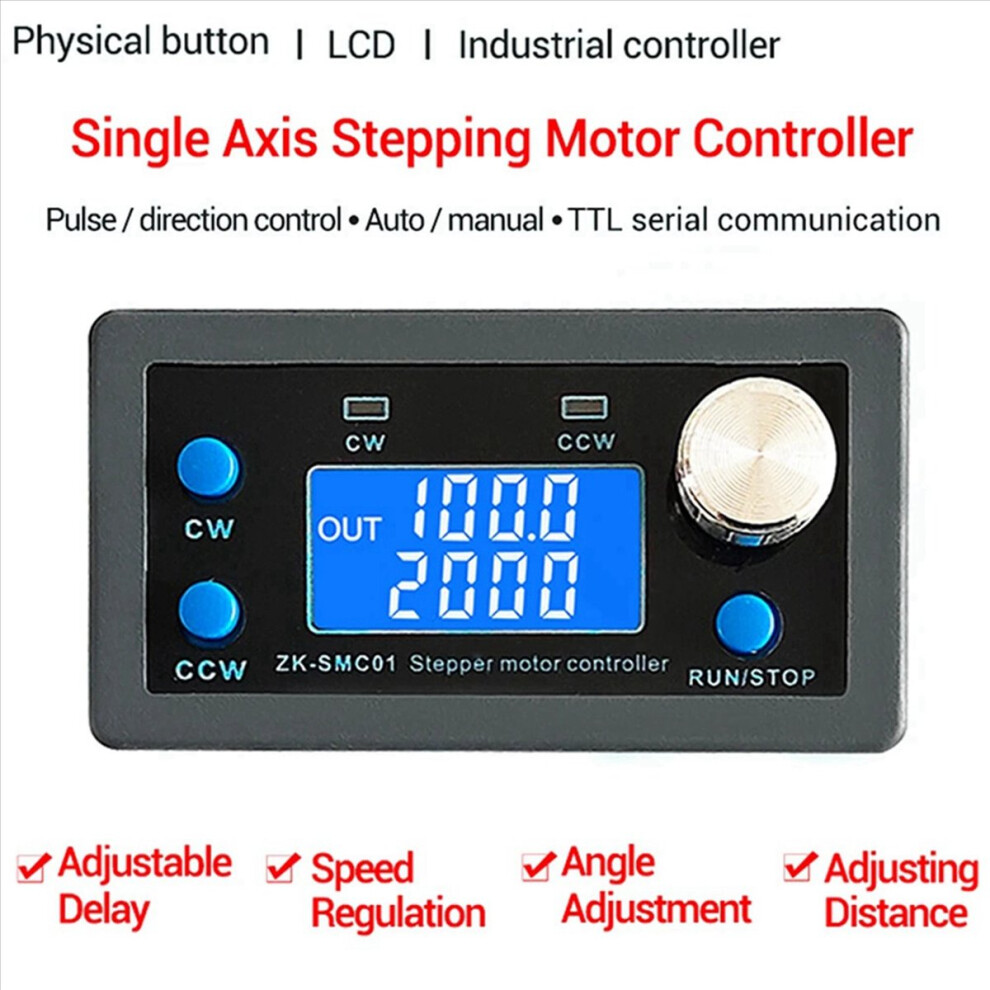

Model:-SMC01 Stepper Motor Controller
Adapter motor:stepper motor
Number of control axes:single
Motor signal:common cathode
Power supply range:DC 5-30V universal
Acceleration and deceleration control:yes
Input reverse polarity protection:yes
Remote communication control:TTL serial port
Main functions of the system:automatic,manual,setting,serial port control
Speed range:0.1-999 laps/min
Number of forward rotation pulses:1-9999 pulse
Number of reverse pulses:1-9999 pulse
Cycle work times:1-9999 time
Forward delay time:0.0-999.9 second
Inversion delay time:0.0-999.9 second
Segment selection range:1-128 segment
Product use environment:-5C-60C(non-condensing)
Colour:As Shown
Material:plastic

Package Contents:

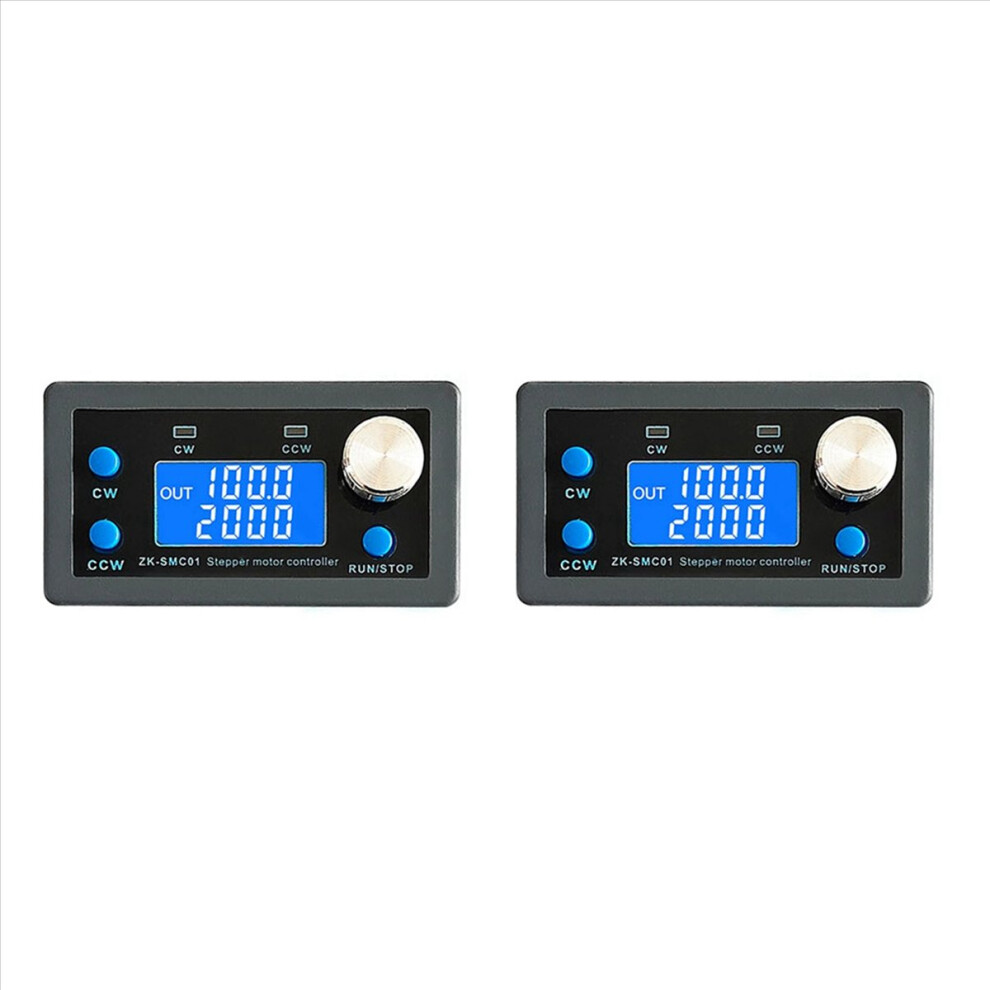

2 * stepper motor controller

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
