3 ‑300 PSI Engine Cylinder Pressure Detection

3 ‑300 PSI Engine Cylinder Pressure Detection Description

3 ‑300 PSI Engine Cylinder Pressure Detection Digital Gauge Repair Tester Kit

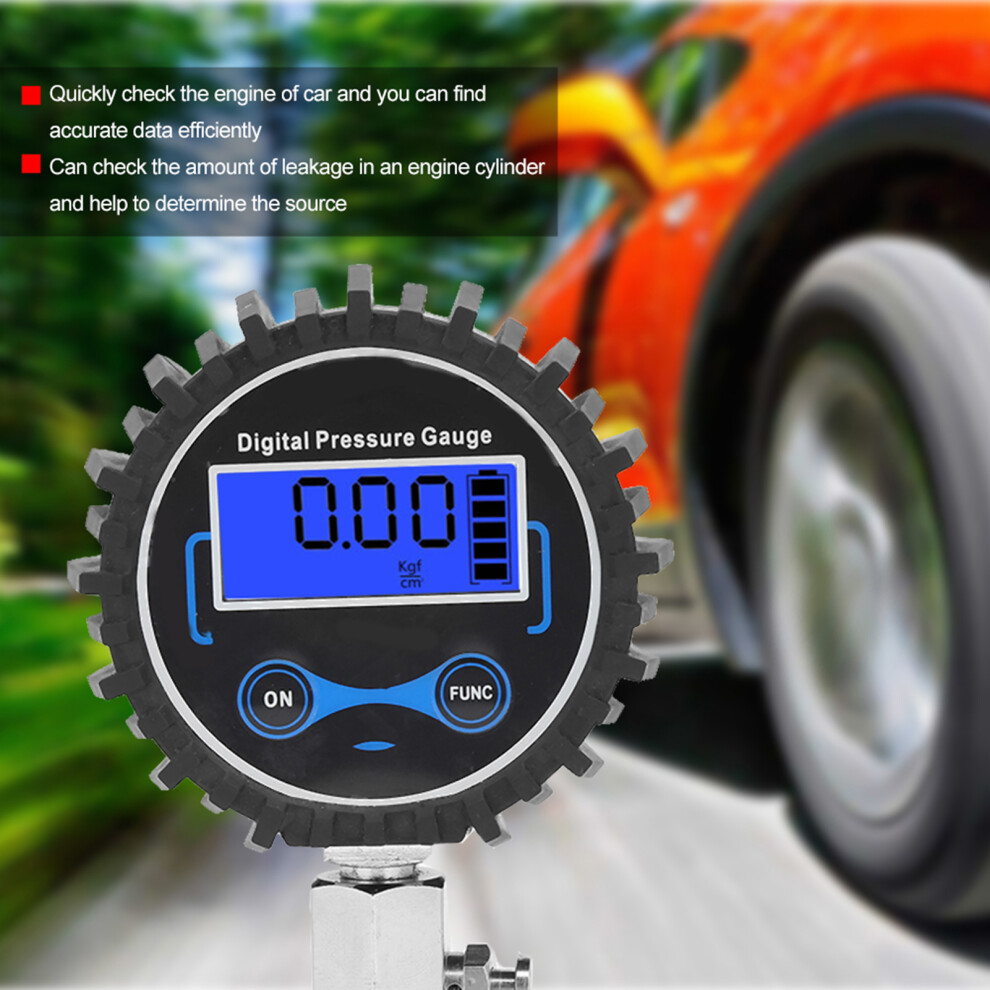

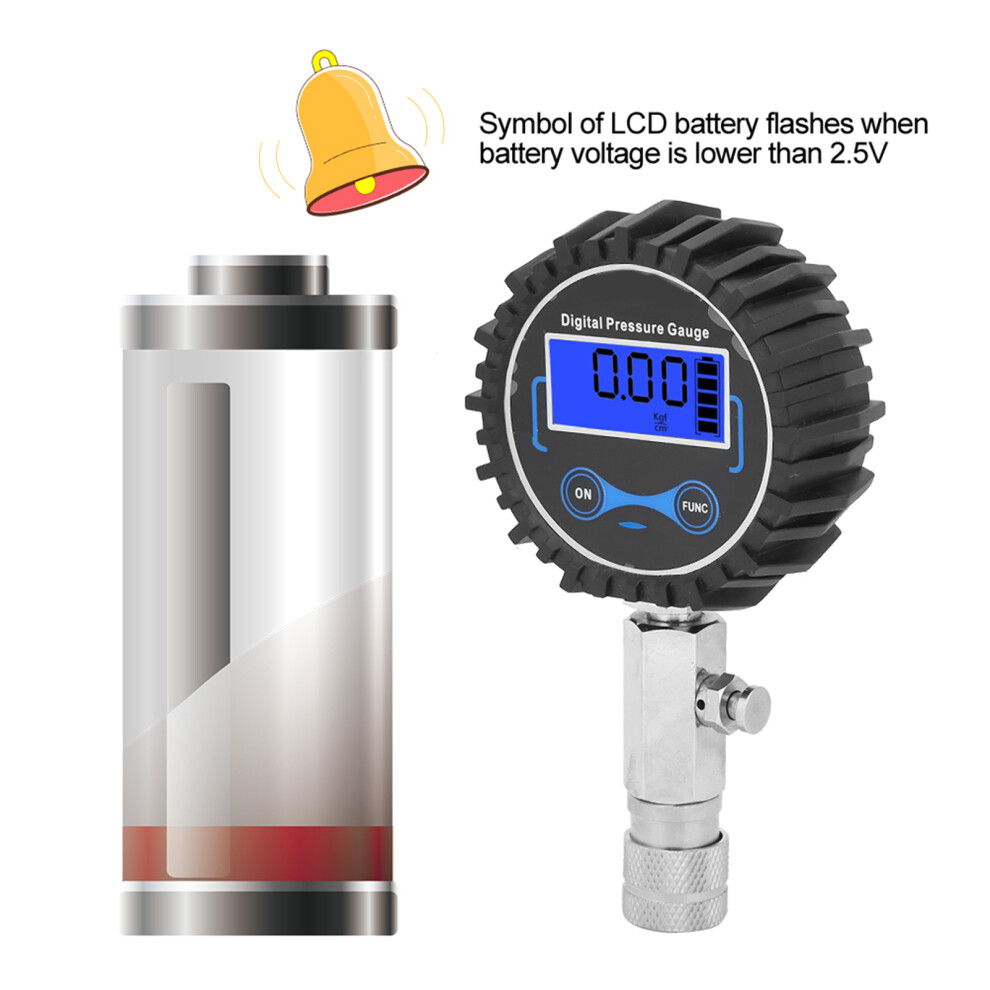

1、Quickly check the engine of car and you can find accurate data efficiently. 2、WIith four adapters, can be used to detect a variety of common engine faults such as worn piston rings, cylinder head cracks, worn valves and blown head gaskets. 3、Can check the amount of leakage in an engine cylinder and help to determine the source. It is easy to read gauges and get proper testing with accurate results. 4、The digital display has 4 switchable units with intuitive digital display, which is convenient to read. 5、Can be deflated, with good performance of sealing, increasing the accuracy of data reading. 6、Double rod test set, applicable to the gasoline engines of car, motorcycles, trucks and petrol vehicles. 7、Symbol of LCD battery flashes when battery voltage is lower than 2.5V, convenient for you to replace the battery in time.



Item Type: Cylinder pressure gauge Condition: Brand new Display Mode: LCD digital display Pressure Unit: Four switchable units of PSI, KPa, Bar, Kgf/cm² Measurement Range: 3 -300 PSI/14BAR/14Kgf/cm² Working Temperature: -20 -80 C Key Function: Switch key (left), unit switched key(right) Working Voltage: DC3.1V (use a pair of AAA batteries) Battery: 1.5V replaceable AAA batteries(not included) Voltage Lower than 2.5V: Symbol of LCD battery flashes Working Current: 3MA or less (with backlight); 1MA or less (without backlight) Static Current: 5UA Function: Compression gauge test set for engine cylinders diagnostic tester Air Pressure Detection of Automobile Cylinder: 1. Designed to detect a variety of common engine failures such as worn piston rings, cylinder head cracks, worn valves and blow head gaskets. 2. Check the amount of leakage in the engine cylinders and help determine the source of gas, so that data of meter reading provides the correct test and accurate results. 3. Suitable for all kinds of car, motorcycles and other vehicles with fuel injection function. 4. This compression tester can be quickly installed in your car to give you accurate readings. 5. Applicable to the gasoline engines of car, motorcycles, trucks and petrol vehicles. Used to find faults in valves, piston rings, cylinder bores or head gaskets.

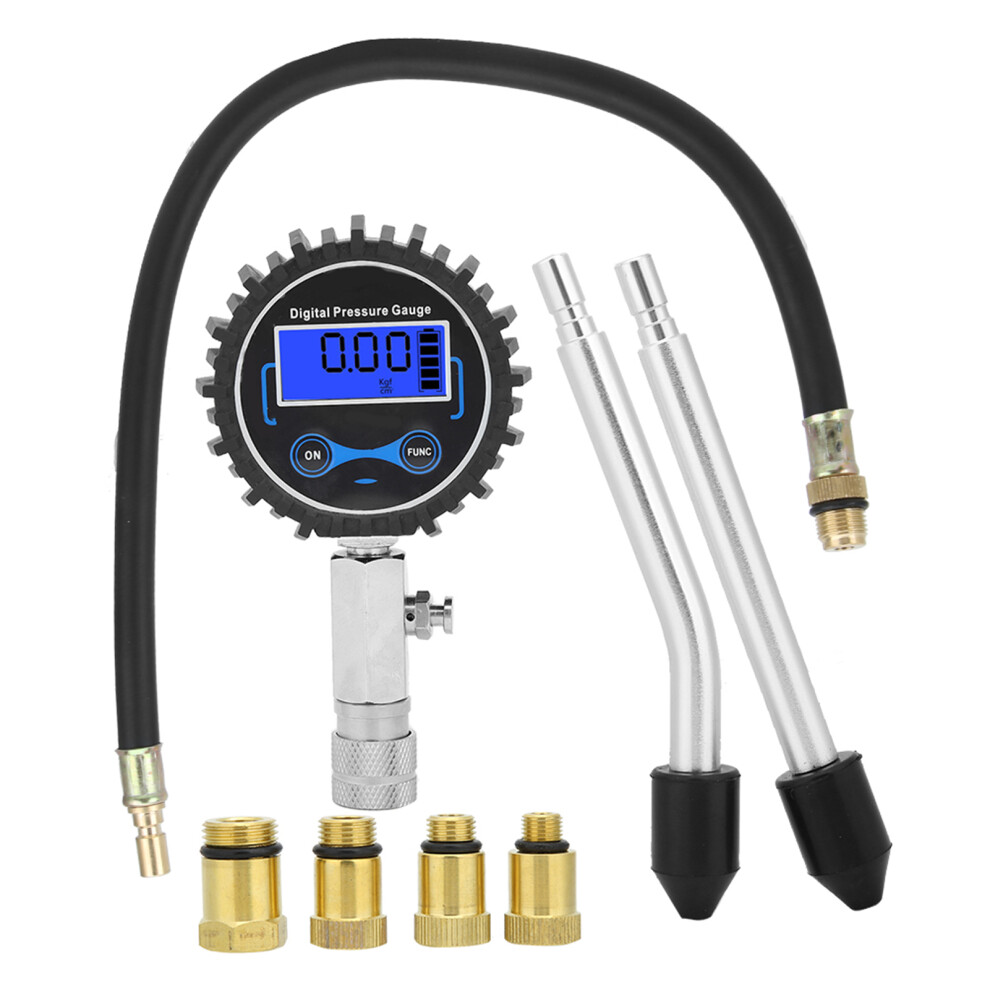

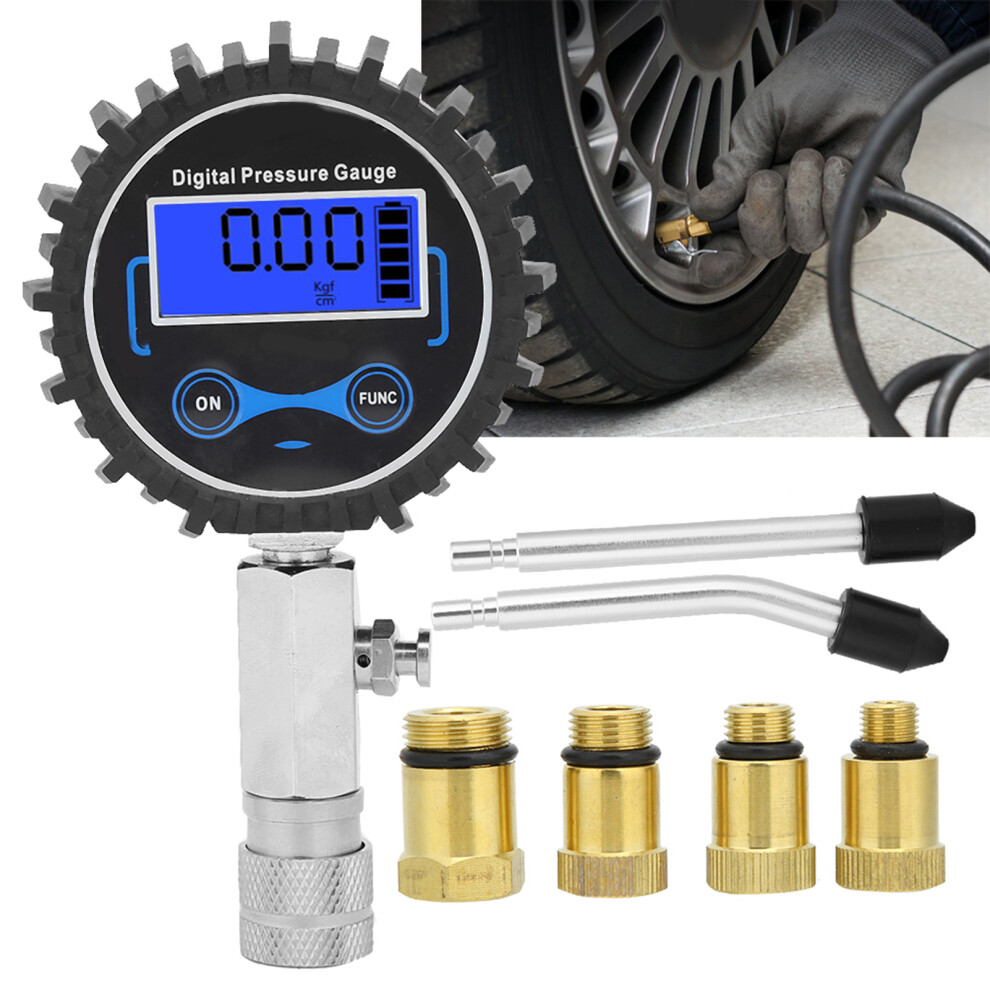

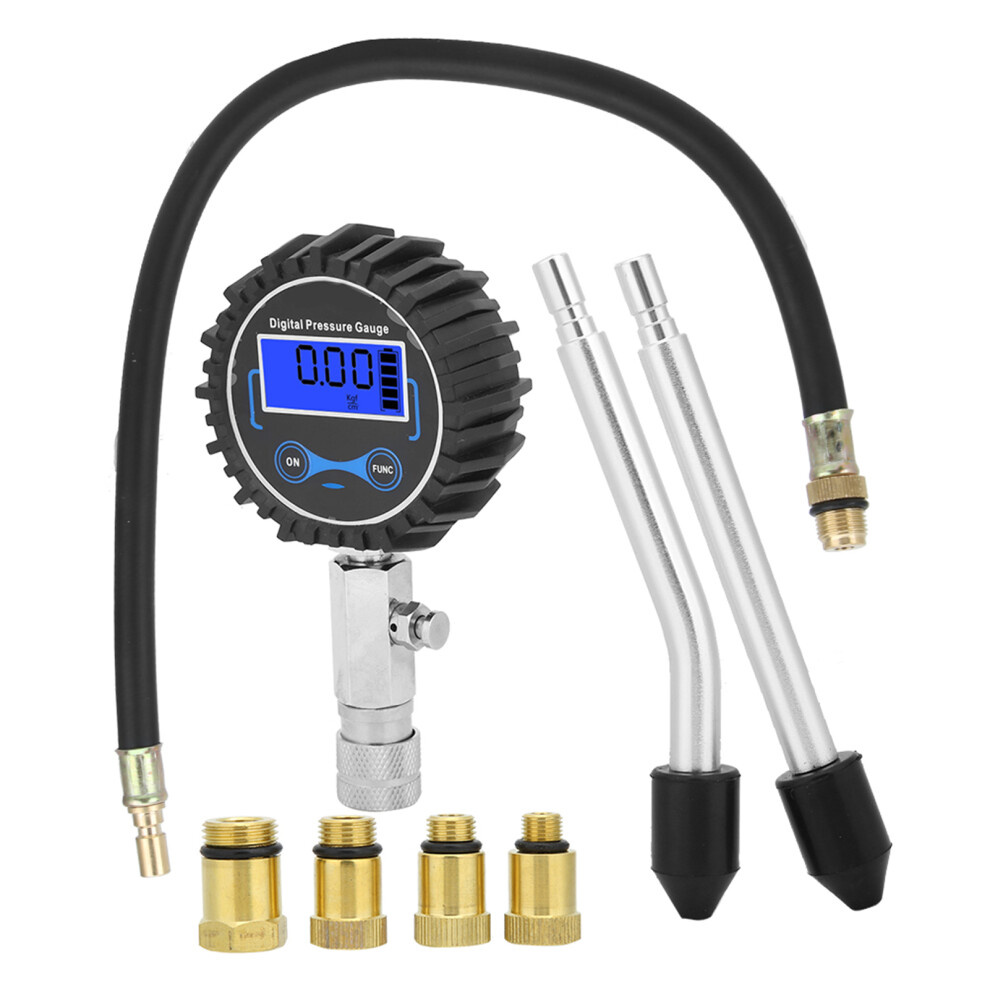

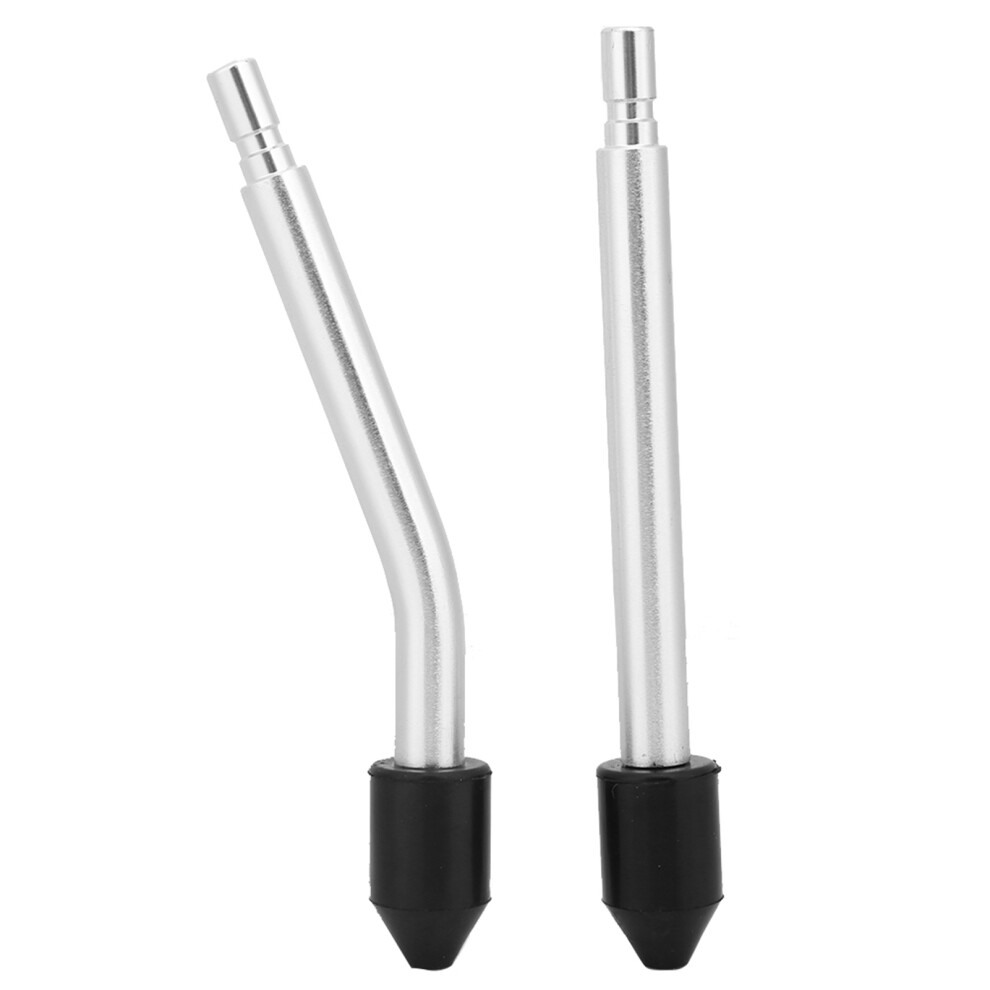

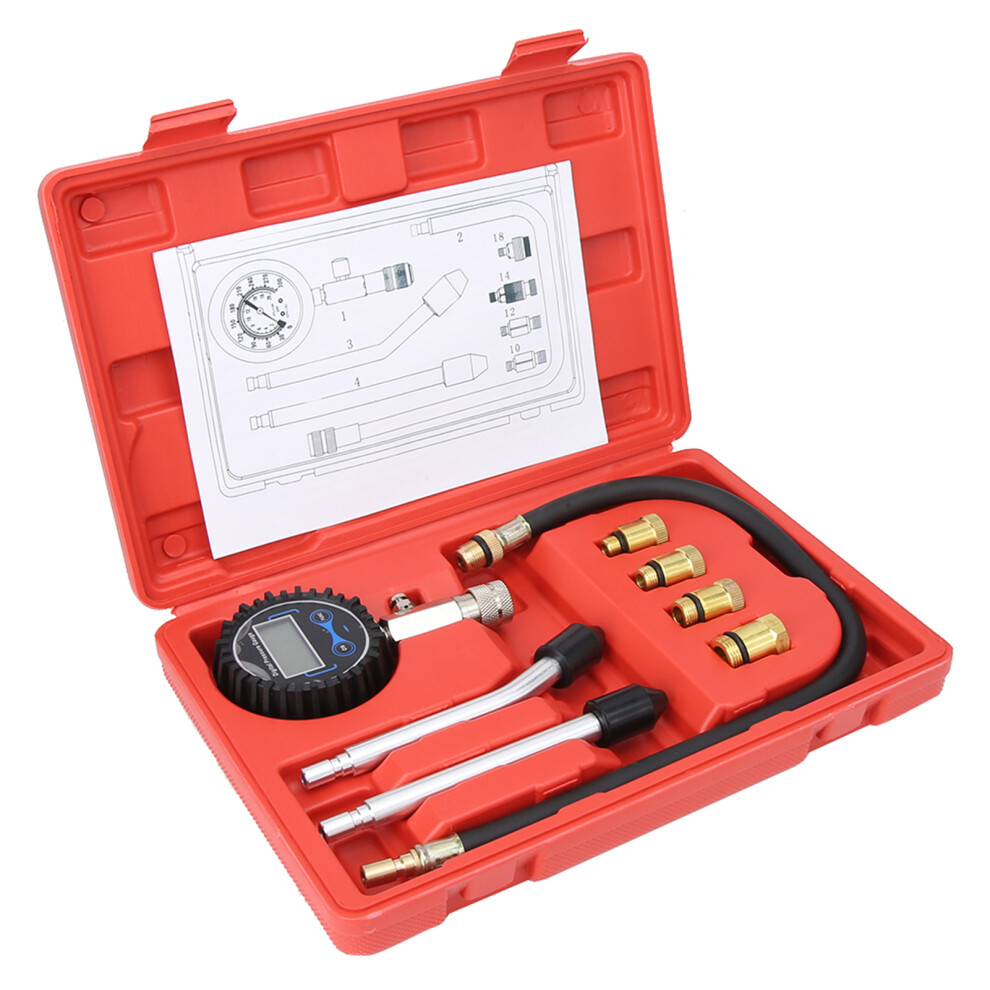

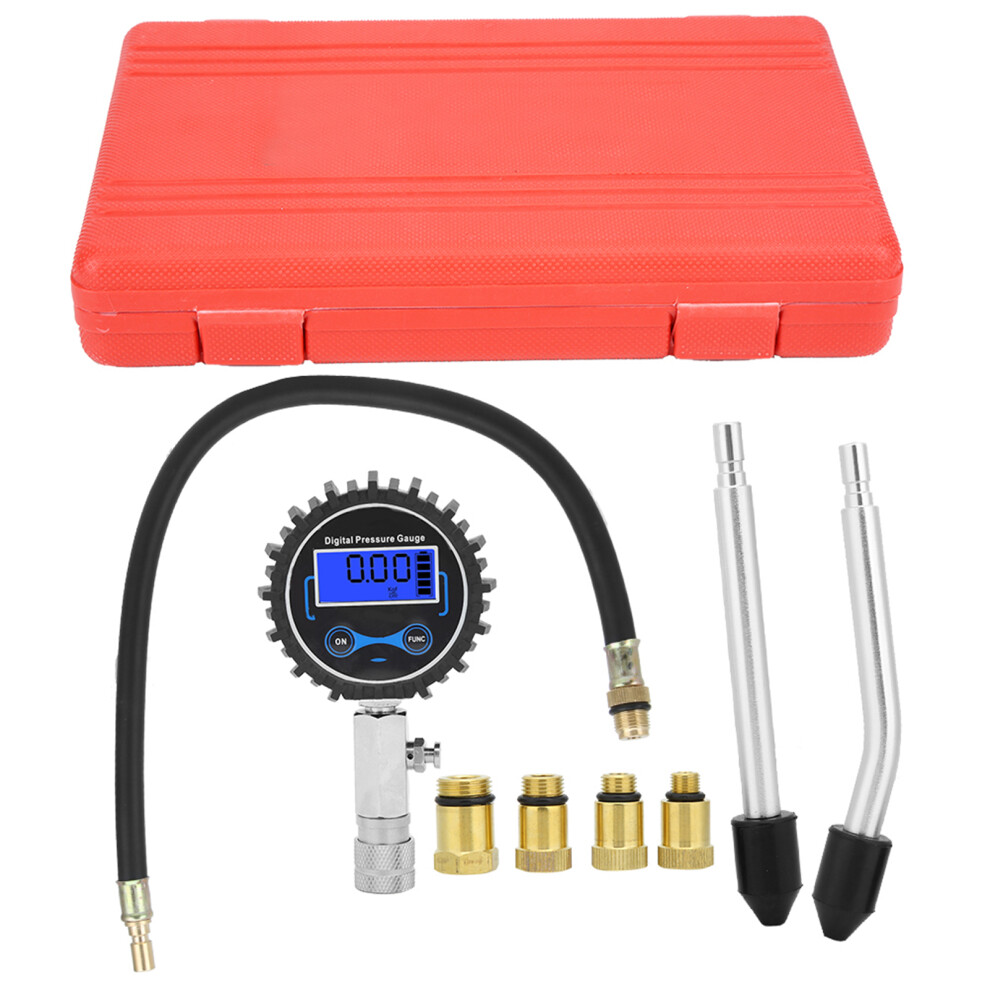

1 x Digital Display Gauge 1 x Rubber Tube 1 x 14mm/0.6in Spark Plug 1 x 18mm/0.7in Spark Plug 1 x M10x1.0 Adapter 1 x M12x1.25 Adapter 1 x M14x1.25 Adapter 1 x M18x1.5 Adapter
