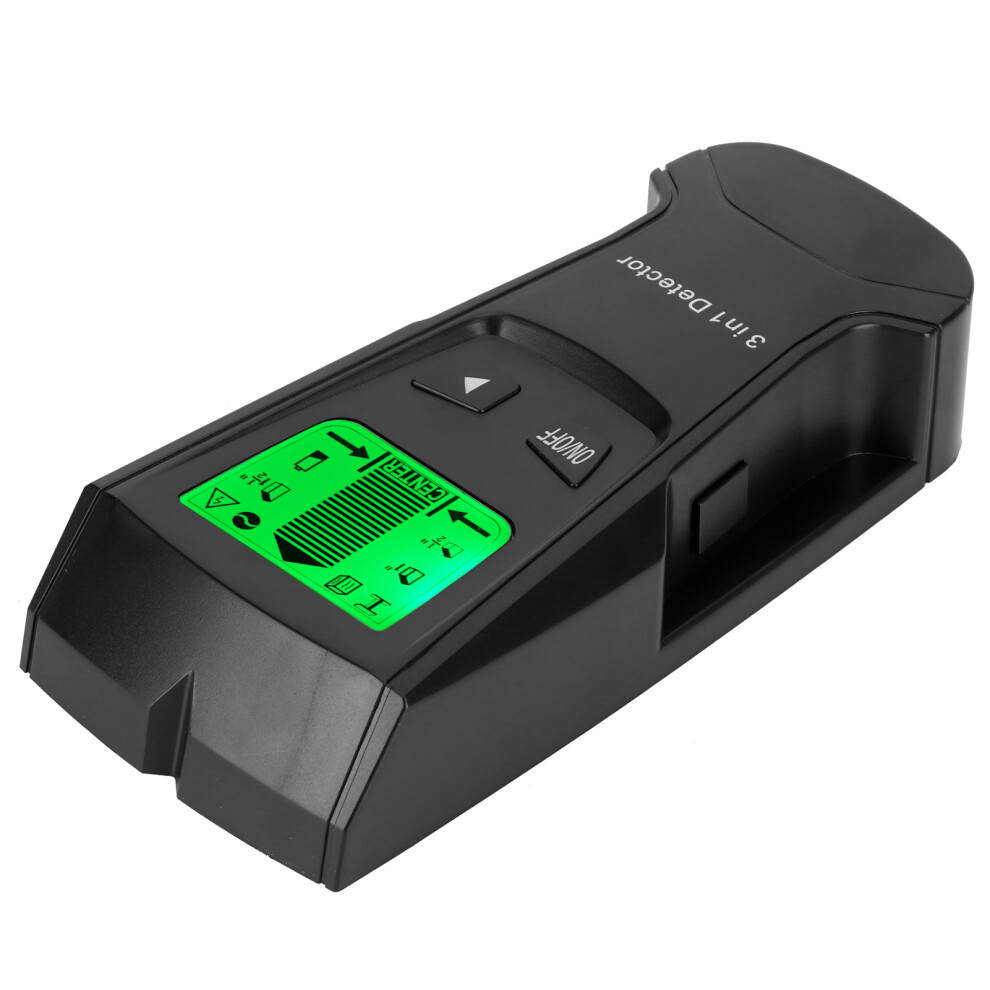

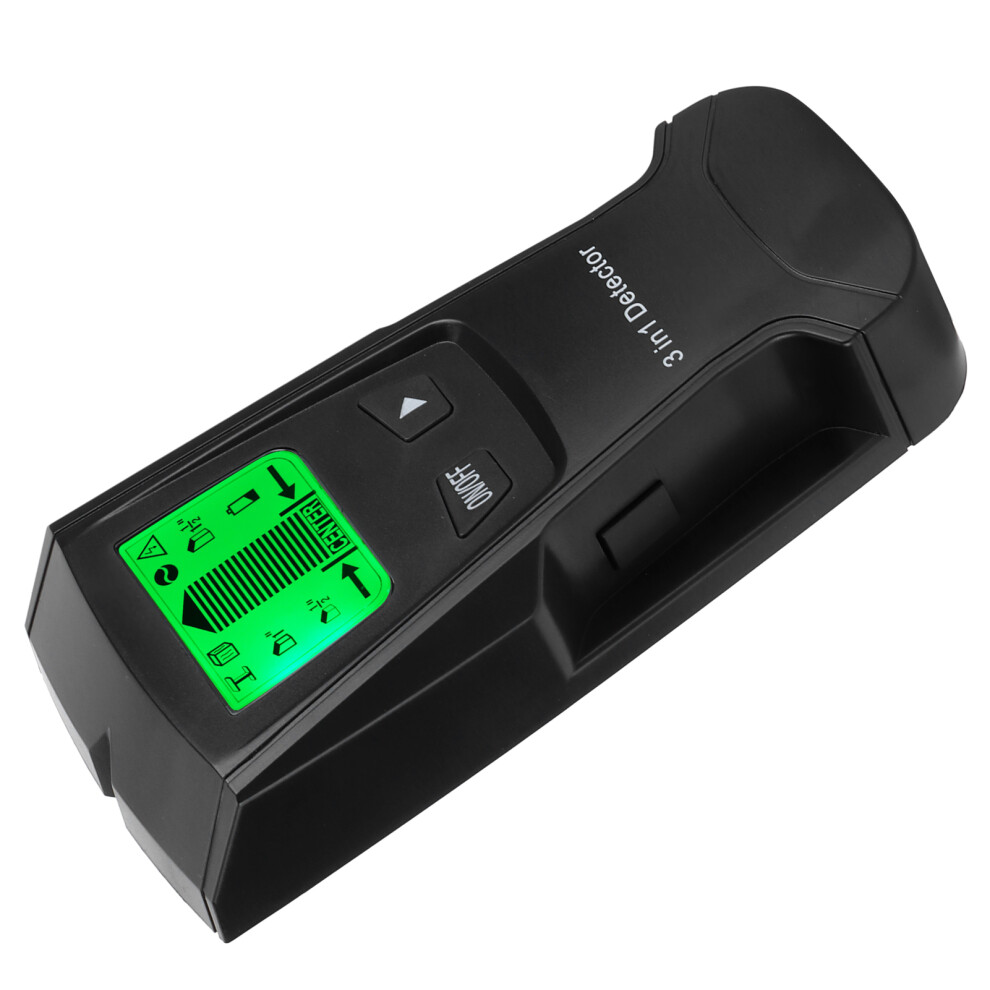

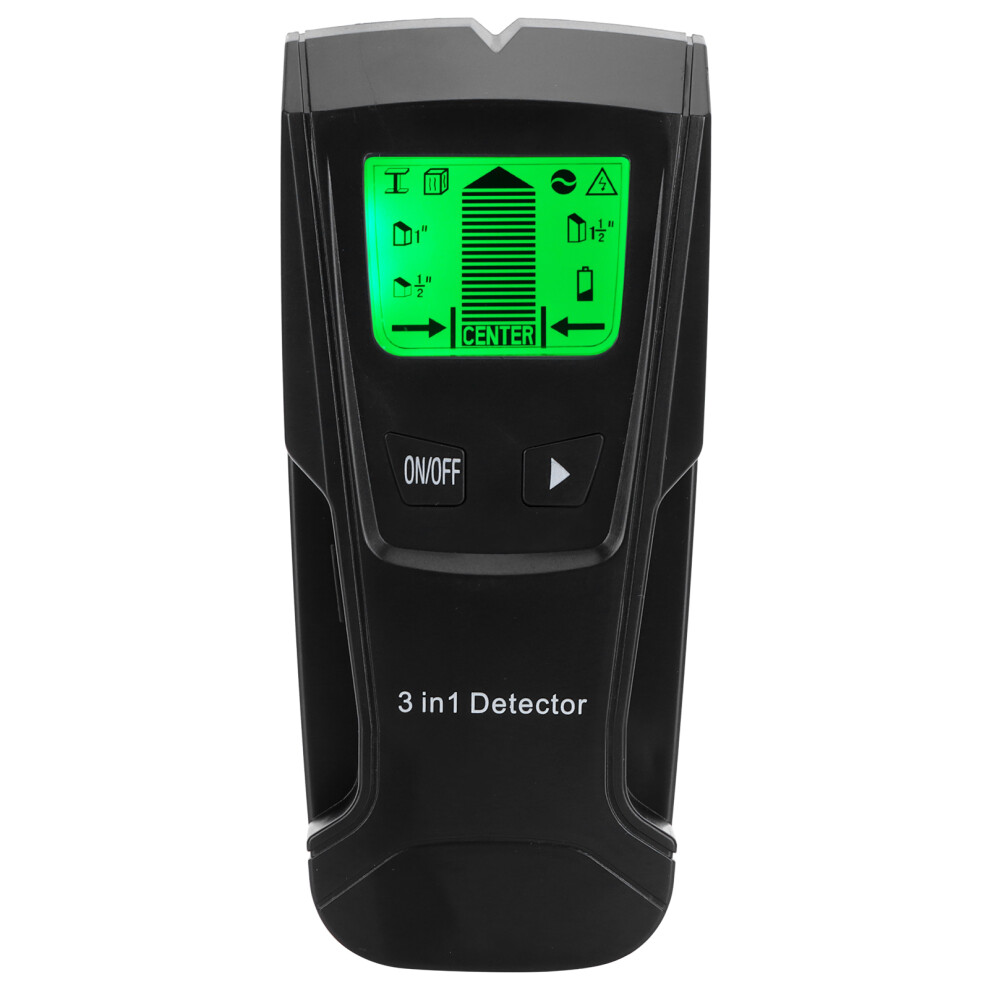

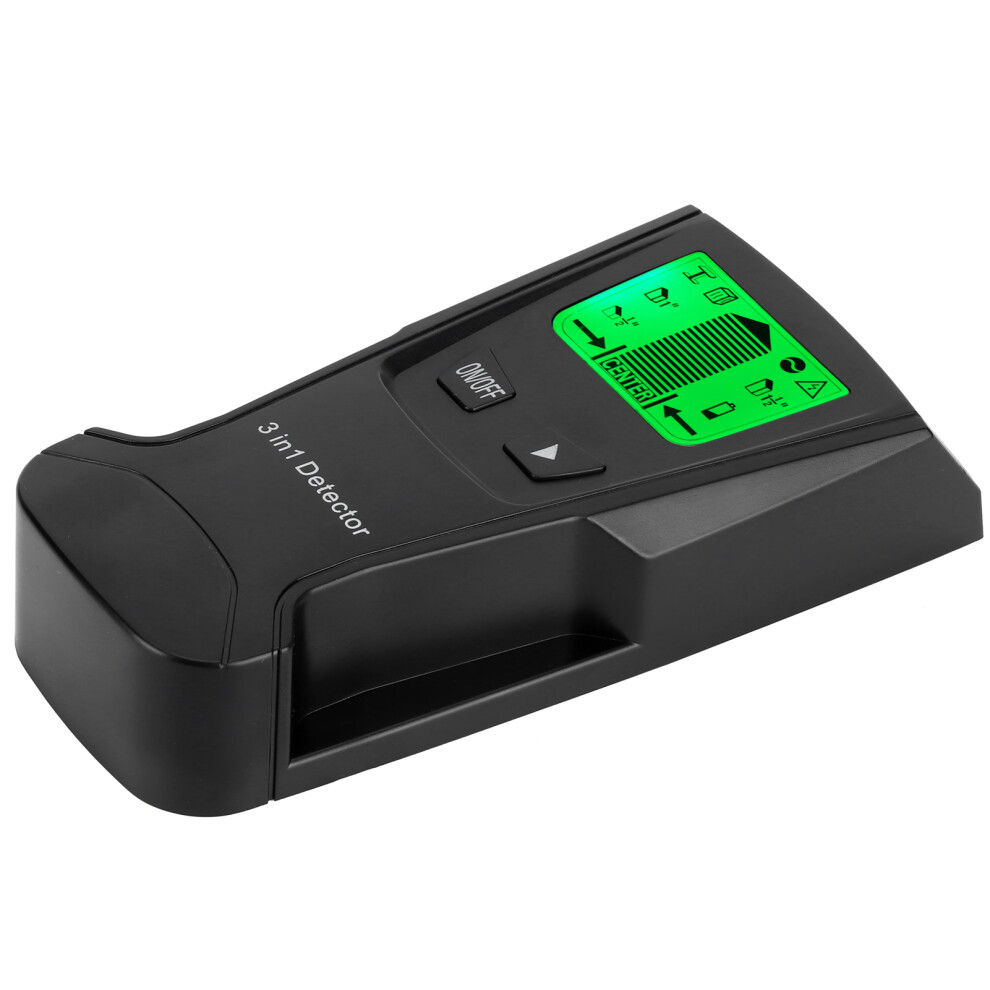

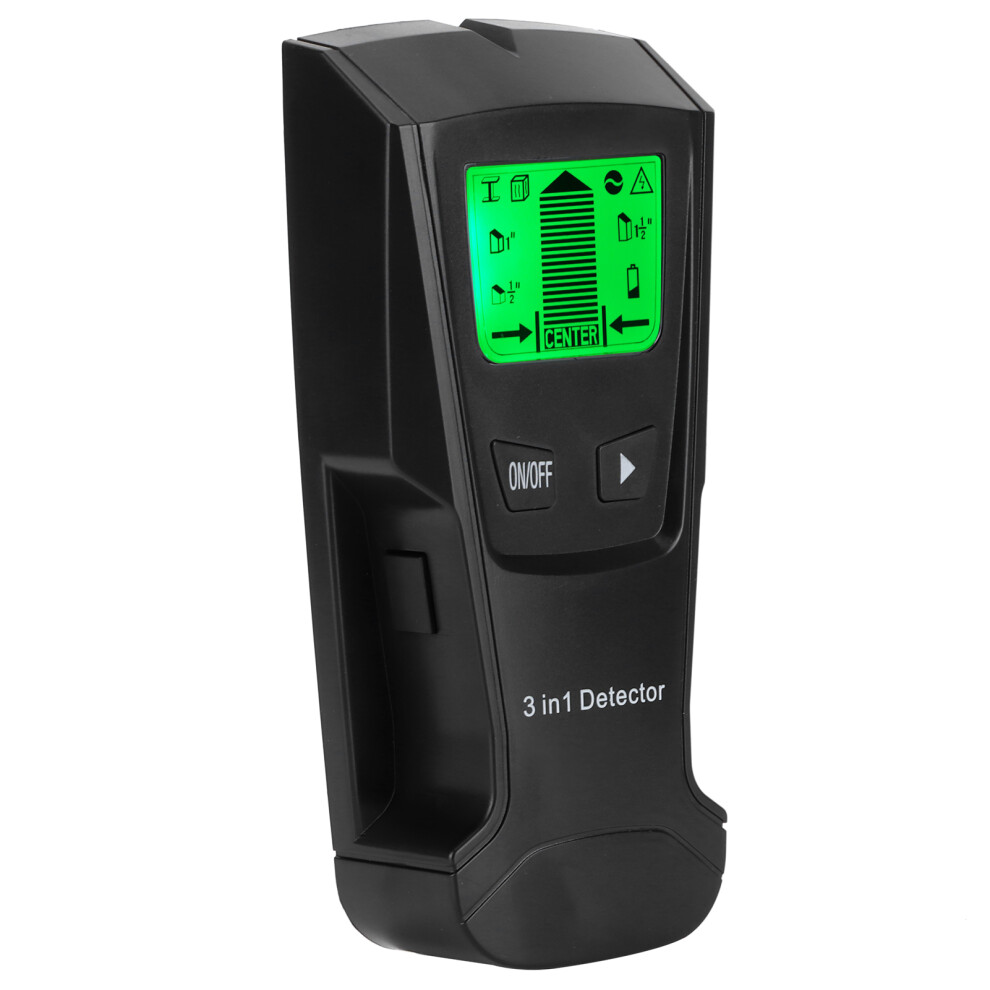

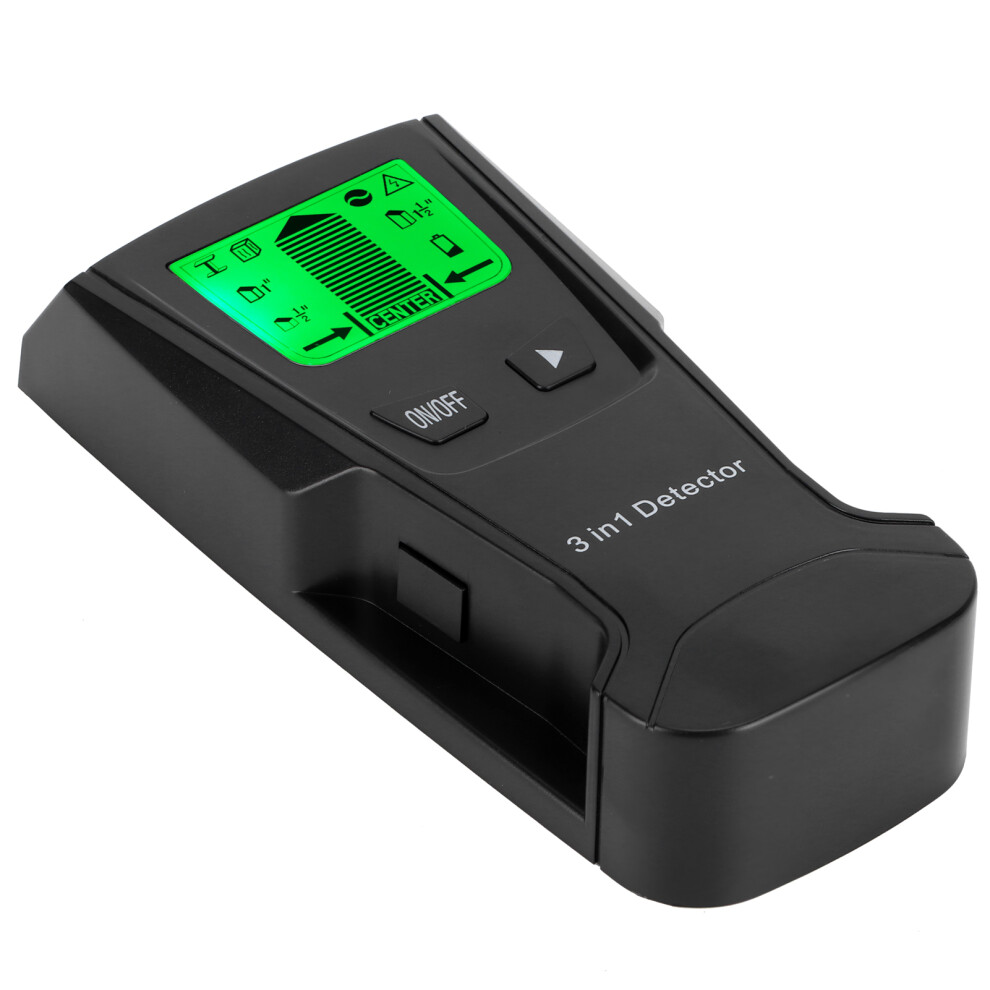

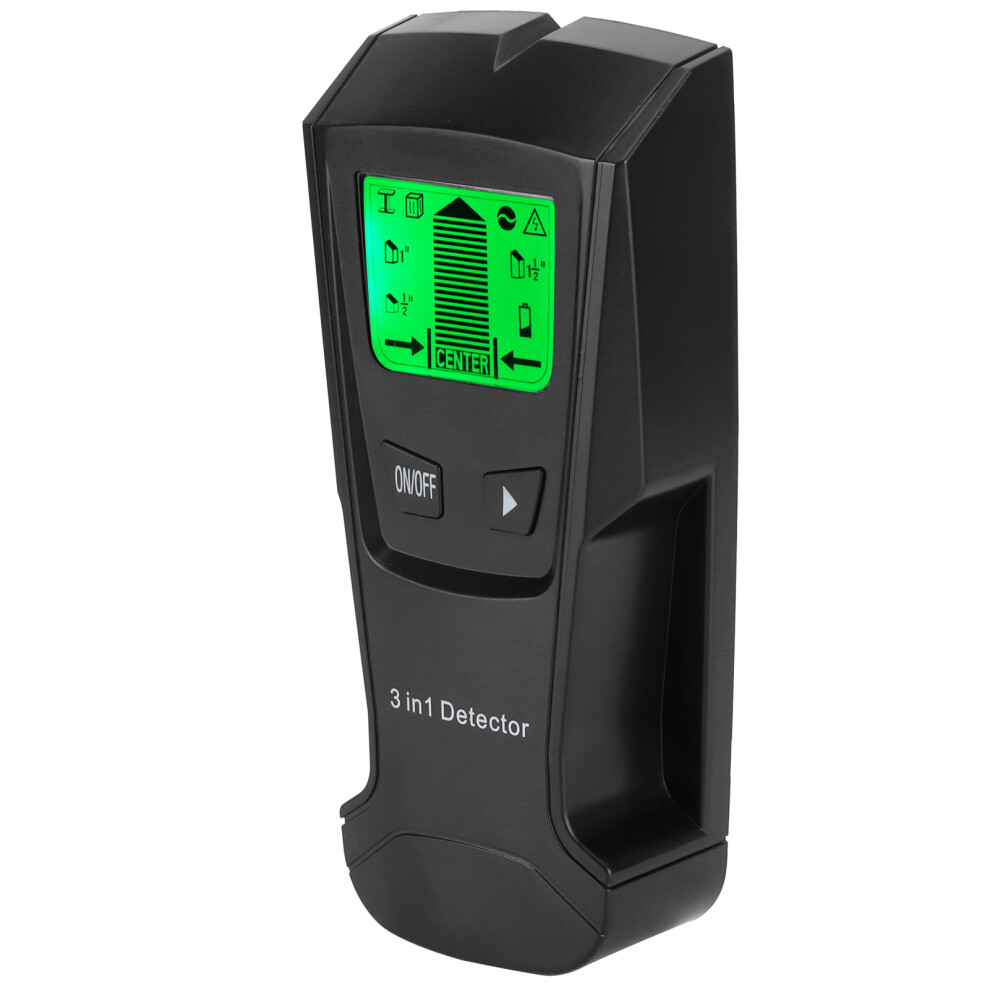

3 in 1 Metal/AC Wire/Stud Wall Scanner Portable LCD Display Black

3 in 1 Metal/AC Wire/Stud Wall Scanner Portable LCD Display Black Description

3 in 1 Metal/AC Wire/Stud Detector Finder Portable Wall Scanner Detect Device LCD DisplayBlack
Item Type: 3in 1 Detector
Material: ABS
Color: As shown in the picture

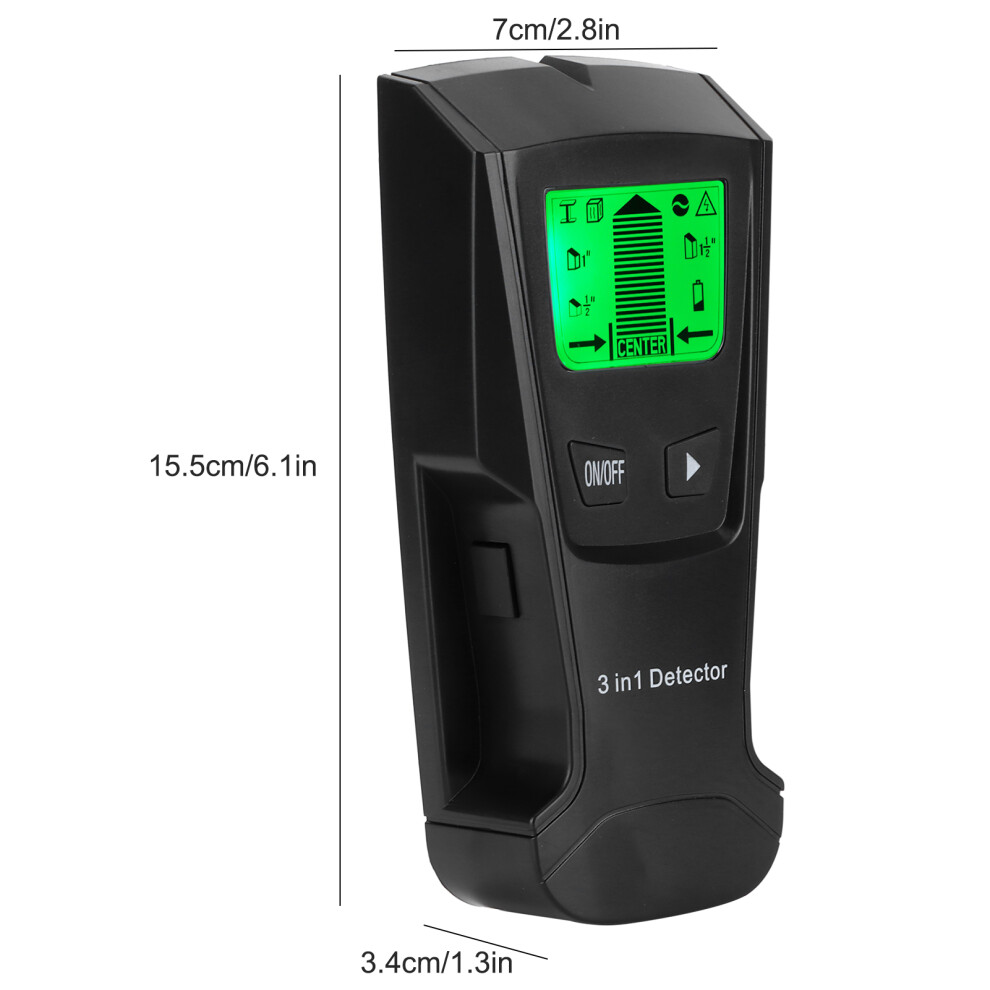

Product Size: Approx. 15.5x7x3.4cm / 6.1x2.8x1.3in
Weight: Approx.185g/6.5oz

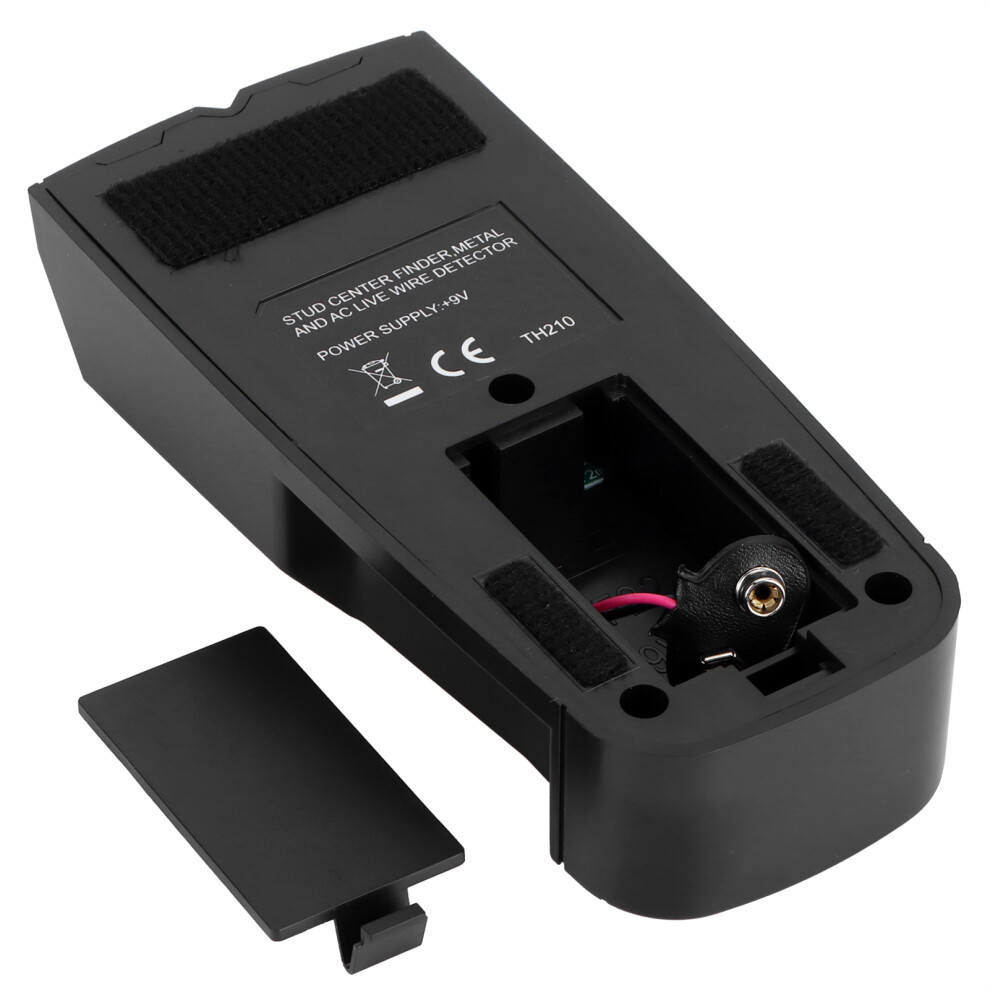

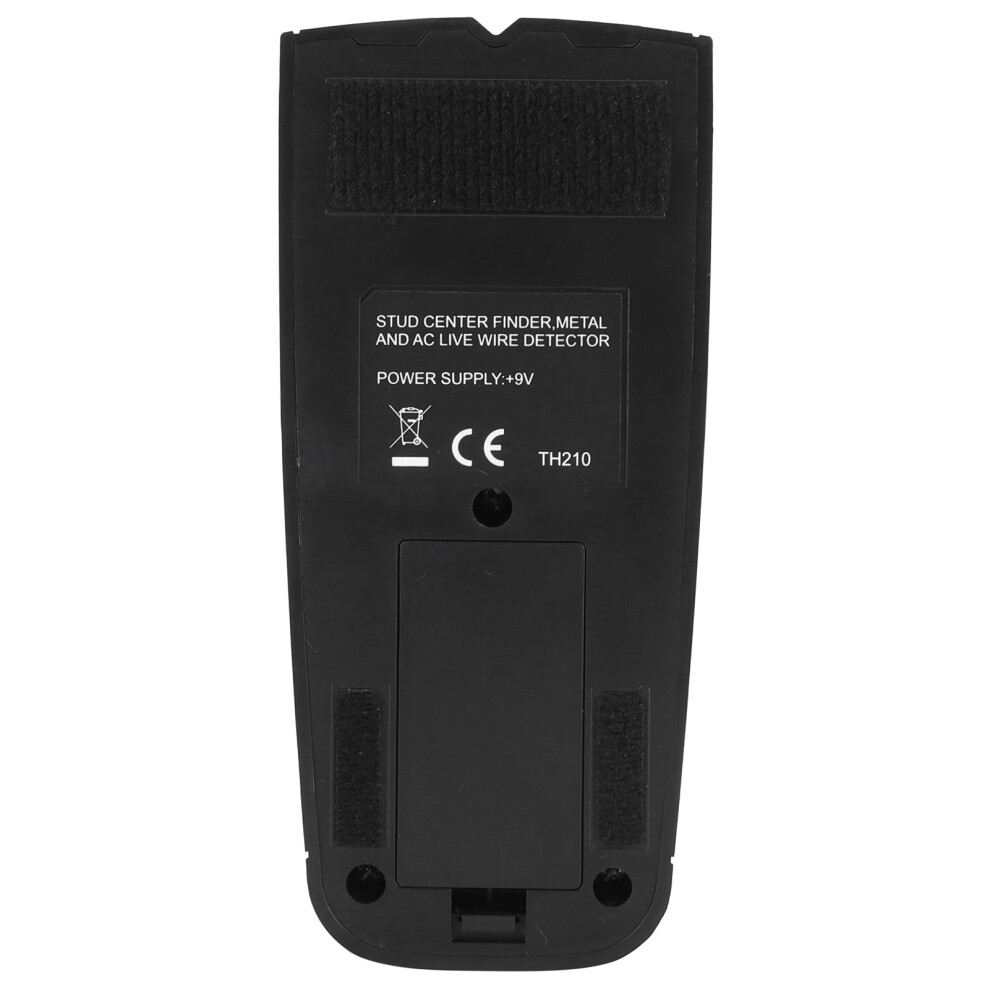

Battery: 1 x 9V, 6F22 battery(Not included)

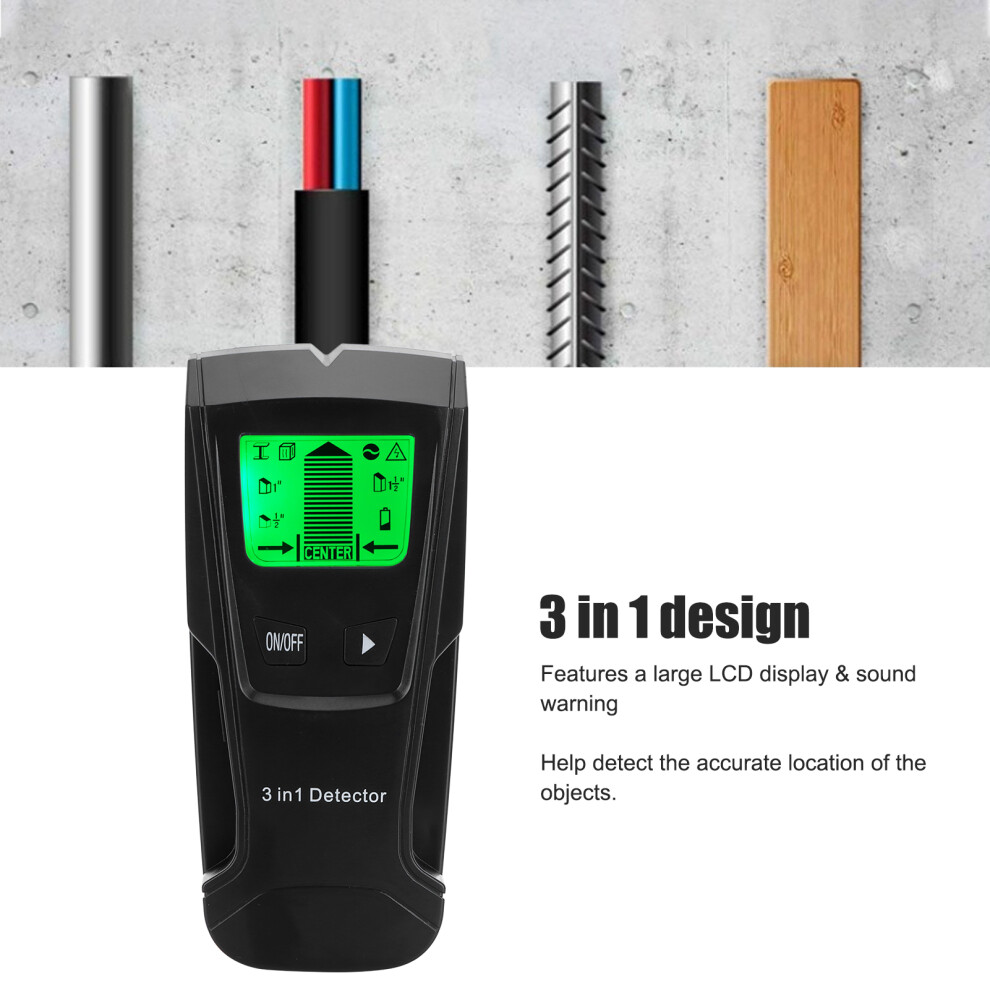

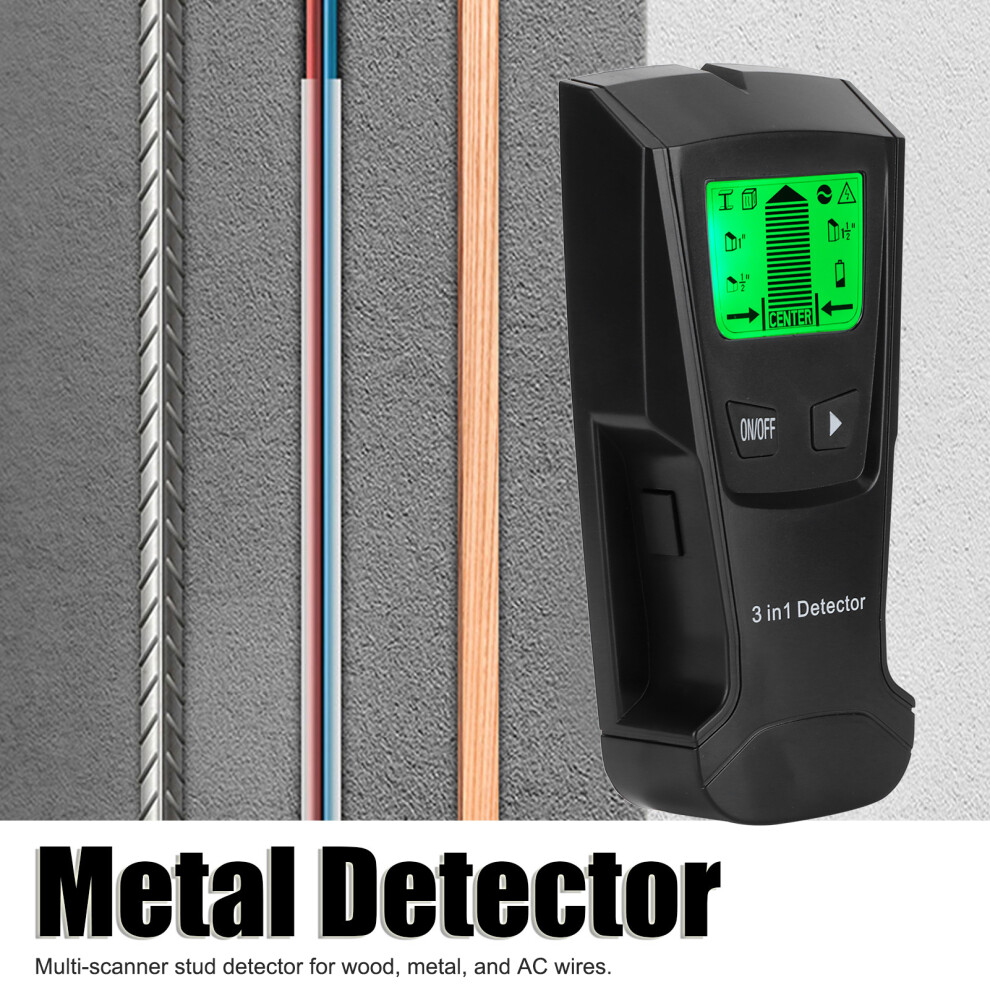

There are 3 detector modes:
Stud Scan Mode: Position the edges of metal and wooden studs on a normal wall up to 1.5 inches (38 mm)
Metal Scanning mode: locate metals, such as iron, copper and aluminum pipes, up to 2.36 inches (60 mm);

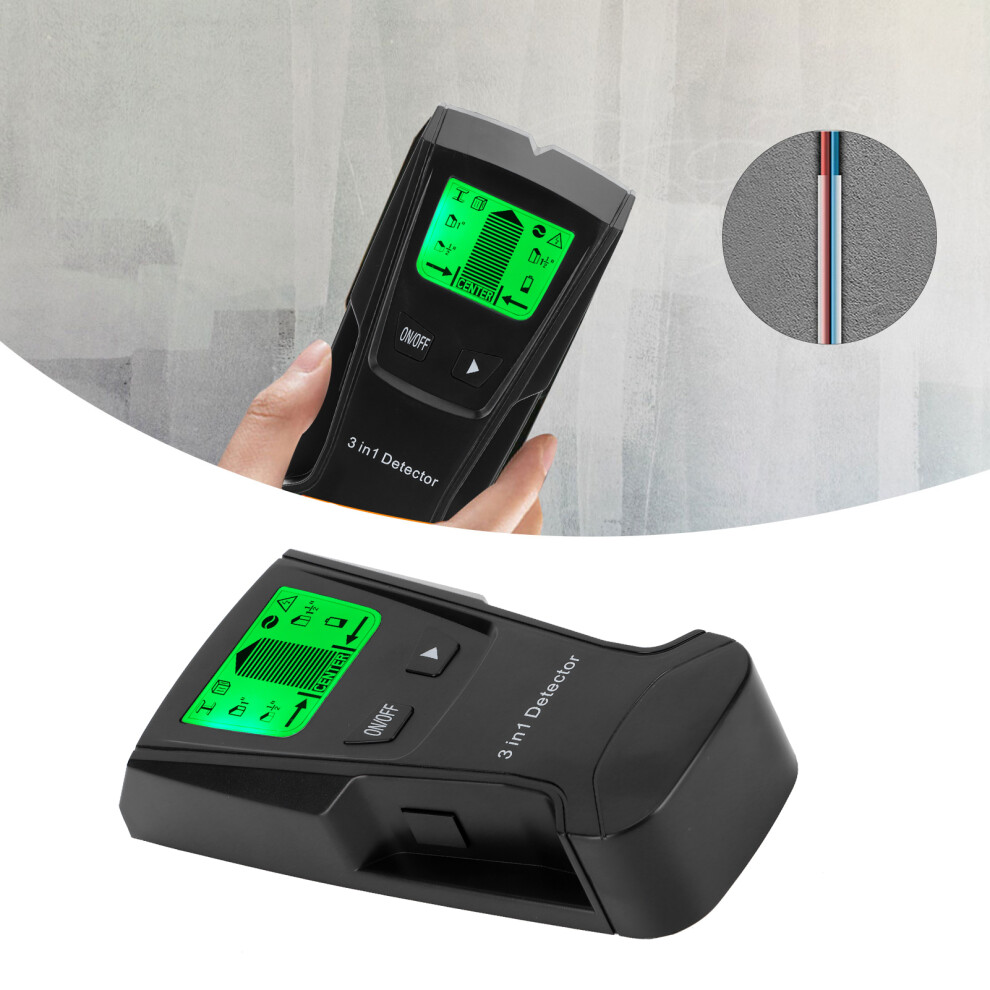

AC Wire Scan Mode: Position the AC wire within 2 inches (51 mm)
Working Temperature: 0-40
Function:
1. All detection functions have automatic correction function
2. All detection functions have AC warning function
3. Measure wooden stems gear with edge display
4. With low voltage display
Application: Used to detect the center position of the wooden stem, the metal position and the live wire in the wall of wooden boards and gypsum board materials
How e:

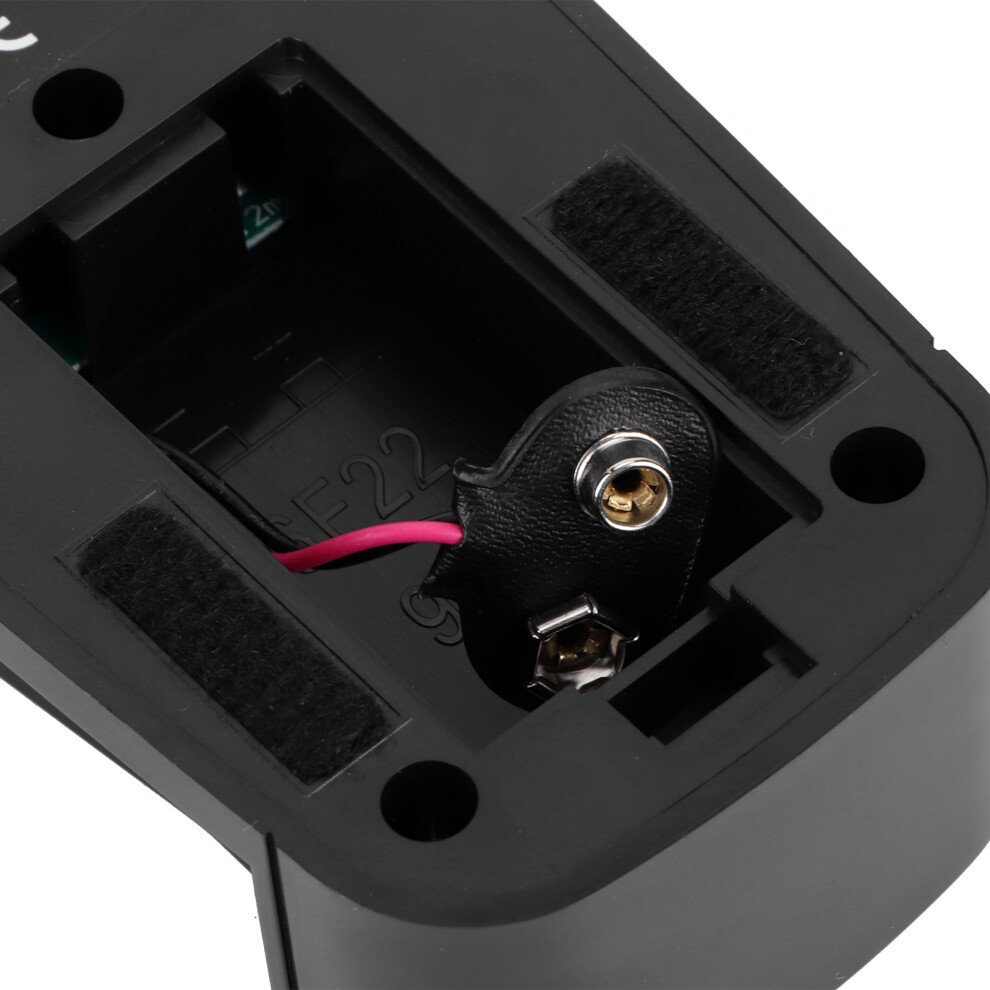

1. Insert the battery.(Not included)
2. Testing and calibration:
(1) After the battery is installed, the unit turns on and emits a long beep. After the automatic shutdown, press the test button for two seconds to restart.
(2) Press the select button to select stud, AC live wire or metal detection function. (For detailed pictures, please refer to the manual)

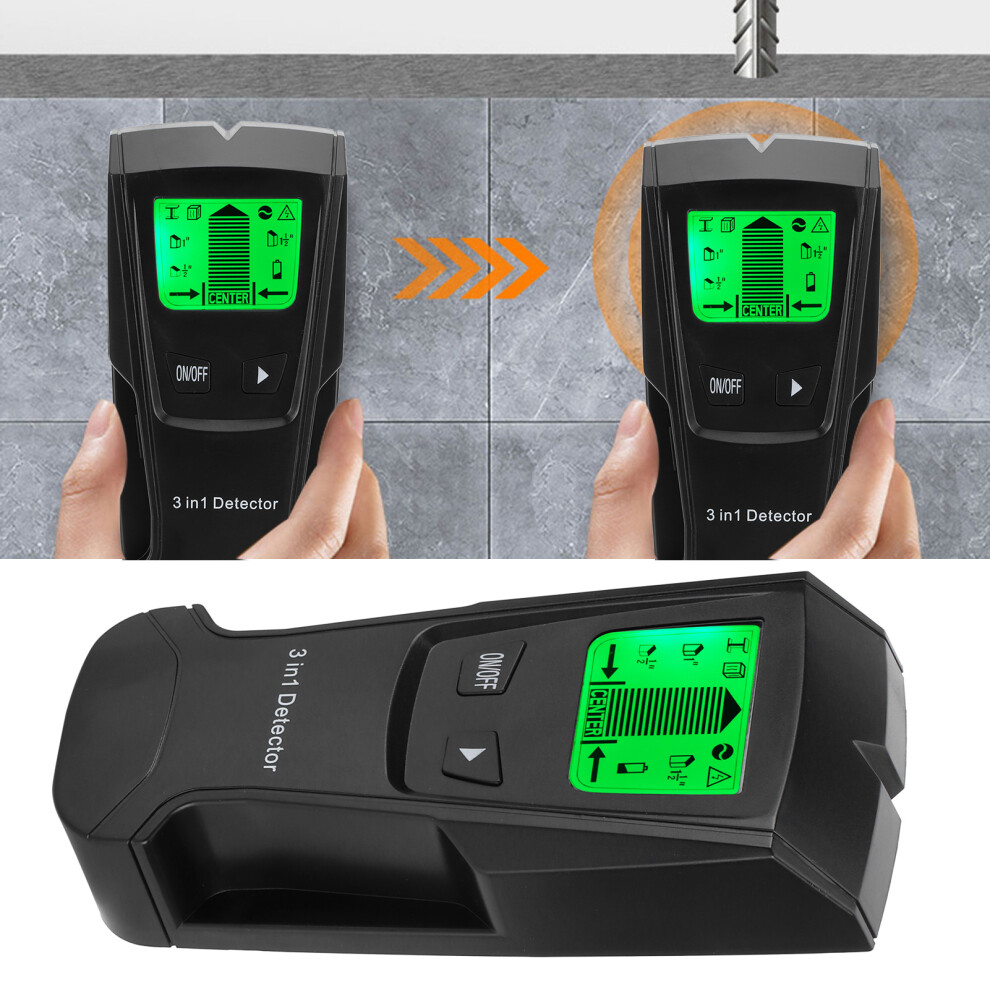

(3) Place the bottom of the detector close to the wall. At this time, the function symbol does not flash. Touch the measurement button on the right to sample on the surface to be measured. After sampling, the function symbol flashes.
(4) After sampling, release the test button and move the device slowly along the wall.
(5) When the center bar is displayed on the LCD, it means that you have found the edge of the stud. Stop the movement and marks this point on the edge grooves. At this time, please touch the test button to eliminate the beeping noise when marking the position.
(6) Repeat the sampling step of (3) above, and then measure along the wall, from the opposite direction to the center, find the other side edge of the grooves, and locate the other side edge of the groove.
(7) In order to lock the position more accurately, the above sampling and detection steps can be repeated multiple times.
