3 Loop Radiant Heat Manifold with High Accuracy

3 Loop Radiant Heat Manifold with High Accuracy Description

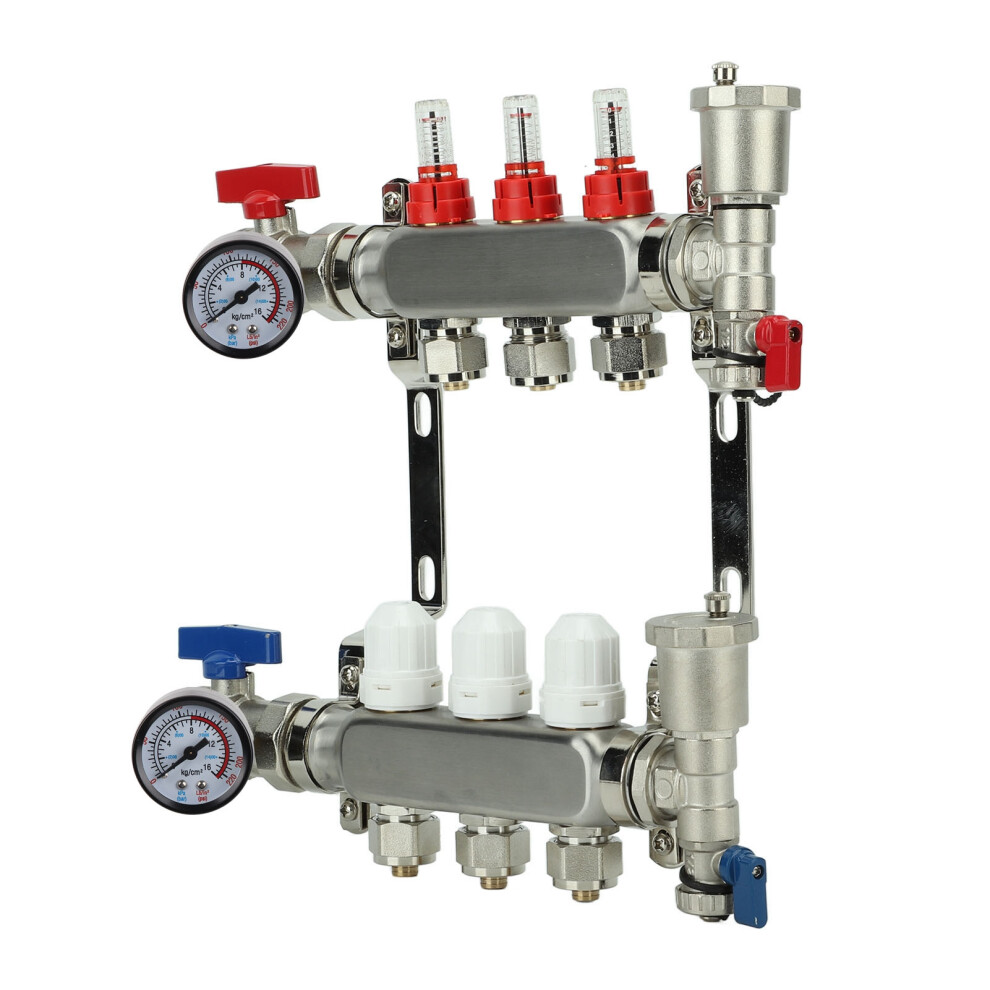

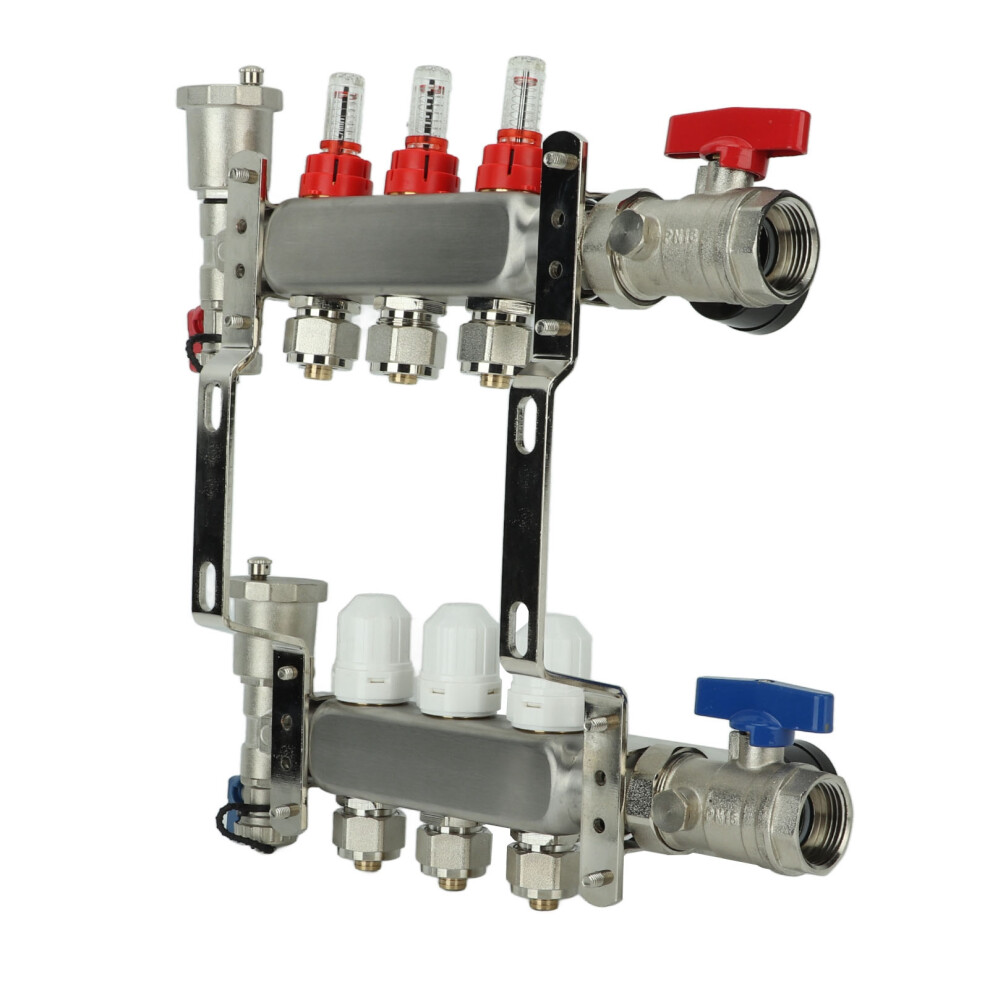

3 Loop Radiant Heat Manifold with High Accuracy Flowmeter Pressure Gauge G1in Floor Heat Manifold Kit



1、[TEMPERATURE CONTROL VALVE] Each branch of the manifold pipe is equipped with a temperature control valve, which can be switched off and on through the handle. 2、[304 STAINLESS STEEL] The valve stem in this radiant heat manifold kit uses stainless steel 304 to effectively reduce friction and prevent scaling. High accuracy flowmeter, scale display, stable. 3、[DOUBLE EPDM O SEALING RING] The radiant heat manifold kit adopts double EPDM O sealing ring reduces noise to a very low level, and the safety performance is double protected. 4、[ONE BODY FORMING FORGING TECHNOLOGY] The radiant heat manifold uses one body forming forging technology. Tempering improves the toughness and flexibility of the material. 5、[G1 INCH DIAMETER] The inner wall of the manifold kit is fluent and has no rough feeling. The main diameter is G1in. It comes with thickened support for easy and quick installation.



Item Type: Radiant Heat Manifold Material: 304 Stainless Steel Surface Treatment: Brushed finish Nominal Pressure: PN1.2Mpa High and Low Temperature Resistance: -20 to +110 Forming Process: using 1700/T forging and tempering process Intelligent Structure: upper flowmeter visible adjusting, lower intelligent Thread: Thread standard in line with for ISO228 standard Working Medium: Water, non corrosive liquids Test Pressure: Mpa0.8-1.0 Structure: Spiral soft EPDM sealing for the inlet water, the return water for the intelligent temperature control spool Branch Pipe: 1216



2 x Manifold 4 x Valve 2 x Pressure Gauge 10 x Fixing Accessories 8 x Screw 1 x Manual
