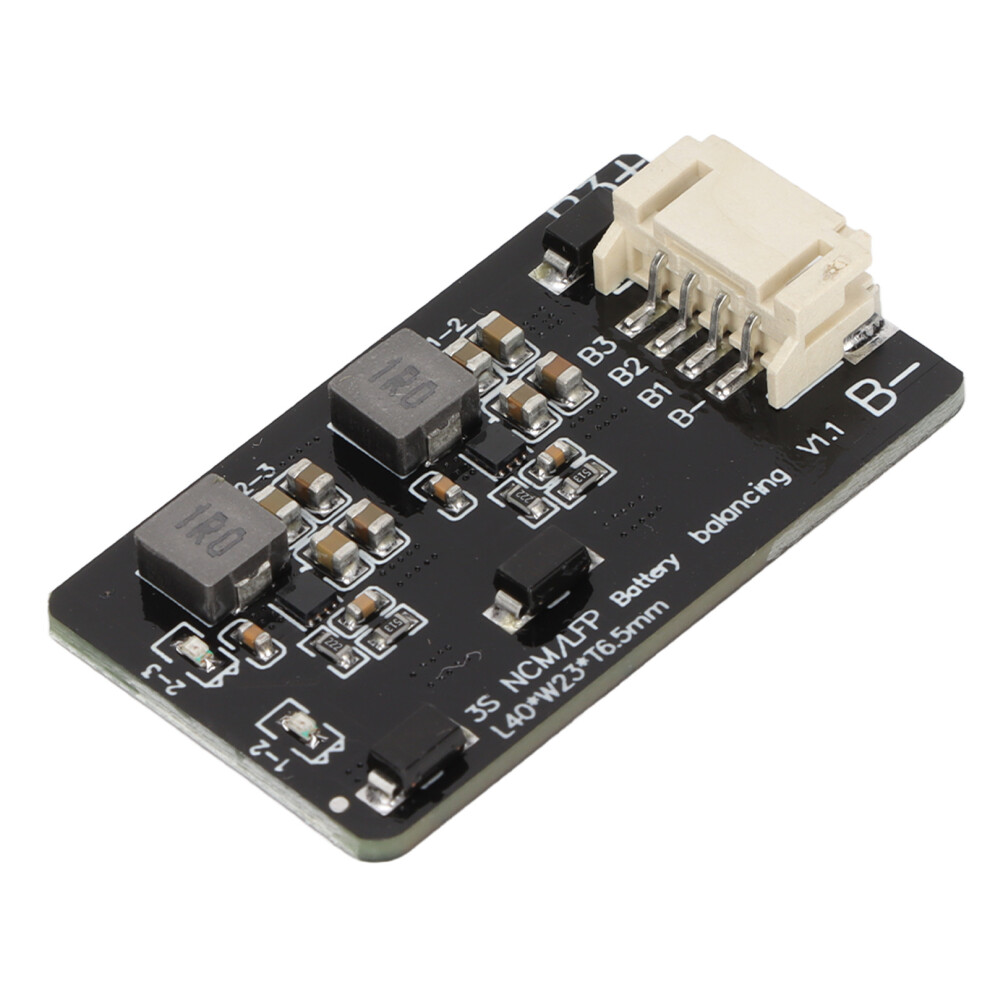

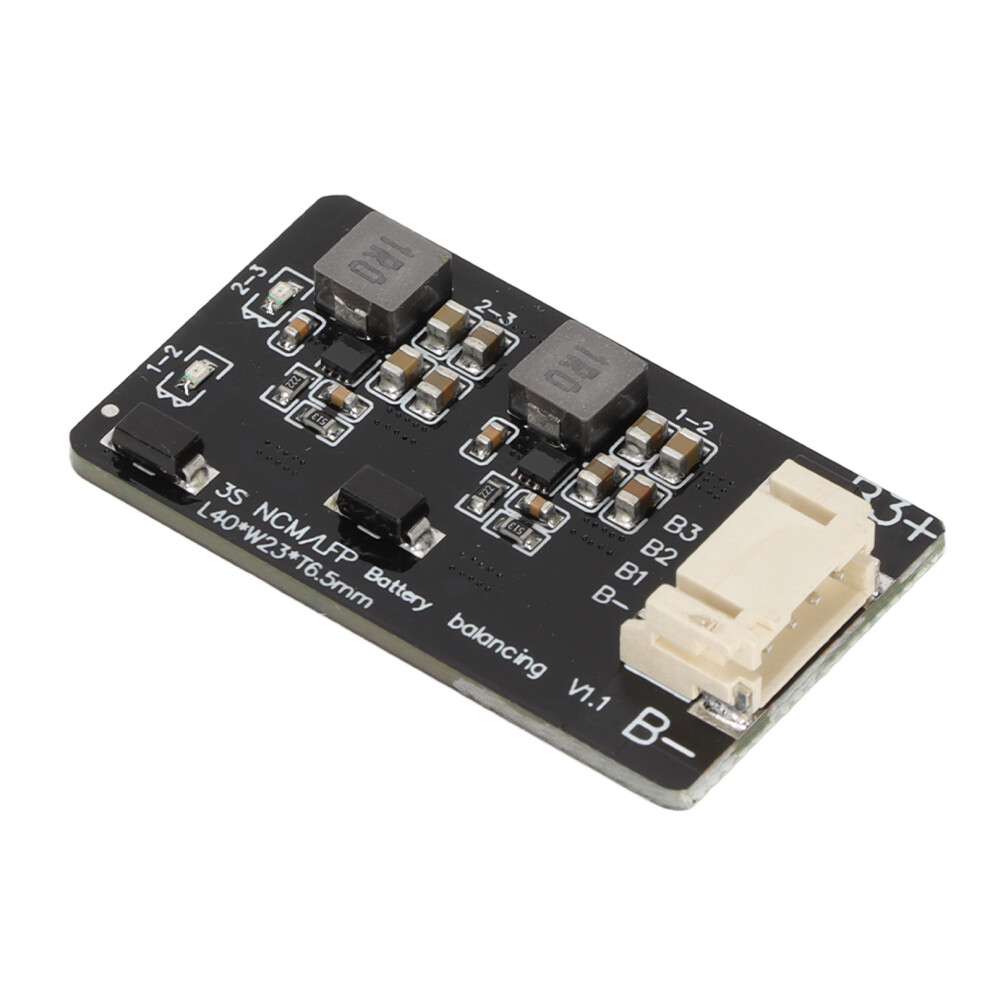

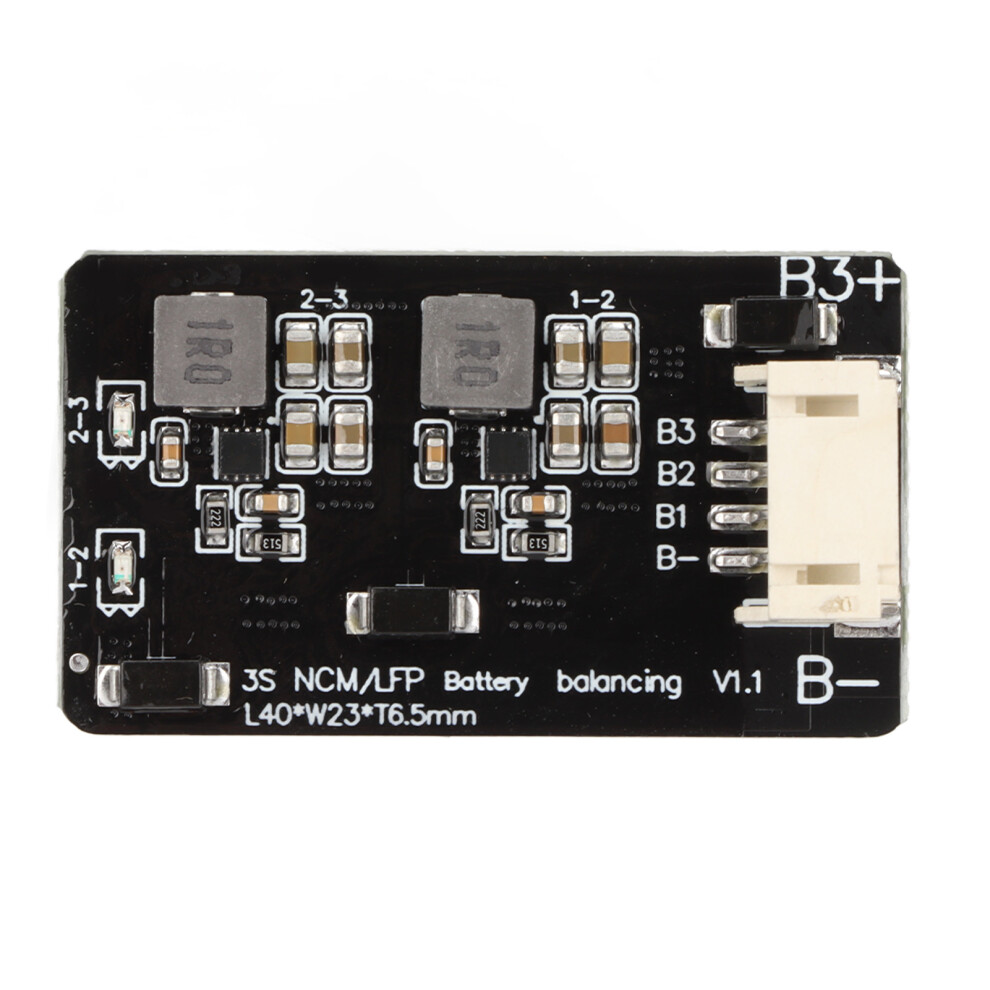

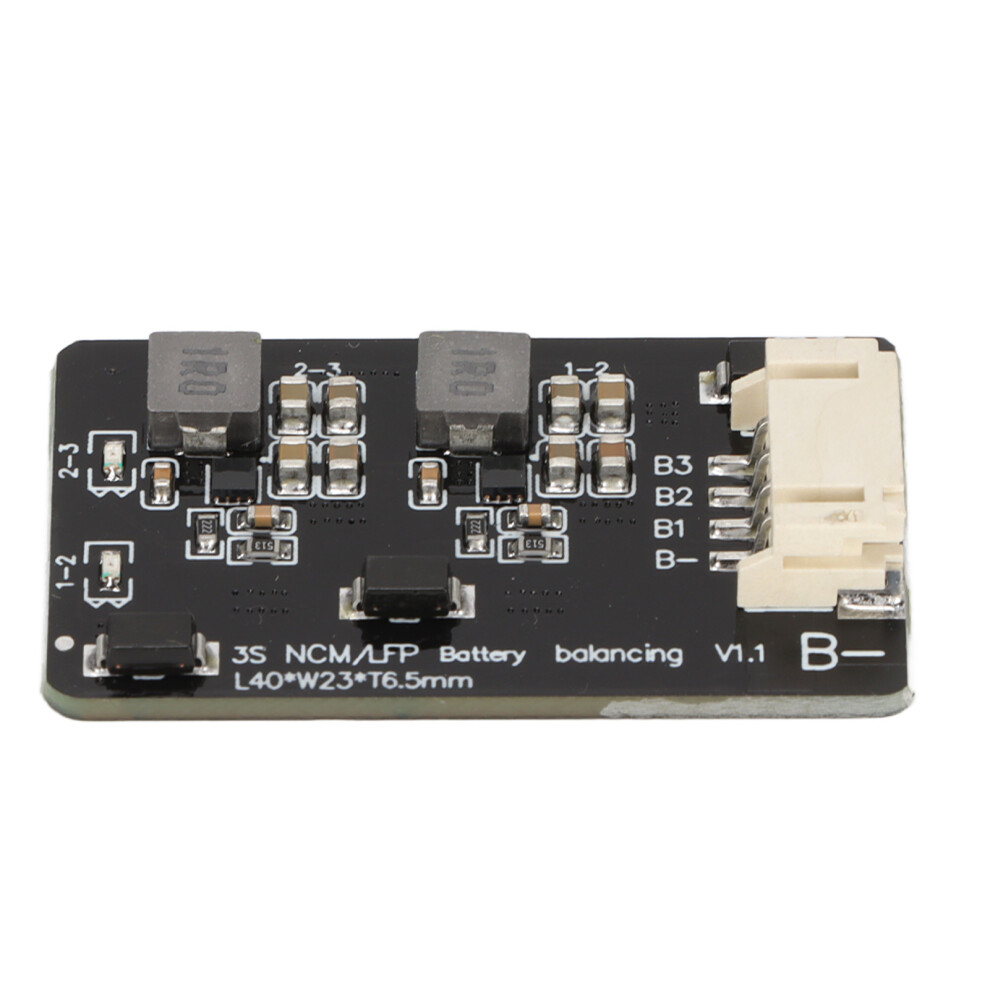

3 Strings Lithium Battery Equalizer 3.0V-4.5V PCB NCM LFP

3 Strings Lithium Battery Equalizer 3.0V-4.5V PCB NCM LFP Description

1、Applicable Battery Type: NCM (Li ion), LFP, general ternary iron lithium battery, does not support LTO battery, single voltage working range 3.0V‑4.5V, recommended battery capacity below 30AH. 2、Voltage Balance Accuracy: 30mV between adjacent voltages (typical value), the balance current is 0.1V, the voltage difference is 0.5A, and the maximum balance current is 1.2A when the voltage difference is above 0.2V. 3、Voltage Protection: If voltage protection is required, it is best to use it in parallel with the BMS protection board. It is detected that the voltage difference between adjacent batteries is greater than 0.1V to trigger the equalization start, and the voltage difference between adjacent batteries is less than 0.03V to stop working. 4、Warm Tips: The balance board is not a BMS protection board, it is an auxiliary of the protection board, so no matter how bad the battery is, it can be used, but there is no overvoltage and overdischarge protection function. 5、Note: Compatibility with low strings is not recommended, the indicator light will flash and report an error. Before connecting the equalization board, be sure to check that each battery is wired correctly and insulated. Otherwise, it will short circuit and burn the board.
Item Type: Lithium Battery Active Equalizer
Material:PCB
Applicable Battery: NCM (Li ion) LFP, General Ternary Iron Lithium Battery

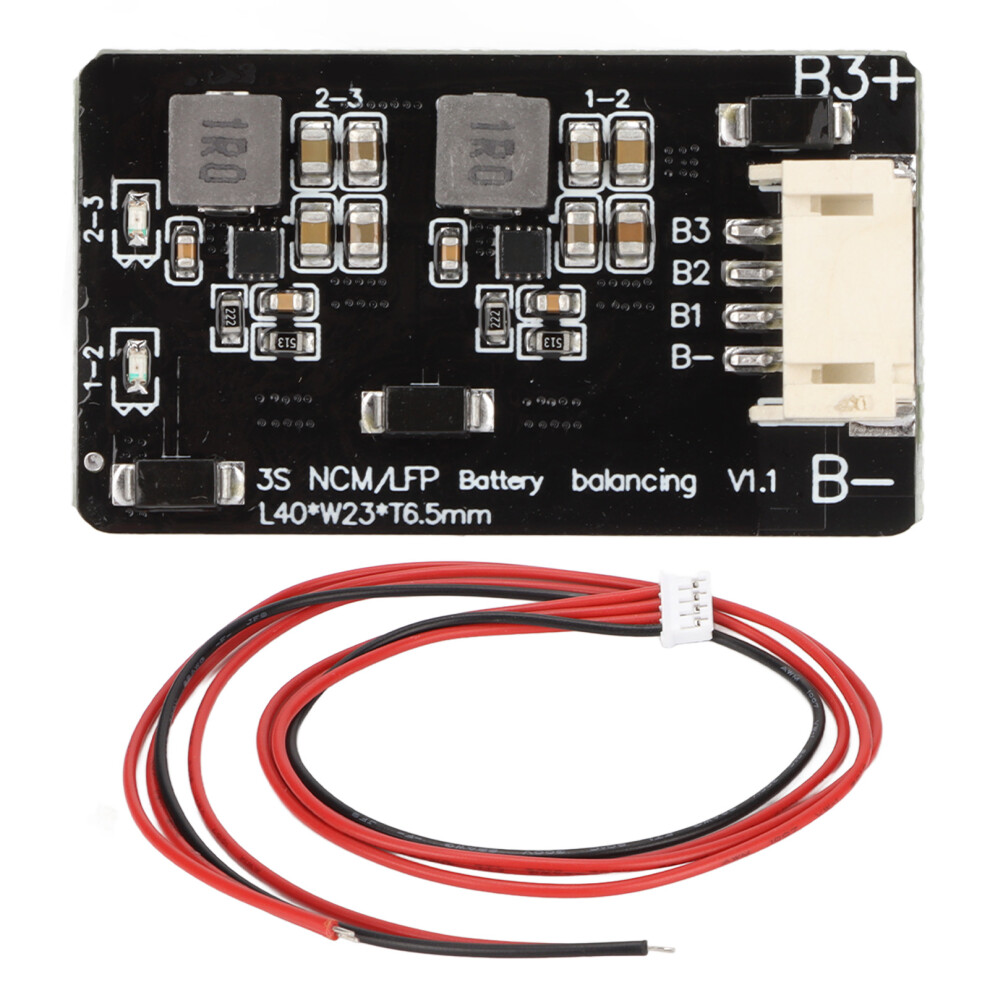

1 x Protection Plate
1 x Connecting Cable
