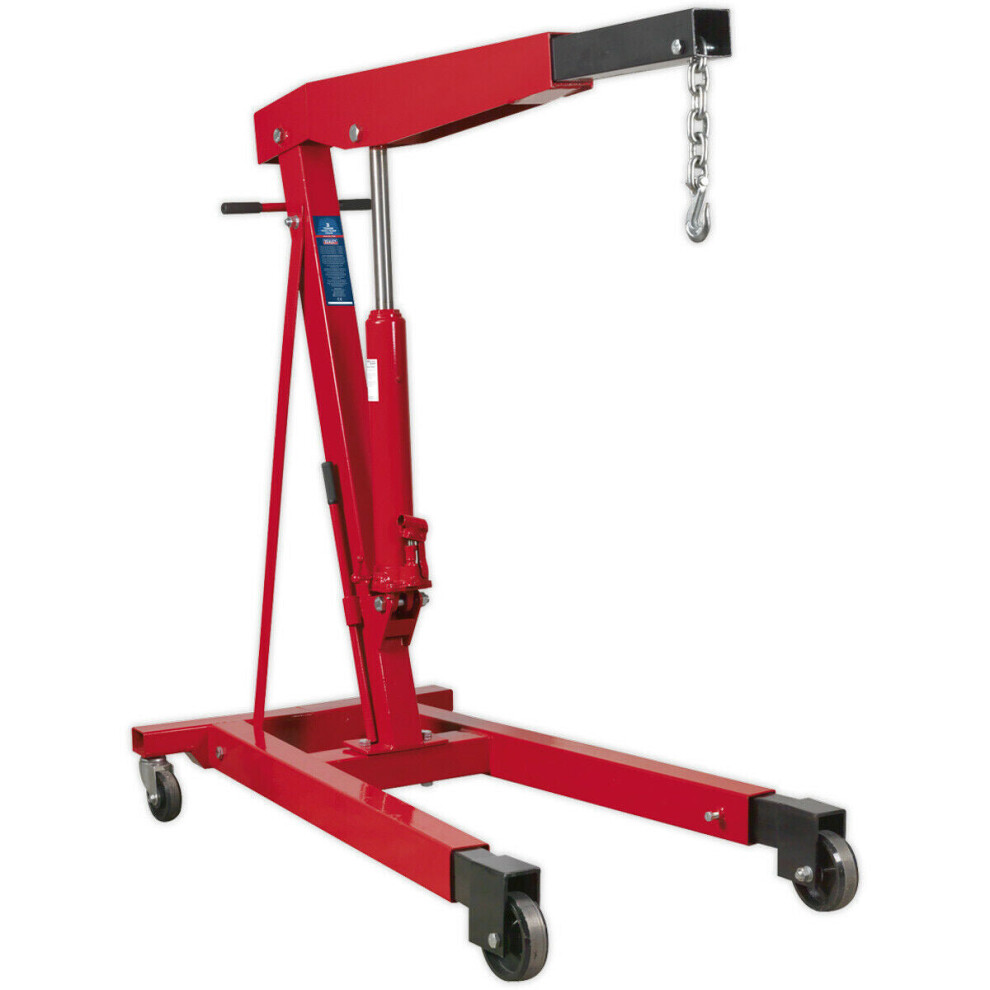

3 Tonne Fixed Frame Engine Crane with Extendable Legs - Heavy Duty Castors

3 Tonne Fixed Frame Engine Crane with Extendable Legs - Heavy Duty Castors Description

3 Tonne Fixed Frame Engine Crane with Extendable Legs - Heavy Duty Castors

Overview:

Weighs 155kg and is perfect for heavy commercial, industrial and workshop use. Extendable heavy-duty legs for improved stability, particularly when operating at maximum jib extensions. Beam can be set in 4-positions with a capacity of 1000kg at its full extension of 1820mm. Heavy-duty castors and pump as from side, for safe handling of heavy loads. Delivered in knock-down form for reduced freight cost. Some self-assembly required.

Features:

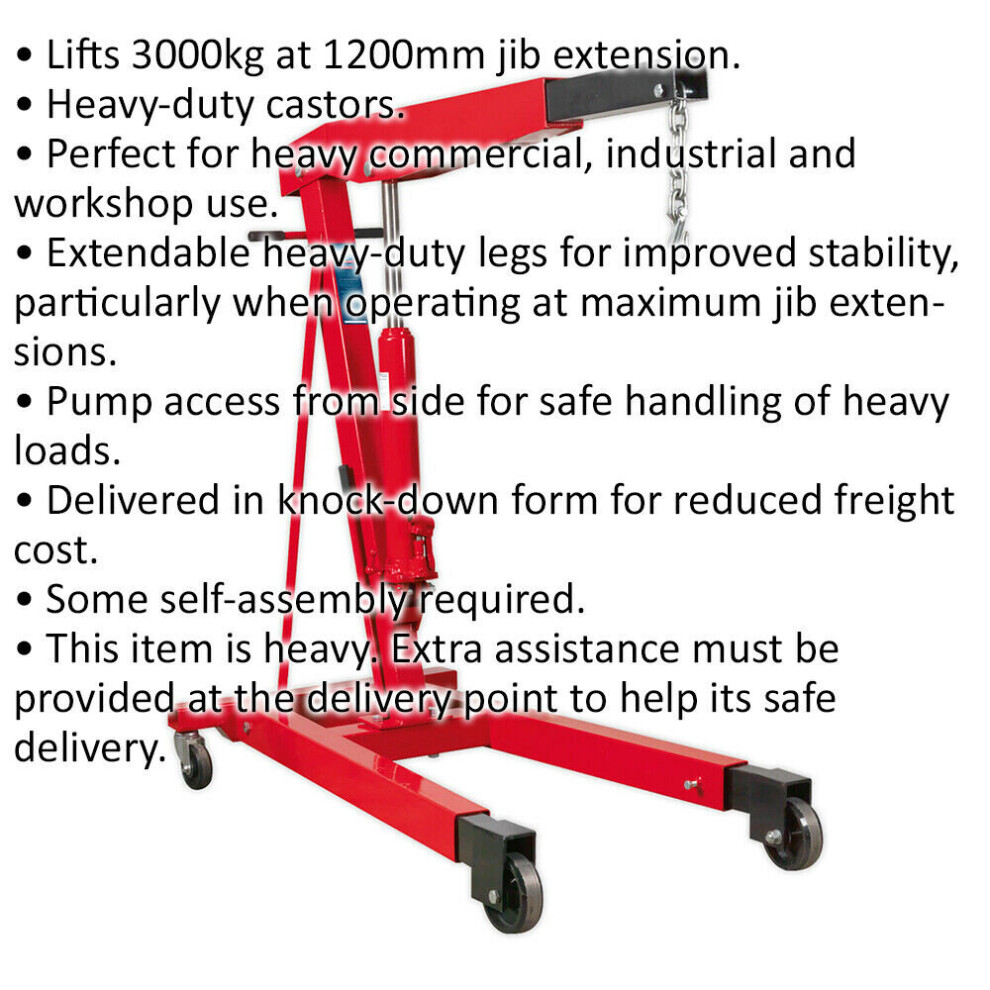

• Lifts 3000kg at 1200mm jib extension.
• Heavy-duty castors.
• Side pump as with removable handle.

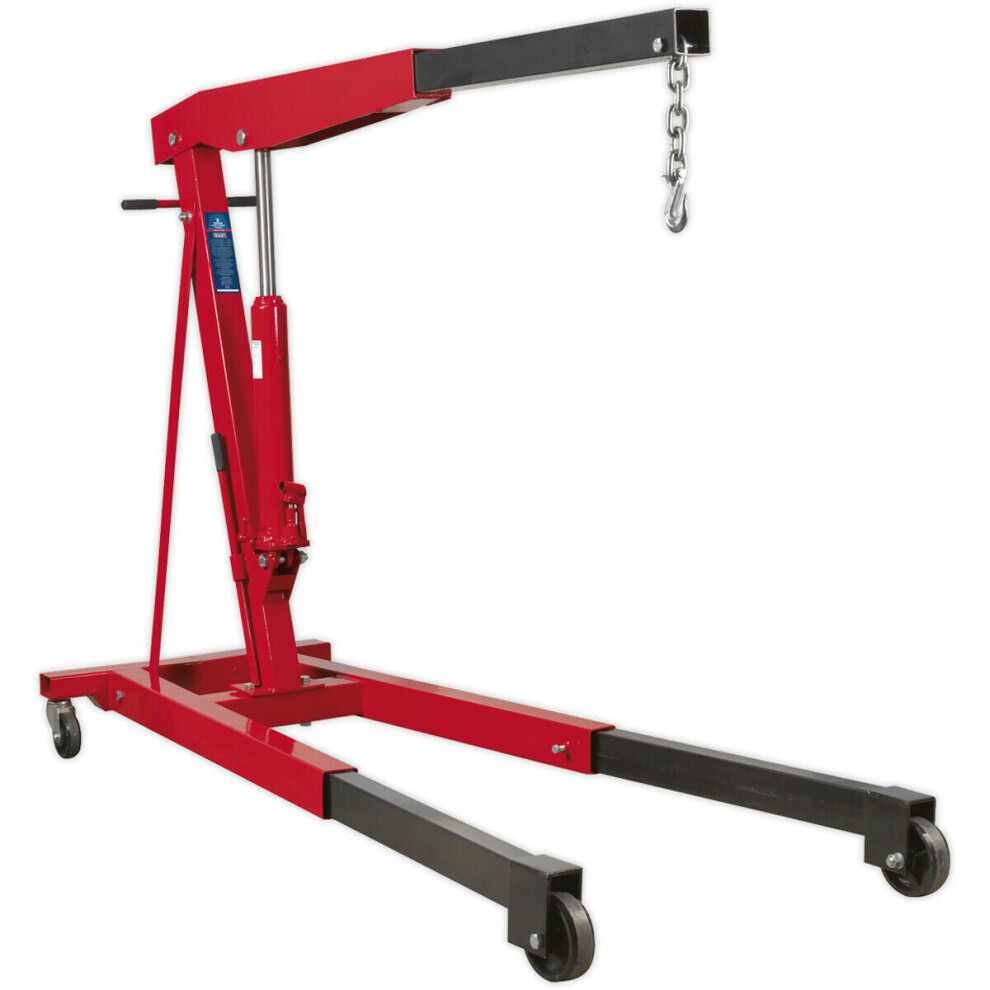

• Extendable legs for improved stability.
• Delivered in knock-down form.
• Some self-assembly required.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Height Jib Down - 1610mm
• Height of Frame - 195mm
• Length Legs Extended - 1940mm
• Length of Jib Position 1 - 1200mm
• Length of Jib Position 2 - 1400mm
• Length of Jib Position 3 - 1610mm
• Length of Jib Position 4 - 1820mm
• Length - 1940mm*
• Lifting Capacity in Position 1 - 3000kg
• Lifting Capacity in Position 2 - 2000kg
• Lifting Capacity in Position 3 - 1500kg
• Lifting Capacity in Position 4 - 1000kg
• Max. Lift Ht at Jib Position 1 - 1880mm
• Max. Lift Ht at Jib Position 2 - 1970mm
• Max. Lift Ht at Jib Position 3 - 2010mm
• Max. Lift Ht at Jib Position 4 - 2220mm
• Net Weight - 155kg
• Note - *Legs Extended
• Rear Width - 780mm
• Width Front Frame - 855mm*
• Width Inside Front Frame - 700mm*

Further Information:
