3-Unit Wired Video Door Phone Audio Intercom Entry System

3-Unit Wired Video Door Phone Audio Intercom Entry System Description

1、7 inch color digital LCD screen, no radiation, low power consumption, really high definition 16:9 widescreen display. 2、Hands-free intercom function, active outdoor monitoring function, one-button unlock function. 3、16 music ringtones are available, pleasant to your ears, eliminating the annoyance of constantly hearing monotonous ringtone. 4、Electronically controlled unlock function, power-on unlock and power-off unlock require a special access control power supply. 5、All metal waterproof, explosion-proof, with 6 night vision infrared lights for IR night vision function.
Features:
Indoor Unit:
7 inch color digital LCD screen, no radiation, low power consumption, really high definition 16:9 widescreen display.
Ultra-thin design indoor unit, acrylic panel, high-grade and beautiful to present luxurious style.
Hands-free intercom function, active outdoor monitoring function, one-button unlock function.
16 music ringtones are available, pleasant to your ears, eliminating the annoyance of constantly hearing monotonous ringtone.
The image brightness, chroma and volume of the indoor unit are simultaneously adjustable.
Outdoor Unit:
Electronically controlled unlock function, power-on unlock and power-off unlock require a special access control power supply.
All metal waterproof, explosion-proof, with 6 night vision infrared lights for IR night vision function.
Two discrete buttons, intercom calling function of indoor unit and outdoor unit.
Specification:
Condition: Brand New
Material: ABS + PMMA panel
Color: shown as picture
Display resolution: 840*480
Power supply mode: switch power AC110-240V 50Hz / DC15V 2A
Whole unit current: < 800mA
Call delay time: 120S 10%
Monitoring delay time: 60S10%
Camera sensor: HD color CMOS; 700 lines
Outdoor unit infrared night vision function: less than 10LUX infrared on
Indoor unit size: approx.24*15*2cm/9.4*5.9*0.8in
Outdoor unit size: approx.18*9*2cm/7.1*3.5*0.8in
Indoor unit installation method: wall-mounted
Outdoor unit installation method: wall-mounted
Connection cable: 4-core connection cable standard 5m + 4-core terminal cable 15cm (connected to electric control lock)

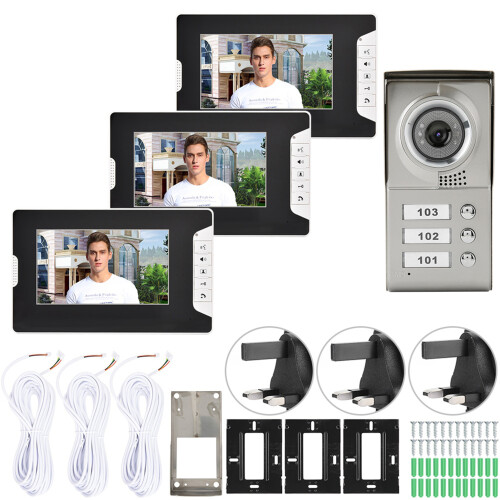

Package List:
3 * Indoor Unit (7 inch color LCD screen display)
1 * Outdoor Unit (Camera)
3 * Connection Cable (Standard 5m)
3 * Switch Power
3 * Screw Bag
1 * User Manual
