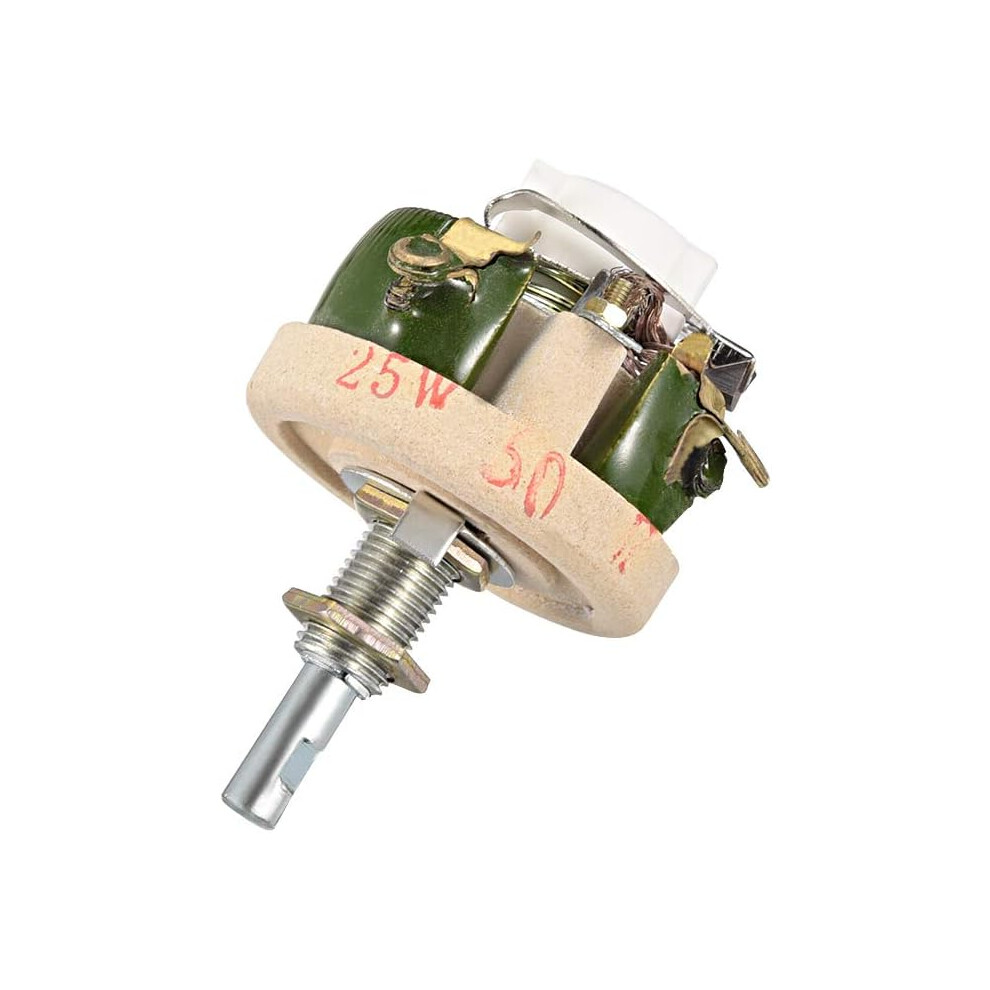

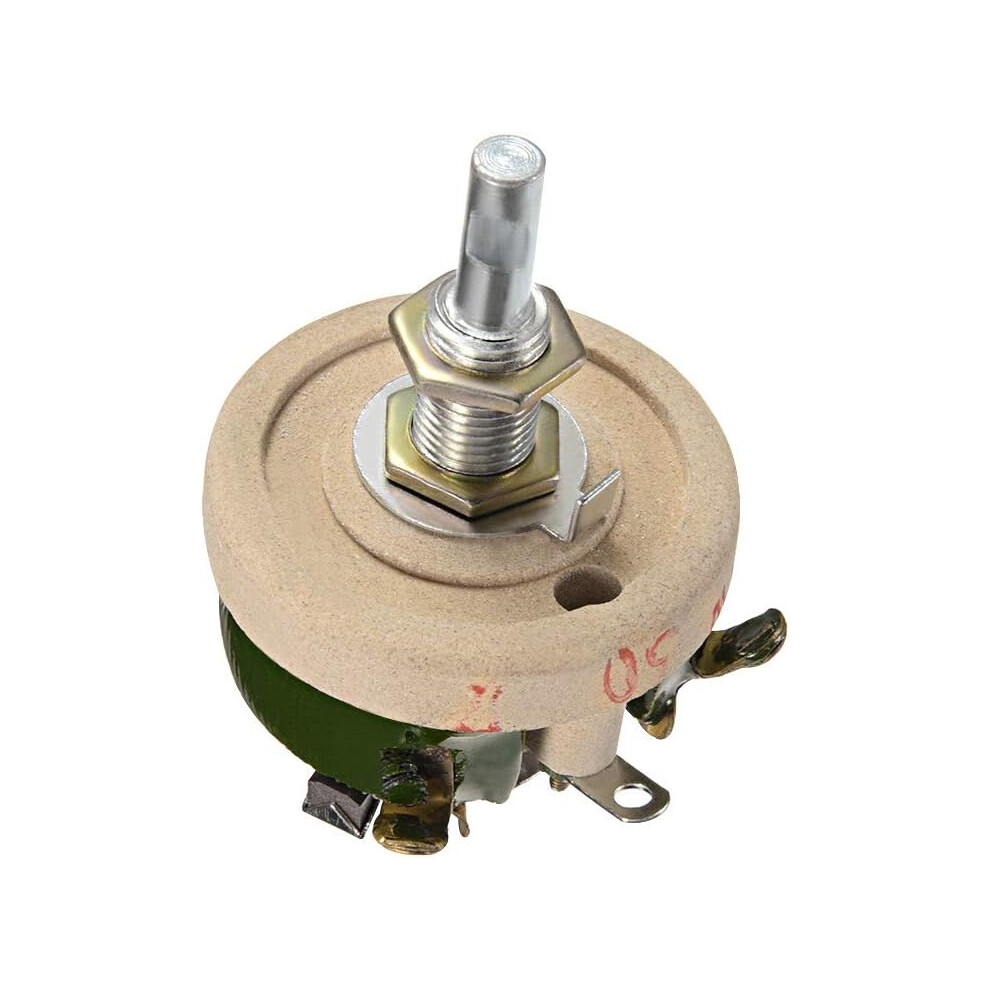

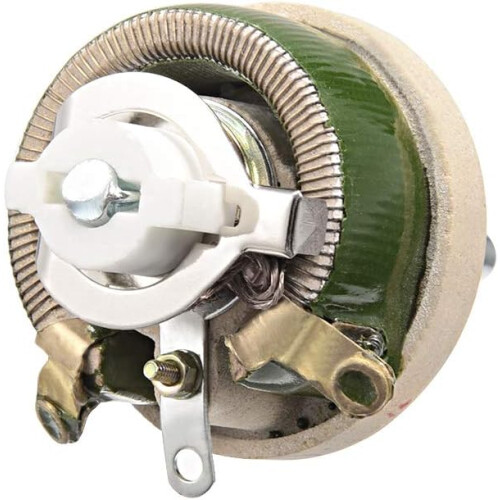

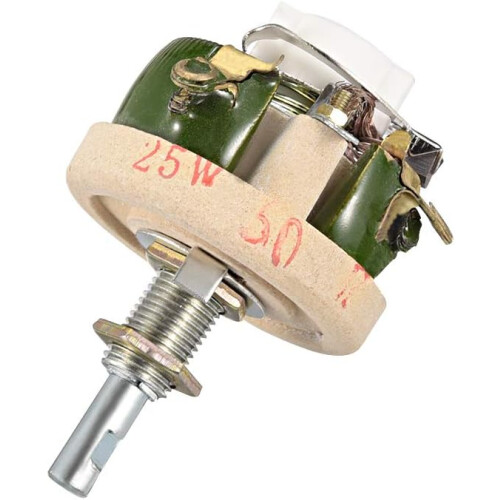

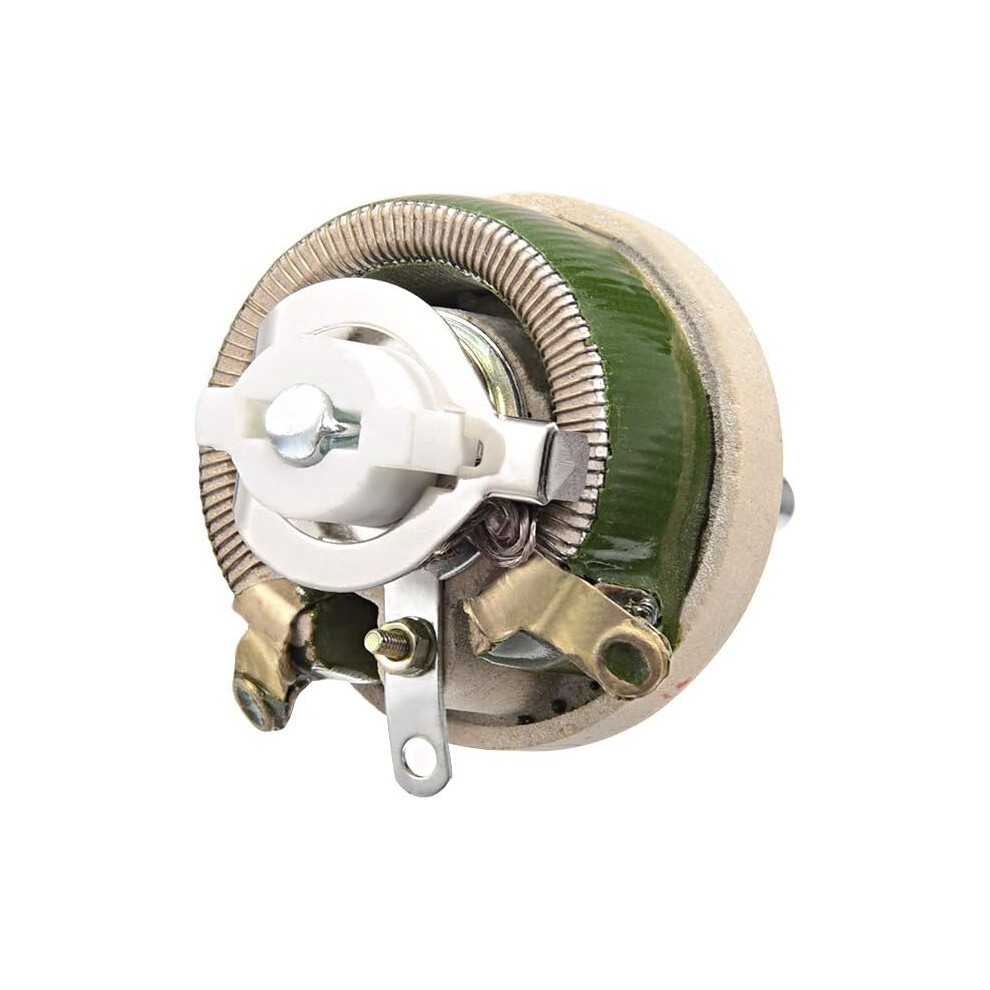

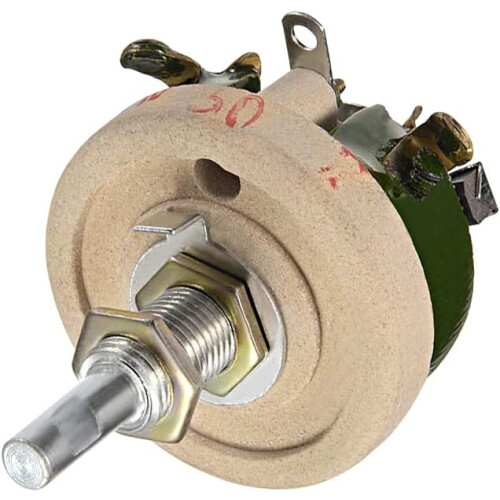

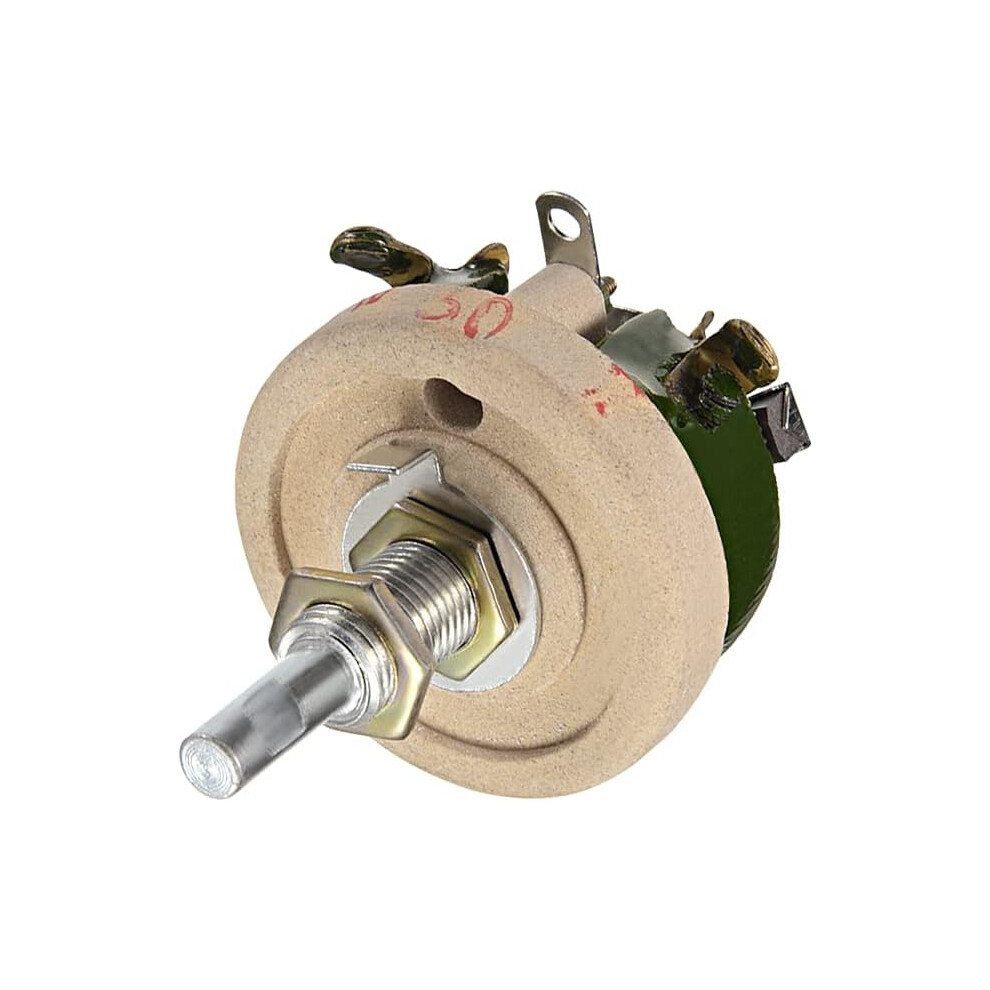

30 Ohm 25W High Power Ceramic Wirewound Potentiometer Rheostat Variable Resistor

30 Ohm 25W High Power Ceramic Wirewound Potentiometer Rheostat Variable Resistor Description

Key Features

• Product Name Rheostat; Material Ceramic,Metal, Color Black,Silver Tone,Green; Power Rating 25W; Resistance Value 30 Ohm;
• Tolerance +/- 10%; Total Size 67 x 43 x 48mm / 2.64-inch x 1.69-inch x 1.89-inch (L*W*H); Shaft Size 67 x 6mm / 2.64-inch x 0.24-inch (L*D);
• Bottom Screw Hex Size 14mm / 0.55-inch; Bottom Thread Diameter M10 / 1 mm(metrisch 60 degree); Bottom Body Base Size 24.5 x 43mm / 0.69-inch x 1.69-inch (T*D);
• Wiper Length 28mm / 1.1-inch; Number of Mounting Hole 3; Big Mounted Hole Dia 2.9mm / 0.11-inch; Small Mounted Hole Dia 1.8mm / 0.07-inch;
• Style 25W 30 Ohm; Per Piece Weight 78g; Package Content 1 x Variable Resistor;

Product Description

Widely used in educational modeling, load simulations, industiral machinery RPM adjustment, voltage and current adjustment, instruments, and automated control installations. Also can be used widely as light dimmers and motor speed control, is applicable for arc lamps, pumps, fans and blowers, model or other applications that require high voltage and current. The rheostat is consisted of ceramic core and a resistive wire wrapped to form a toroid coil with a wiper axle.

Specifications

Product Name: Rheostat;Material: Ceramic,Metal,Color: Black,Silver Tone,Green;Power Rating: 25W;Resistance Value: 30 Ohm;Rated Power Temperature: + 158 F / + 70 C;Working Temperature: -55 C to +315 C;Tolerance: +/- 10%;Total Size: 67 x 43 x 48mm / 2.64-inch x 1.69-inch x 1.89-inch (L*W*H);Shaft Size: 67 x 6mm / 2.64-inch x 0.24-inch (L*D);Bottom Screw Hex Size: 14mm / 0.55-inch;Bottom Thread Diameter: M10 / 1 mm(metrisch 60 degree);Bottom Body Base Size: 24.5 x 43mm / 0.69-inch x 1.69-inch (T*D);Wiper Length: 28mm / 1.1-inch;Number of Mounting Hole: 3;Big Mounted Hole Dia: 2.9mm / 0.11-inch;Small Mounted Hole Dia: 1.8mm / 0.07-inch;Style: 25W 30 Ohm;Per Piece Weight: 78g;

Package Content

1 x Variable Resistor;

Specifications Product Dimensions5.51 x 3.94 x 3.15 inches
