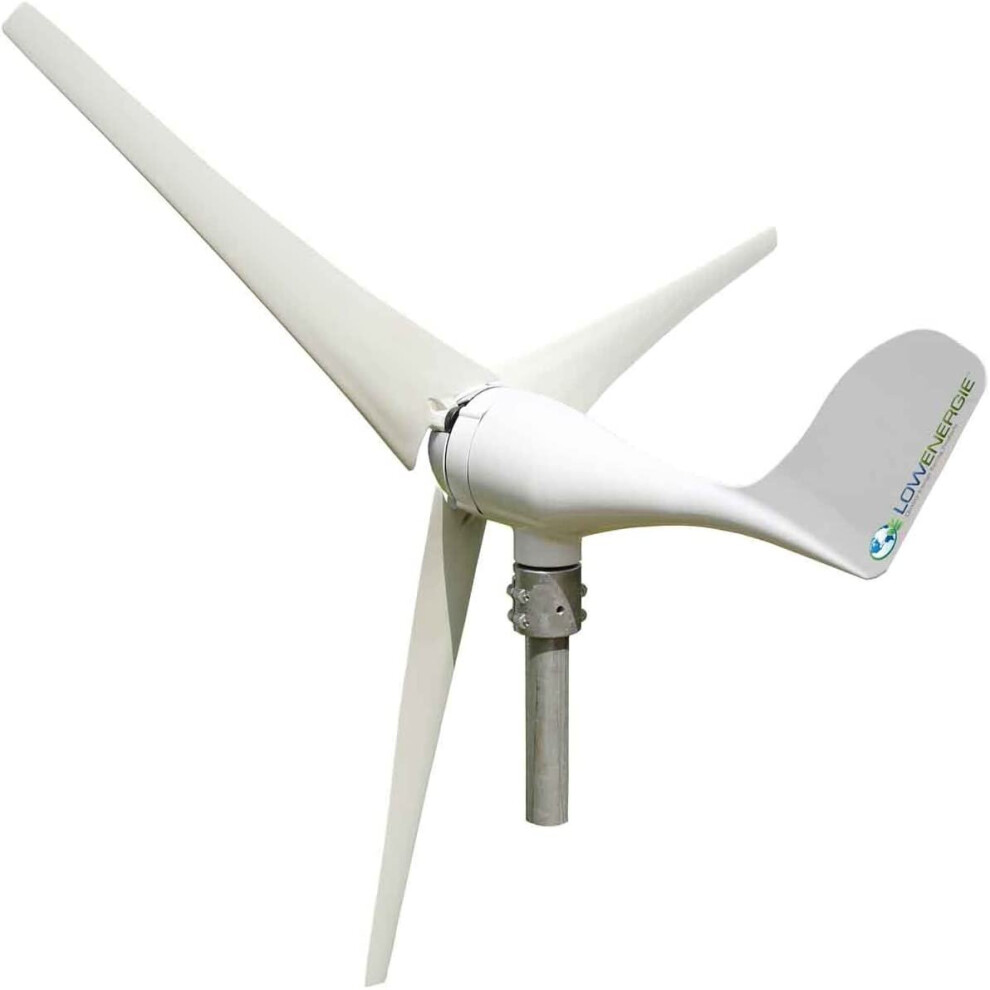

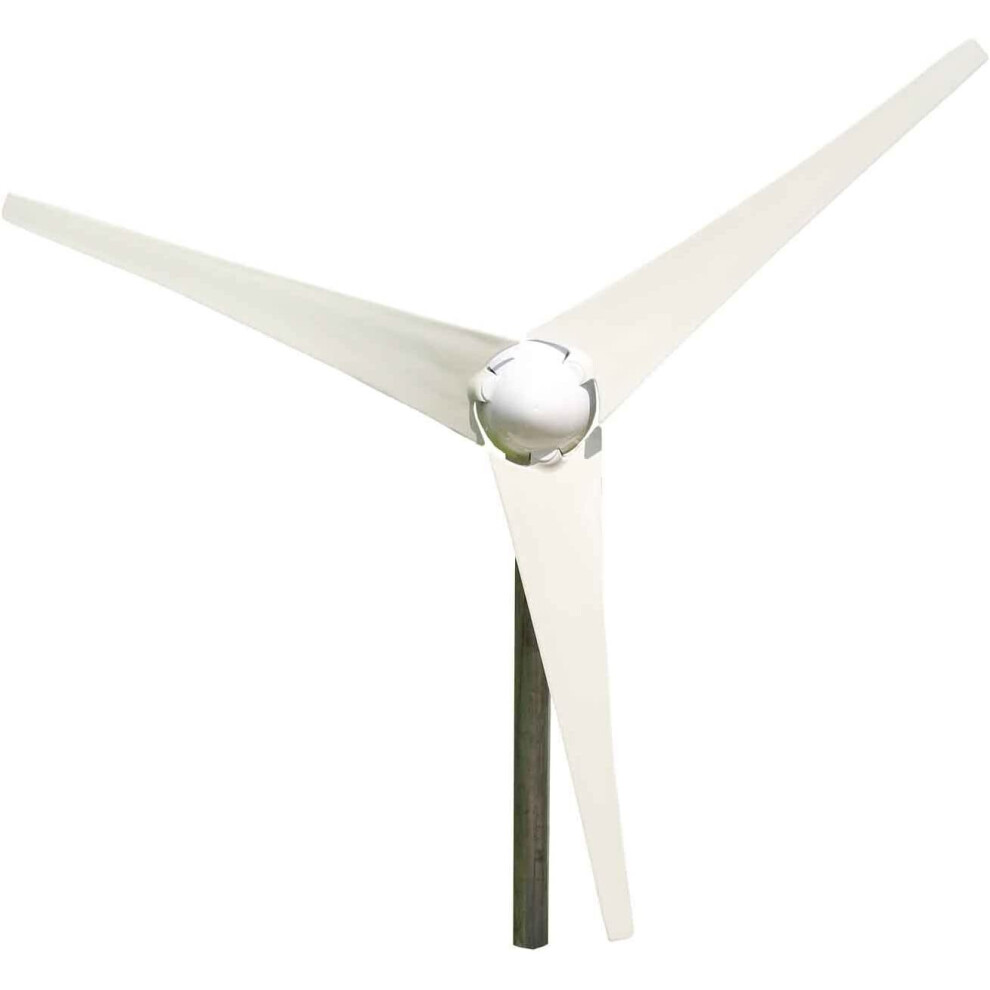

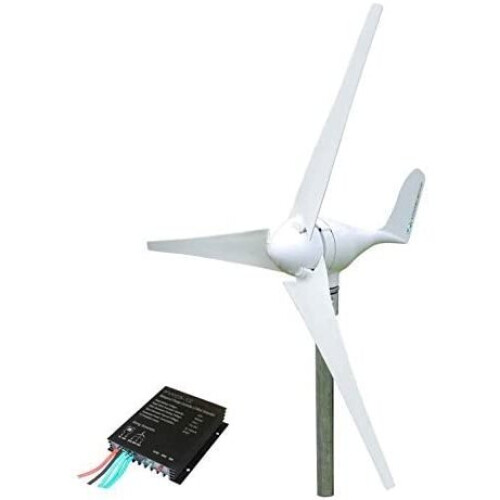

300W 12V Wind Turbine kit with charge controller

300W 12V Wind Turbine kit with charge controller Description

Small wind turbines are an excellent source of power generation when they are positioned in a suitable location such exposed coastal or rural areas. Wind turbines should be positioned in clean wind which is strong and laminar, which means it flows in smooth streamlines and is not disrupted by nearby obstacles.

All of our wind turbines use an ISO 9001 manufacturer (Factory quality management) & comply with ISO14001 (Environmental Management)

• All our turbines include PWM 12v charge controller
• IP67 Waterproof
• 12V Controller to match up to 300W rated turbine
• Overspeed protection braking voltage - 15V
• Self power consumption - <15mA
• Wiring - 3 phase AC from turbine (green wires), Red/black +/- battery connections
• LED indicator lights - Battery / Charge / Brake

Product Specification - 300W Model

• Product Description - 300W Model
• Rated Power - 300 Watts at 12m/s (27mph)
• Maximum power - 330 Watts at 13.5m/s (30mph)

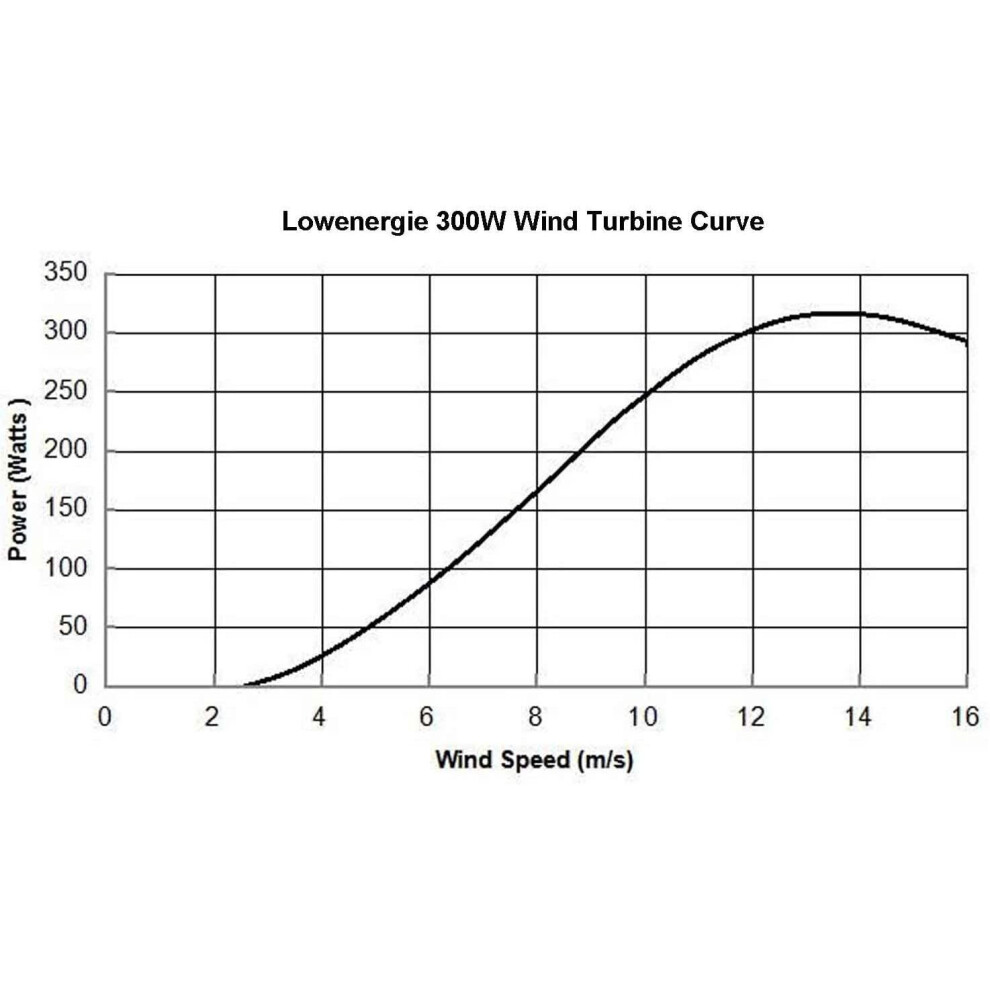

• Start-up wind speed - 2.0 m/s (4.5mph), see power curve graph
• Survival Wind Speed - 50 m/s (112mph)
• Voltage Output - 12V DC options
• Blade Diameter - 1.35M (4ft 4.2in)
• Number of Blades - 3
• Weight - 10Kg
• Overspeed Protection - Electronic Stalling to slow rotation
• Blade Material - Nylon Fibre
• Body Material - diecast aluminium alloy, powder coated for weather & corrosion protection
• Turbine generator type - brushless low friction 3-phase permanent magnet AC synchronous
• Mounting - Simple clamp mounting onto a 48mm external diameter steel pole (same size as a scaffolding pole - not included)
• Operating temperature -40 to 80 degrees Centigrade
• Design Life - 20 Years
• Manufacturers Warranty - 2 Years
• Certifications - CE, TUV, ISO

Mounting mast not included
