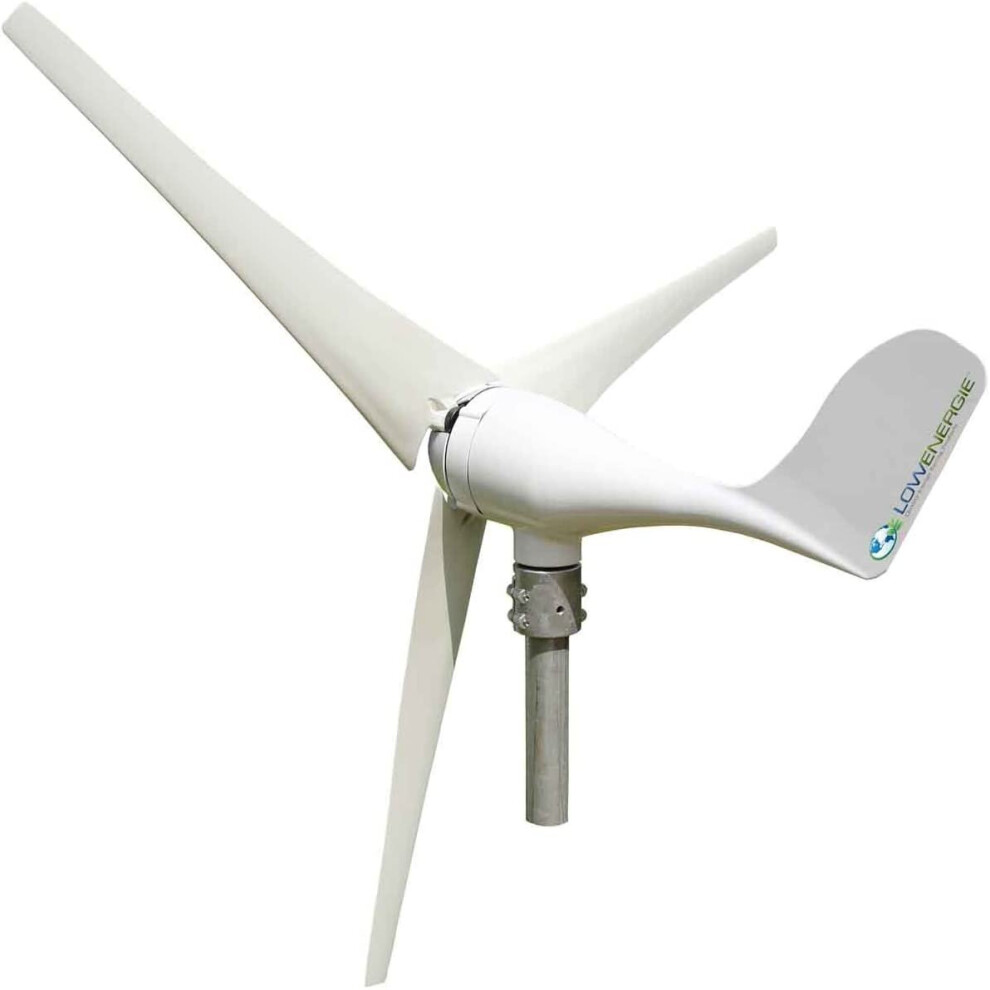

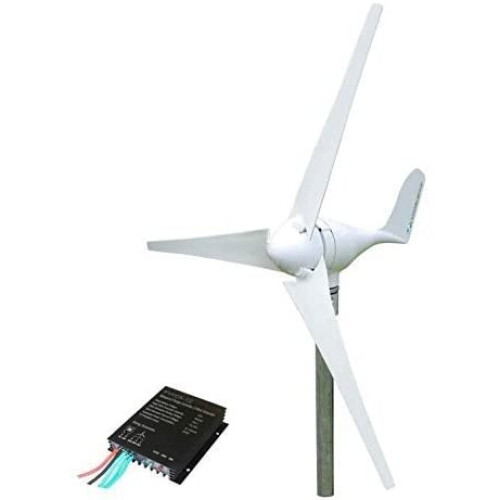

300W 24V Wind Turbine kit with charge controller

300W 24V Wind Turbine kit with charge controller Description

Our wind turbines have quiet operation and low rotation resistance so they have light breeze startup speeds of just a 4.5mph wind (2 metres per second wind speed).

Small wind turbines are an excellent source of power generation when they are positioned in a suitable location such exposed coastal or rural areas. Wind turbines should be positioned in clean wind which is strong and laminar, which means it flows in smooth streamlines and is not disrupted by nearby obstacles.

All of our wind turbines use an ISO 9001 manufacturer (Factory quality management) & comply with ISO14001 (Environmental Management)

Turbine includes PWM 24V charge controller

• IP67 Waterproof
• 24V Controller to match up to 600W rated turbine
• Overspeed protection braking voltage - 15V
• Self power consumption -
• Wiring - 3 phase AC from turbine (green wires), Red/black +/- battery connections
• LED indicator lights - Battery / Charge / Brake

Product Description - 300W Model

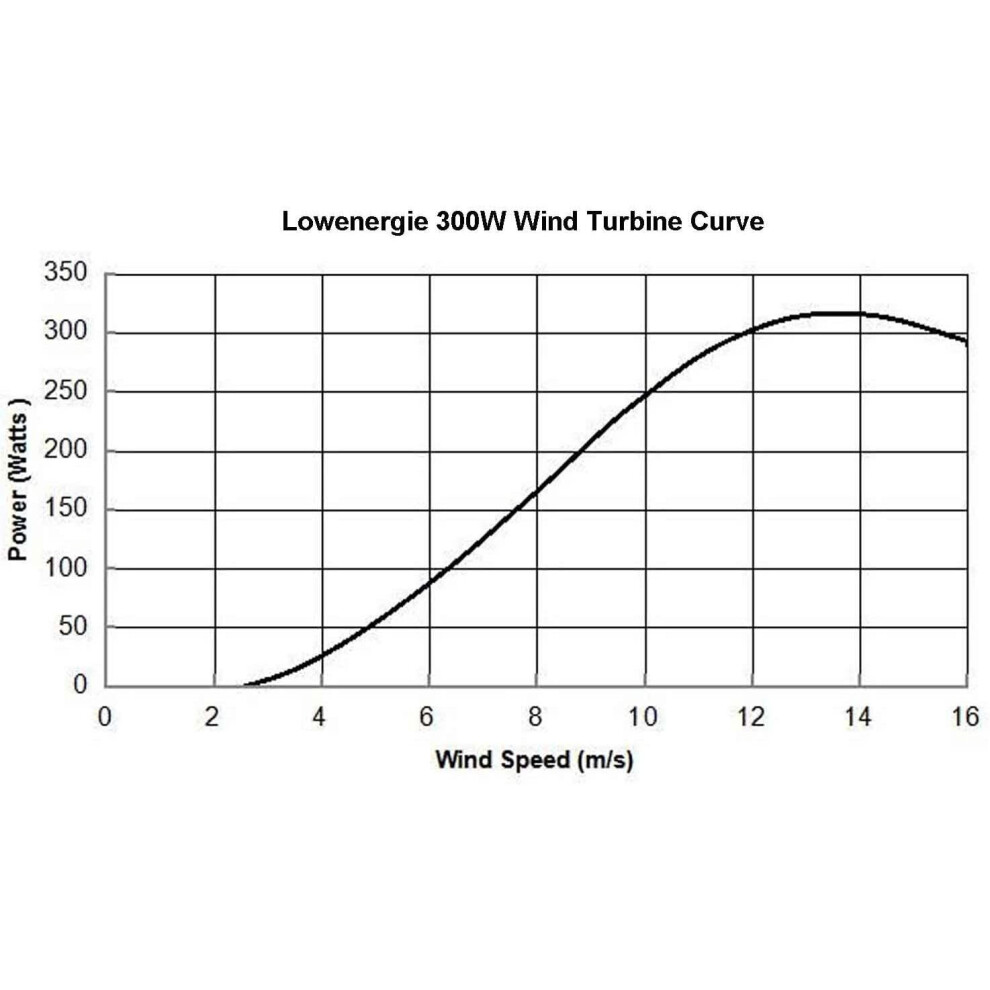

• Start-up wind speed - 2.0 m/s (4.5mph), see power curve graph
• Survival Wind Speed - 50 m/s (112mph)
• Voltage Output - 24V DC
• Blade Diameter - 1.35M (4ft 4.2in)
• Number of Blades - 3
• Weight - 10Kg
• Overspeed Protection - Electronic Stalling to slow rotation
• Blade Material - Nylon Fibre
• Body Material - diecast aluminium alloy, powder coated for weather & corrosion protection
• Turbine generator type - brushless low friction 3-phase permanent magnet AC synchronous
• Mounting - Simple clamp mounting onto a 48mm external diameter steel pole (same size as a scaffolding pole)
• Operating temperature -40 to 80 degrees Centigrade
