300W DC-DC Buck Converter Adjustable Voltage Current

300W DC-DC Buck Converter Adjustable Voltage Current Description

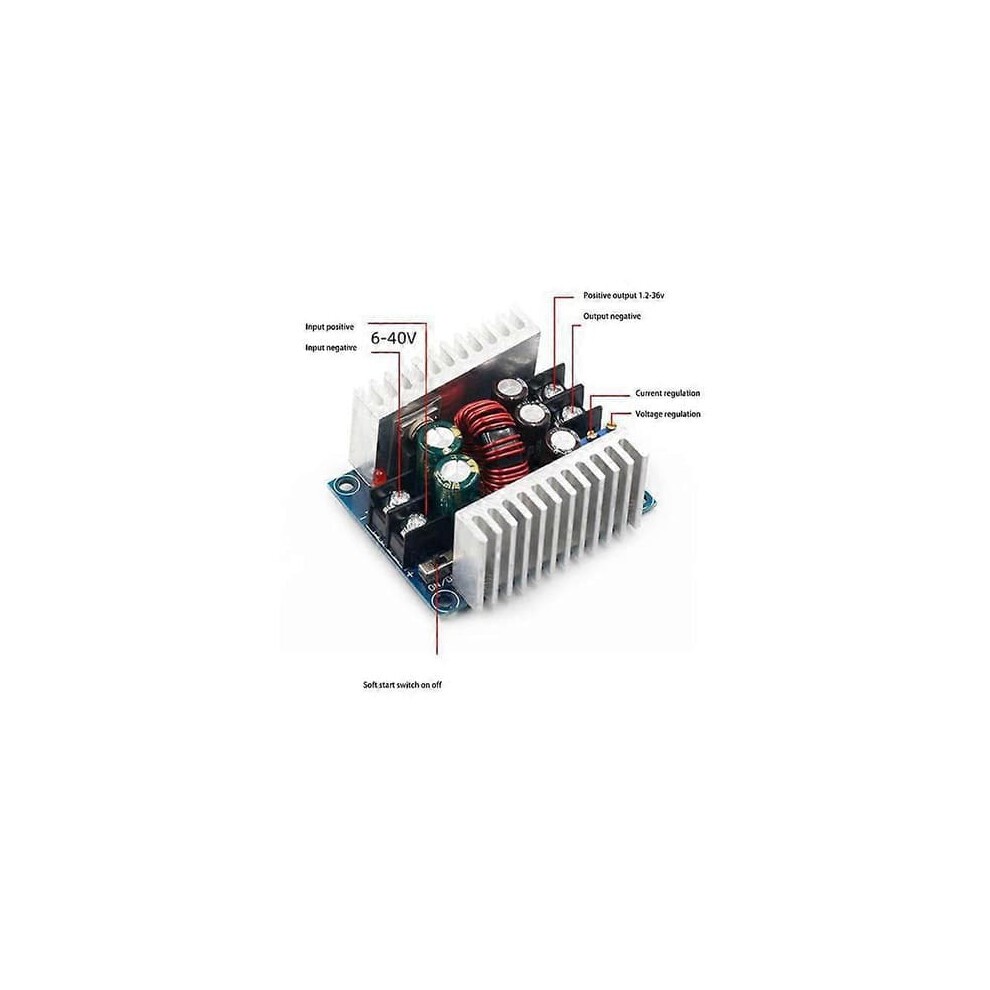

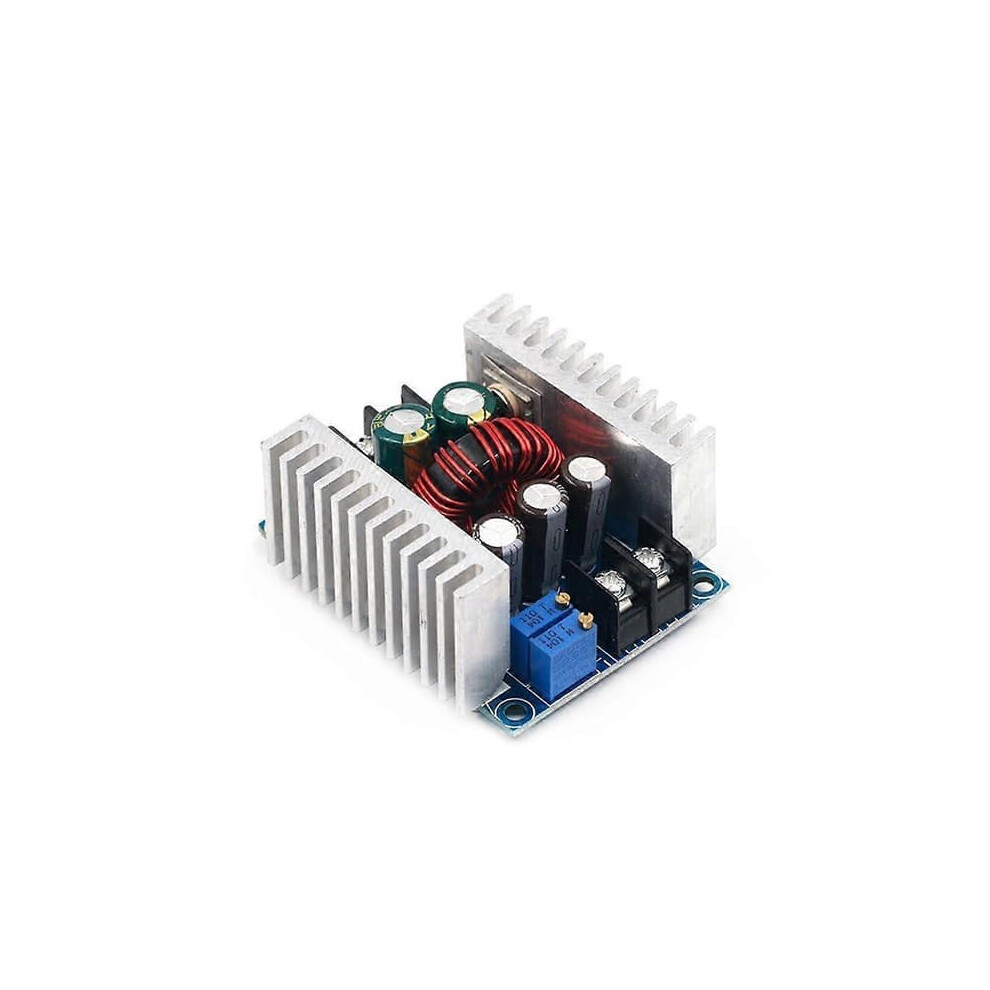

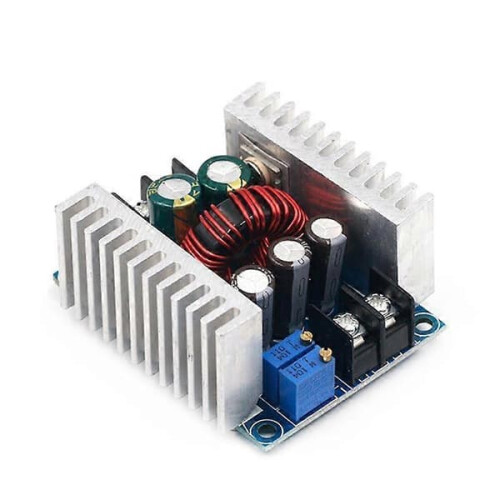

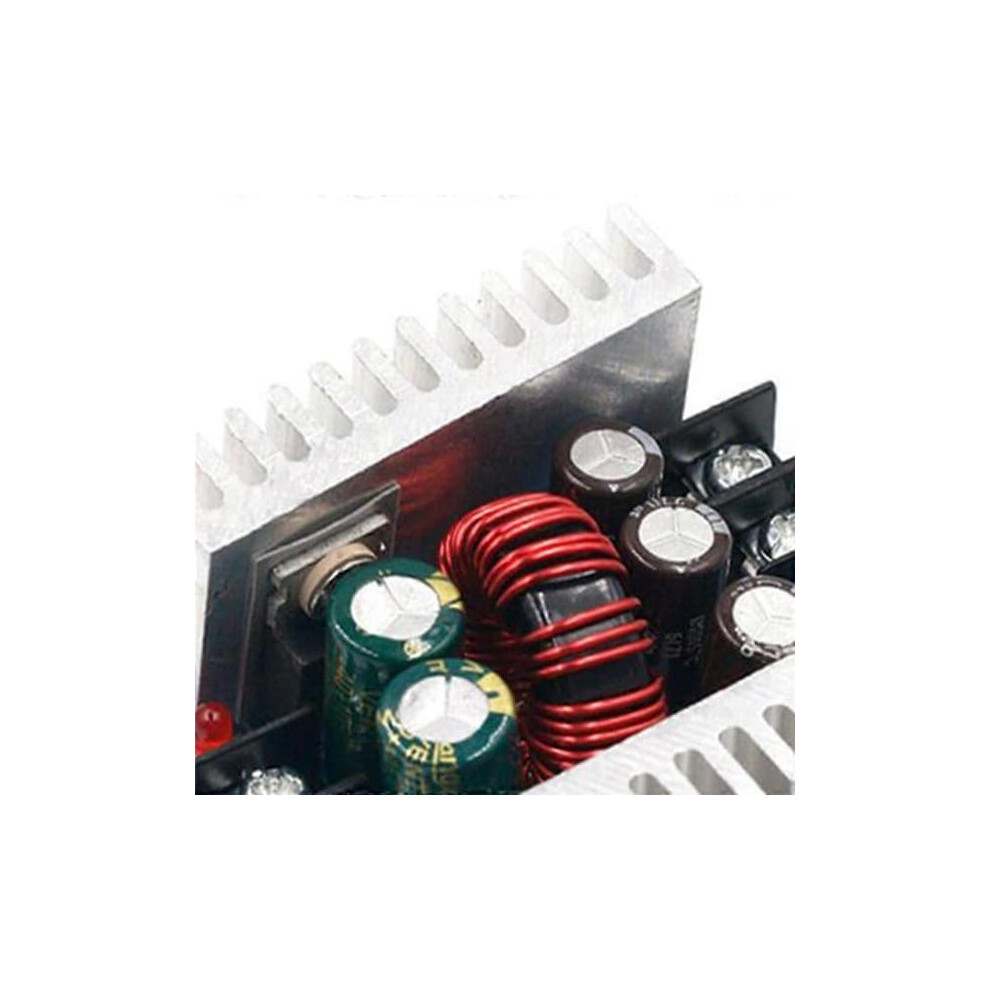

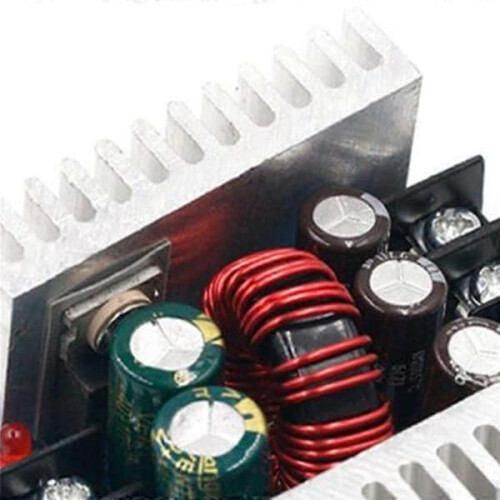

With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust the output voltage and current. The efficiency can be up to 96%, measured at 20A, converting 24V to 12V. It is designed with 75V/80A large current dual MOS tube. Input and output use high-frequency low-resistance electrolytic capacitor, low ripple, stable output. The connection is convenient with these large current 30A screw terminals. The buck module has 2 heat sinks, which can improve heat dissipation. When there is a large difference between the input and output voltage, please reduce the power and current. Input voltage: 6V to 40V DC (10V to 40V recommended) Output voltage: 1.2V to 36V DC Output current: 20A (max.), 15A (recommended) Efficiency: 95% (24V to 12V, 20A) Output ripple: less than equal to 50mV Connection method: Terminal Short circuit protection: Self-recovery (cannot be short-circuited for a long time) Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06inch VO+: Output positive VO-: Output negative +IN: Input positive -IN: Input negative CV: Output voltage adjustment CC: Output current adjustment EN: Enable, low voltage level turns off the output; suspension, high voltage level is effective When the input and output are commonly grounded, no load CV output constant voltage, CC output constant current Color: As shown Material: PC+Metal Package Contents: 1 x 300W 20A Buck Converter Only the above package contents, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
