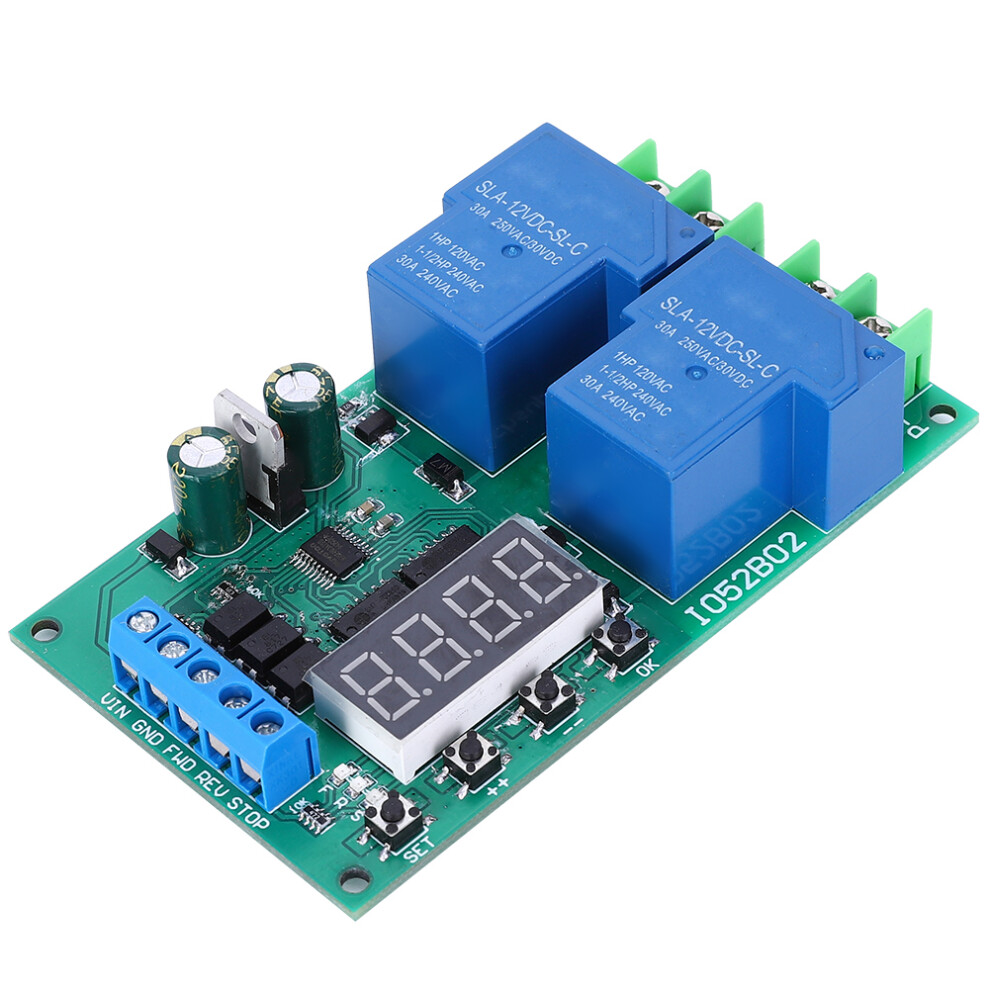

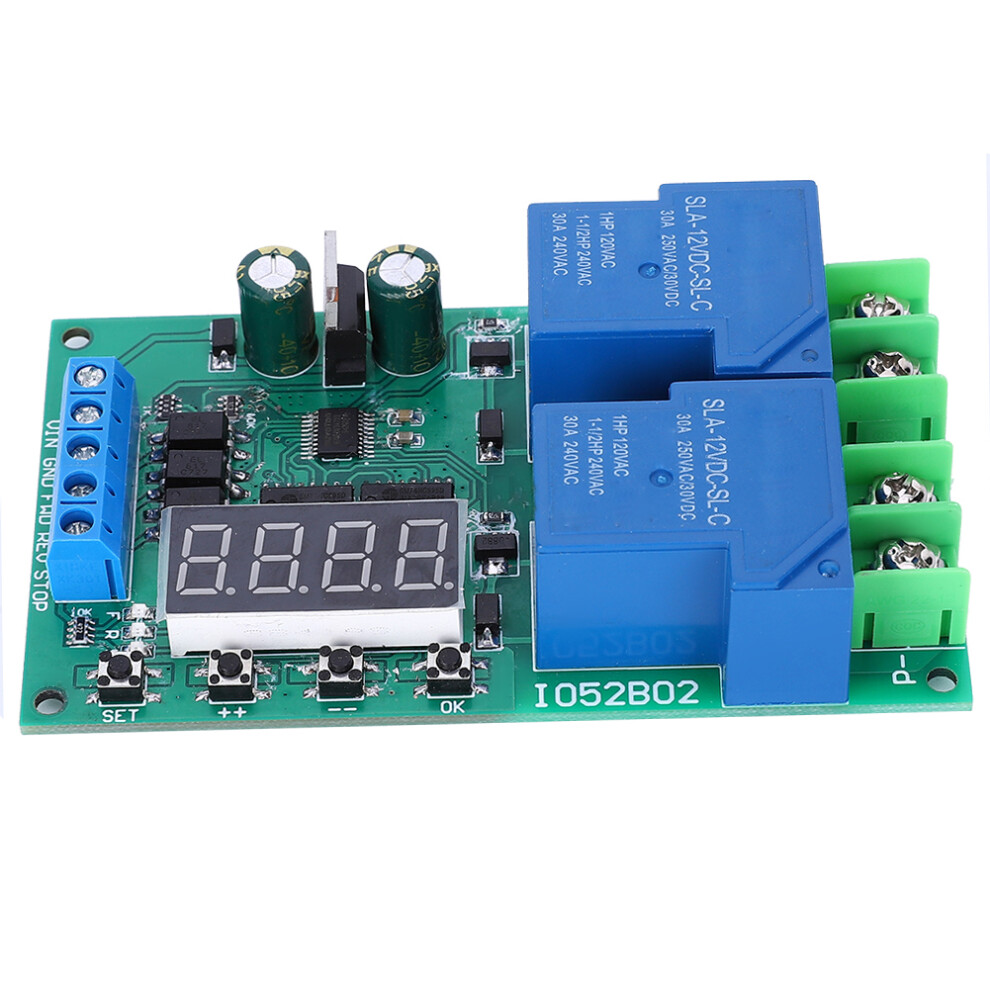

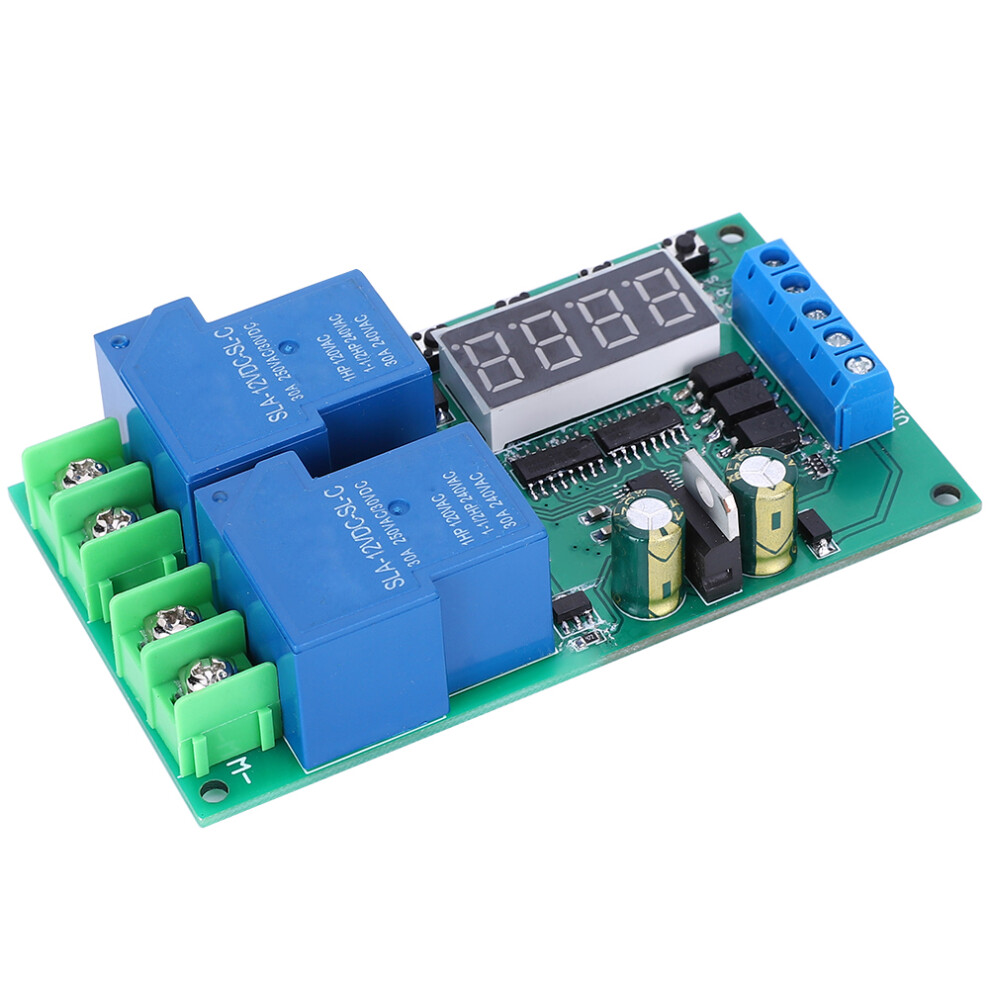

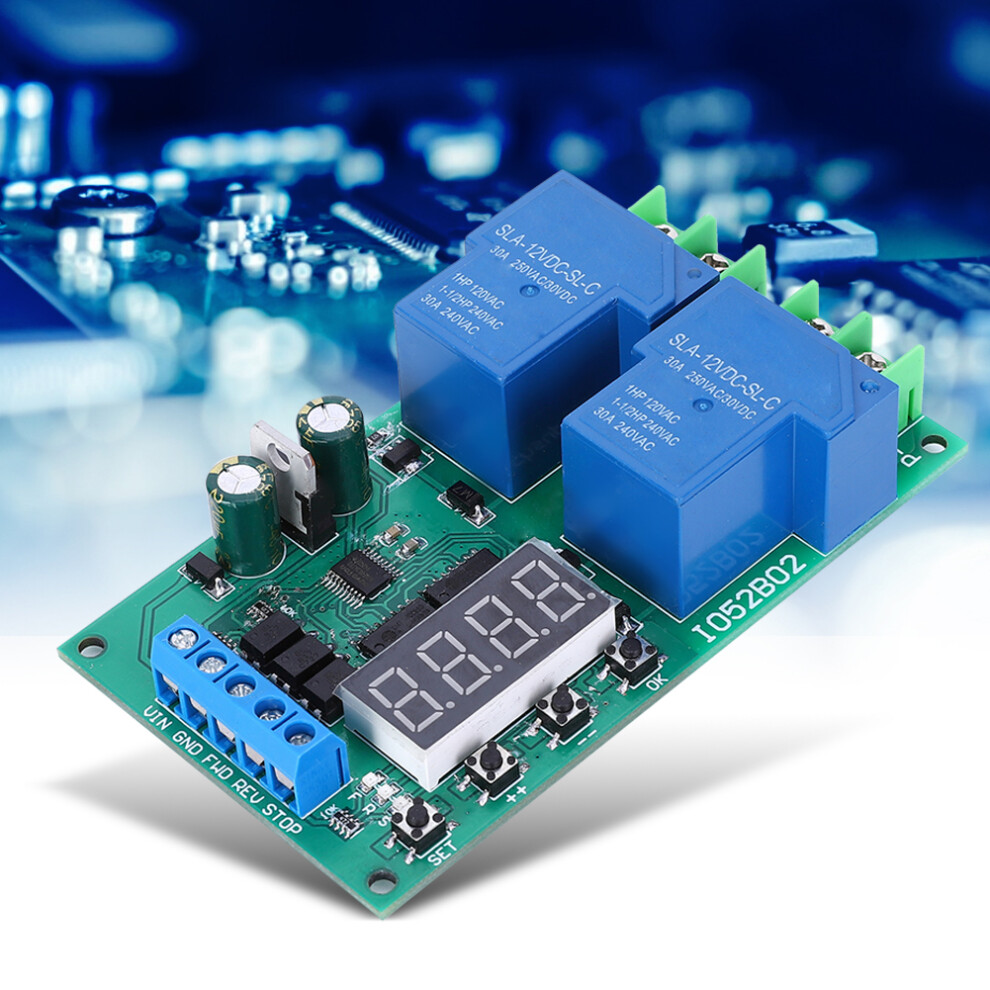

30A 12V Motor Controller Forward Reverse Start Stop

30A 12V Motor Controller Forward Reverse Start Stop Description

1、This is a 30A multi-function DC / AC motor forward and reverse controller. 2、It has multiple control methods, high efficiency and stable performance. 3、Through reasonable settings, many kinds of control functions can be derived. 4、Made of high quality metal components, anti-corrosion and high strength for maximum durability. 5、Low pulse control mode, more convenient to use.
Condition: 100% Brand New
Item Type: Motor Controller
Material: Metal
Color: As Pictures Shown
Working Current: (Normal mode) standby current 22mA, working current 109mA;
(Energy saving mode) Standby current 7mA, working current 76mA.
There are three input control ports: forward control, reverse control and stop control.
Two input trigger modes, low pulse trigger mode, low level trigger mode
Delay Time: 0.1-999.9s, 1-9999s, 1-9999 minutes.
Number of Cycles: No cycle, 2-99 cycles, Cycle forever.Three Indicator Lights: Forward indicator light, reverse indicator light, stop indicator light.
6 functional modes
Relay Load Current: 30A 250VAC / 30VDC
Size: Approx. 97.5 x 56 x 24mm / 3.8 x 2.2 x 0.9in

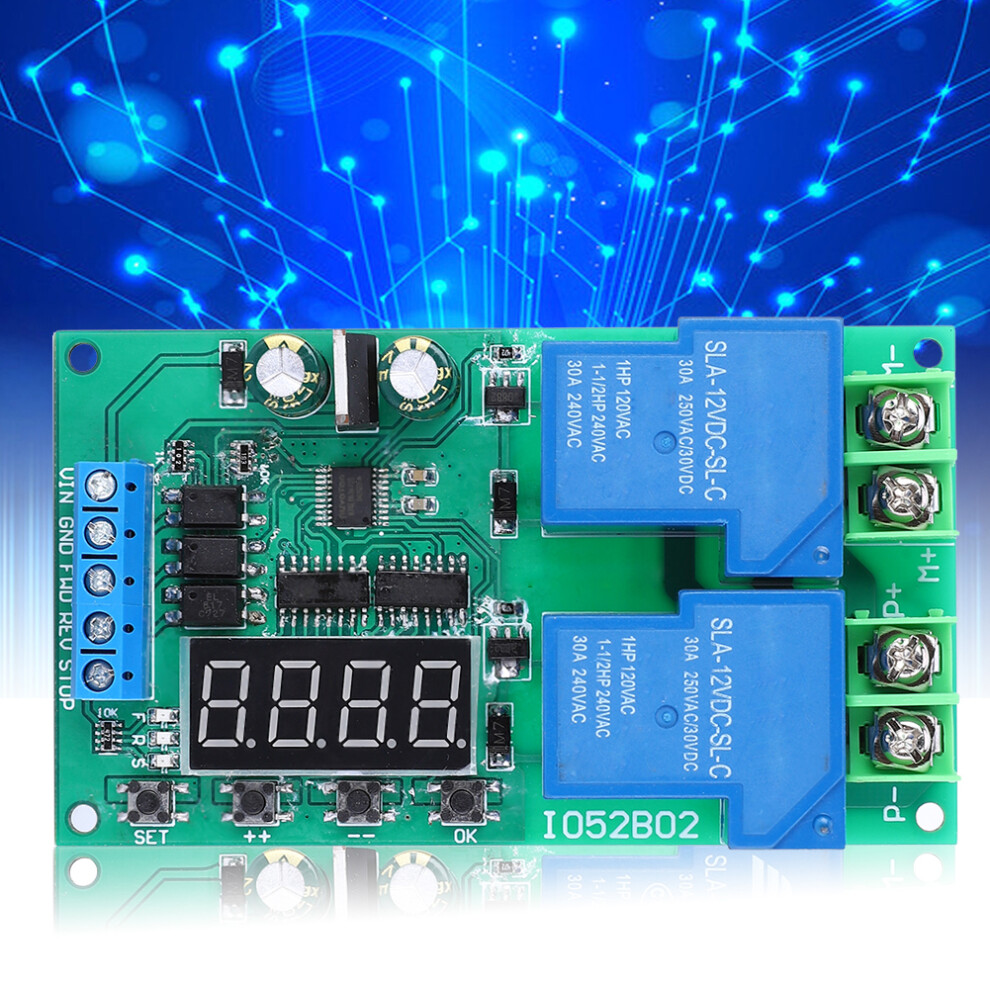

Port:
VIN: Positive power supply, DC 12V power supply
GND: Negative power supply
FWD: Forward rotation input control (some function modes are invalid)
REV: Reverse input control (some function modes are invalid)
STOP: Stop input control (some function modes are invalid)
M +: Motor positive
M-: Motor negative
P +: Positive pole of motor power supply
P-: Negative pole of motor power supply
1 x Forward/Reverse Controller Module
