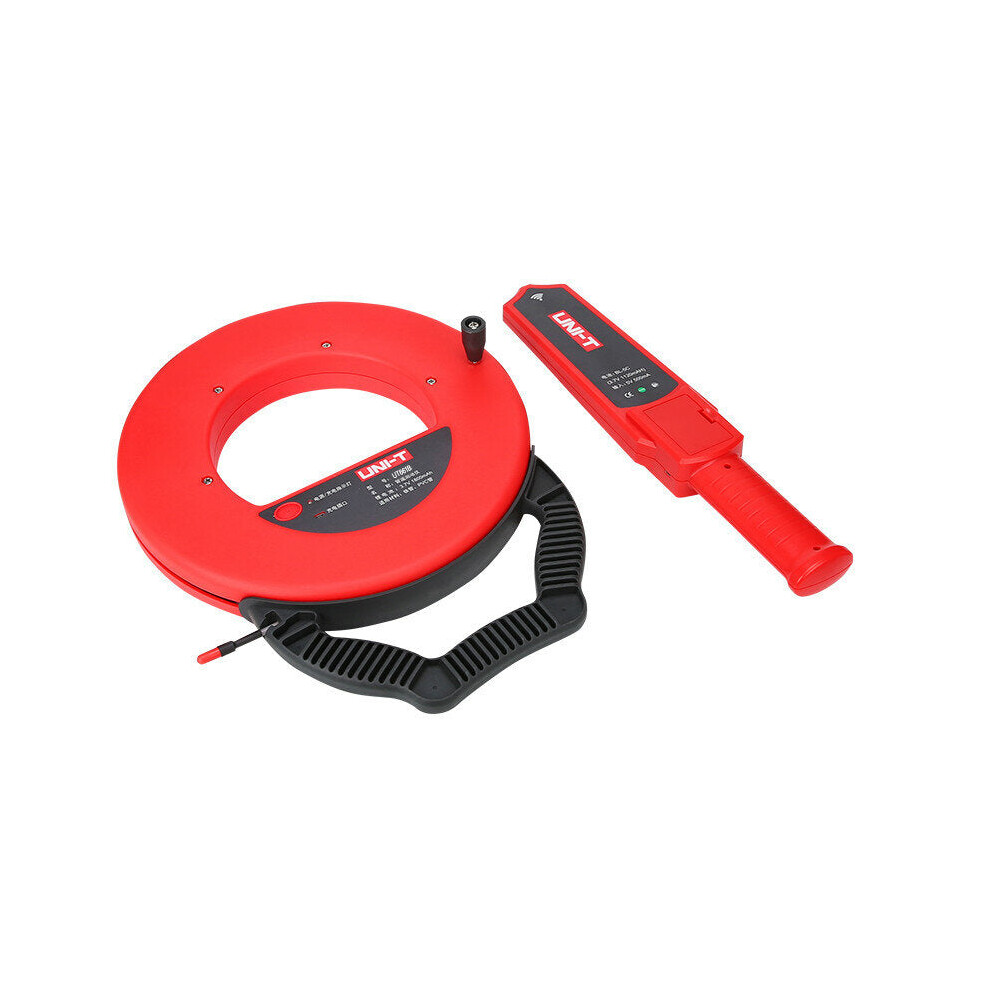

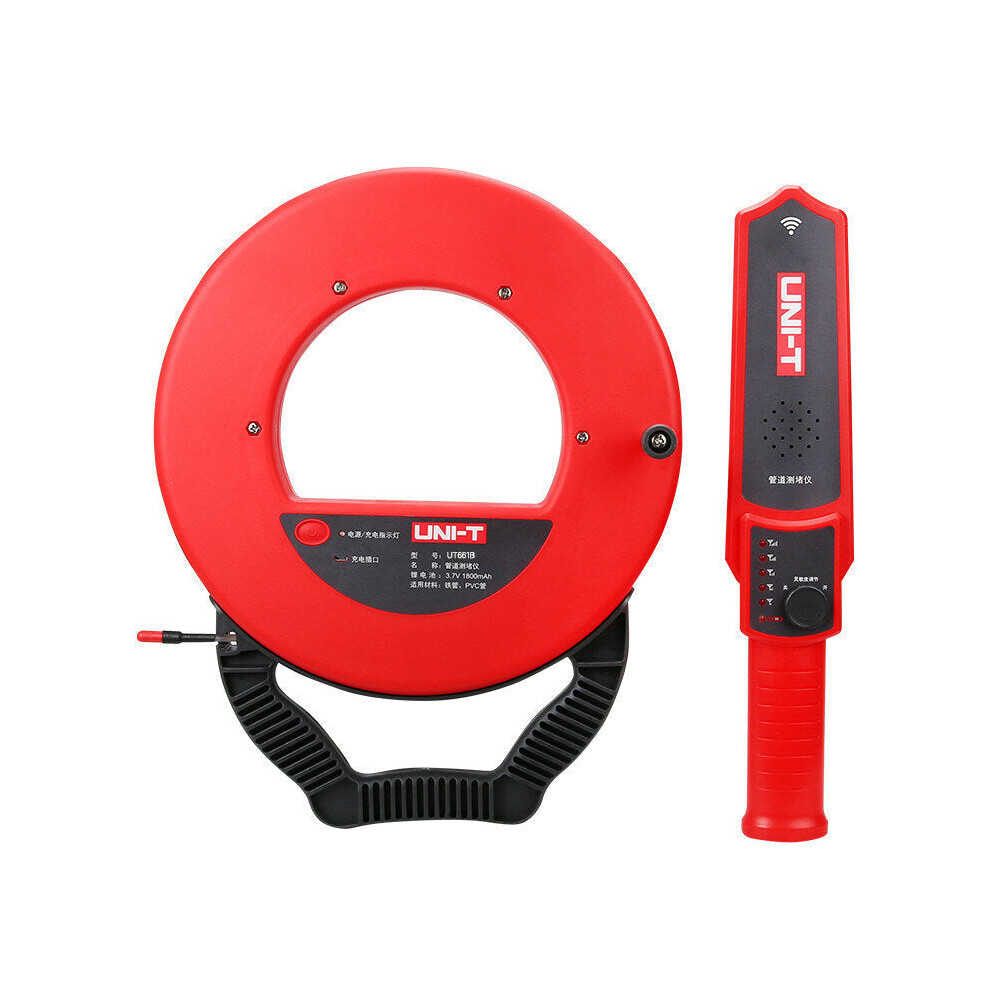

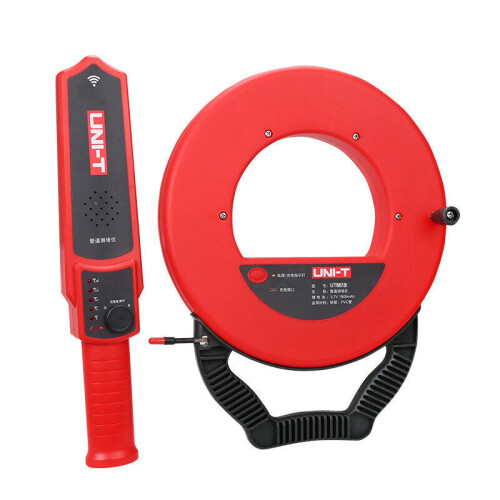

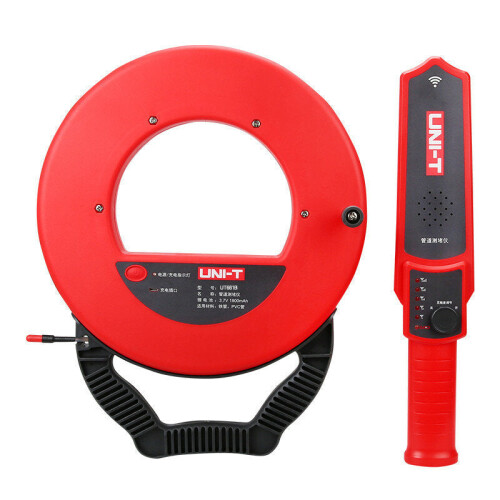

30M Wall Pipe Blockage Tester Wall Scanner Pipeline Blocking Clogging Scanner

30M Wall Pipe Blockage Tester Wall Scanner Pipeline Blocking Clogging Scanner Description

Specification:
Signal line length: 20m; 30m.
Measuring distance (depth): >50cm.
Transmitter current: Shutdown current<2uA, Working current 230~310mA.
Receiver current: Shutdown current <2uA, Standby current <40mA.
Maximum operating current 150~450mA (distance 1cm).
Recharging current: 450~550mA.
1cm distance test output sound: >93dB.
0.5m distance test output sound: >75dB.
Transmitter battery: Built-in lithium battery(3.7V1800mAh).
Receiver battery: lithium battery BL-5C(3.7V 1120mAh).
Usage time: About 10 hours.
Operating temperature: -10C~50C10~80%RH.
Storage temperature: -20C~50C10~70%RH.
Measurable pipe material: Plastic, Metal.
Dimensions: Transmitter Dimensions 386 x 303 x 42mm.
Receiver Dimensions: 385 x 75 x 44mm.
Weight: Transmitter: 1.10KG; Transmitter: 1.28KG.
Receiver: 0.23KG.

Package Included:
1 xUNI-T UT661BTransmitter.
1 xUNI-T UT661BReceiver.
1 x User Manual.
1 x USB Cable.
1 x Probe Set
