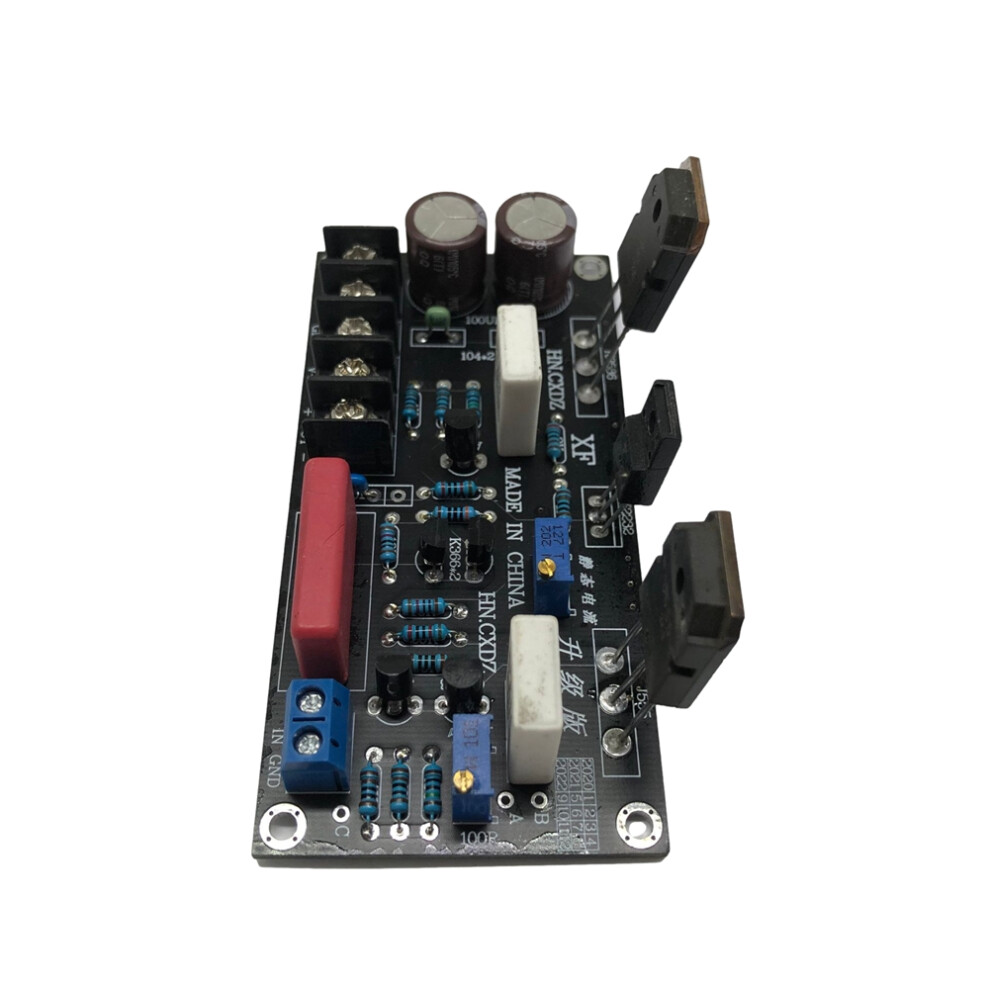

30W Direct Coupled FET Power Amplifier Board Pure Class a Amplifier Board Module 0Hz-100 KHZ FR-4 Double Panel
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 134,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Fri 2nd - Mon 5th Oct
Sold by: JKSYshop
Returns: 30 days
180-day payment protection
You might also like
Summary
- Output power: 30W/8 ohm
- Class A power: +/- 28V30W
- Harmonic distortion: less than 0.01% 10W/8 ohm
- Frequency response: 0Hz-100 KHZ
- Damping coefficient: more than 100
30W Direct Coupled FET Power Amplifier Board Pure Class a Amplifier Board Module 0Hz-100 KHZ FR-4 Double Panel Description
Output power: 30W/8 ohm
Class A power: +/- 28V30W
Harmonic distortion: less than 0.01% 10W/8 ohm
Frequency response: 0Hz-100 KHZ
Damping coefficient: more than 100
Signal to noise ratio: more than 96dB
Conversion rate: more than 30V/uS
Input sensitivity: 05V (effective value)
Input impedance: 10K
Gain: 31dB
Supply voltage: recommended +/- 24V (the highest voltage cannot exceed +/- 28V, AC 20V full bridge rectifier is 28V)
Colour: as shown
Material: PCB+metal
Size: 100x50x40mm
Package Contents:
1 * Direct Coupled Amplifier Board
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Details
| OPC | PT7W82R |
|---|---|
| Brand | Exogio |
| Codes | 6032898109675 (EAN) |
Product Data
| Height | 4cm |
|---|---|
| Width | 5cm |
| Length | 10cm |
| Weight | 0.0605kg |
| Colour | as shown |
| Material | PCB+metal |
