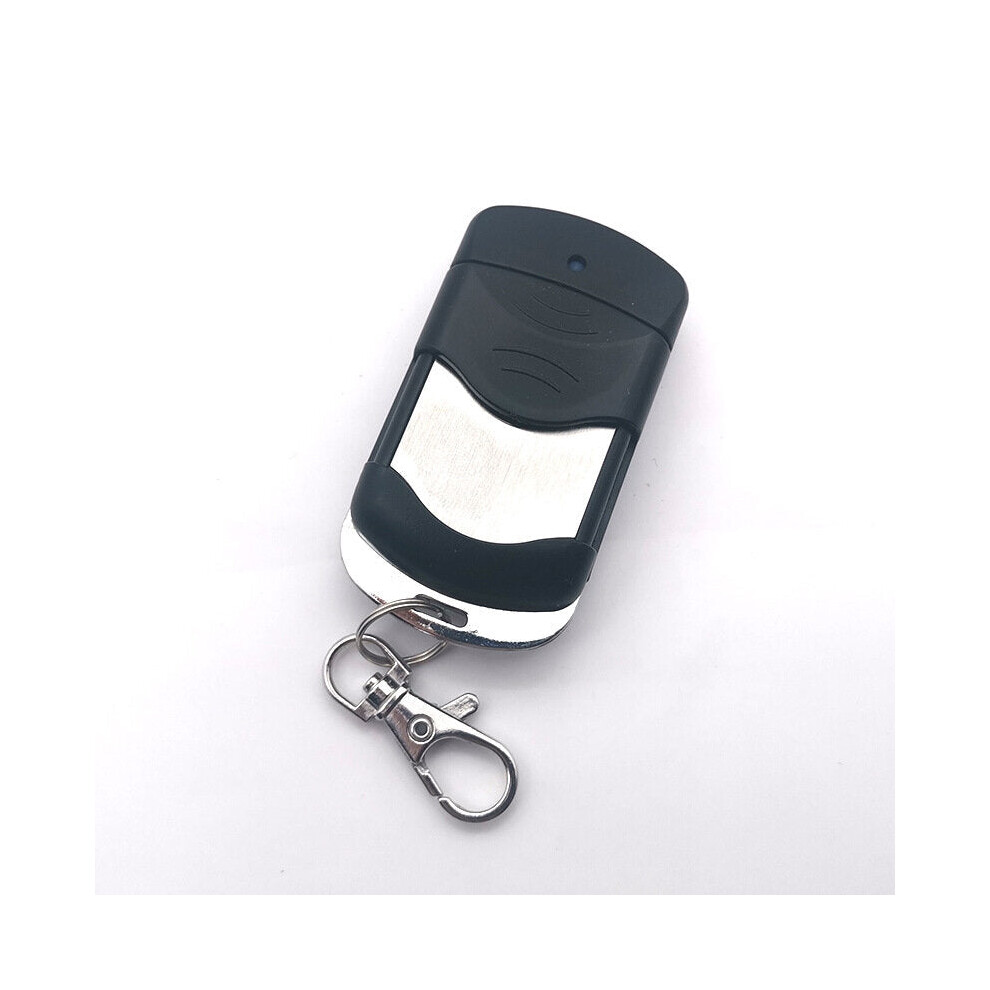

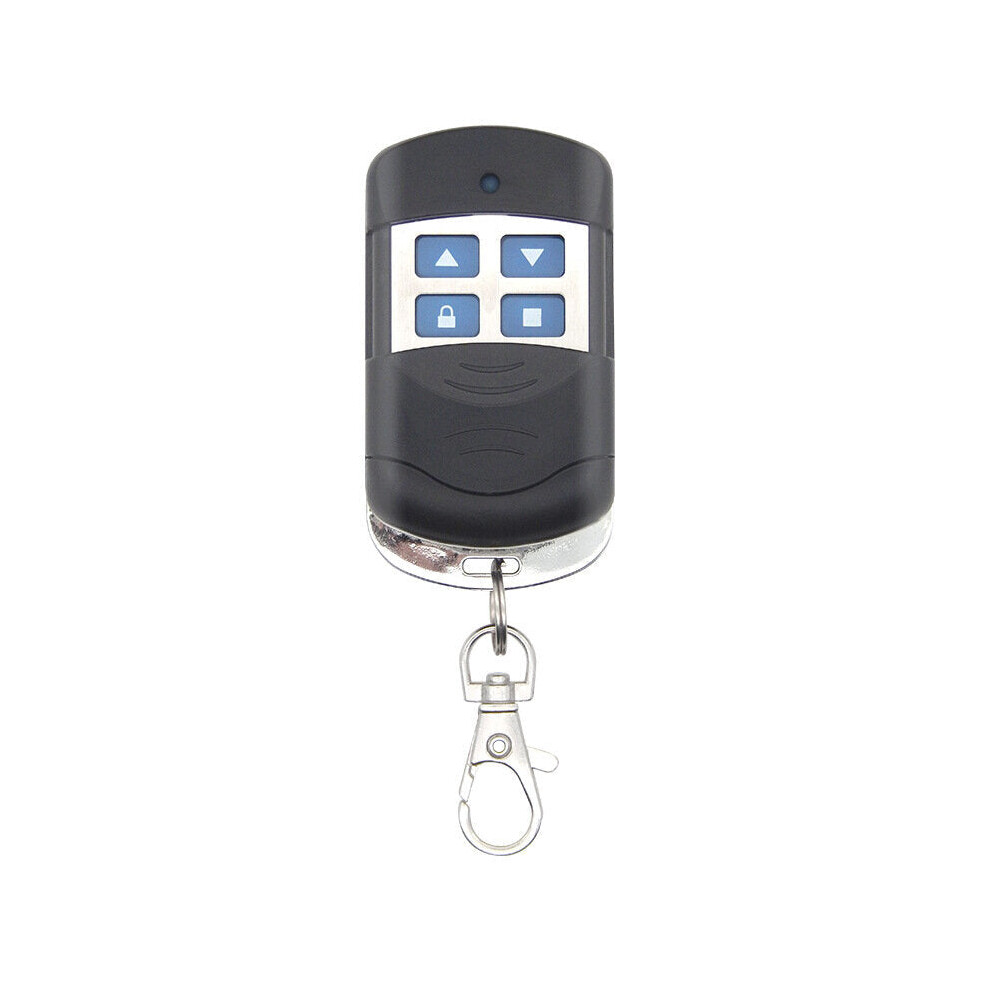

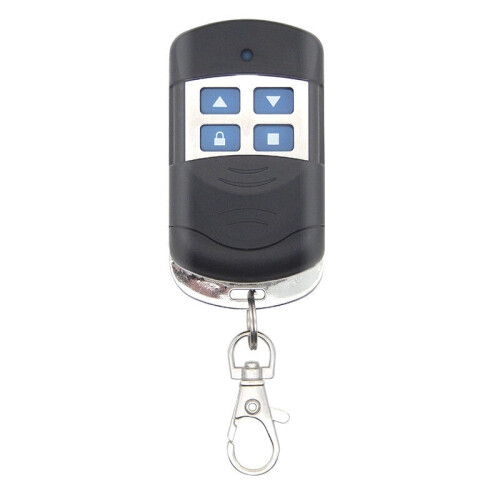

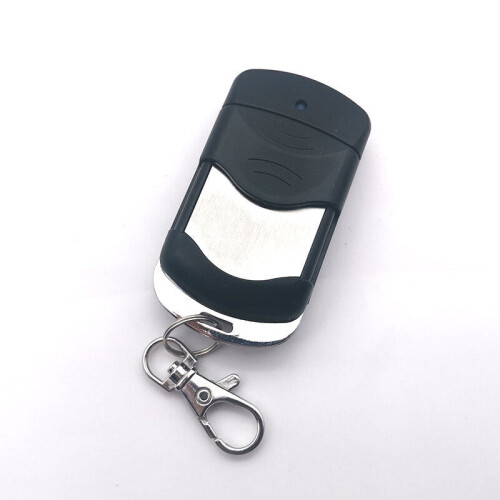

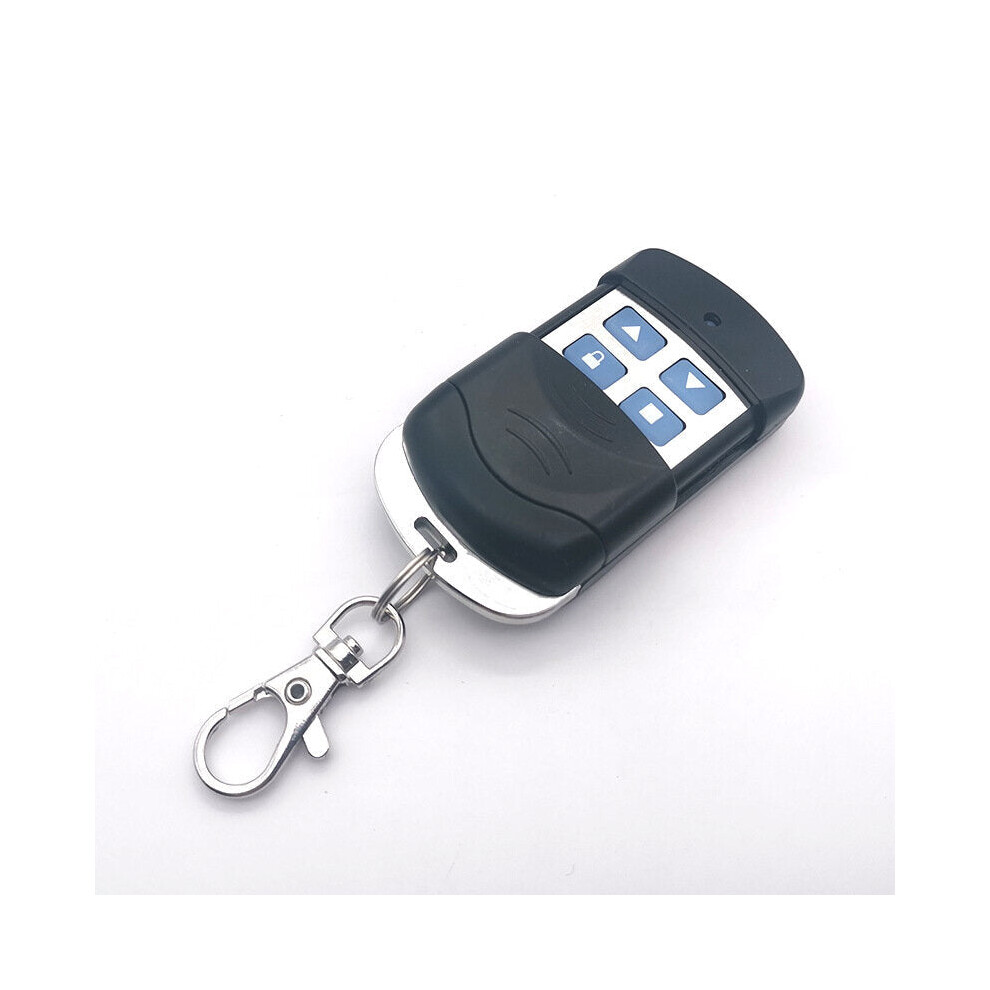

(315MHz) Metal Push Cover Four Button Electric Garage Door Duplicate Security Access Control Copy Remote Control

(315MHz) Metal Push Cover Four Button Electric Garage Door Duplicate Security Access Control Copy Remote Control Description

Description:
The copy must meet the conditions:
Must have a working remote control.
Determine the crystal oscillator model of the remote control (determine the frequency of purchase).
Determine the chip model of the remote control (decide whether it can be copied).
The new copy 5 generation can copy all fixed codes + UNDEF non-standard codes + rolling codes.
The new copy-to-copy 5th generation compatible chip models are: FP527, 1527, 2240, 2260, 2262, 2264, HT6014, CS5211, SMC5326, SMC918, HT6P20, HT6P21, HCS101, HCS201, HCS301.
Crystal frequency: 433/315Mhz.

Brand (foreign) models that can be copied:
APRIMATIC: TR, TM4, TXM;
ALLMATIC: BROWN, BROWN RED, BRO.OVER, PASS, MINIPASS, TECH3;
BENINCA: TO. GO. WV, TWV, ROLLKEY, APPLE,LOT WCV, CUPIDO, TO.GO. QV;
ATA:PTX4 PINK;
BFT: MITTO, MFTTO M, MITTO RCB, MITTO A, TRCGHIBU, MORALE, KLEIO;
DOORHAN: TRANSMITTER 4;

How to use the copy remote control:
Clear the code before copying.
Before copying, the remote control first clears the code, press the up and down buttons at the same time, the LED indicator flashes quickly, indicating that the clearing is successful, after the clearing is successful, any button on the remote control, the indicator flashes and then goes out.
Correct copy operation:
If the original remote control has been used for more than 1 year, the copy will fail if the battery is insufficient. Please replace the battery before copying; try to stay away from other sources of wireless signals interference, such as a powered rolling door controller.
When copying, place the original remote control and the copied remote control side by side with the two antennas close to each other.
Hold the original remote control in the left hand, and the new remote control that needs to be copied in the right hand.
Press the up button (or open button) of the original remote control and the copied remote control at the same time.
The indicator light of the copied remote control flashes quickly, indicating that the copy is successful, and then the other keys are copied in turn.

Package included:
1 xCopy Remote Control
