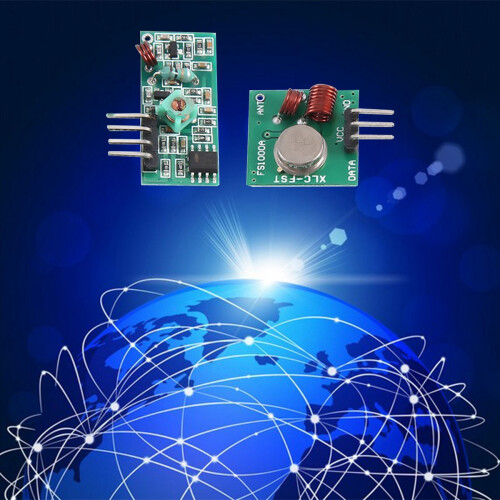

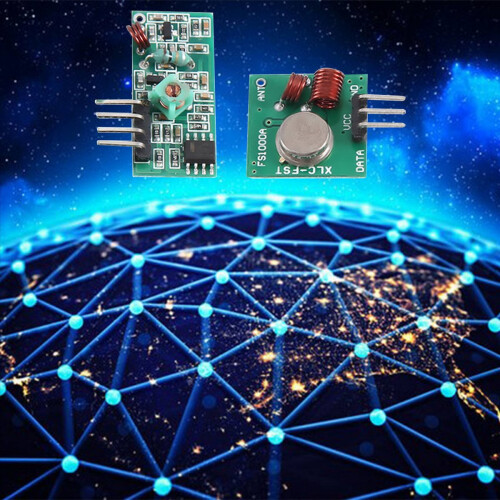

315MHZ Ultra Module Wireless Transmitter Burglar Alarm Receiver Portable Frequency

315MHZ Ultra Module Wireless Transmitter Burglar Alarm Receiver Portable Frequency Description

Vcc Voltage Module Working Voltage And Good Power Supply Filtering
The Position Of The Antenna Also Affects The Reception Of The Module. When Installing, The Antenna Should Be As Far Away From Shielding, High Voltage And Interference Sources As Possible. The Frequency And Oscillation Resistance Used For Reception And Decoding Should Match The Transmitter.
The Vcc Voltage Must Be Consistent With The Working Voltage Of The Module, And Power Supply Filtering Must Be Done; The Antenna Has A Great Influence On The Reception Effect Of The Module. It Is Best To Connect A 1/4 Wavelength Antenna, Generally Using A 50ohm Single-Core Wire. The Position Of The Antenna Has A Great Impact On The Module. The Reception Effect Is Also Affected.
When Installing, Keep The Antenna As Straight As Possible And Away From , High Voltages, And Interference Sources; When In Use, The Receiving Frequency, Decoding Method And Oscillation Resistance Should Match The Emission.
Suitable For Remote Control Switches, Receiving Modules, Motorcycles, Car Anti-Theft Products, Home Anti-Theft Products, Electric Doors, Rolling Shutter Doors, , Remote Control Sockets, Remote Control Leds, Remote Control Speakers, Remote Control Electric Doors, Remote Control Garage Doors, Remote Control Retractable Doors, Remote Control Application Environments Such As Rolling Shutters, Sliding Doors, Remote Control Door Openers, Door Closeers And Other Door Control Systems

Receive Module:
1. Working Voltage:DC5V
2. Quiescent Current:4mA
3. Receiving Frequency:315Mhz
4. Receiving Sensitivity:-105DB
Launcher:
1. Launch Distance:20-200m
2. Working Voltage:3.5-12V
3. Working Mode:AM
4. Transmission Rate:4KB/S
5. Transmit Power:10MW
6. Transmission Frequency:315M
Note:Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use
Type:315MHZ
Colour:As own
Material:PCB

Package Contents:
5 * Module (Single Transmission)
5 * Module (Single Reception)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
