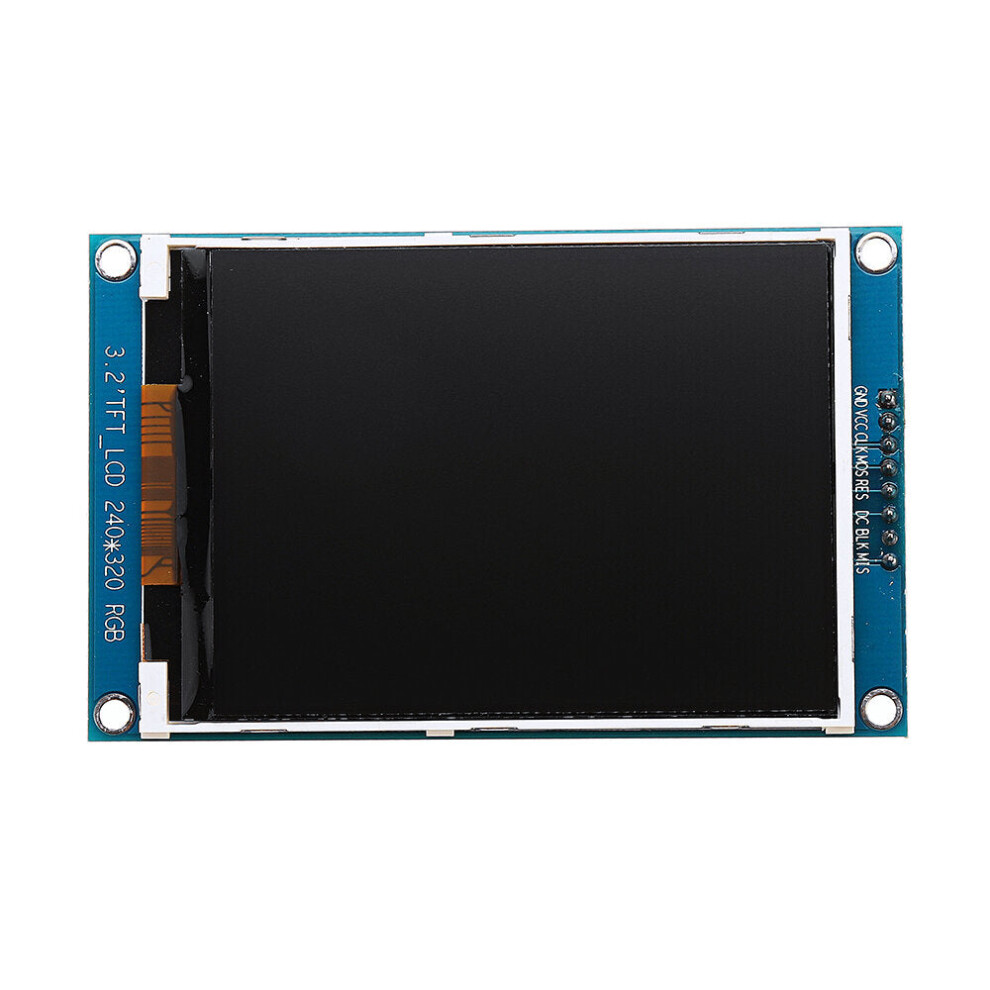

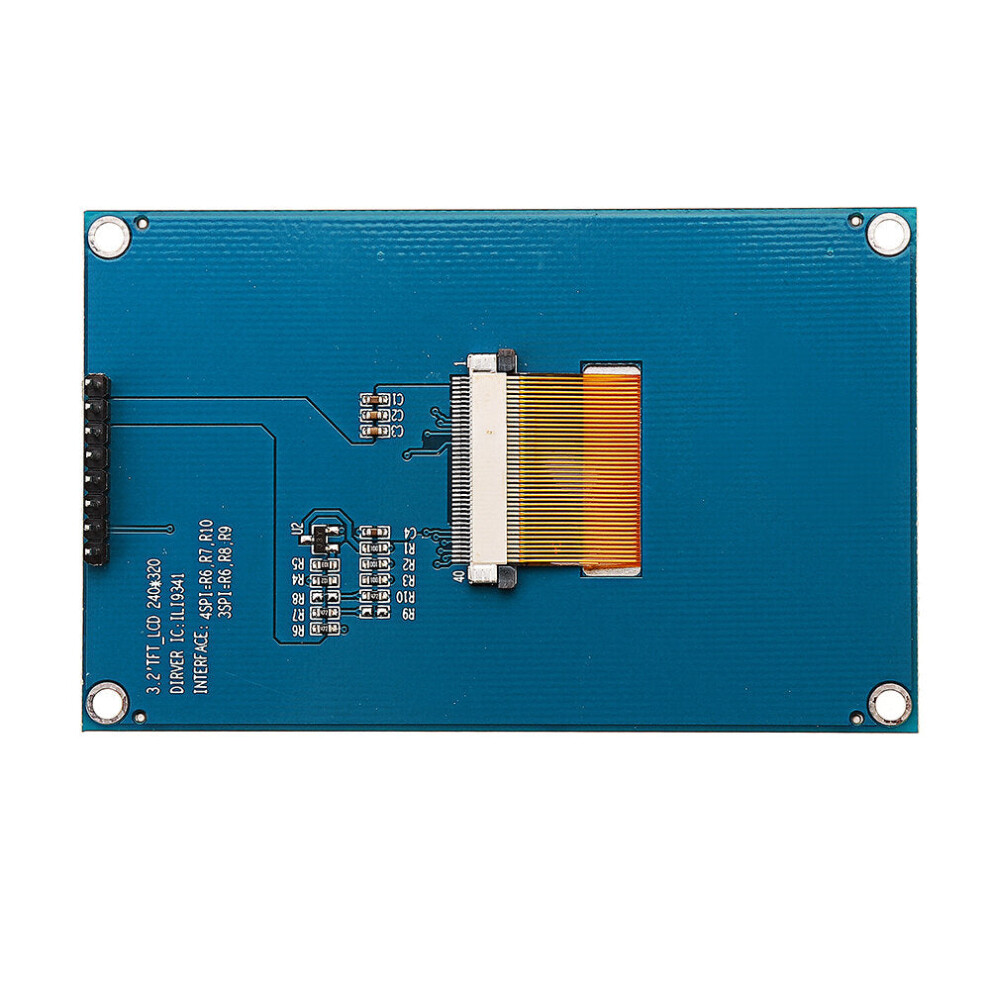

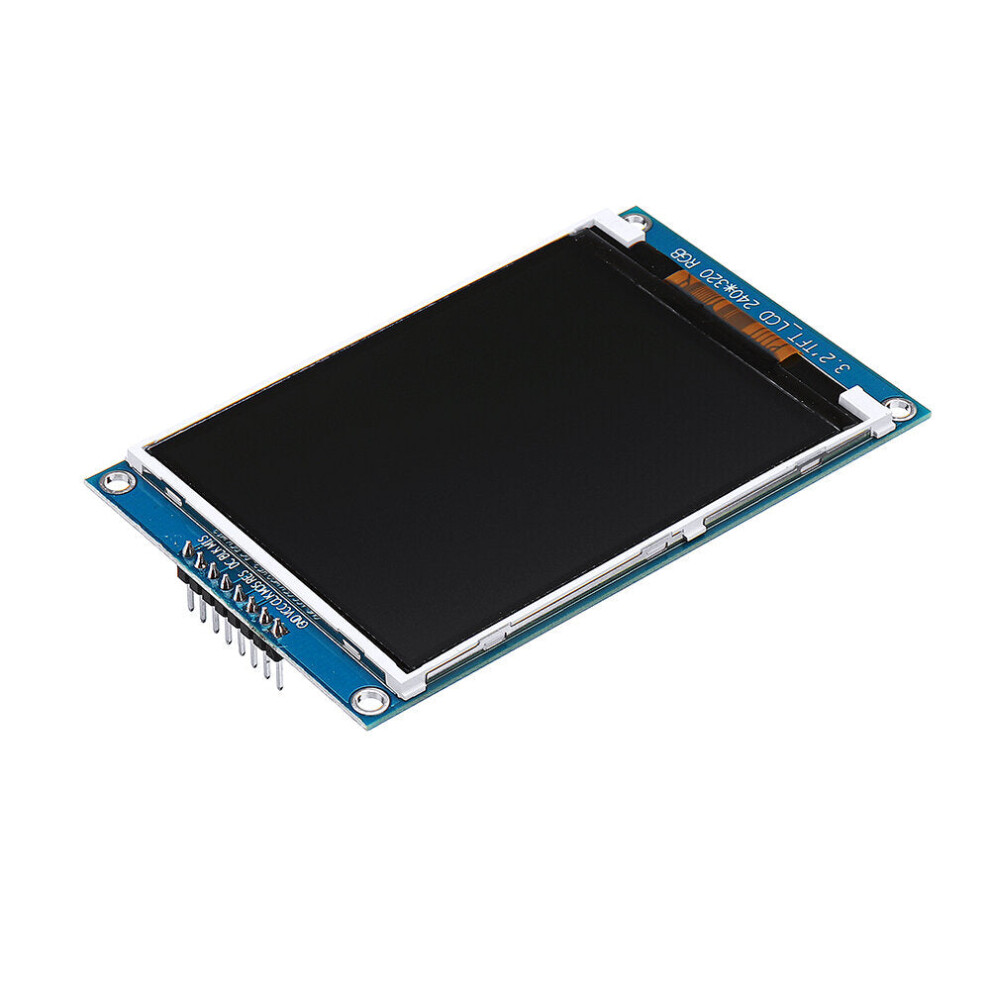

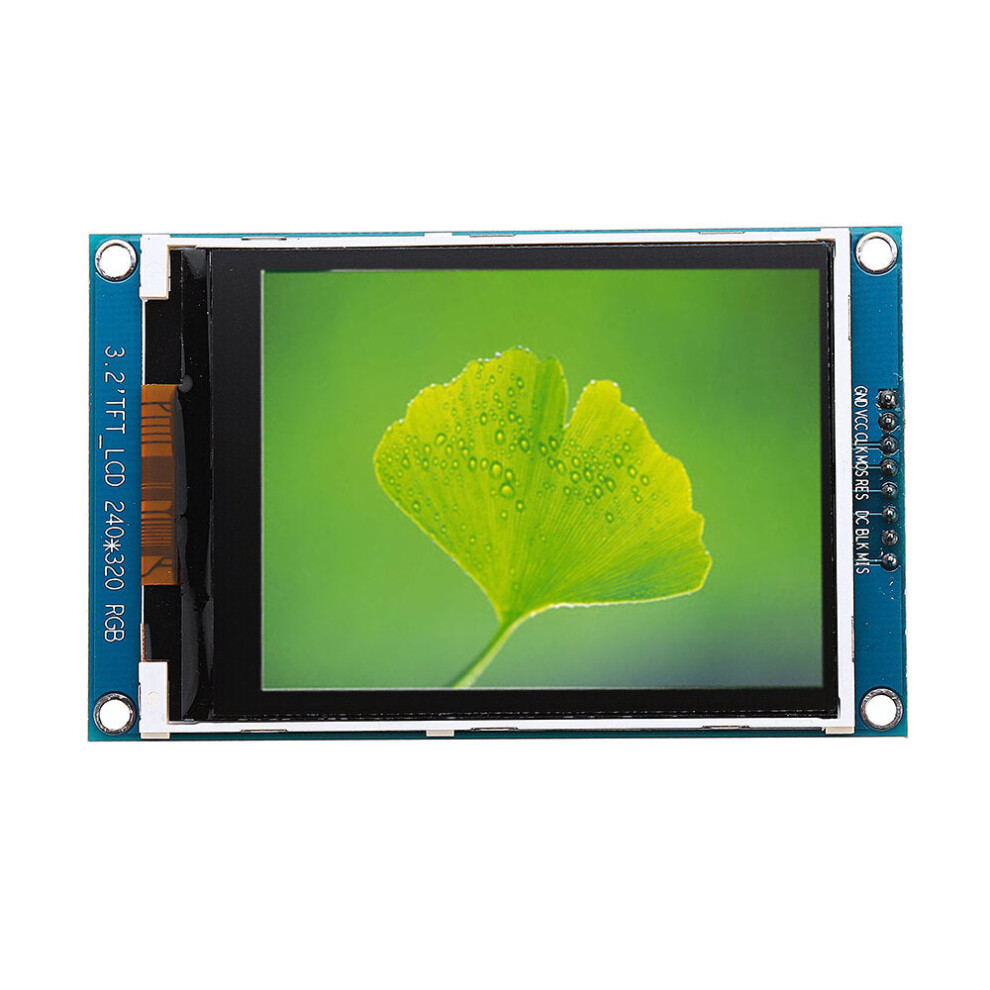

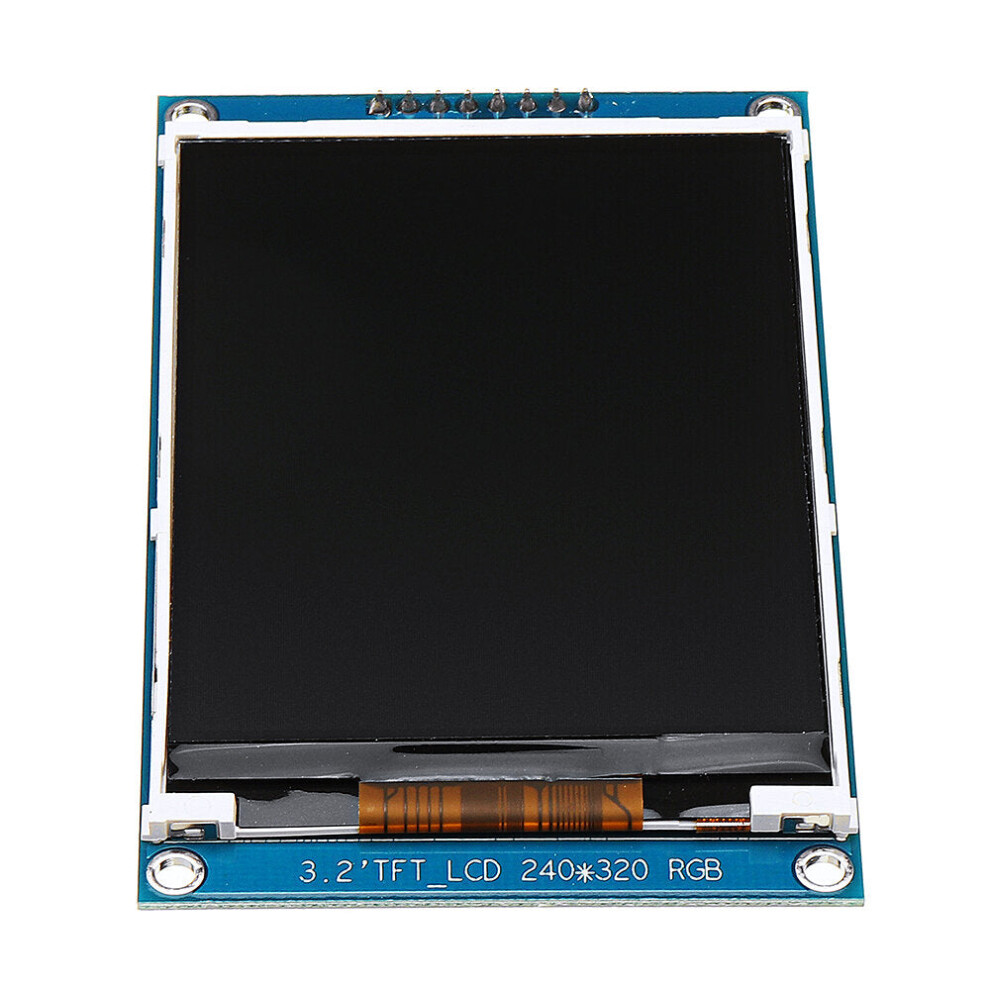

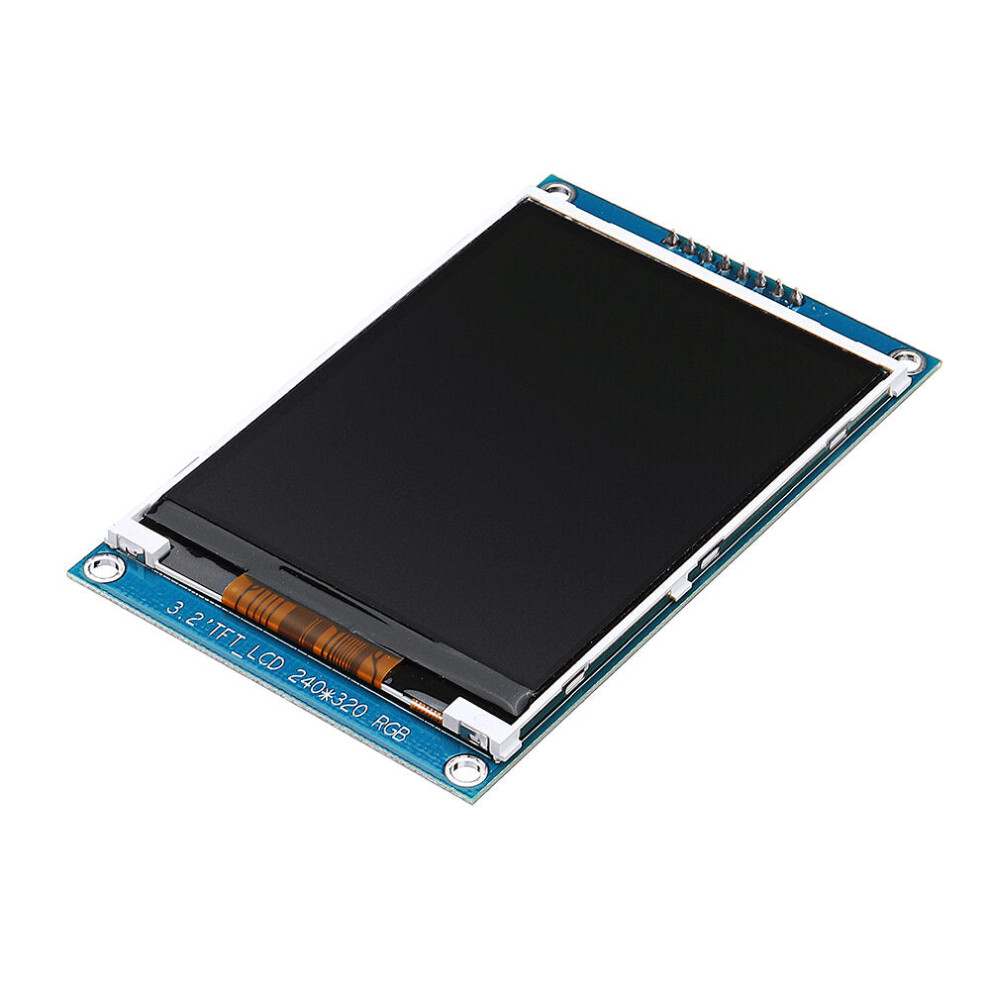

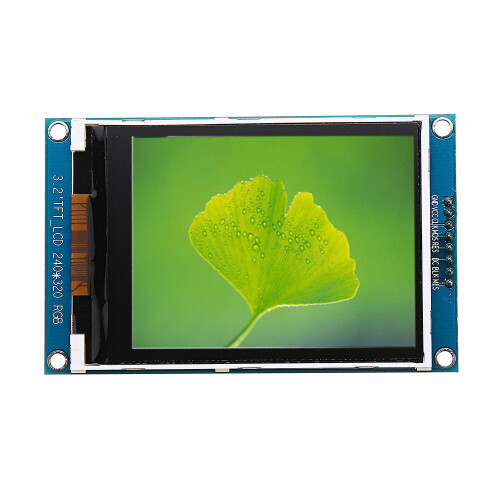

3.2 Inch 8Pin 240*320 TFT LCD Screen SPI Serial Display Screen Module ILI9341

3.2 Inch 8Pin 240*320 TFT LCD Screen SPI Serial Display Screen Module ILI9341 Description

Description:
Size: 3.2 inches.
Control chip: ILI9341.
Resolution: 240*320 (RGB).
Display area: 48.60 (W) *64.80 (H).
Physical size: 56 (W) *89.40 (H) *4.65+/-0.15 (T).
Interface type: 3 line serial port /4 line serial port.
Number of pins: 8Pin.
Display color: Full color.
Pixel size: 0.2025 (W) *0.2025 (H).
Working temperature: -20 ~ 70 degrees.

Description:
1. GND: Ground.
2. VCC: Power supply for LCD(2.8V-3.3V).
3. CLK: This pin is used serial interface clock in 3-wire 9-bit / 4-wire 8-bit serial data
interface.
4. MOSI: Serial input signal.
The data is applied on the rising edge of the SCL signal.
5. RES: LCM Reset pin.Signal is active low.
6. DC: Serves as a write signal and writes data at the rising edge.
- 4-line system (D/CX): Serves as command or parameter select.
7. BLK: Backlight switch pin. Low level turns off the backlight, other states turn on the backlight.
8. MISO: Serial output signal.
The data is outputted on the falling edge of the SCL signal.
If not used, open this pin.

Package Included:
1 x3.2 Inch TFT LCD Screen
