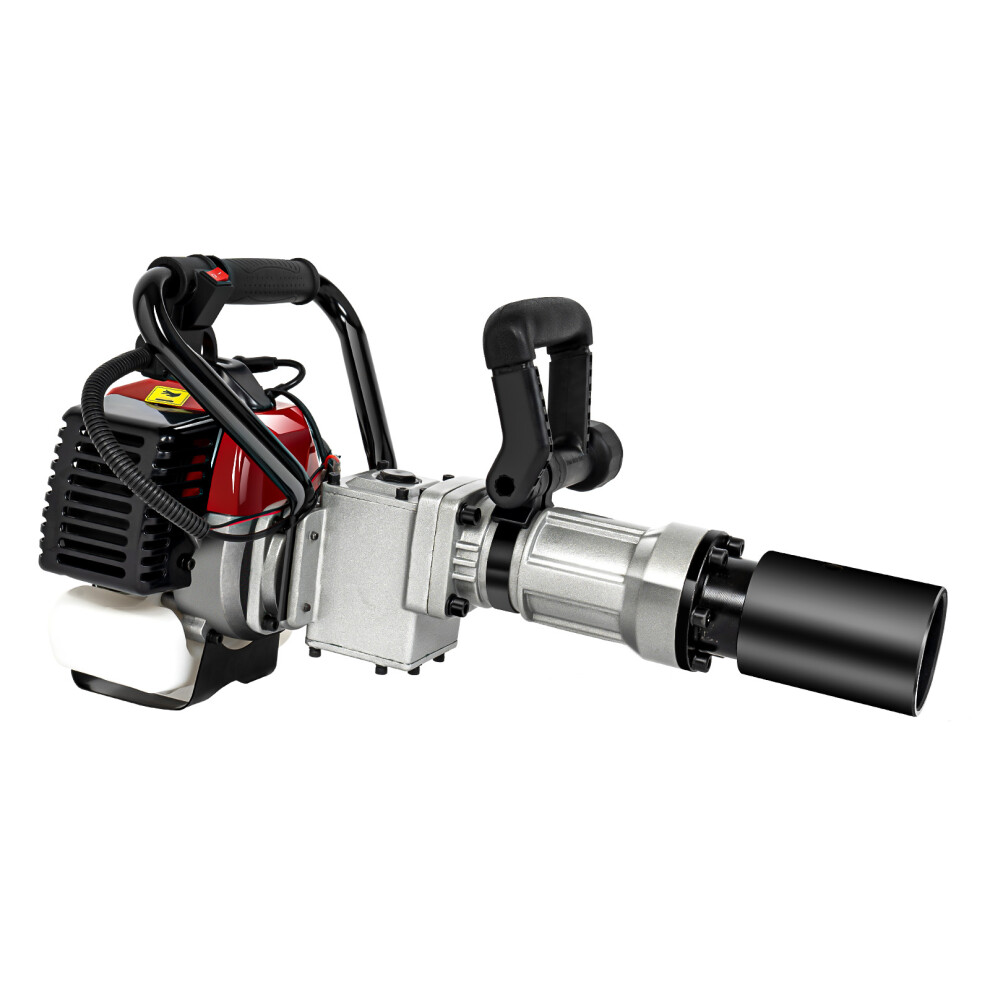

32.7cc post rammer two-stroke gasoline pile driver for fence posts

32.7cc post rammer two-stroke gasoline pile driver for fence posts Description

Application

This gasoline post driver is suitable for professional or daily household users to use in a series of pile-driving projects such as fences, star stakes, stakes, geophysical exploration, buildings, guardrails, brackets, photovoltaic power stations, forestry seedlings, vineyard brackets, vegetable planting, orchard brackets, fence protection, etc.

How to Operate

1. First, add the mixed oil to the fuel tank.

2. Install a sleeve of appropriate size for the pile to be driven.

3. Check if the flameout switch is in the "-" position.

4. When the machine is cold, close the damper to start, and when the machine is hot, open the damper to start. Wait for the machine to function properly, then turn on the shock absorber for use.

5. Press the oil bubble and suck up the oil pipe until the air is discharged.

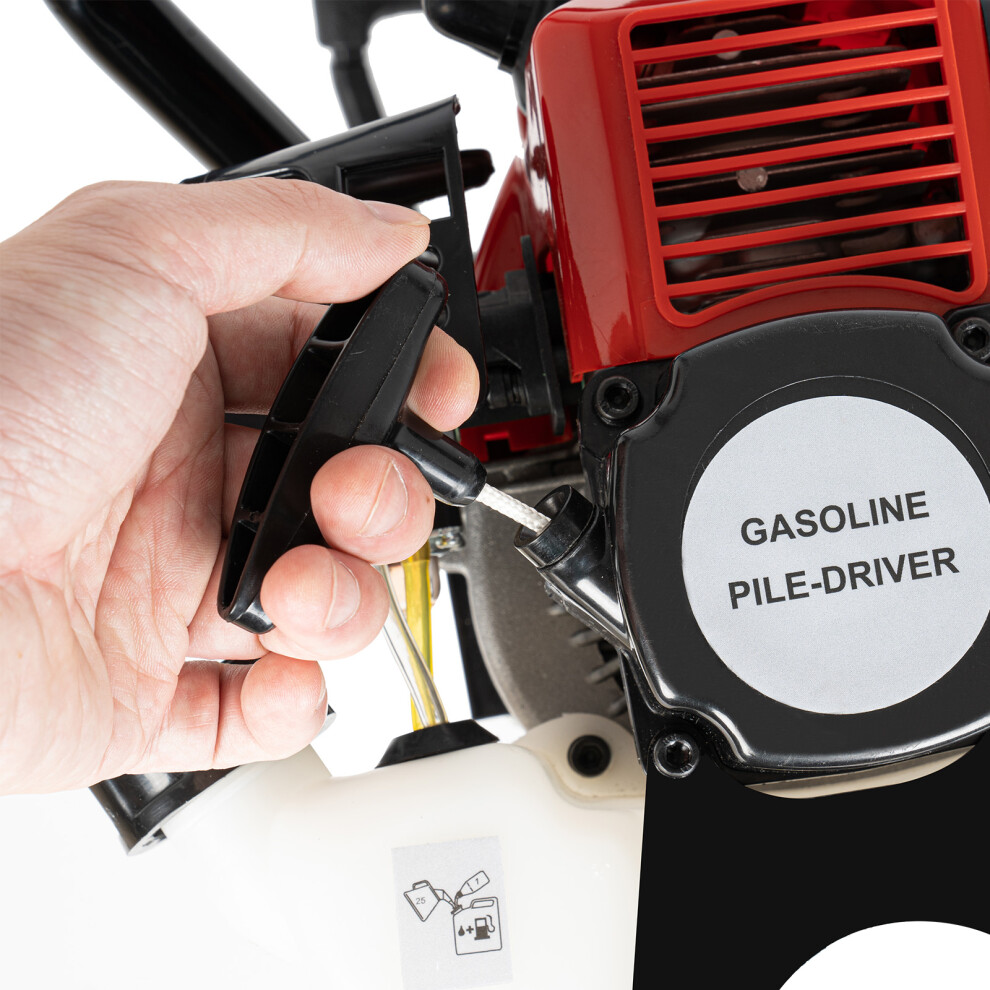

6. Start the machine and continuously pull the starter.

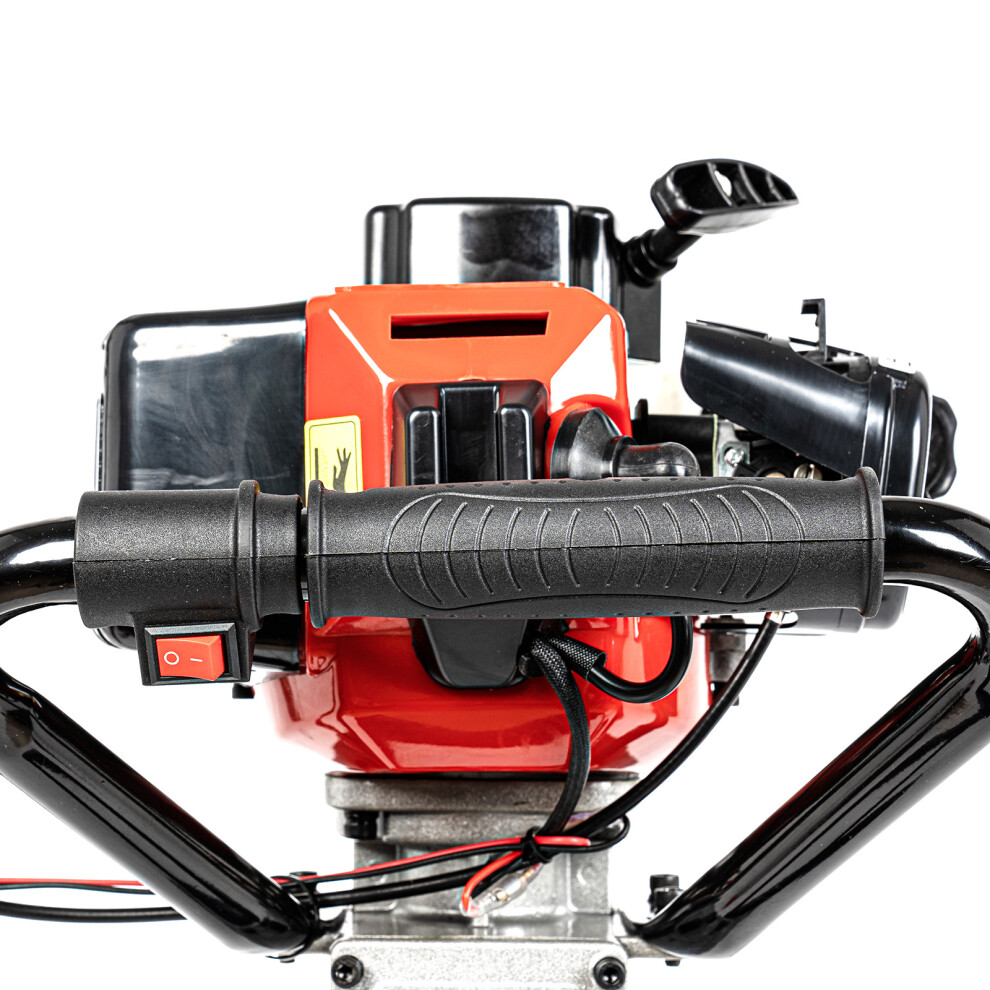

7. Set the handle in the appropriate position.

8. Refuel the accelerator before starting work. Until the engine is normal and a clear sound is heard, it can start working.

9. Start working. Reach the depth you want and then stop.

10. Simply turn the flameout switch to the "O" position to stop working.

Specifications

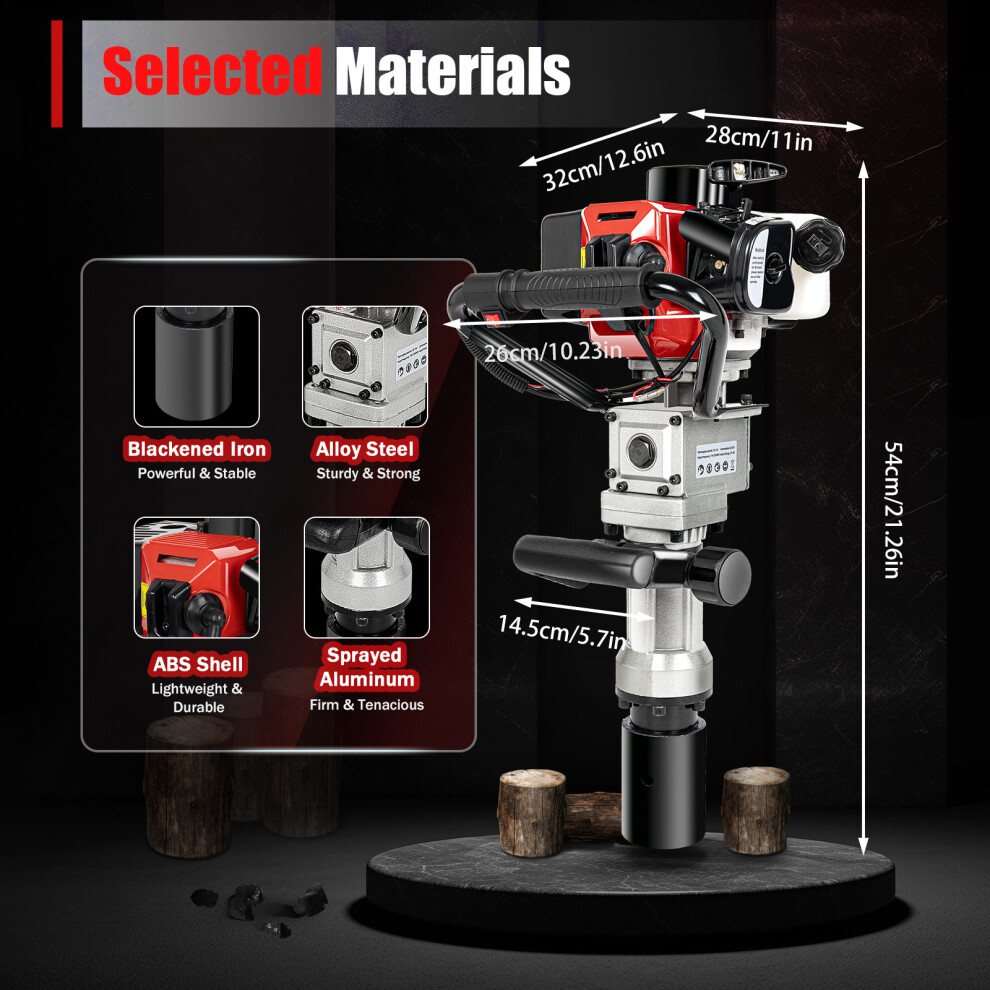

Material: ABS, Iron, Aluminum, Alloy Steel, Rubber

Surface Treatment: Spray-paint, Blackening

Color: Black, Red, Silver

Power Source: ‎Gas Powered

Starter System: Hand Pull Start

Engine Type: Two-stroke

Number of Items: 1

Power: 900W

Displacement: 32.7cc

Max. Torque: 1.45N.m

Impact Energy: 25-50J

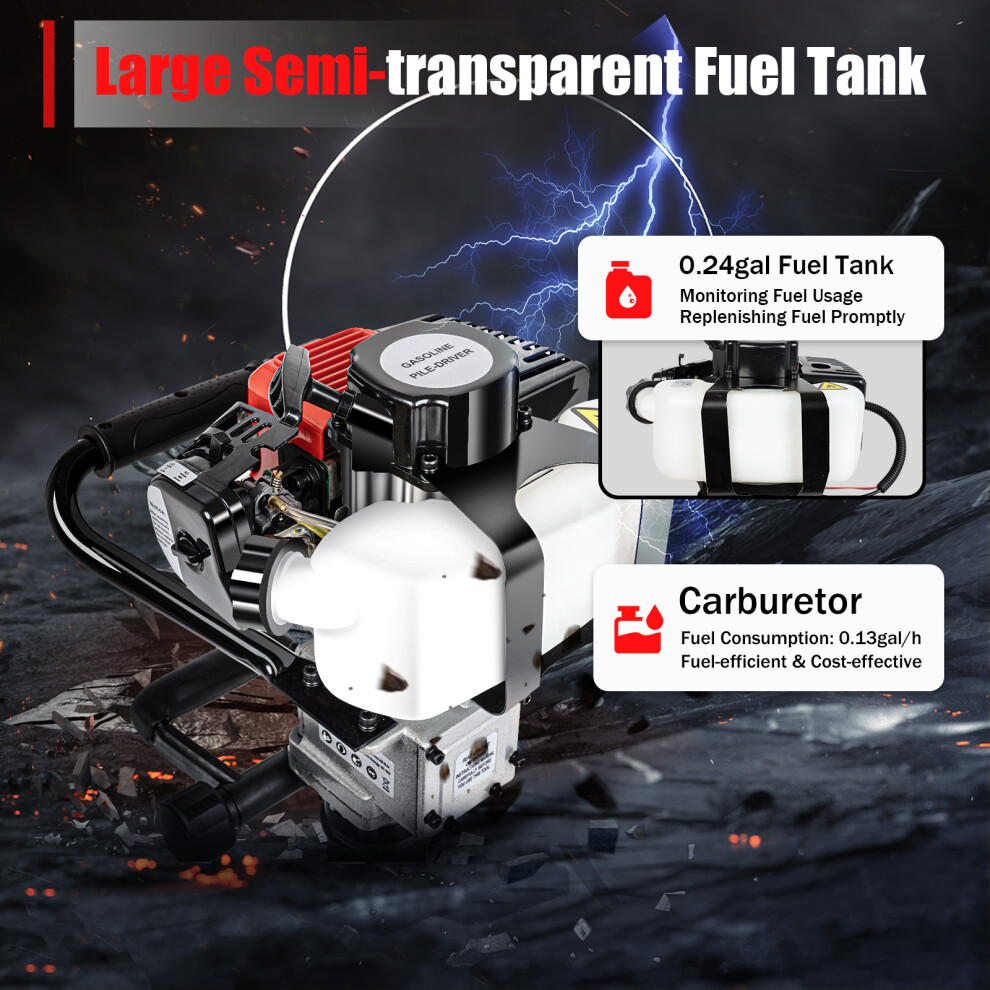

Fuel Tank Capacity: 0.9L/0.24gal

Impact Frequency: 1700-2230BPM

Fuel Consumption Rate: 0.5L/0.13gal/h

Maximum Rotational Speed: 8500RPM

Gasoline Type: Petrol Regular Unleaded 95+ RON

Fuel Type: Mixed Oil (25 Gasoline: 1 2-stroke Engine Oil)

Gross Weight: 16.15kg/35.6lbs

Net Weight: 14.3kg/31.5lbs

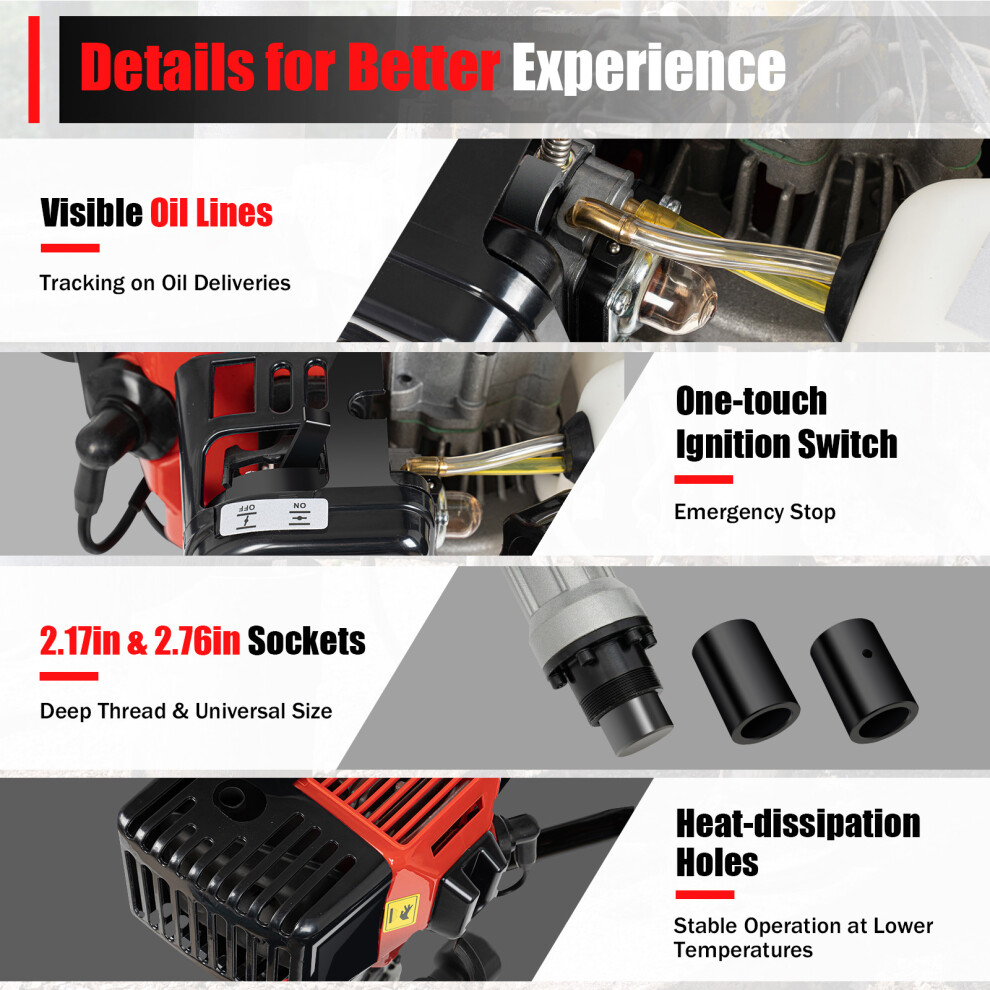

Equipped Socket Size: 55mm/2.17in(Small), 70mm/2.76in(Big)

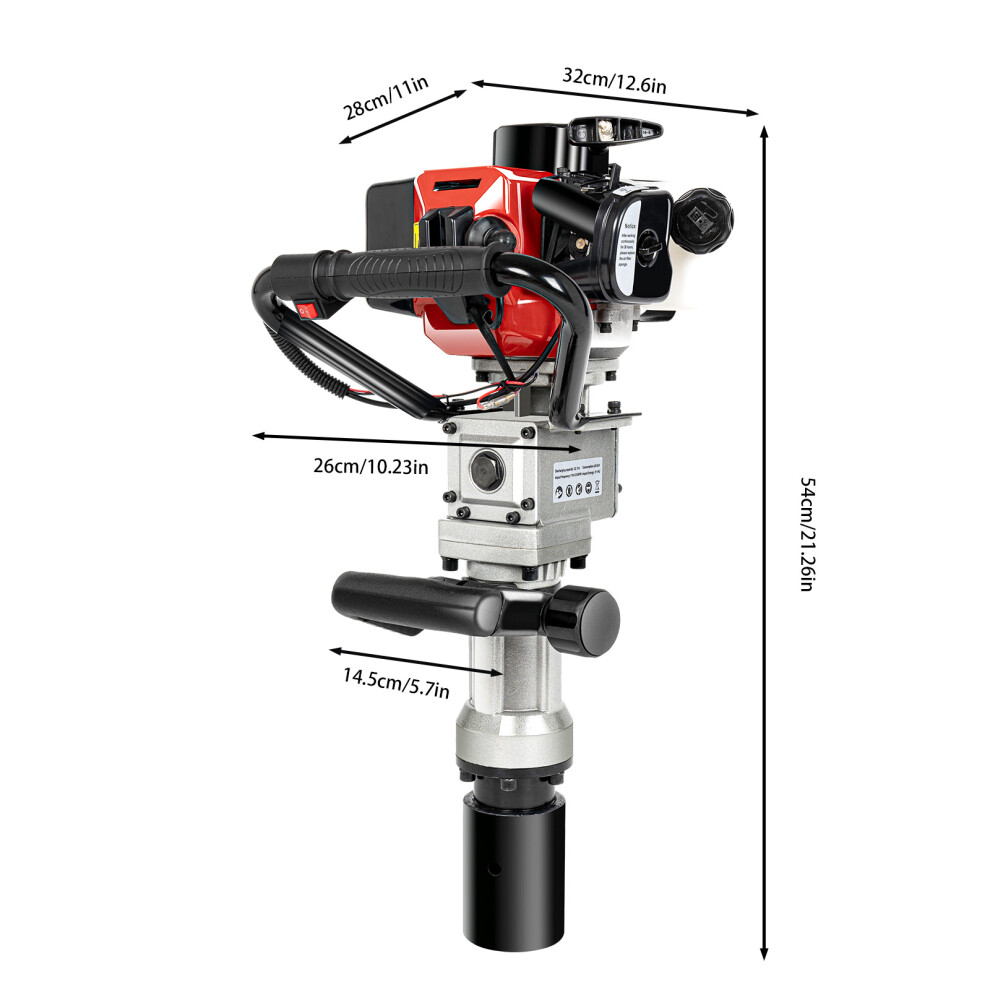

Upper Armrest Length: 26cm/10.23in

Lower Armrest Length: 14.5cm/5.7in

Product Size: 32*28*54cm/12.6*11*21.26in

Package Size: 65*34*37cm/25.6*13.38*14.56in

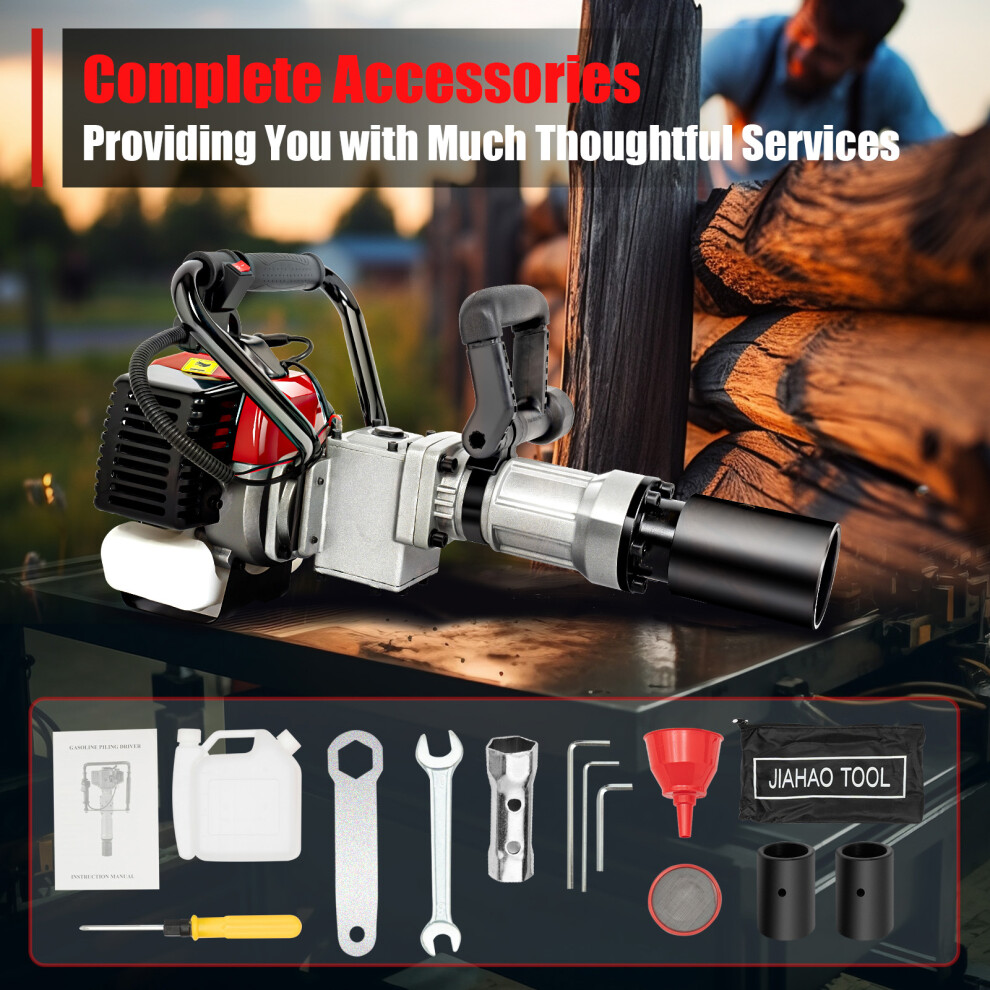

Package Included

1*Gasoline Pile Driver

2*Sockets

1*Fuel Oil Mixing Bottle

1*Tools Kit

1*Funnel

1*Filter Nozzle

1*English Manual

All Accessories for Assembly

Notes

1. Please carefully read the manual and strictly follow the precautions to have a better experience.

2. Please pay attention to whether the oil inlet pipe is full of oil before use. After starting up, you need to empty the throttle and let the machine start for a while before starting work.

3. Please note that the carburetor must be cleaned after every 100 hours of operation before use.

4. If not used for a long time, please clean the fuel and oil out of the tank and pack them in a plastic bag to avoid dust and moisture entering the machine and affecting its use.

5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
