3305728S 330745400S 3307454S Tank Filter Assembly

3305728S 330745400S 3307454S Tank Filter Assembly Description

[COMPATIBLE WITH TYPE] Fits common fuels such as unleaded gas, , oil, up to 20% biodiesel and related additives.
[ FILTER ELEMENT] Keeping a clean 496-5 filter in your vehicle can reduce damage done to your engine and other delivery components. 30 microns, provide high flow rates and superior filtration efficiency, protect fuels from particles such as rust, sand, dirt and water. With protective sheet to prevent the filter element from being destroyed or deformed by pressure.
[TOP CAP] With 1Inch NPT pipe fittings inlet and outlet marked at the top of the cap.

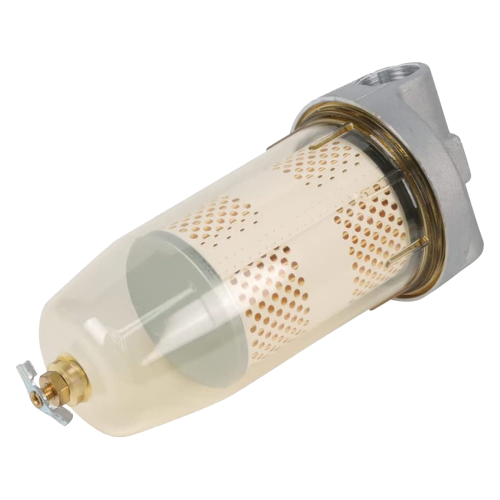

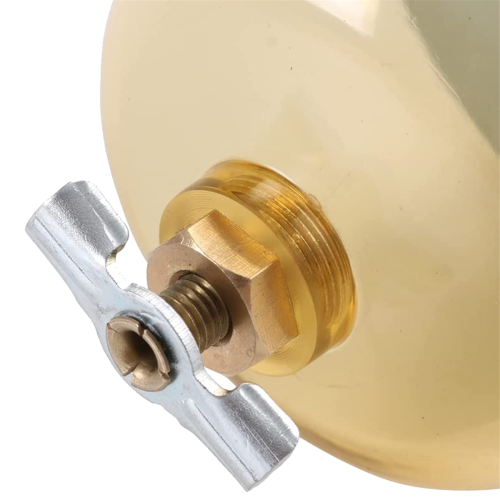

[HYALINE BOWL] Use 495-4 tank filter bowl, makes it easy to visual monitor the flow, the flow when you need to replace the element. Drain valve installed at the bottom to drain water.
[FEATURE] Flow rate max 25 gpm. Working pressure up to 150 psi. flow rate is approximately 5 gpm.

Part Number:3307454S 3305728S 330745400S 3307454S
Filter Element: 30 Microns with Protective Sheet
Height: 9.5inch
Inlet/Outlet Size: 1inch NPT
Flow Rate: Max 25 Gpm
Working Pressure: Up to 150 Psi
Flow Rate: Approximately 5 Gpm
Installation:
Attach filter top cap to storage tank valve on opening marked "IN"
Attach hose and nozzle to filter opening marked "OUT"
When installing the element and bowl, apply a coating of oil to each side of gasket
These components should be hand tightened only. Over tightening of the filter bowl result in difficulty in removal at a later date
When assembly is complete, check for leaks
Color:As Shown
Material:Metal

Package Contents:
1 x Tank Filter Assembly

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
