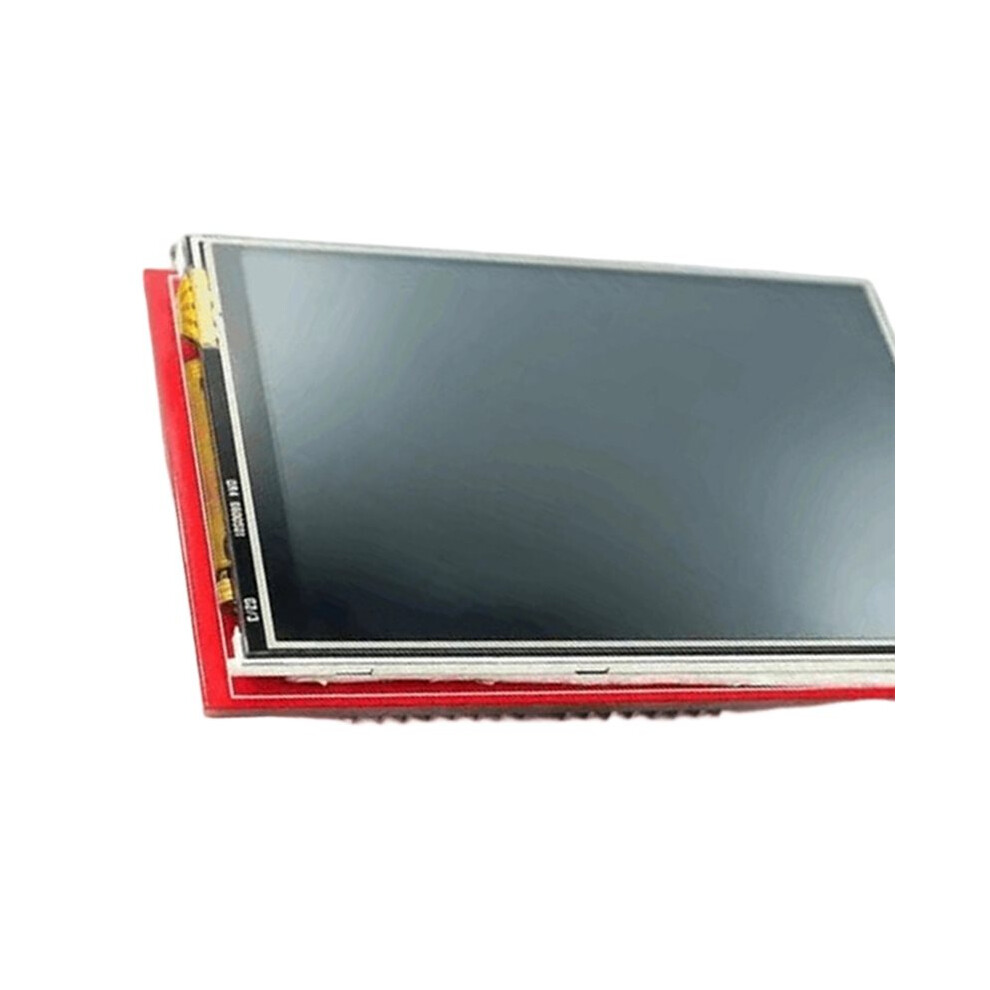

3.5 Inch 480x320 TFT LCD Module Screen Display ILI9486 Controller for MEGA2560 Board Without Touch Panel

3.5 Inch 480x320 TFT LCD Module Screen Display ILI9486 Controller for MEGA2560 Board Without Touch Panel Description

Model Number: This 3.5 inch TFT LCD module boasts a resolution of 480*320, providing clear and vibrant visuals for all your projects. Compatible with and MEGA2560 boards
Type and Controller: Featuring a standard type display, this module is equipped with an ILI9486 controller, ensuring reliable performance and compatibility with a range of development boards.
Touch Panel Options: Available with or without a touch panel, this LCD module offers flexibility for your specific application needs. Choose the touch-enabled version for interactive projects or the non-touch version for simpler display purposes.
It is equipped with a comprehensive set of pins for various functionalities including power supply, control signals, and data communication.
Specifications:
Pin 1: GND - Ground connection
Pin 2: 5V - Positive power supply (5V)
Pin 3: 3V3 - Positive power supply (3.3V)
LCD_RST: Module reset signal, active at low level
LCD_CS: Chip selection signal, active at low level
LCD_RS: Command/data selection signal, low for command, high for data
Pin 7: LCD_WR - Write control signal
Pin 8: LCD_RD - Read control signal
Pins 9 to 14: LCD_D0 to LCD_D5 - 8-bit parallel data bus signals
Color: As Shown
Material: PCB
Specification: No touch

Package Contents:
1 * LCD Screen
