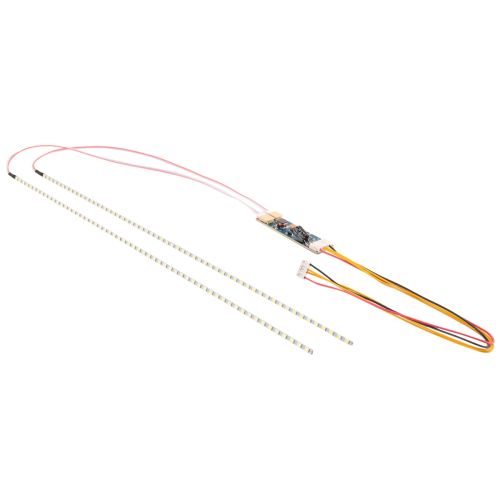

355mm LED Backlight Strip Kit For Update CCFL LCD Screen To Monitor

355mm LED Backlight Strip Kit For Update CCFL LCD Screen To Monitor Description

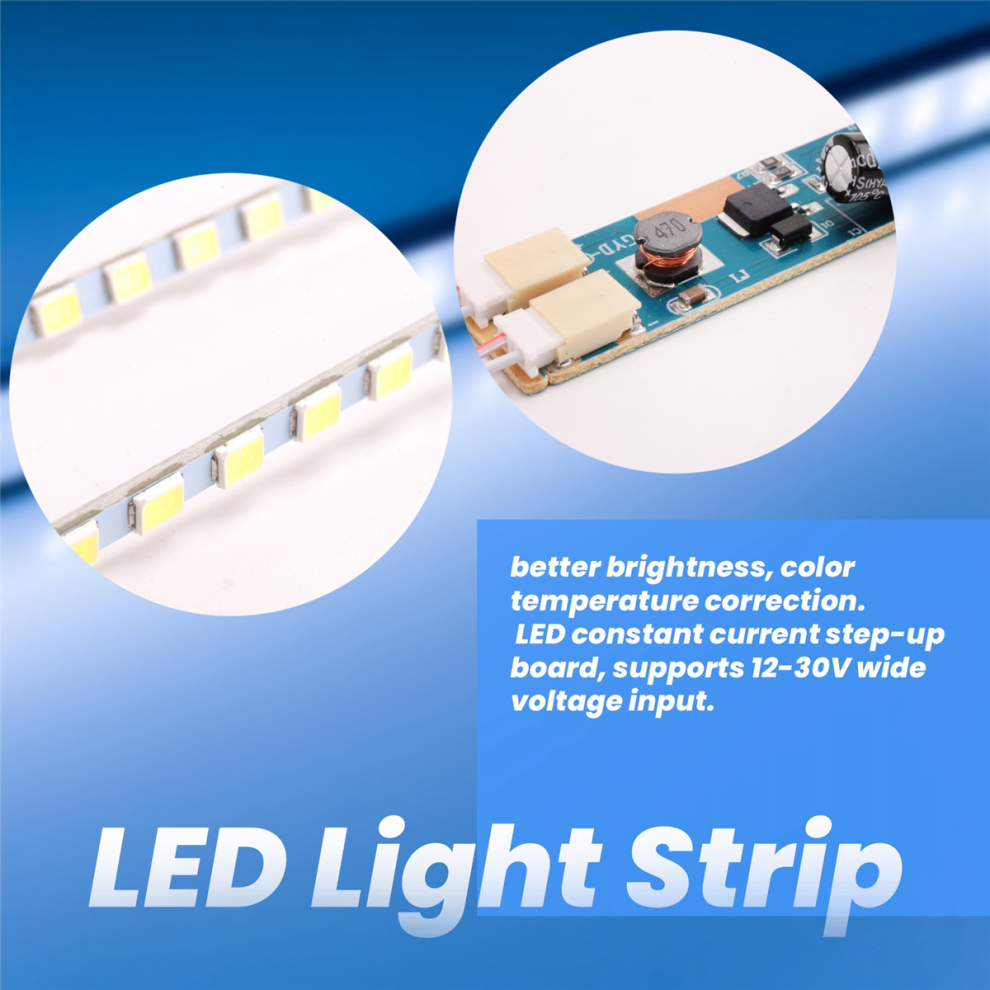

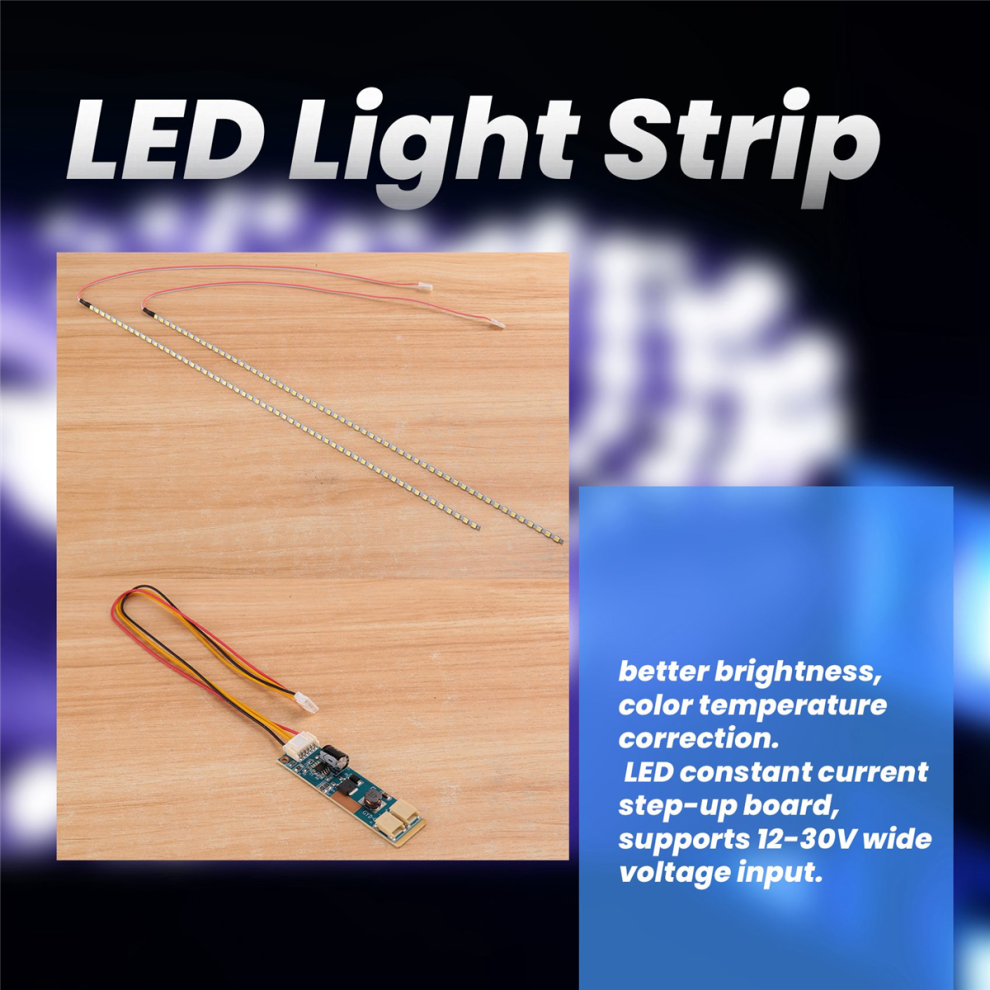

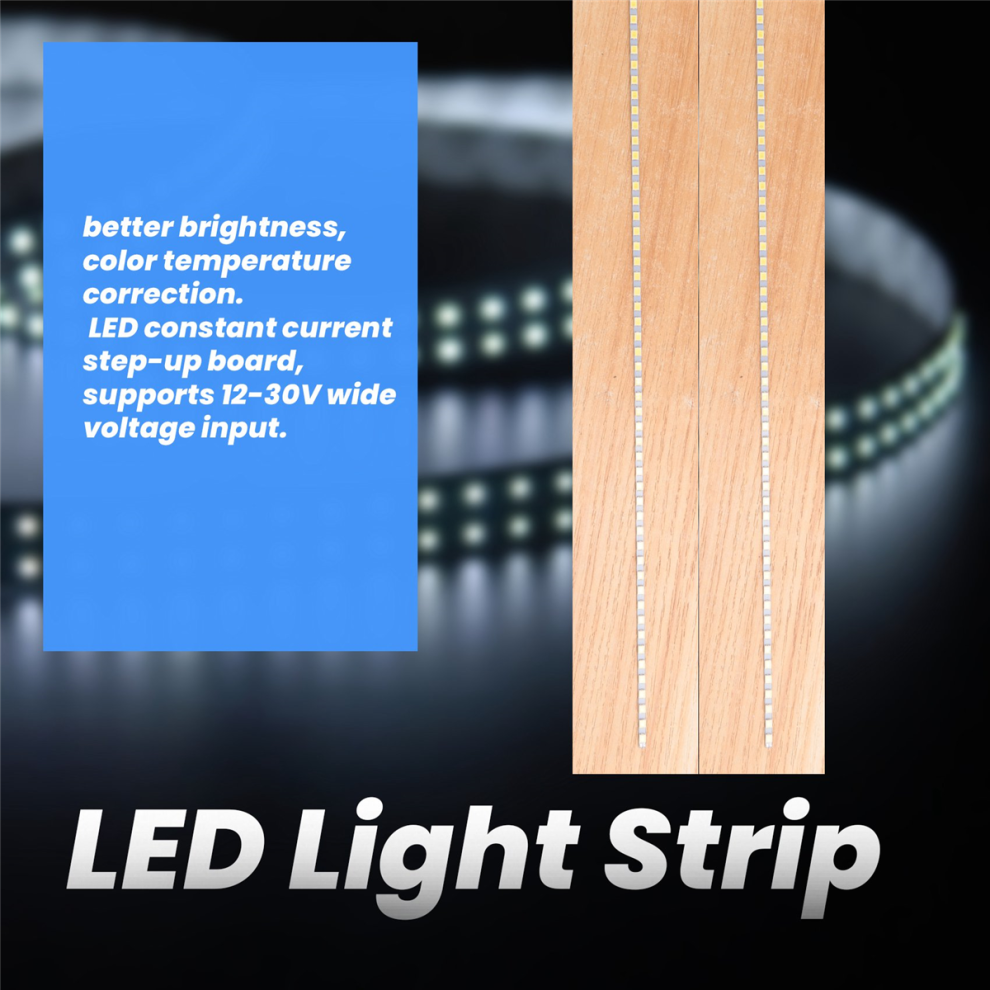

With a new lamp beads, better brightness, color temperature correction.
The new program LED constant current step-up board, supports 12-30V wide voltage input.
3 1 groups are free to crop! 15-24 inch universal versatile.
Adjustable brightness.

Driver board size:7x2cm
Input:DC 12-30V

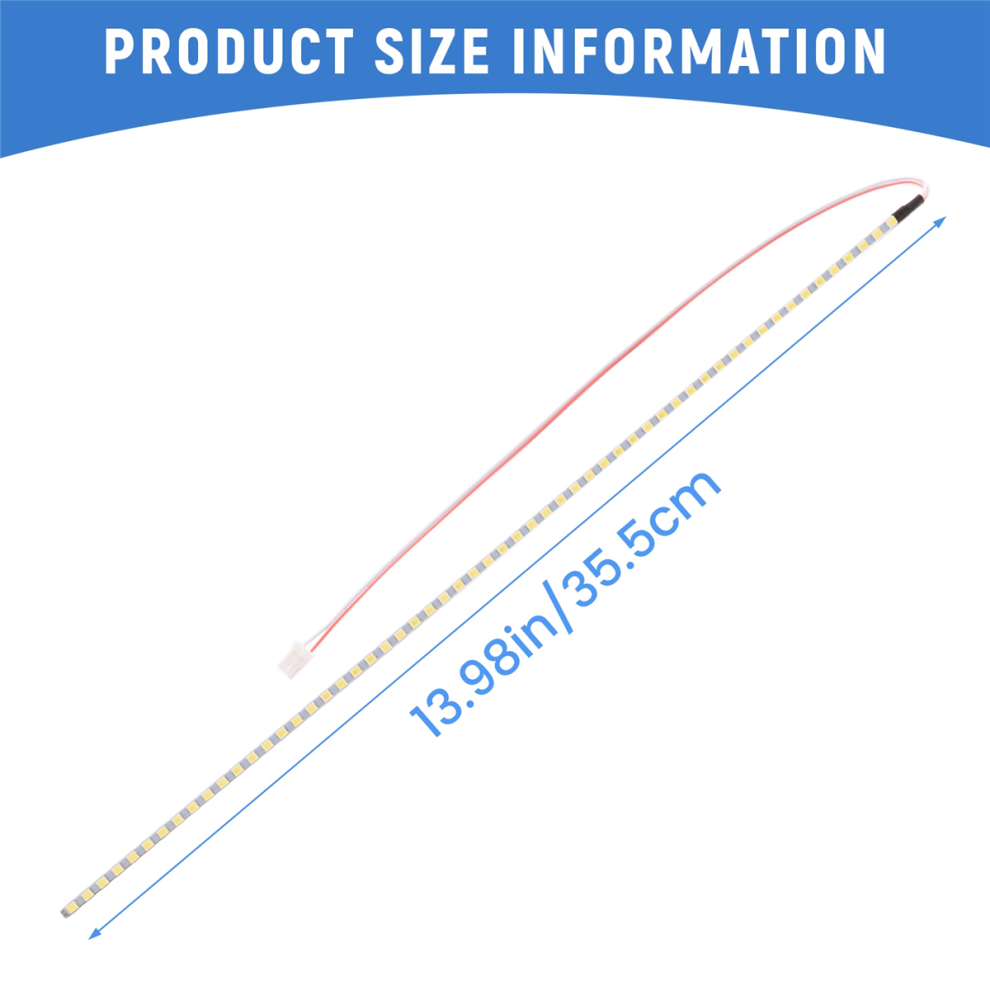

LED strip size:355x4mm
Colour:blue
Material:Fiberglass panels
Installation:
If your monitor is using a inverter, then this kit replace the inveter to plug into the driver board ;
If your monitor is a high-voltage integrated power supply board, then: the board energized, find 12V (capacitance),
and then unplug the power supply,use a multimeter to find and 12V (capacitance) Disconnect original connecting
the negative terminal, the board received three line: 12V, ON, GND, the 12v of the inverter connect with 12v positive
electrode of hign-voltage intergrated power supply board,GND is connected with the negative electrode, ON connect
with the ON / OFF. In simple terms, tThe original high voltage power supply is disconnected,instead of the inverter,
In the original high-pressure front to take power.

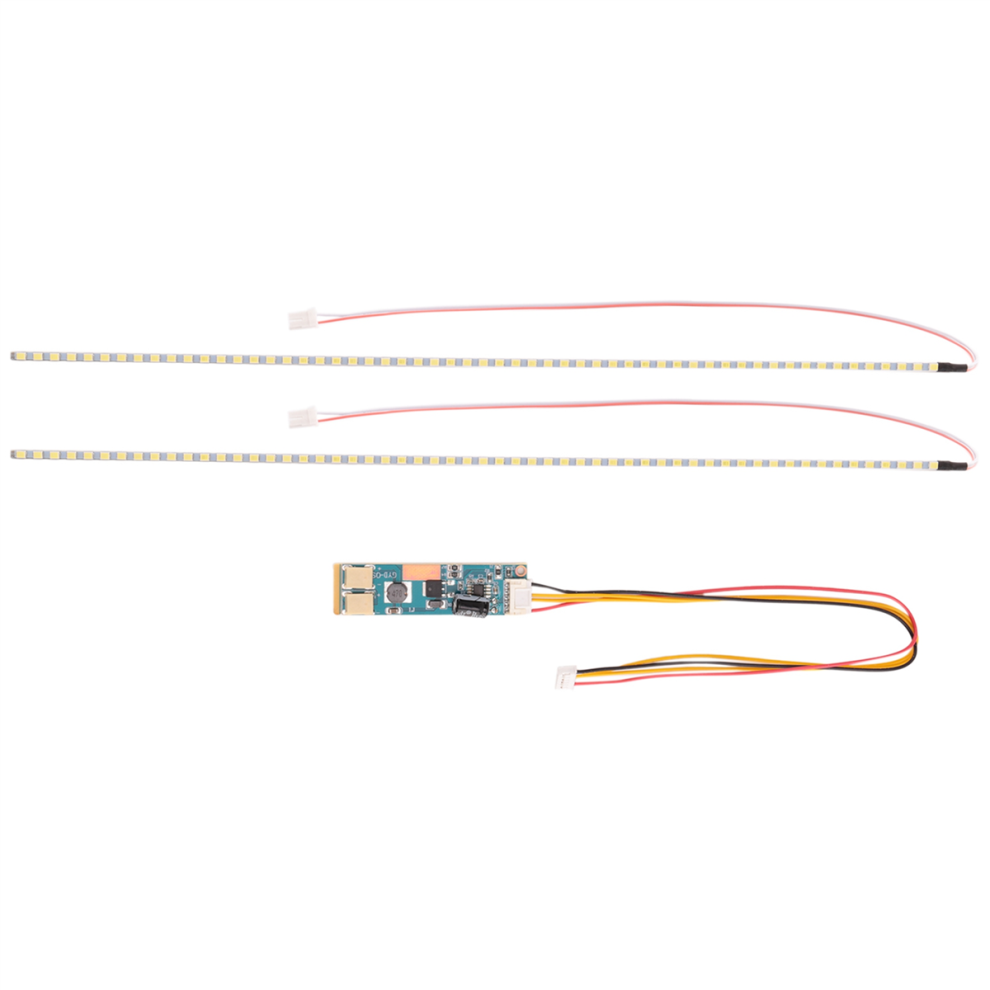

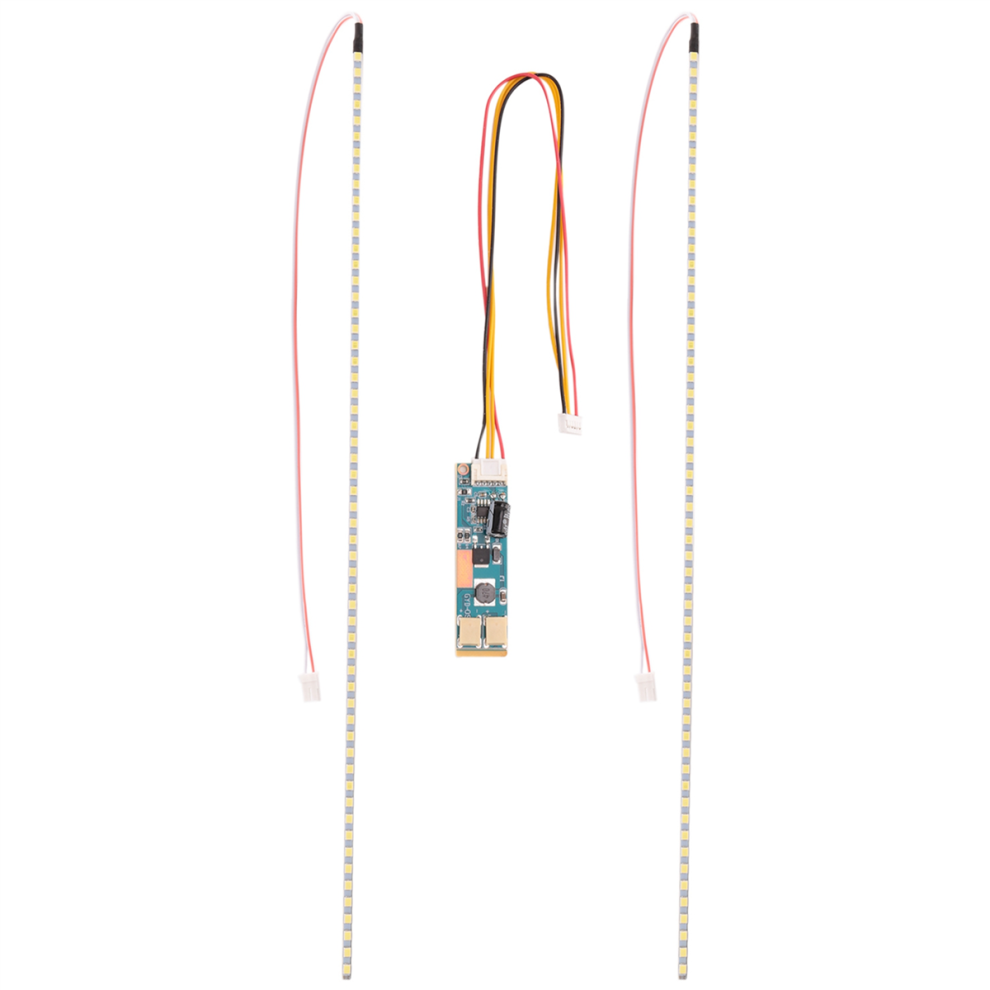

Package Contents:
2x LED strip
1x Driver board
1x cable

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
