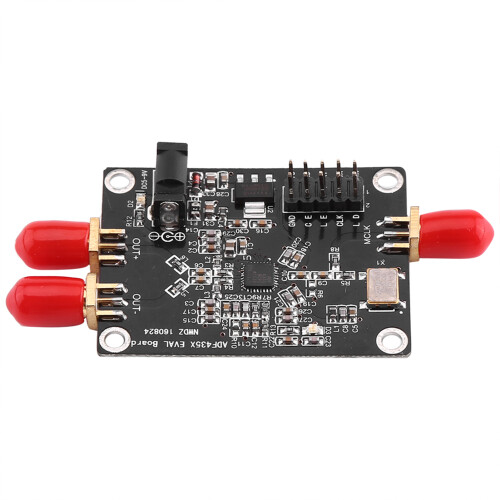

35M‑4.4GHz RF Signal Source Frequency Synthesizer
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£27.49
£54.23
49% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Wed 29th Jul - Mon 17th Aug
Returns: 30 days
180-day payment protection
Most Popular in Circuit Board Crystals & Resonators
Description & Details
Summary

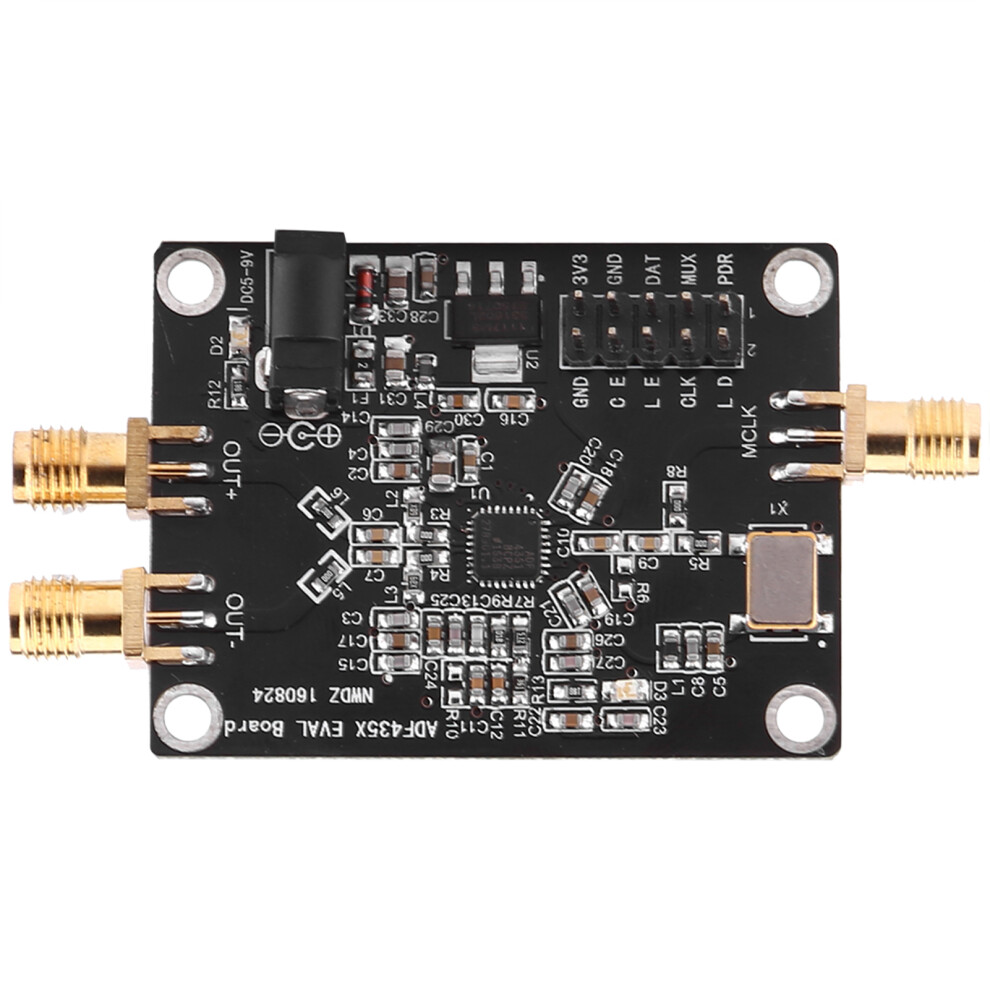

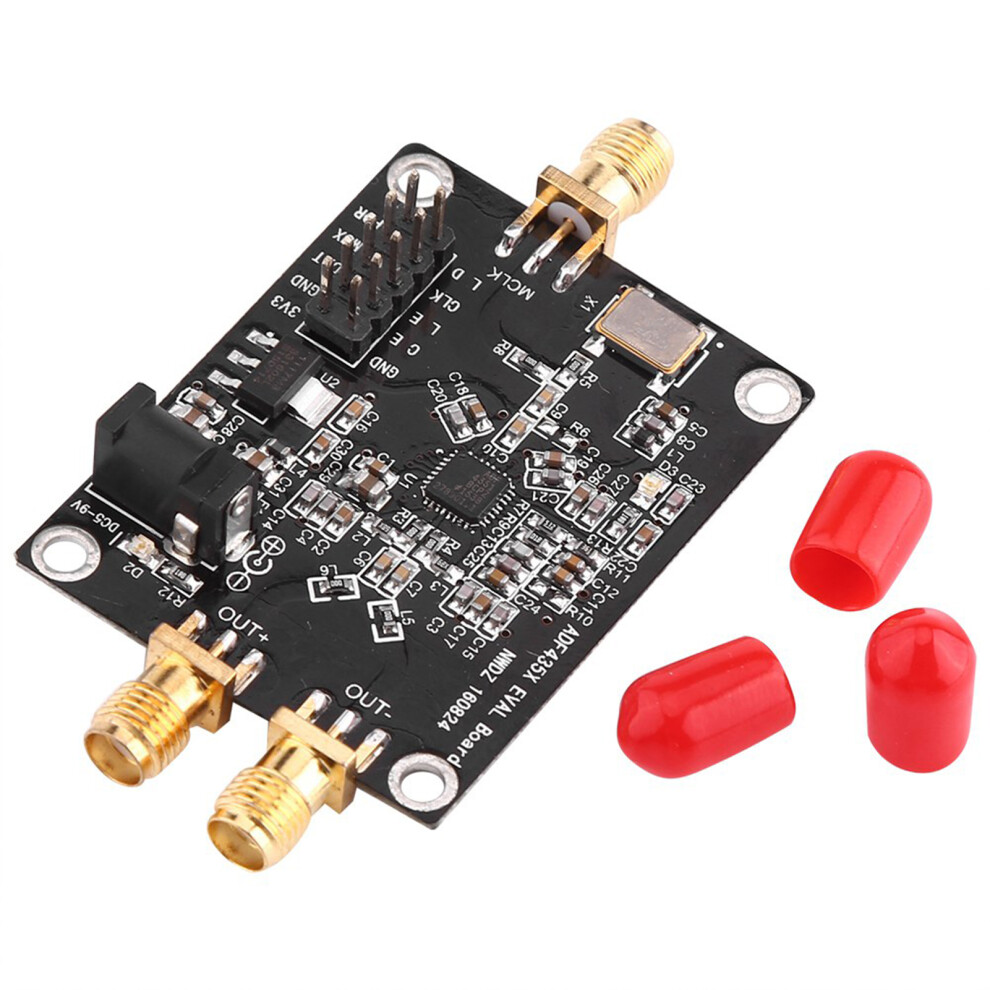

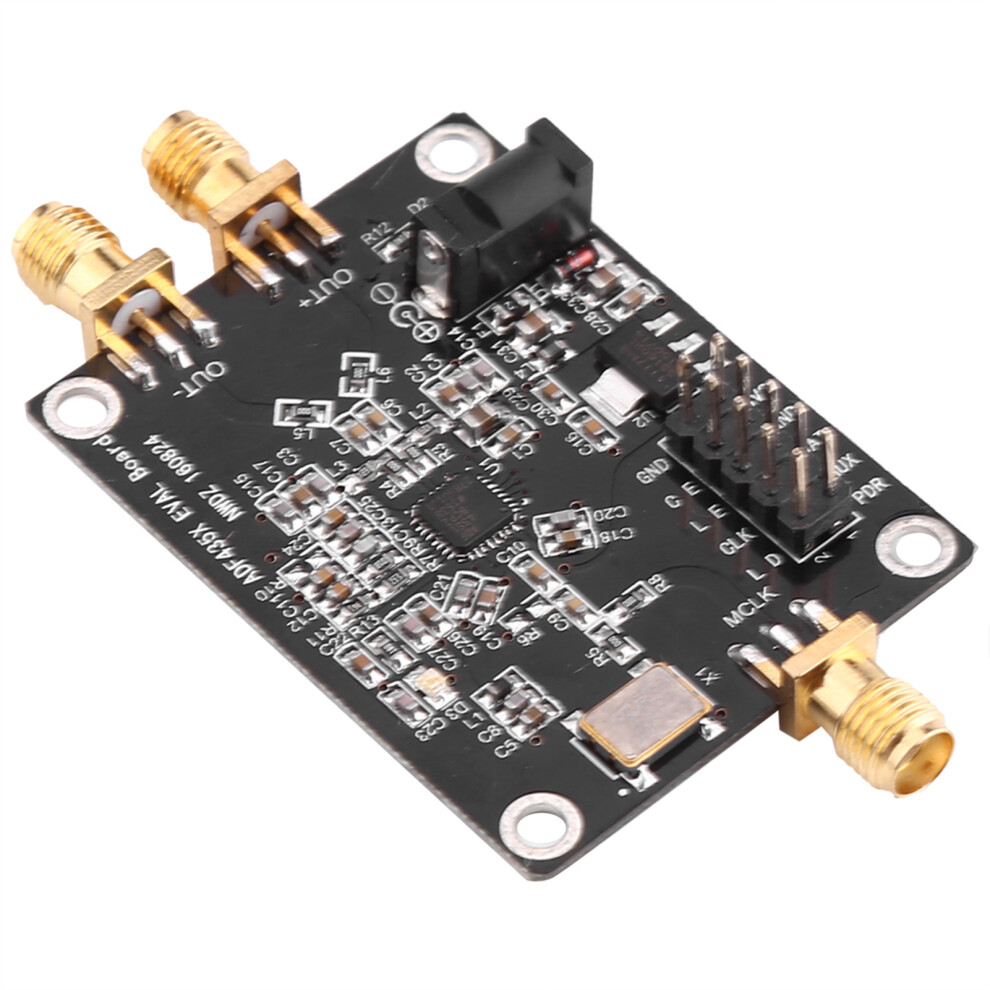

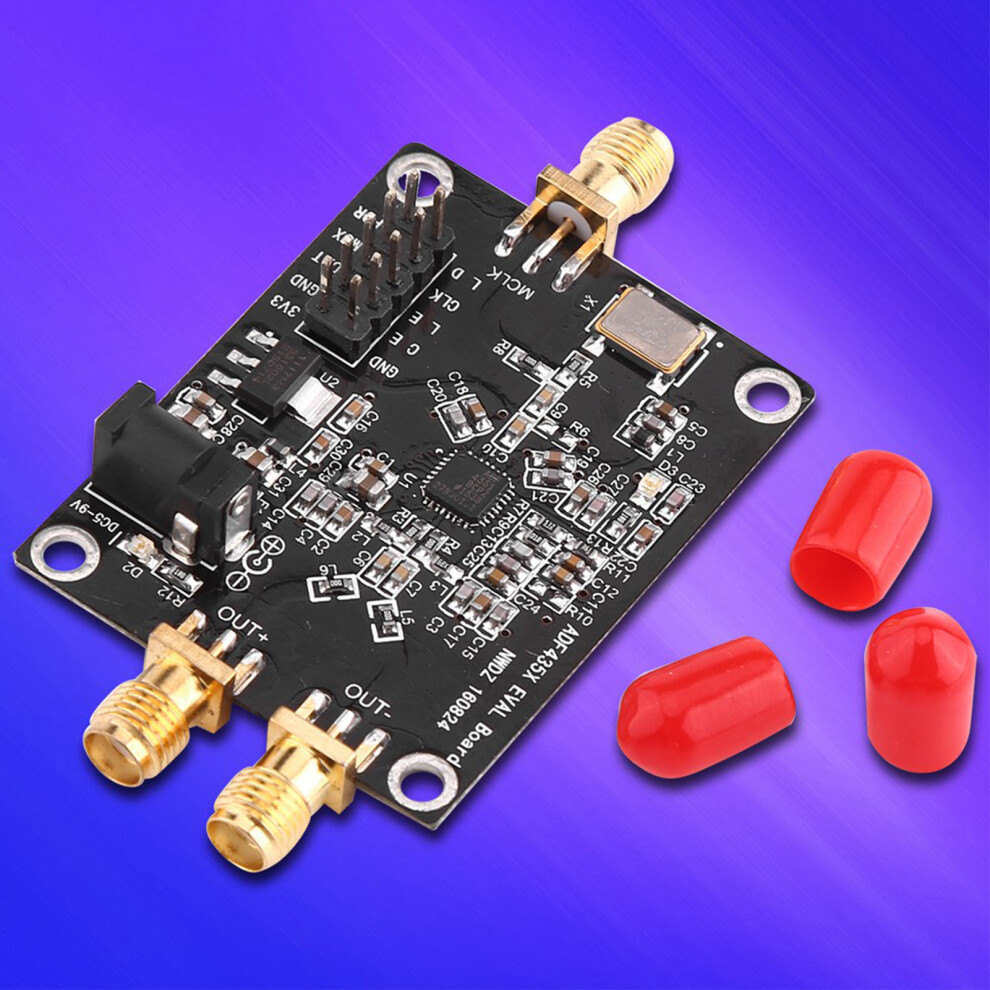

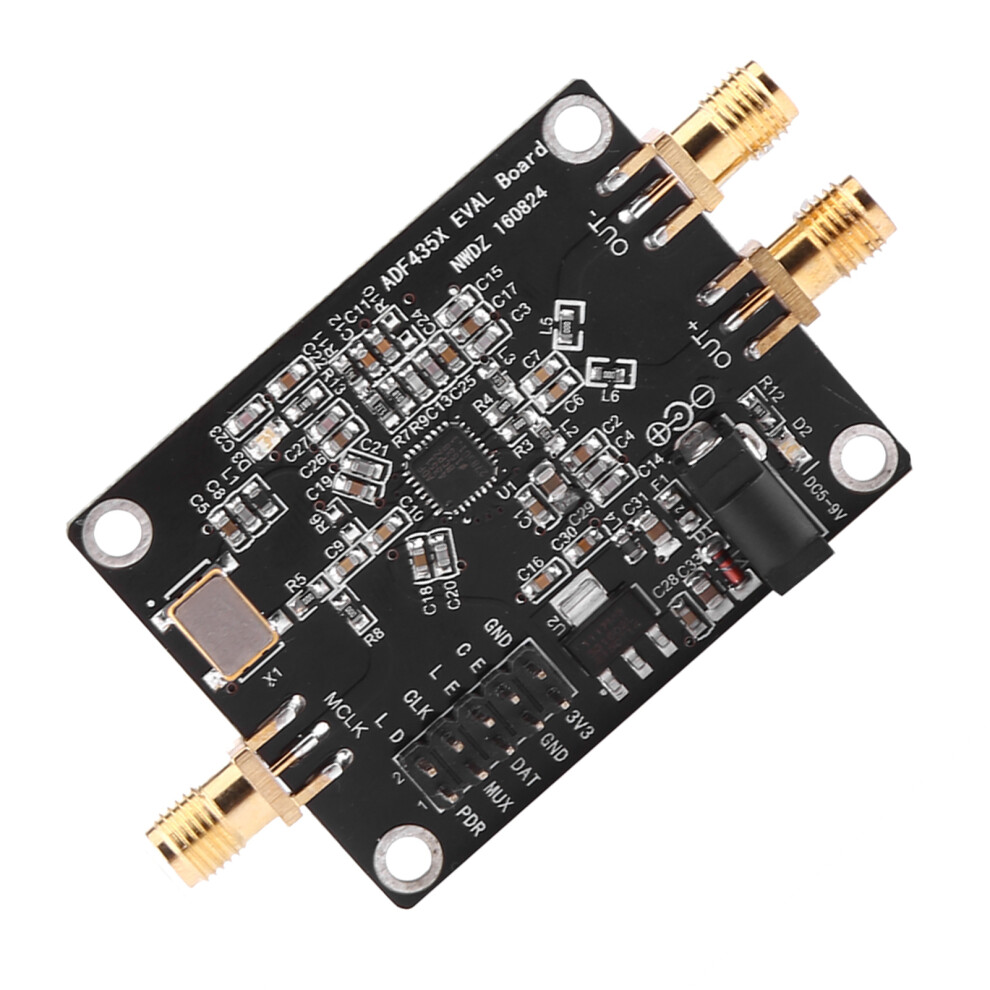

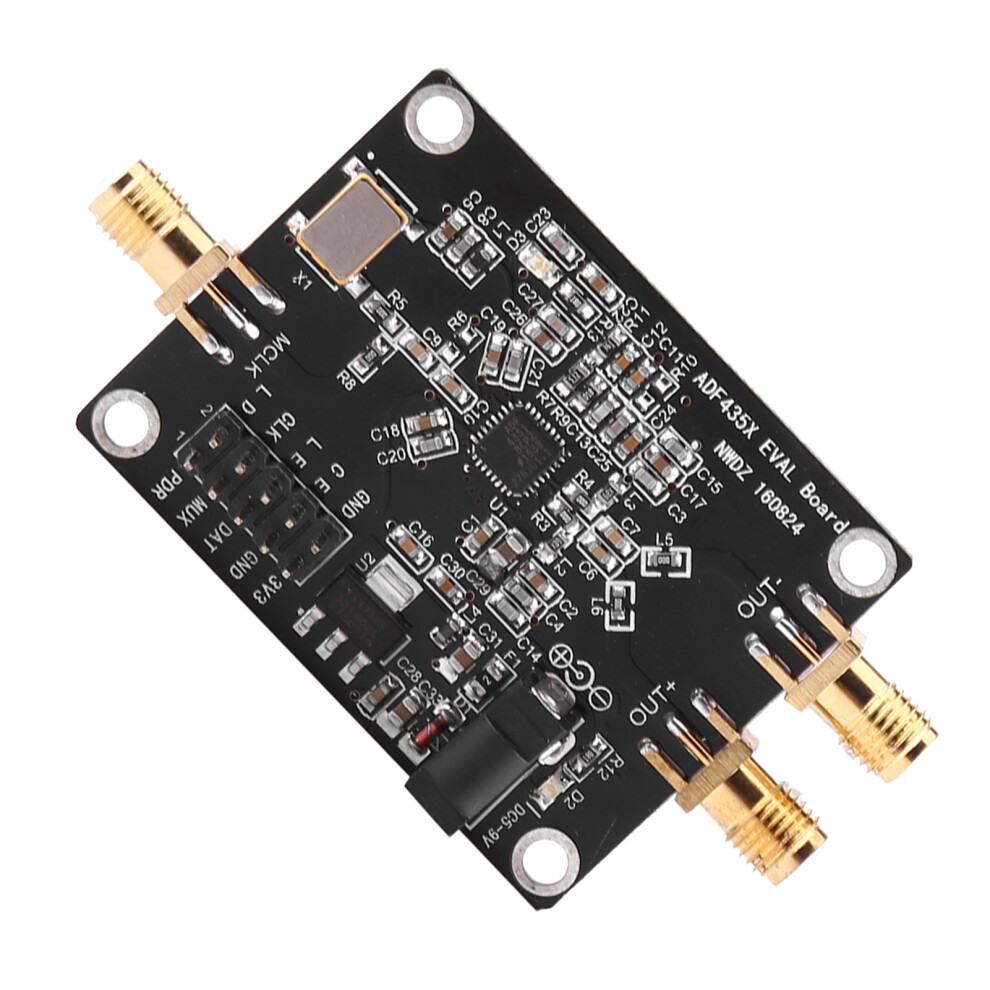

- 1、This ADF4351 signal source development board has well designed circuit board layout
- 2、It can be controlled by the upper computer official software
- 3、All control pins are leaded out for convenient operation
- 4、Default + ‑50ppm 25M active crystal oscillator. Circuit diagram in PDF format and STM32 test program are provided
- 5、Three‑wire SPI lead to control pin and state locking pin, allowing all functions including point frequency sweep and frequency hopping, stepping to 1K
35M‑4.4GHz RF Signal Source Frequency Synthesizer Description

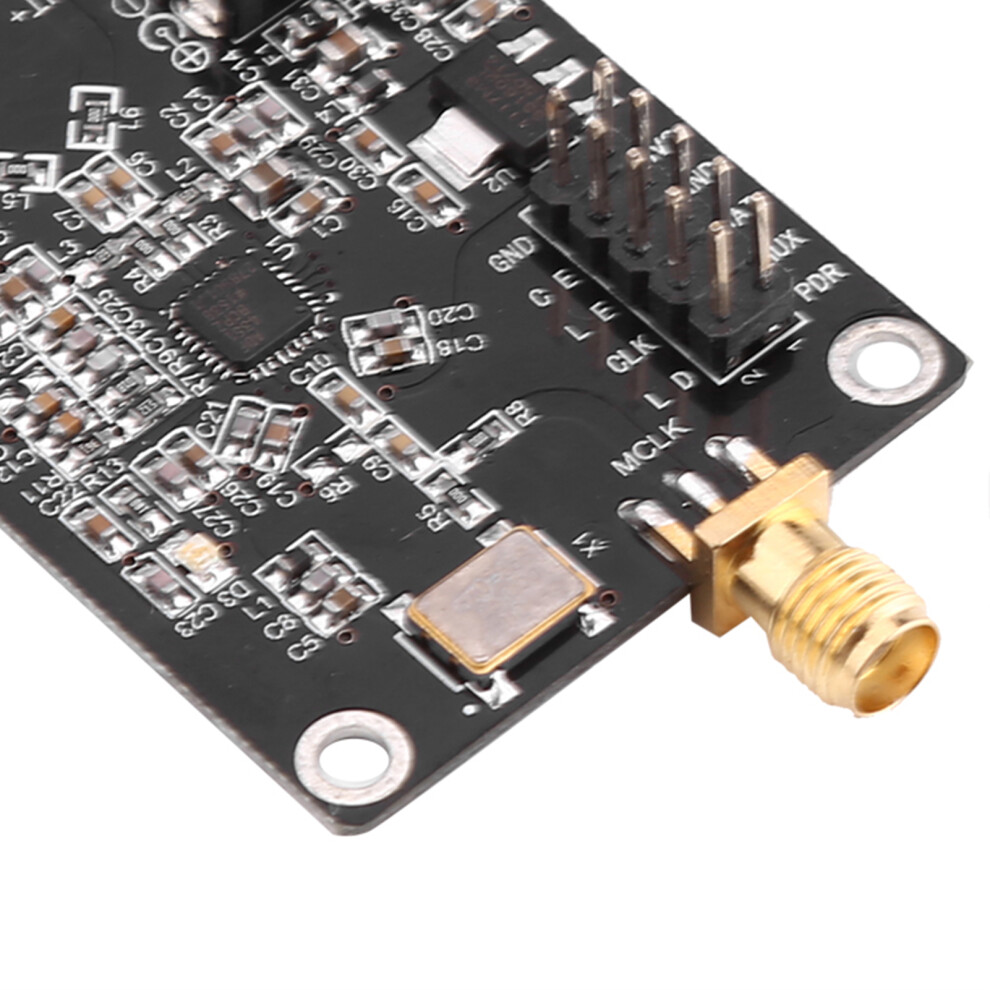

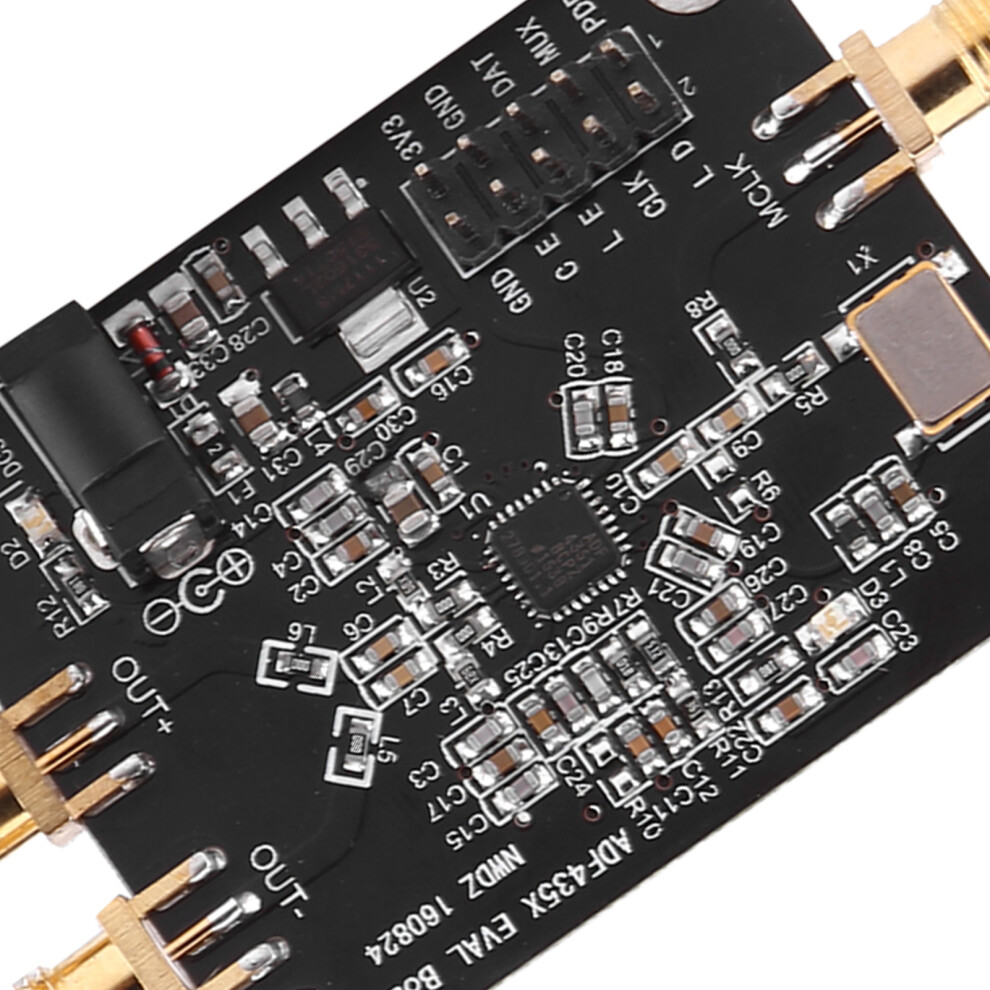

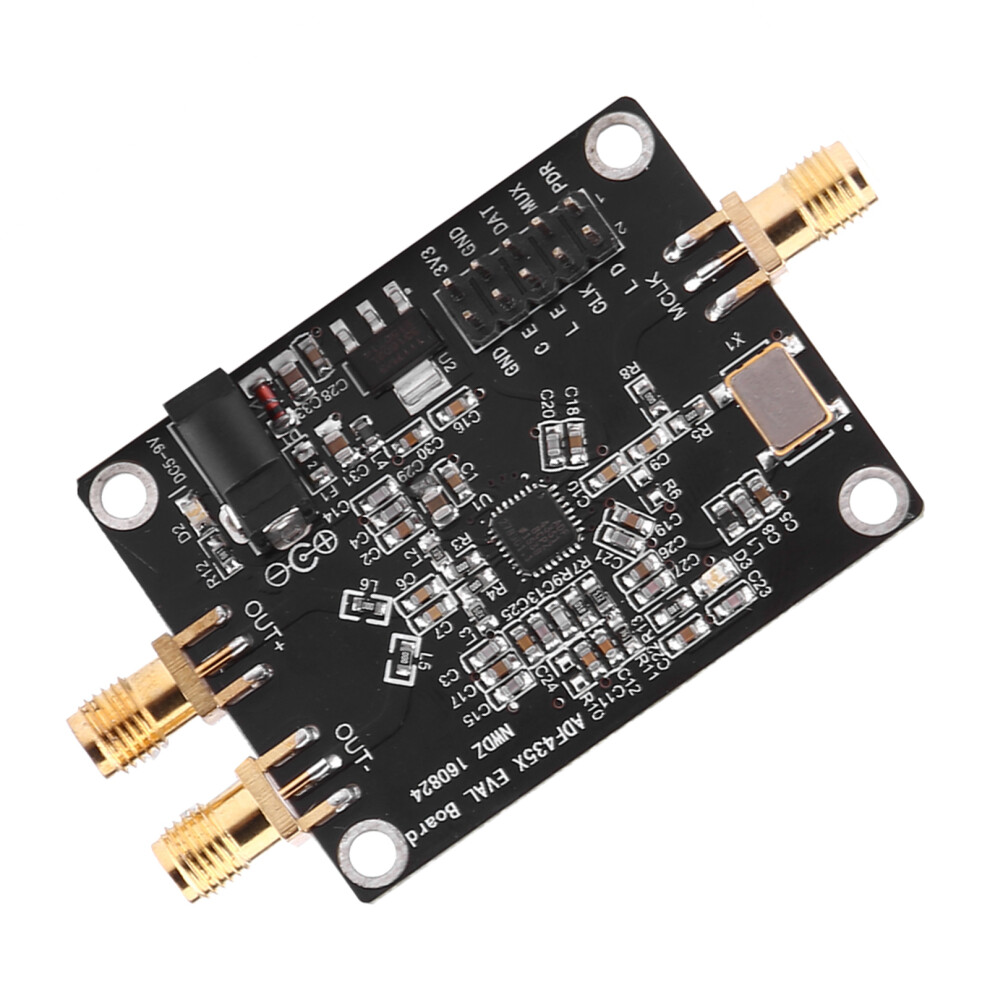

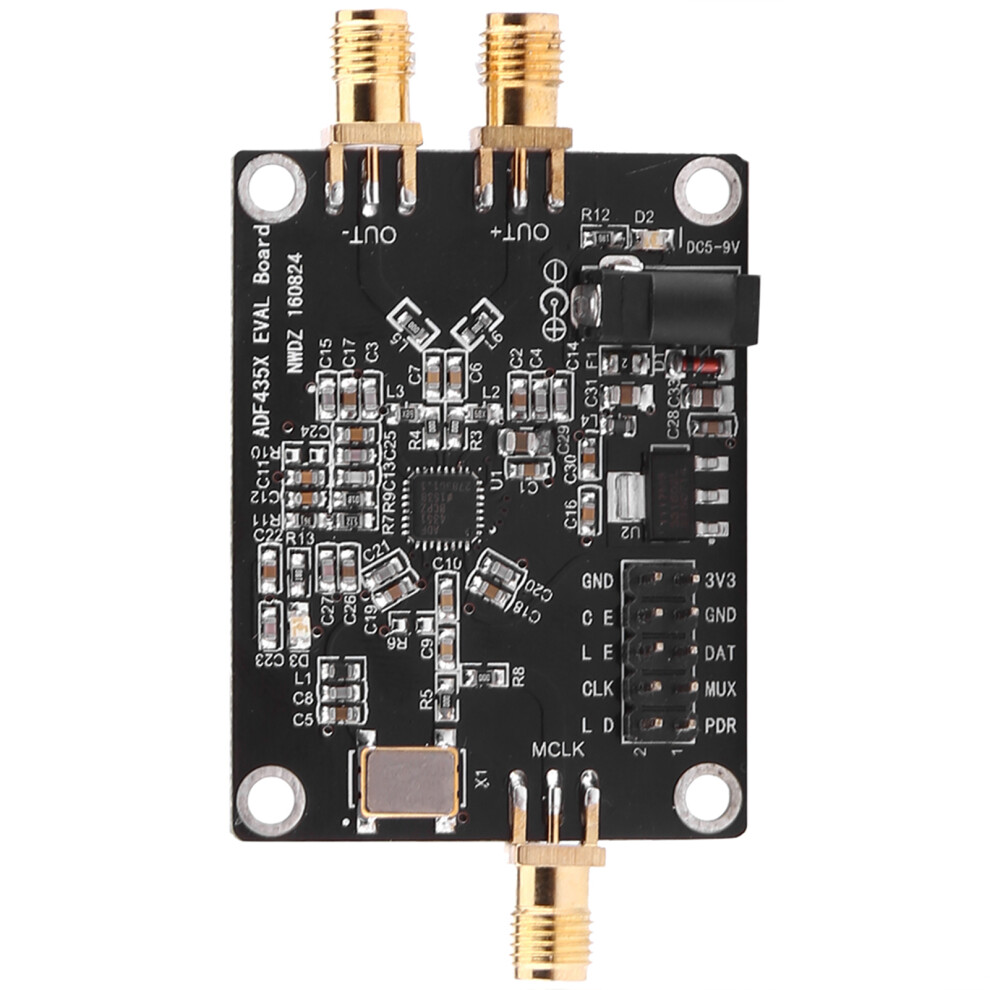

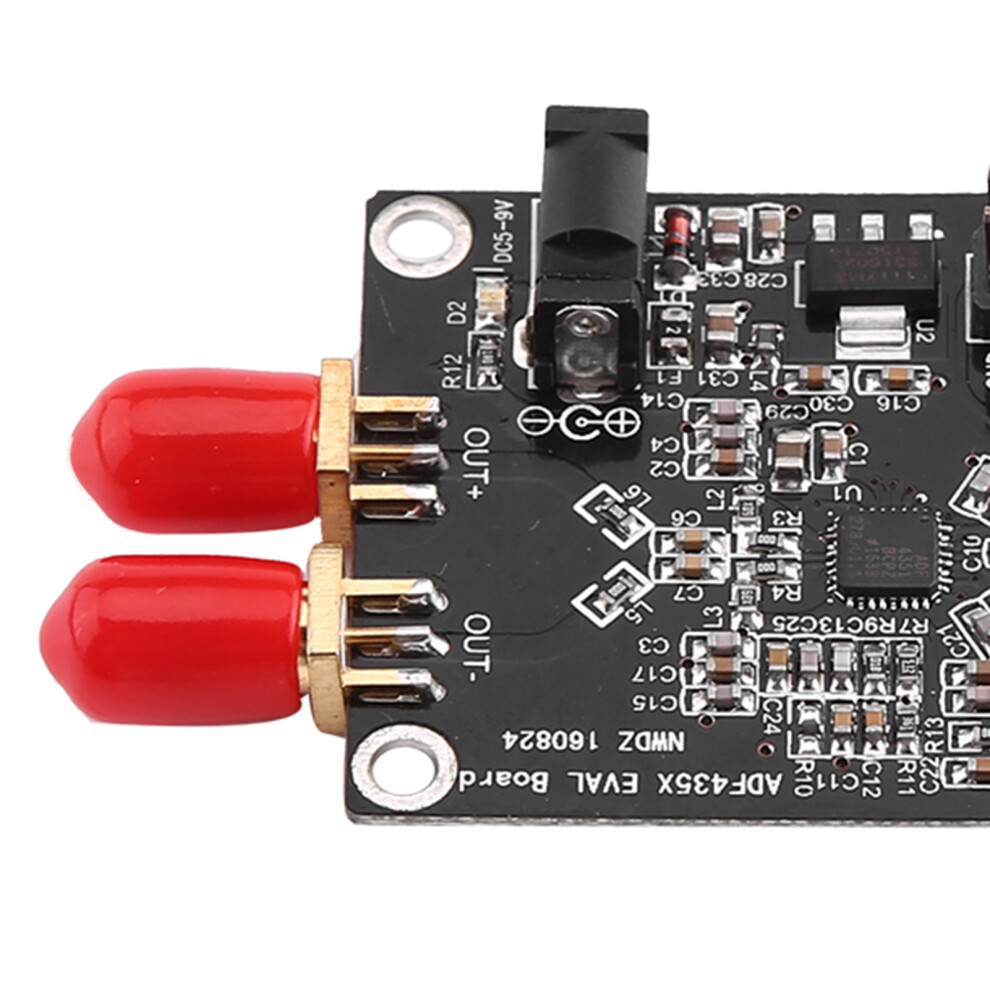

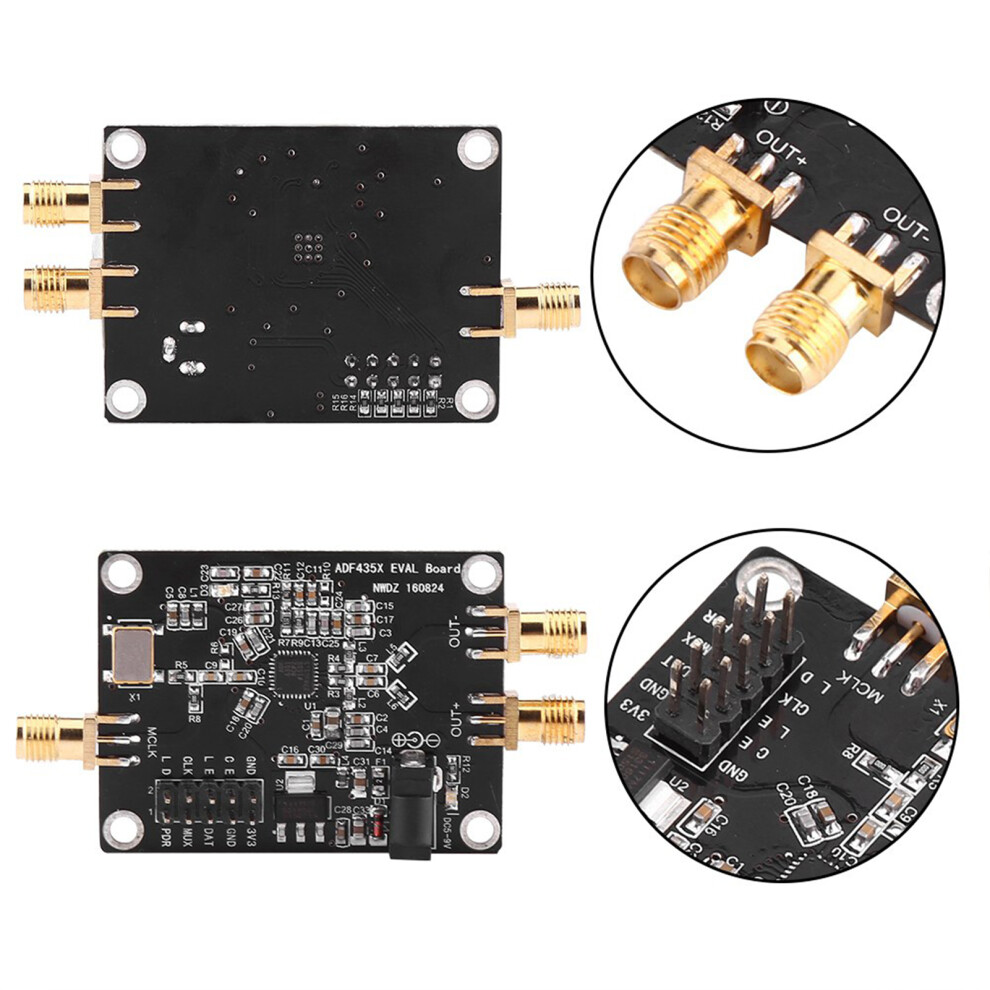

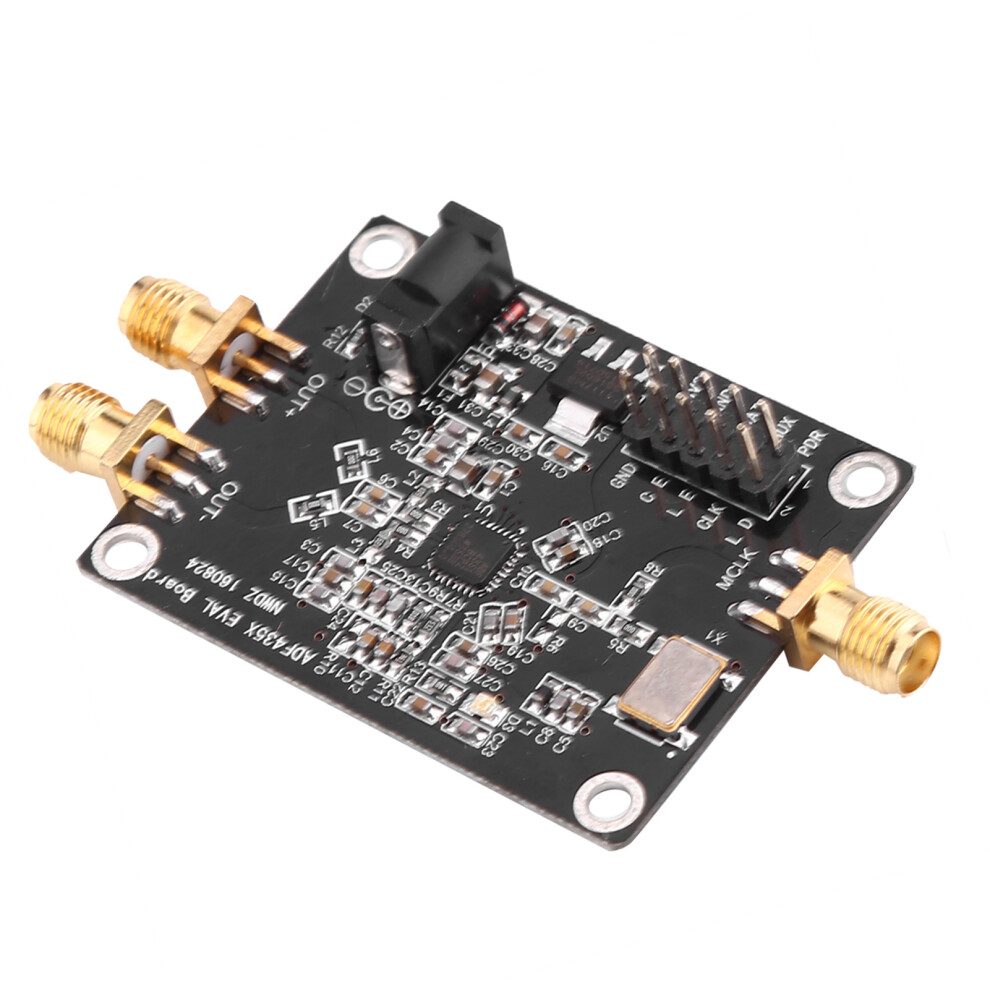

35M‑4.4GHz RF Signal Source Frequency Synthesizer ADF4351 Development Board
1、This ADF4351 signal source development board has well designed circuit board layout 2、It can be controlled by the upper computer official software 3、All control pins are leaded out for convenient operation 4、Default + ‑50ppm 25M active crystal oscillator. Circuit diagram in PDF format and STM32 test program are provided 5、Three‑wire SPI lead to control pin and state locking pin, allowing all functions including point frequency sweep and frequency hopping, stepping to 1K
Features: This ADF4351 signal source development board has well designed circuit board layout. It can be controlled by the upper computer official software. All control pins are leaded out for convenient operation. Default + -50ppm 25M active crystal oscillator. Circuit diagram in PDF format and STM32 test program are provided. Three-wire SPI lead to control pin and state locking pin, allowing all functions including point frequency sweep and frequency hopping, stepping to 1K. Specifications: Output Frequency Range: ADF4351: 35M-4.4G Power Supply: DC002 Interface DC4-9V(typical 5V) Output Signal: 2.2-4.4G fundamental wave (sine wave), 35M-2.2G fundamental division (square wave) Signal Output Connector: SMA female Size: 49 x 37 x 12mm / 1.93 x 1.45 x 0.47" Package Includes: 1 x Signal Source Development Board Note: This board requires professional knowledge and ability, please make sure you know how to use it.
1 x Signal Source Development Board
Details
| OPC | PK9FRVF |
|---|---|
| Codes | 8320539673653 (EAN) |
Product Data
Dimensions
| Height | 1.0cm |
|---|---|
| Width | 5.0cm |
