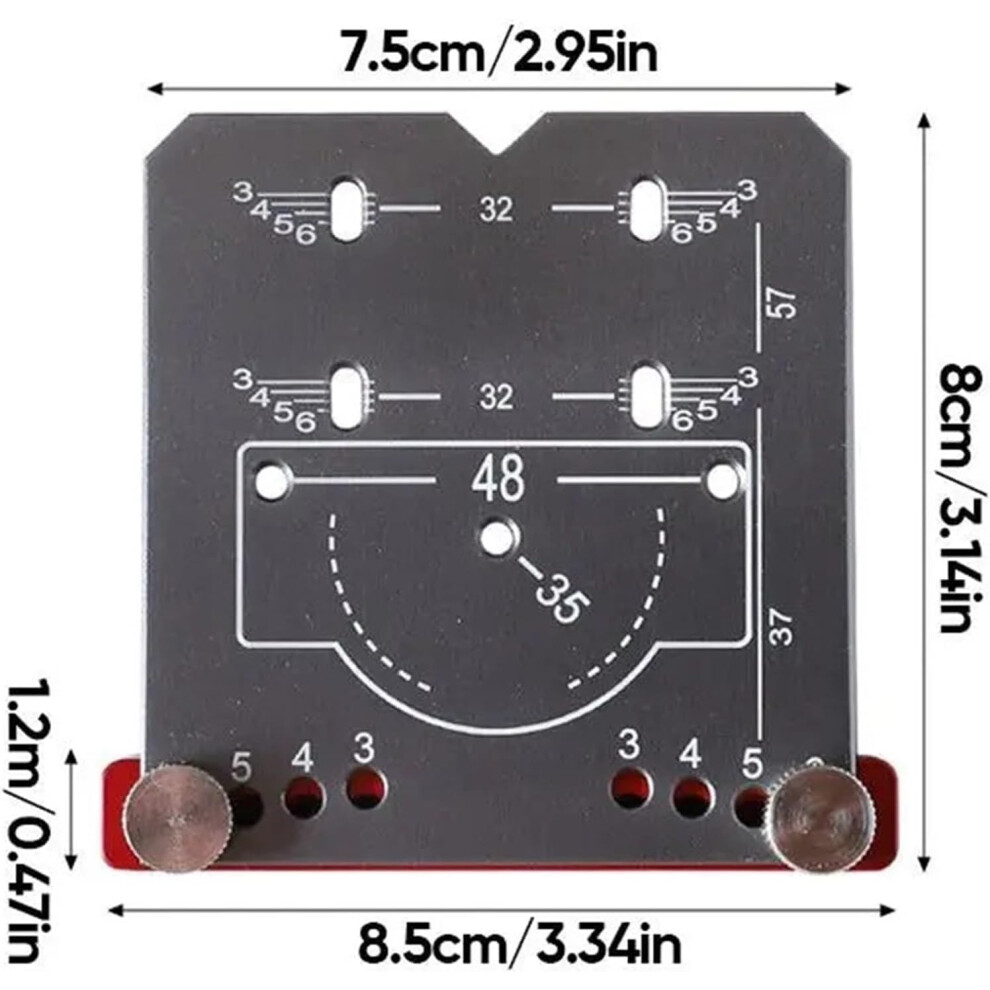

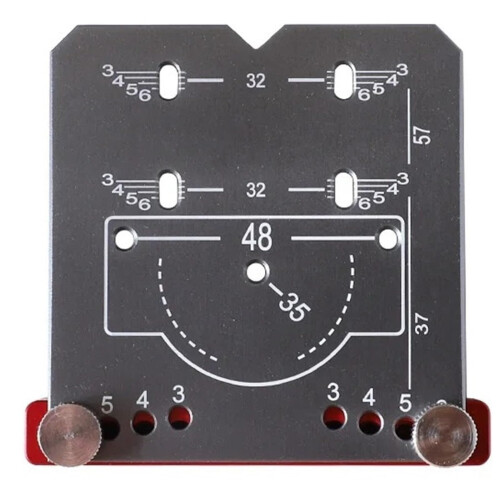

35mm Hinge Jig Adjustable Cabinet Hinge Drilling Guide with Accurate Positioning and Edge Margin

35mm Hinge Jig Adjustable Cabinet Hinge Drilling Guide with Accurate Positioning and Edge Margin Description

A precision 35mm hinge punch locator and boring jig designed to make hinge installation faster, more accurate and repeatable. This adjustable margin marker and positioning plate acts as a drilling guide and opening aid so you can reliably locate and bore the 35mm hinge cup without guesswork. Key benefits Accurate placement: Designed specifically for 35mm hinge cups to ensure consistent cup center positioning every time. Saves time and reduces errors: Combines locating, marking and guiding functions so you can mark and drill quickly and with fewer adjustments. Repeatable results: Adjustable margin marker lets you set the edge offset once and reproduce the same position across multiple doors or panels. Simple to use: Acts as a stable positioning plate and drilling guide to keep holes straight and centered, reducing blowout and misalignment. Singlepiece convenience: Supplied as 1PC for straightforward setup and immediate use. Main attributes Size compatibility: 35mm - made to locate and guide boring for 35mm hinge cups (standard concealed/Europeanstyle hinges). Functionality: Punch locator, boring jig, adjustable margin marker, positioning plate, drilling guide and opening aid all in one tool. Adjustability: Margin marker is adjustable so you can control the distance from the door edge for different hinge layouts. Package contents: 1PC included. Typical applications Cabinet assembly and hinge installation: Quickly mark and drill consistent hinge cups when fitting concealed hinges on kitchen, bathroom or furniture doors. and replacement work: Remove old hinges and install 35mm cup hinges with correct alignment and consistent margin. Small or onsite woodworking: Use as a portable drilling guide and margin marker for single pieces or series work where repeatability matters. How it helps in practice Set the jig to the desired edge margin, align the plate on the door or panel, make a locating mark or punch through the guide, then use your compatible 35mm boring bit to drill the hinge cup. The jig's guide surface keeps the drill steady and centered for clean, accurate holes. Using the adjustable margin feature you can match existing hinge positions or standard layouts quickly without remeasuring each hinge location. Who it's for Cabinetmakers, carpenters, handymen and DIYers who need consistent, repeatable hinge cup placement for concealed hinges. Anyone replacing or installing 35mm cup hinges on cabinets, furniture doors or small carpentry projects. Notes Intended for use with 35mm hinge cups and corresponding boring bits or drill attachments. Supplied as one unit (1PC).
