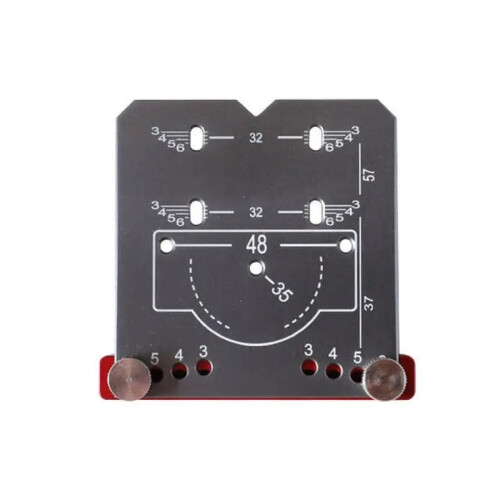

35mm Hinge Jig Adjustable Drill Guide for Cabinet Doors with Precision Positioning Plate

35mm Hinge Jig Adjustable Drill Guide for Cabinet Doors with Precision Positioning Plate Description

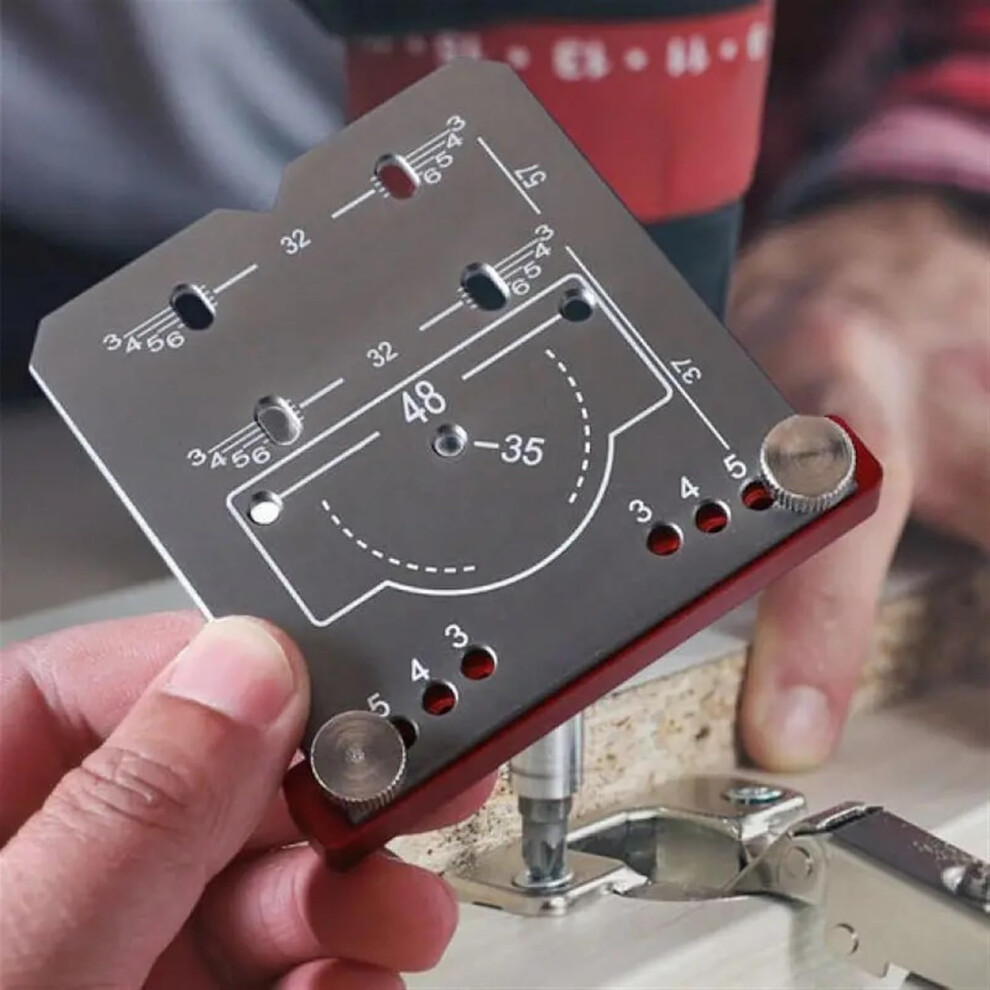

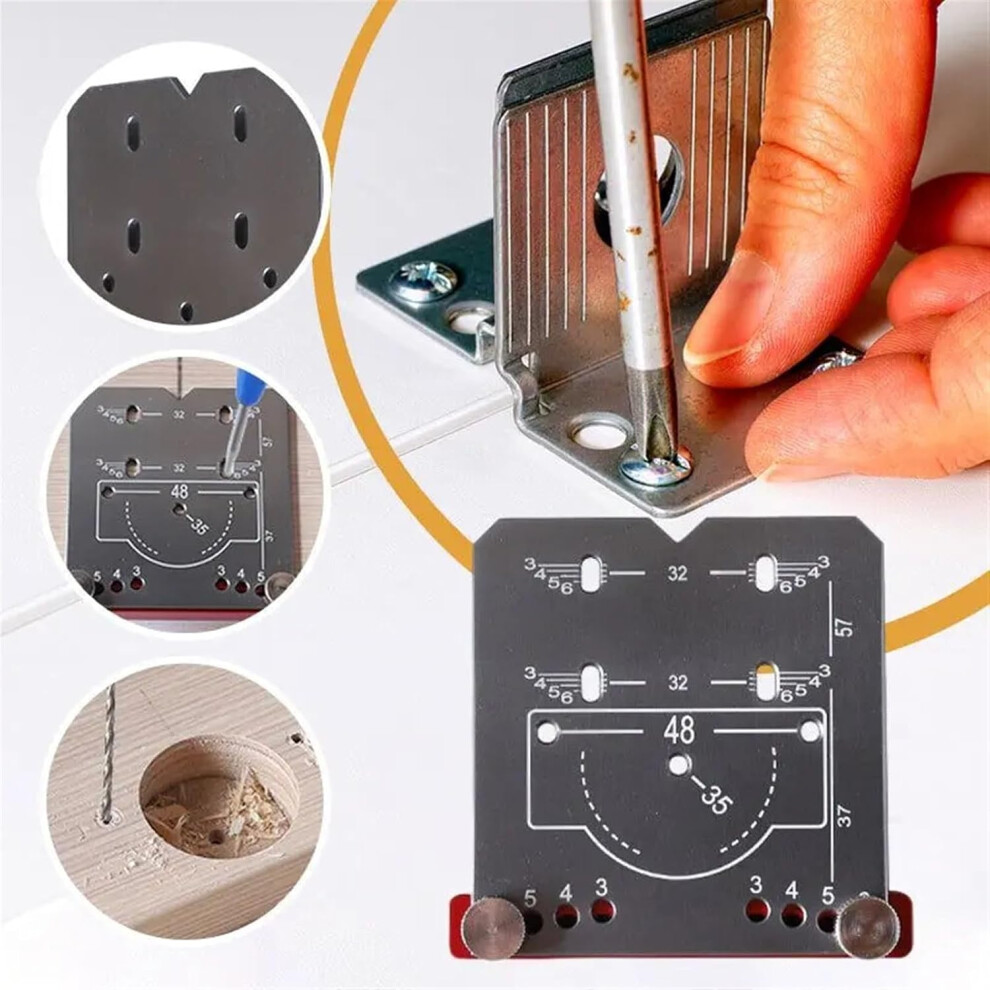

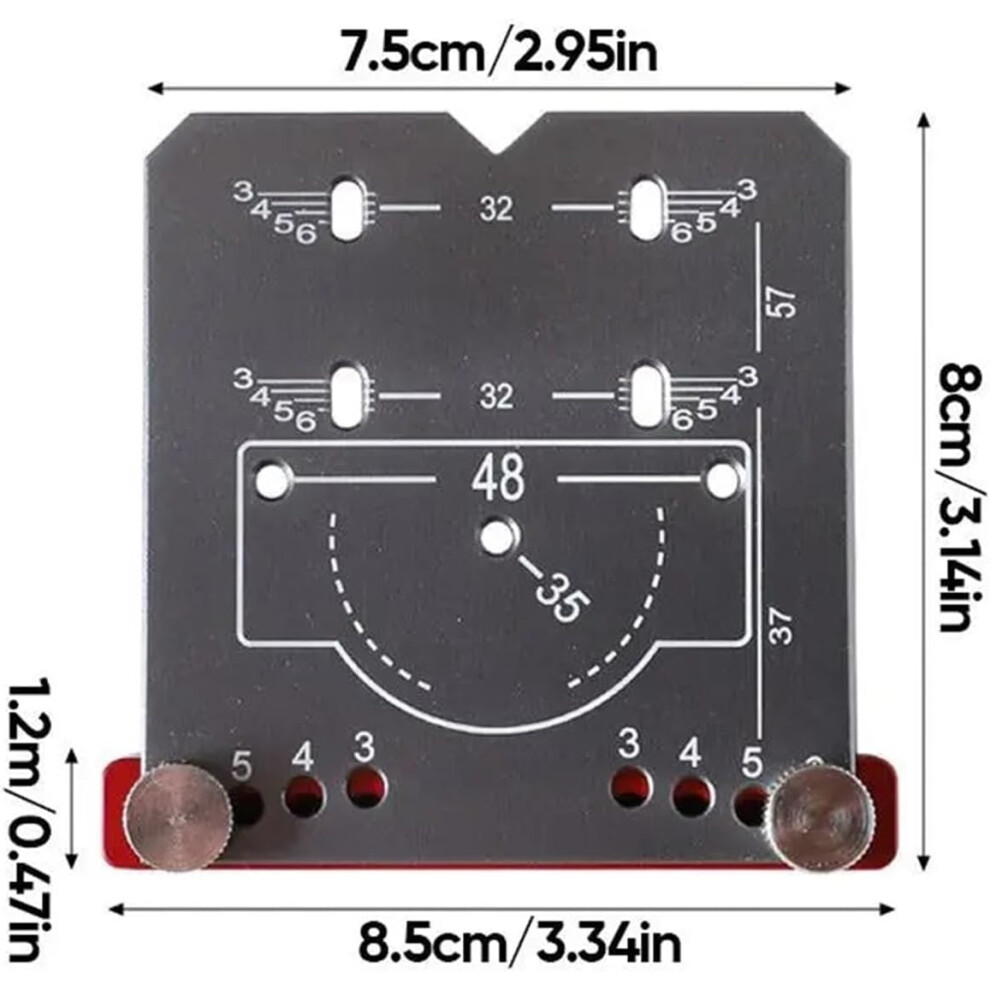

Precision 35mm Hinge Punch Locator - one adjustable positioning plate for accurate hinge cup boring and margin marking. This single locator is a practical drilling guide and opening aid designed to speed up hinge installation, reduce errors, and deliver consistent results for cabinet doors and furniture. Why you need it Eliminates guesswork: positions the drill precisely for standard 35mm hinge cups so hinge cups are centered and consistent across multiple doors. Saves time and material: reduces rework from misaligned hinge cups and prevents unnecessary chipping or tearout. Simple and repeatable: the adjustable margin marker lets you set the distance from the edge once, then reproduce that location quickly on every door. Key features and attributes Size: designed specifically for 35mm hinge cups (35mm hinge punch locator). Functionality: acts as a boring jig, drilling guide, adjustable margin marker, and positioning plate in one tool. Adjustment: margin marker provides control over cuptoedge distance to meet typical hinge layout requirements. Pack contents: sold as Just 1 Locator - this listing includes a single locator unit. Compatibility: intended for use with standard 35mm European concealed hinges and with common drilling methods (hand drills, drill presses, Forstner bits). Performance: improves accuracy, repeatability, and alignment when boring hinge cups and marking hinge positions. How it solves common problems Misaligned hinges: ensures the hinge cup is bored exactly where intended so doors hang squarely. Inconsistent margins: adjustable marker removes variation between multiple doors or repeated installations. Damage while drilling: guides the drill to minimize slips that can chip veneer or edge surfaces. Typical applications Kitchen cabinet installation: quickly and accurately lay out and bore hinge cups for multiple cabinet doors. Furniture and replacement: a damaged hinge or rehang doors with consistent hinge positions. Smallscale production or work: use as a repeatable jig when producing runs of doors or panels that require identical hinge placement. Quick usage overview Set the required margin on the adjustable marker. Position the locator on the door edge where the hinge is needed. Use the locator as a guide while boring the 35mm hinge cup with the appropriate bit. Repeat for additional doors using the same setting for uniform results. Practical notes Sold as a single locator unit - quantity accordingly for larger jobs. Intended to work with standard 35mm hinge cups and common drilling tools; confirm compatibility with your specific hinge model and drill bit type before use. A straightforward, reliable tool for anyone installing or repairing 35mm concealed hinges who wants faster layout, more accurate drilling, and consistent margins across multiple doors.
