35mm hinge template, cabinet door hinge template, concealed hinge template, hole punch

35mm hinge template, cabinet door hinge template, concealed hinge template, hole punch Description

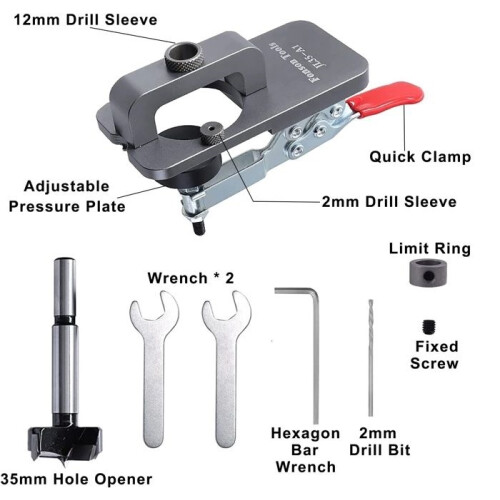

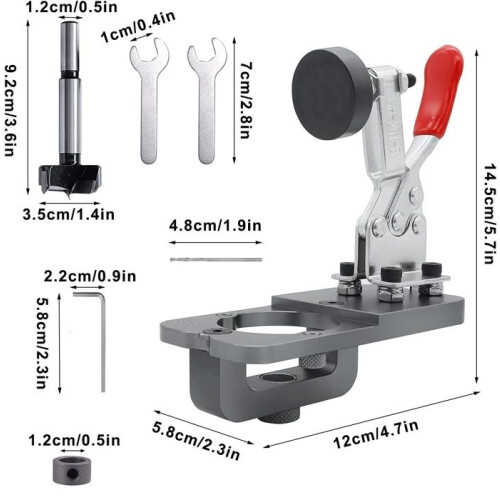

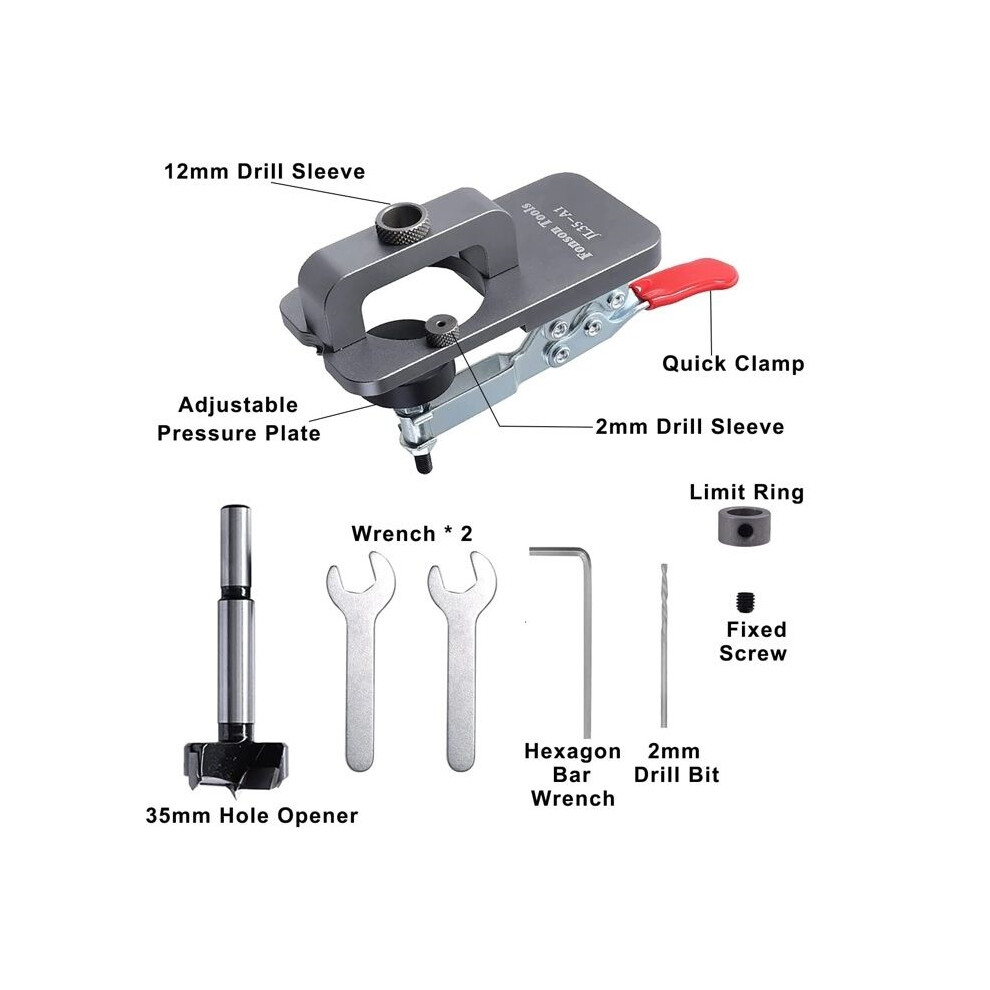

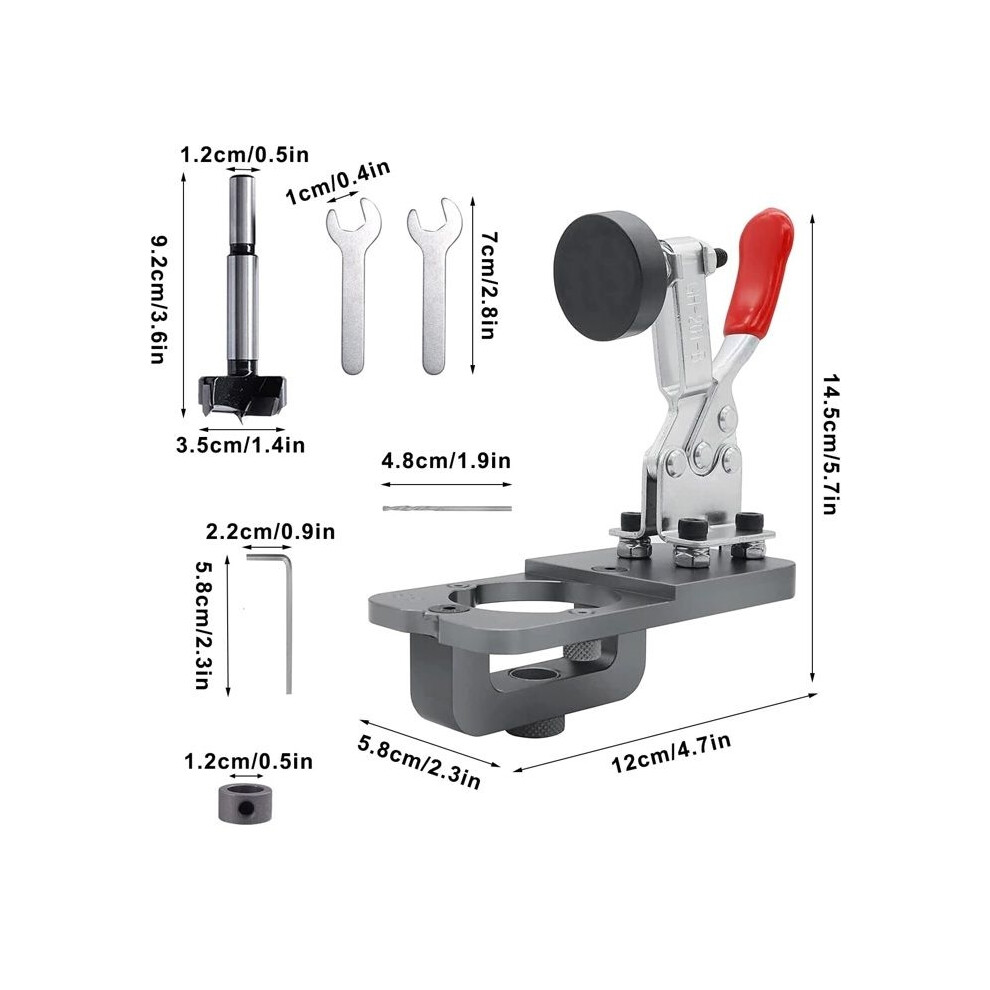

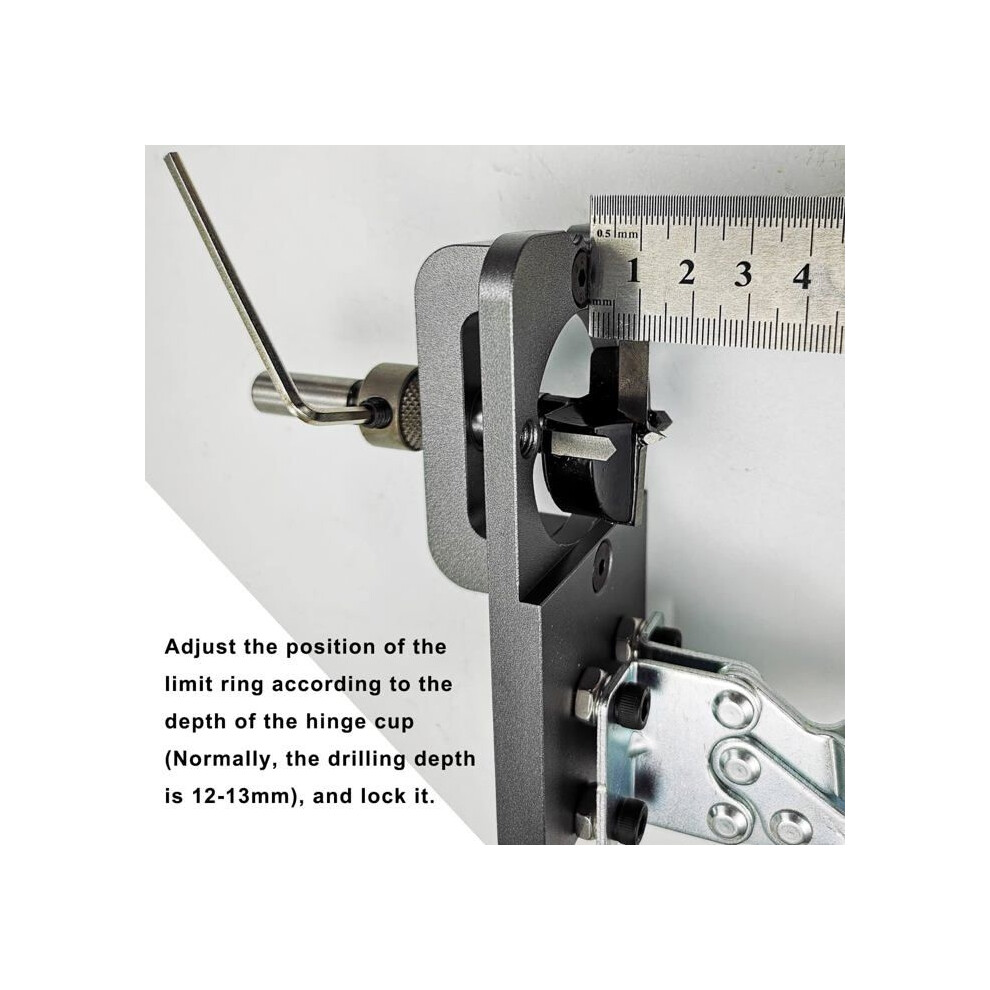

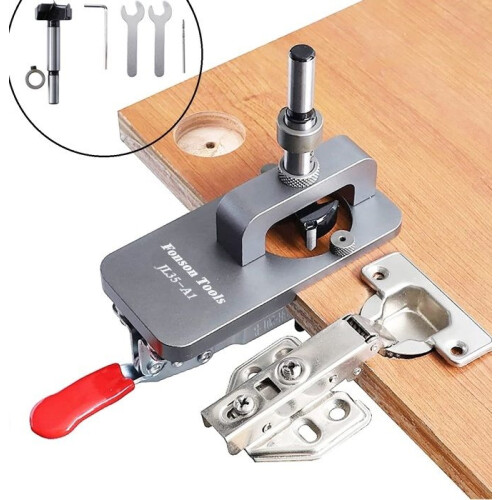

Precise and Durable: Made of aluminum alloy, our 35mm hinge drill bit offers a long service life thanks to its precision manufacturing, accurate locking mechanism, and convenient operation. Installation: 1. Install a 35mm hole opener; 2. Adjust the drilling depth to 12-13mm, then lock the limit ring; 3. Adjust the fixed size of the black pressure block on the quick-release clamp; 4. Move the drill bit to the marked and drill position on the board and lock the quick-release clamp; 5. Squeeze the drill handle and press the hole to a depth of 12-13mm; 6. Drill a 2mm screw hole on the left and right sides. Widely Used for Most Common Hinges: The distance between the 35mm hole and the edge is 5mm, making it suitable for most common hinges. As a DIY tool for woodworking, it is very convenient for you to mount concealed hinges on your doors or cabinets. No professional is required. Package Contents: The package includes: Hinge drilling locator body * 1, 35mm hole opener (with limit ring and fixing screw) * 1, 2mm drill bit * 1, wrench * 2, hex bar wrench * 1. Product Description: 35mm hinge jig, door cabinet hinge jig, concealed hinge jig, drilling hole punch, precise locking woodworking jig drilling guide locator for DIY woodworking. How to Install: 1. Install a 35mm hole opener; 2. Adjust the drilling depth to 12~13mm, then lock the limit ring; 3. Adjust the fixed size of the black pressure block of the quick-release clamp (Note: the adjustable fixed size of the tool is 15 to 25 mm)
