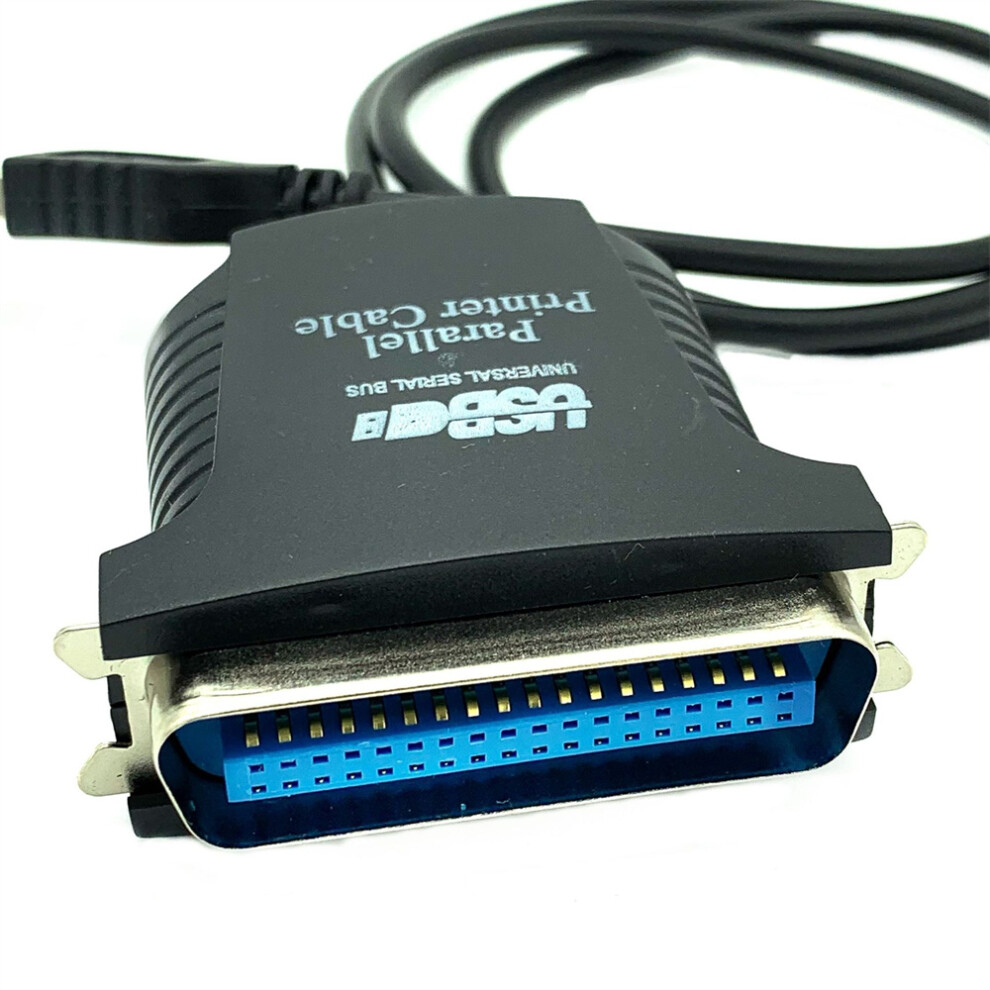

36 Pin USB to Parallel IEEE 1284 Printer Cable Computer PC Lead Adaptor Laptop

36 Pin USB to Parallel IEEE 1284 Printer Cable Computer PC Lead Adaptor Laptop Description

Function:

The use of USB print line (USB TO priner) can make the standard parallel port printer converted to USB interface.

Driver For windows98 (in windows2000 environment without driver), after installation in the USB environment through the conversion path to virtualize a print channel.

Features:

Compatible with all standard IEEE 1284 printers, supports EPP/ECP mode.

Support USB1.1 compatible 2.0

Connects directly to the printer port

Compatible with all parallel printers

Supports USB full speed transfer

Draws power directly from the USB bus

Compatible with USB Printer 1.0 standard

Driver for windows qx/me, in win2000/xp without driver, the system is used directly

Supports APPLE 0S8/0S9 plug and play.

Supports power sleep and recovery management

Compatible with IEEE-1284 1994 (bi-directional parallel interface) standard.

Low-level printer interface driver for windows 2000 USB port print cable, USB to parallel port, to solve the embarrassment of the laptop, no parallel port can not use the printer,

a printer can make your ordinary (parallel port) printer into a USB printer connection line, the USB port printer.

System Requirements:

Compatible with IBM PC 486DX4-100 and above

Valid USB port

WIN 98 or above version of the operating system

WIN 7 system is not suitable

Product Installation:

01:Connect the parallel port (CN36M) port to the device

02:Connect the USB port of the product with the USB port of the computer; in the lower right corner of the system, prompted to find new hardware, and automatically search for a good driver installation

Port Settings:

01:Connect the printer as described above, please install your printer driver (due to different brands of printers, the installation of drivers

Program method is slightly different, such as will not be installed, please contact the printer manufacturer customer service)

02:Under the operating system, right-click ??My Computer?? and select ??Manage??.

03: In the (Computer Management) window, click (Device Manager) - (Universal Serial Bus Controller) directory, there have been Recognize the new USB device

04: Find the printer icon, (the printer needs to install the driver)

05:Click on the printer icon, select (Properties), in the printer properties window, select the ??Port?? item, the printer's port device for ??USB01?? (this setting, according to the USB connection of different ports, such as USB002, USB003...). USB003...)

06: Click (Confirm) button, the device is complete, the printer can work normally.

Package Included:

1*Printer cable
