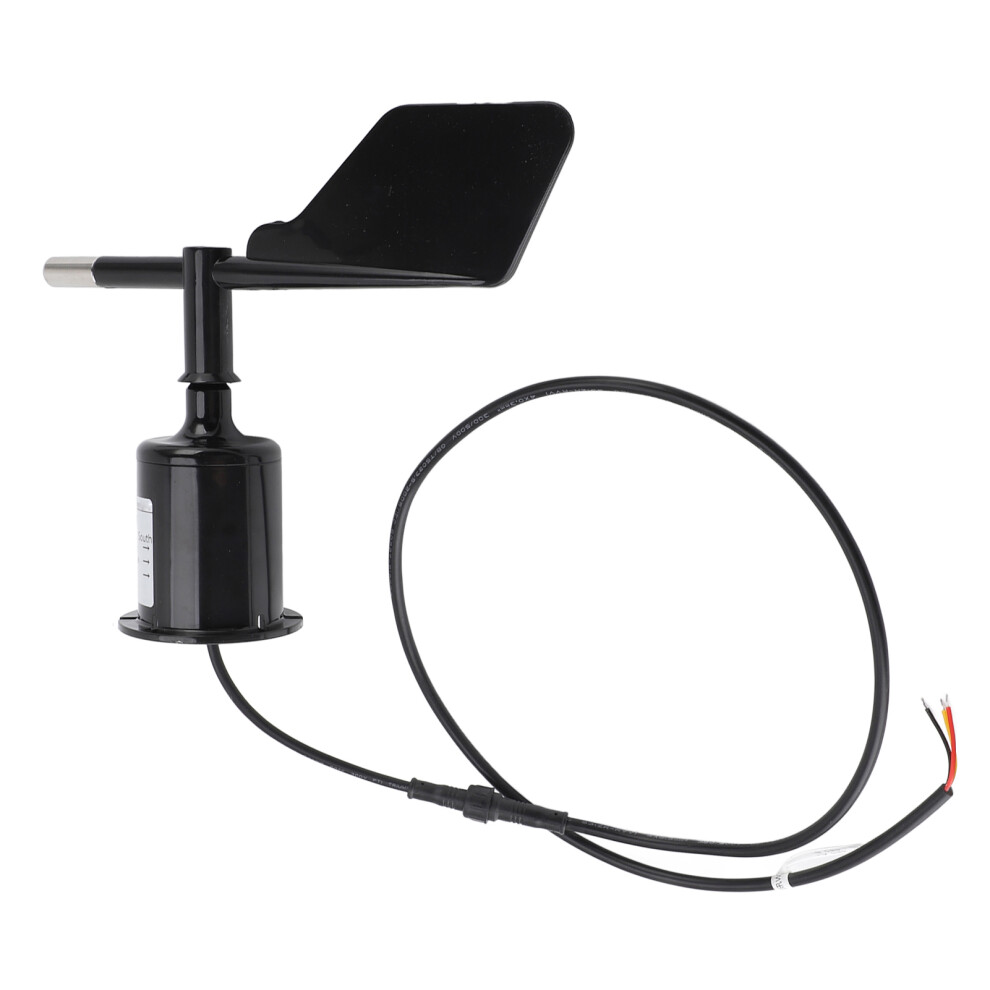

360 Wind Direction Sensor DC 5V, IP64, 223x190x70mm, Precise Anemometer
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£42.98
£59.69
28% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Mon 13th - Wed 15th Jul
There is 1 other seller
Returns: 30 days
180-day payment protection
Description & Details
Summary
- Highly Precise Angle Sensor: Internal use of precise angle sensor for 360 degree measurement, the wind indicator protector ensures linear and high accuracy for reliable use.
- Low Inertia ABS Construction: Utilizes low inertia ABS material for improved wind direction response, robust construction, impact resistance, and long term durability.
- Reliable Wind Direction Measurement: Operates on a rotating principle for accurate wind direction measurements, featuring no dead spots and strong lightning strike resistance.
- Versatile Applications: Widely used in gardens, greenhouses, and various fields for easy and convenient wind observation, ideal for meteorology, environmental monitoring, aerospace, and more.
- Compact and Portable Design: Small and portable design for easy installation and transportation, allowing for convenient observation of wind direction in different locations.

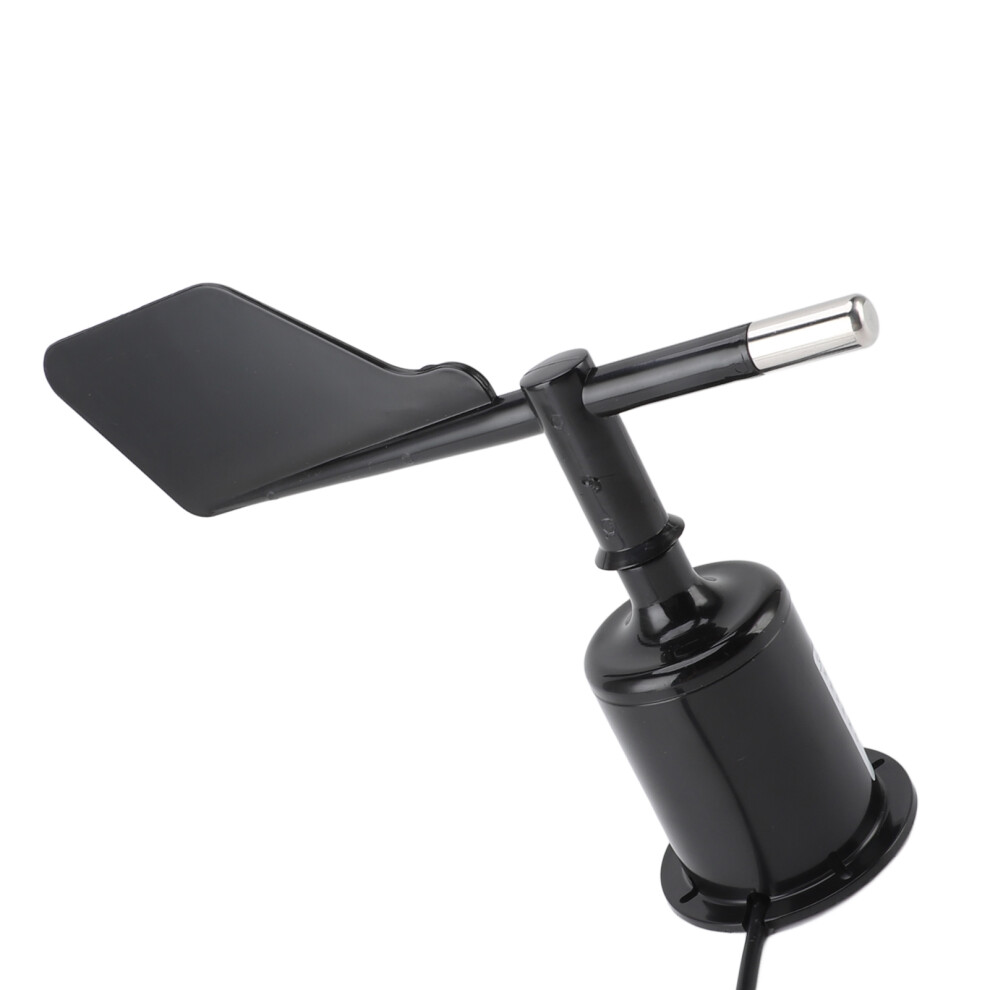

360 Wind Direction Sensor DC 5V, IP64, 223x190x70mm, Precise Anemometer Description
360 Degree Wind Direction Sensor DC 5V Precise Anemometer Sensor Wind Indicator Protector for Garden Greenhouse
Item Type: Wind Direction Sensor
Material: ABS
Weight: Approx. 385.00g/13.58oz
Product Size: Approx. 223x190x70mm/8.78x7.48x2.76in
Power Supply Voltage: DC 5V
Output: 0 to 2.5V
Extension Cable Length: 0.8m
Accuracy: Omni directional: 3
Resolution: Omni directional: 1
Startup Wind Speed: 0.8m/s
Maximum Power Consumption: 0.48W
Load Capacity: DC 12V power supply, current output impedance 350Ω
DC24V power supply, current output impedance 900Ω
Voltage output impedance 1KΩ
Operating Environment: Temperature -35 to 60
Humidity 100%RH non condensing
Protecting Level: IP64
Cable Level: Rated voltage: 300V 80

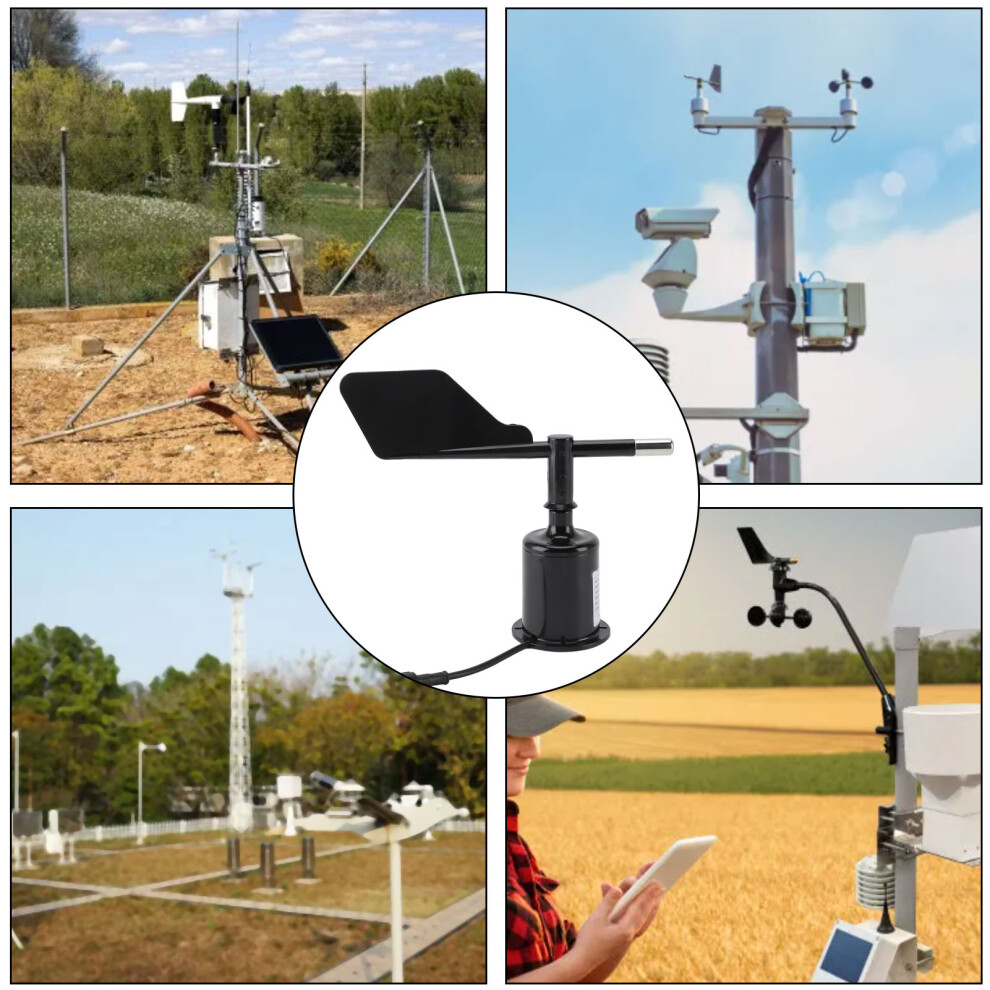

Application: for garden, greenhouse, environmental protecting, meteorological station, ship, dock, aquaculture, advertising barrier, weather, marine, environment, airport, port, laboratory, agriculture and traffic environment wind direction measurement

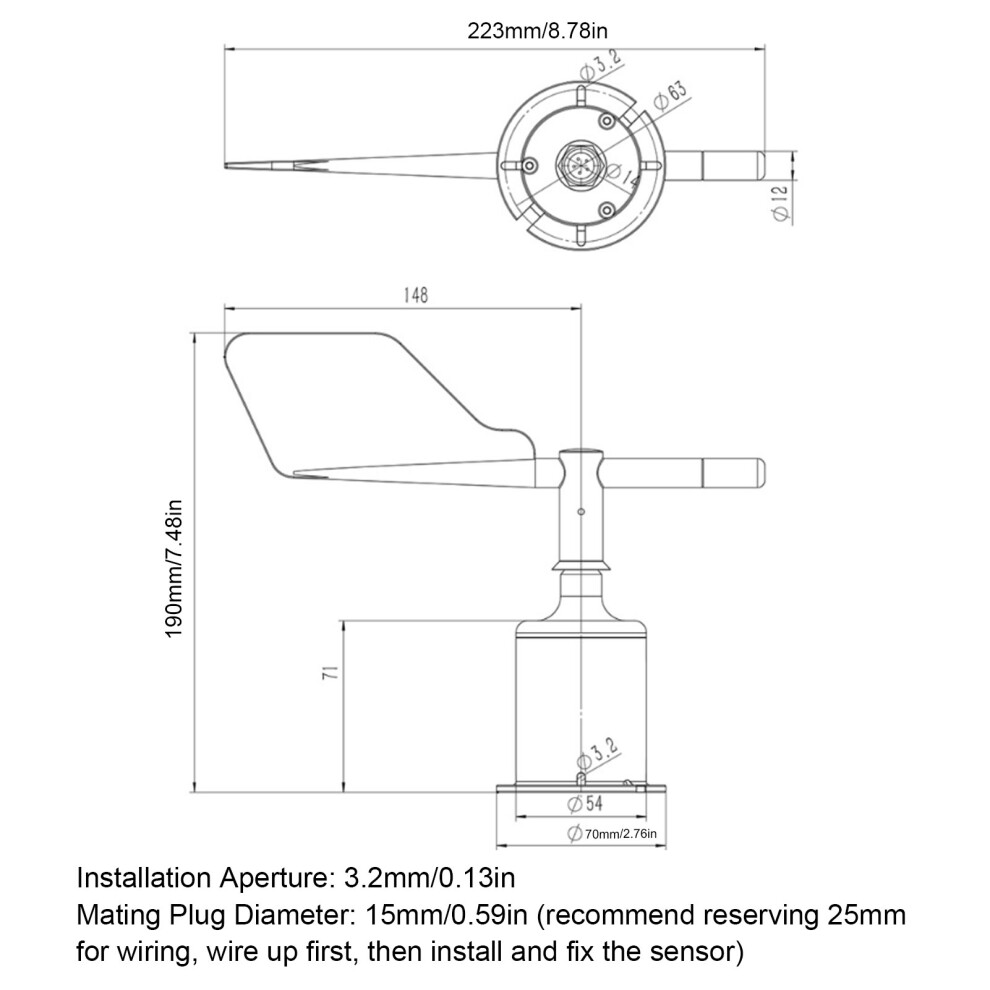

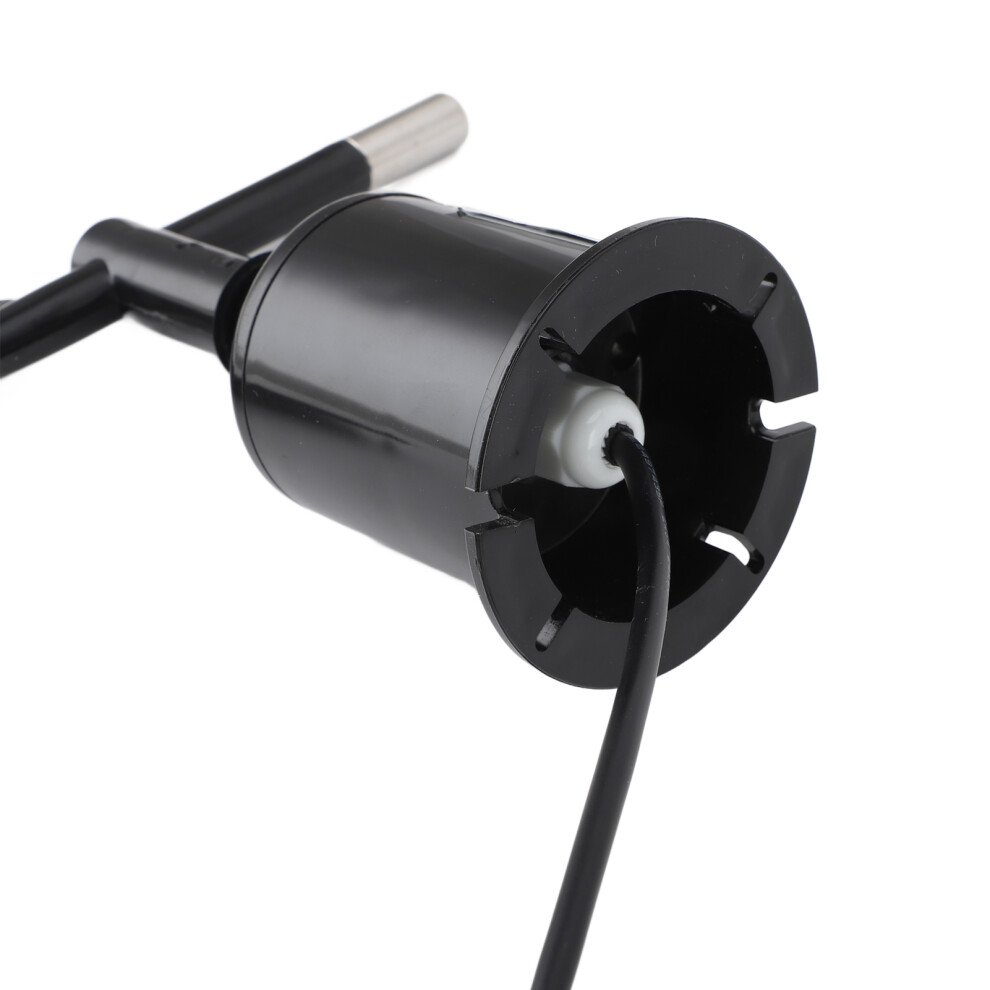

Installation Aperture: 3.2mm/0.13in

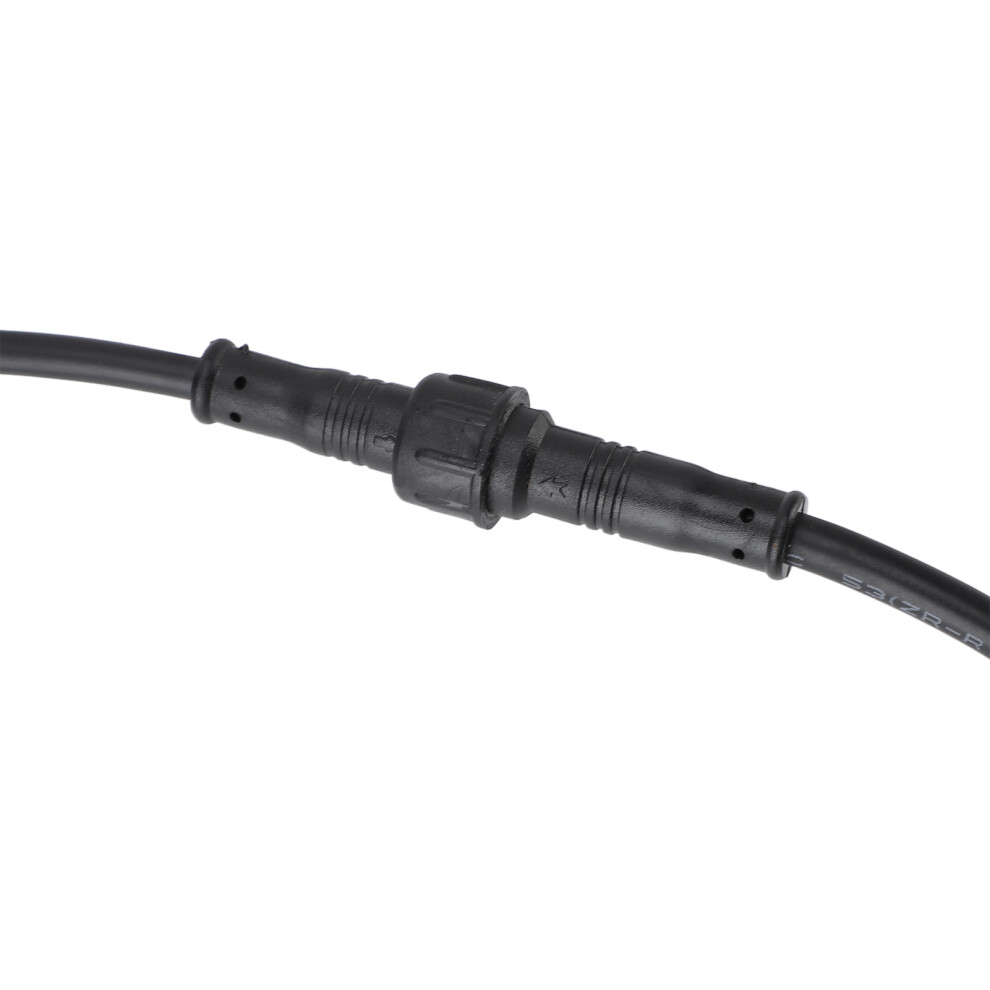

Mating Plug Diameter: 15mm/0.59in (recommend reserving 25mm for wiring, wire up first, then install and fix the sensor)

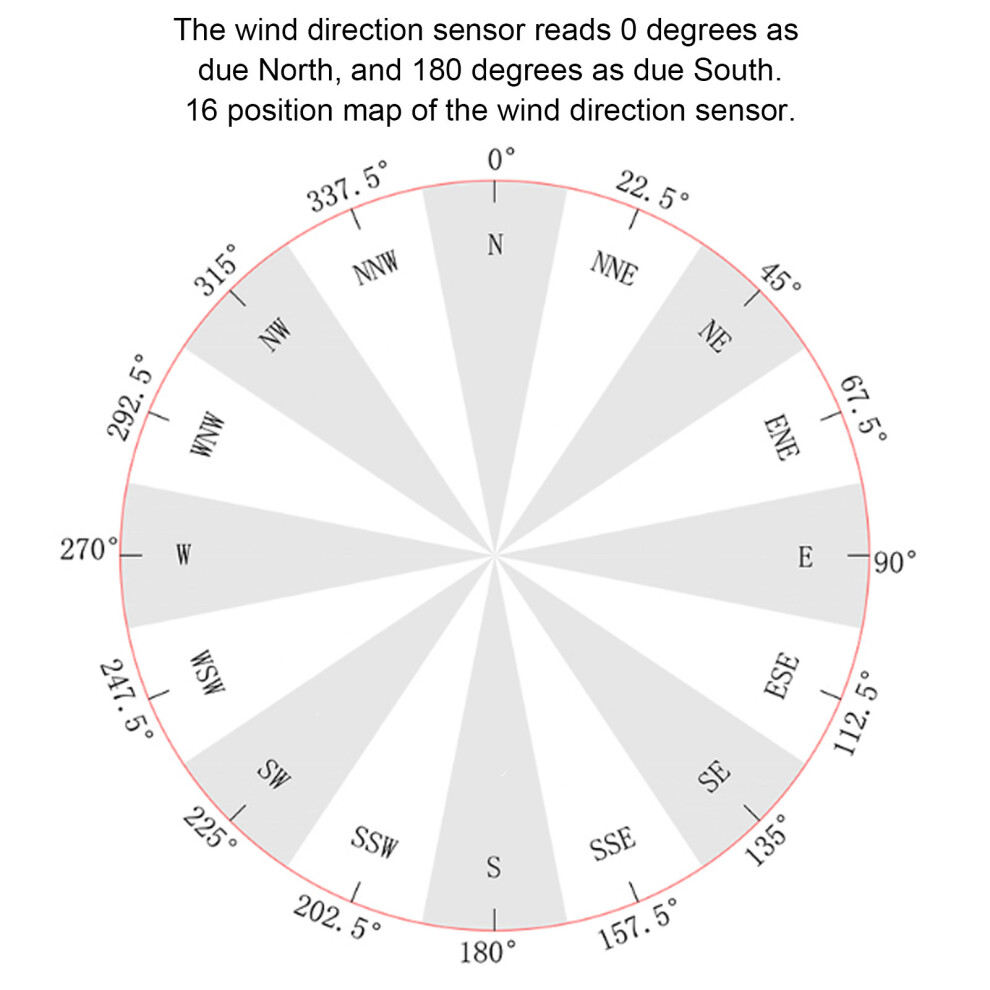

Calculation Formula: 0 to 2.5V: F=V/2.5x359
Note: F represents wind direction angle value, unit: ; V represents sensor output voltage value, V
Wiring Method:
Red wire output signal (voltage): power positive
Black wire output signal (voltage): power negative
Yellow wire output signal (voltage): signal
Troubleshooting:
1. The impeller does not rotate smoothly and is severely delayed. Due to foreign objects or jamming inside the bearing caused by long term use. Please return the sensor to the company for processing
2. Analog signal, the displayed value is incorrect when RS485 output. It may be due to wiring problems or communicating port failures leading to the inability to obtain correct data. Please check if the wiring is correct and secure, whether the communicating port is in use, and whether the communicating port settings are correct
Details
| OPC | PJDKKRY |
|---|---|
| Codes | 3791335190494 (EAN) |
