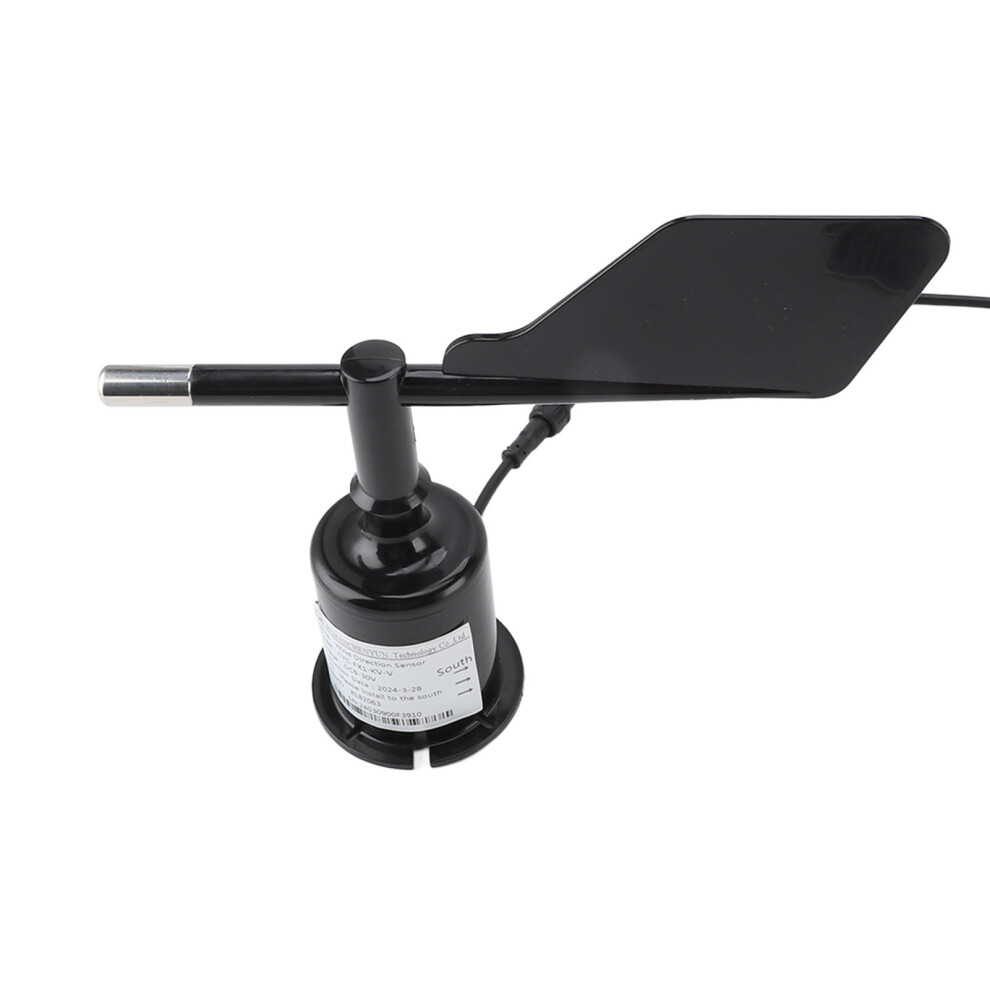

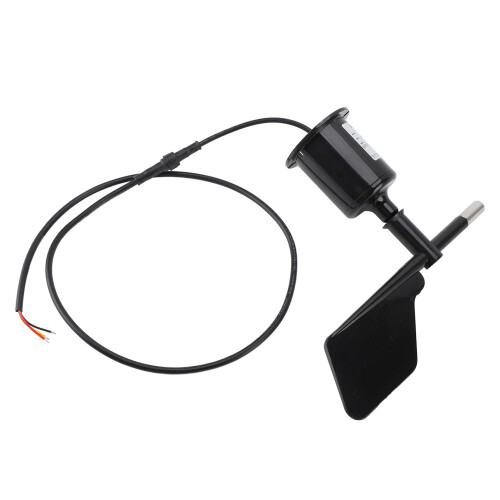

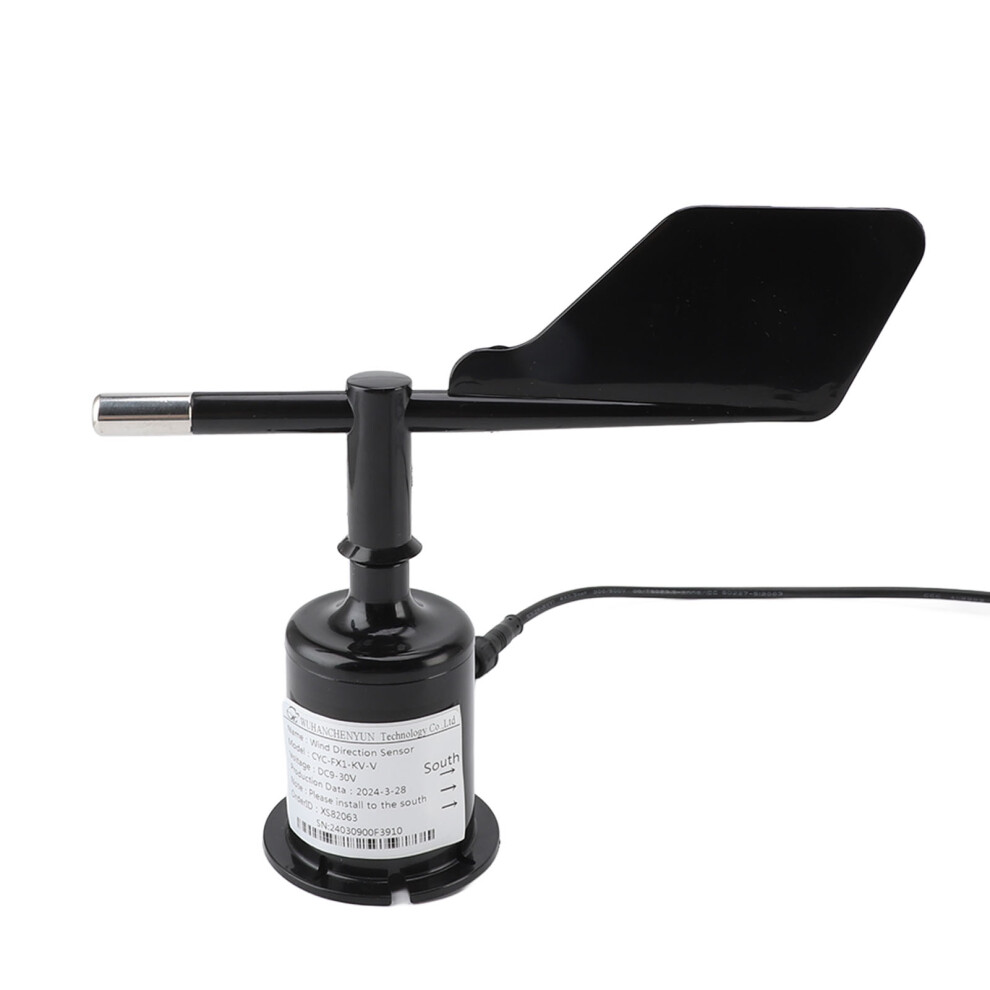

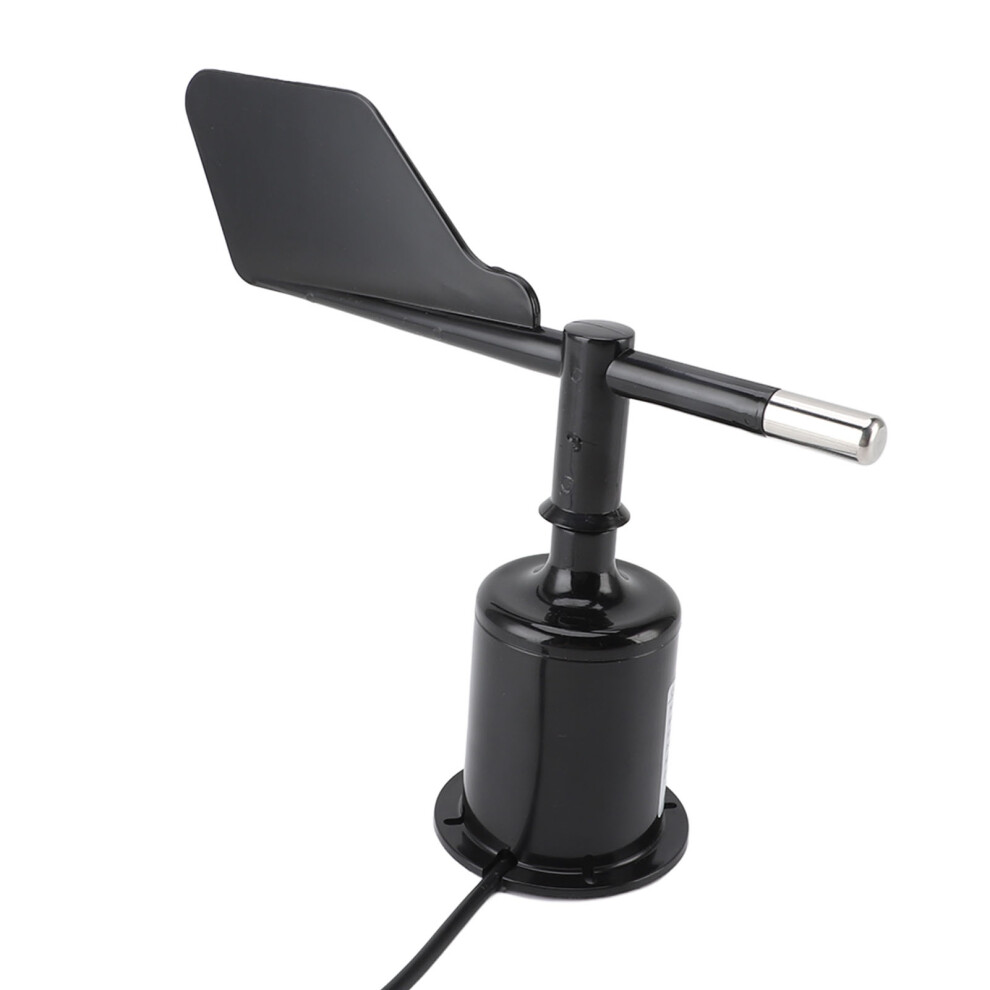

360 Wind Direction Sensor DC9-30V Anemometer 0-5V Output

360 Wind Direction Sensor DC9-30V Anemometer 0-5V Output Description

1、Wind Direction Sensor: The all round 360 degree wind direction sensor comes with excellent linearity, high accuracy, no dead points, strong lightning resistance, easy observation, and reliable stability. 2、Wind Direction Indicator Shell: Small rotational resistance, accurate measurement, small size, light weight, easy to carry and assemble. It has a simple design, but very practical in use, giving you a good using experience. 3、ABS Material: Made with a low inertia ABS wind vane, the sensor exhibits good dynamic characteristics and responds well to wind direction changes. Safe to use. Boasting wonderful performance and strong stability. 4、Working Principle: The wind direction sensor operates primarily by rotation. This working principle enables accurate measurements of the wind's direction. It can be used outdoors for a long time. 5、Wide Application: Ideal for meteorology, environmental monitoring, aviation, and aerospace. It aids in understanding wind conditions and implementing corresponding measures.
Item Type: Wind Direction Sensor
Material: ABS
Weight: Approx. 385.00g / 13.58oz
Power Supply Voltage: DC9-30V
Output: 0-5V
Extension Line Length: 0.8m / 2.6ft
Accuracy: Full Range: 3 Degree
Resolution: Full Range: 1 Degree
Starting Wind Speed: 0.8m/s
Maximum Power Consumption: 0.48W
Load Capacity: DC12V Power Supply, Current Output Impedance 350Ω, DC24V Power Supply, Current Output Impedance 900Ω
Voltage Output Impedance: 1KΩ
Operating Environment: Temperature -35-60, Humidity 100%RH No Condensation
Waterproof Level: IP64
Cable Level: Rated Voltage: 300V 80
Wide Application: Suitable For Wind Direction Measurement In Gardens, Greenhouses, Weather Stations, Ships, Docks, Aquaculture, Advertising Barriers, Meteorology, Marine, Environmental, Airports, Ports, Laboratories, Agriculture, And Transportation Environments.
Installation Aperture: 3.2mm / 0.1in
Mast Diameter: 15mm / 0.6in (Recommended To Reserve 25mm For Wiring, Connect The Wires First, Then Install And Fix The Sensor)
Calculation Formula: 0-5V: F=V/5x359
Note: F Represents The Wind Direction Angle Value In Degrees, V Represents The Sensor Output Voltage Value In Volts
Connection Method (Wire Sequence): Red-Power Positive, Black-Power Negative, Yellow-Signal
Troubleshooting:
1. The Wind Blade Rotation Is Not Flexible And Delayed. It May Be Caused By Foreign Objects Or Jamming In The Bearing After Long Term Use. Please Return The Sensor To The Company For Processing.
2. The Analog Signal Or Rs485 Output Does Not Display The Correct Value. It May Be Due To Wiring Or Intercom Port Failure. Check If The Wiring Is Correct And Secure, If The Port Is In Use, And If The Port Settings Are Correct.
3. If It Is Not The Above Reasons, Please Contact for Service.
1 x Wind Direction Sensor
