36V/48V 250W 15A Brushless Controller LCD7U Panel 130X Throttle 8C

36V/48V 250W 15A Brushless Controller LCD7U Panel 130X Throttle 8C Description

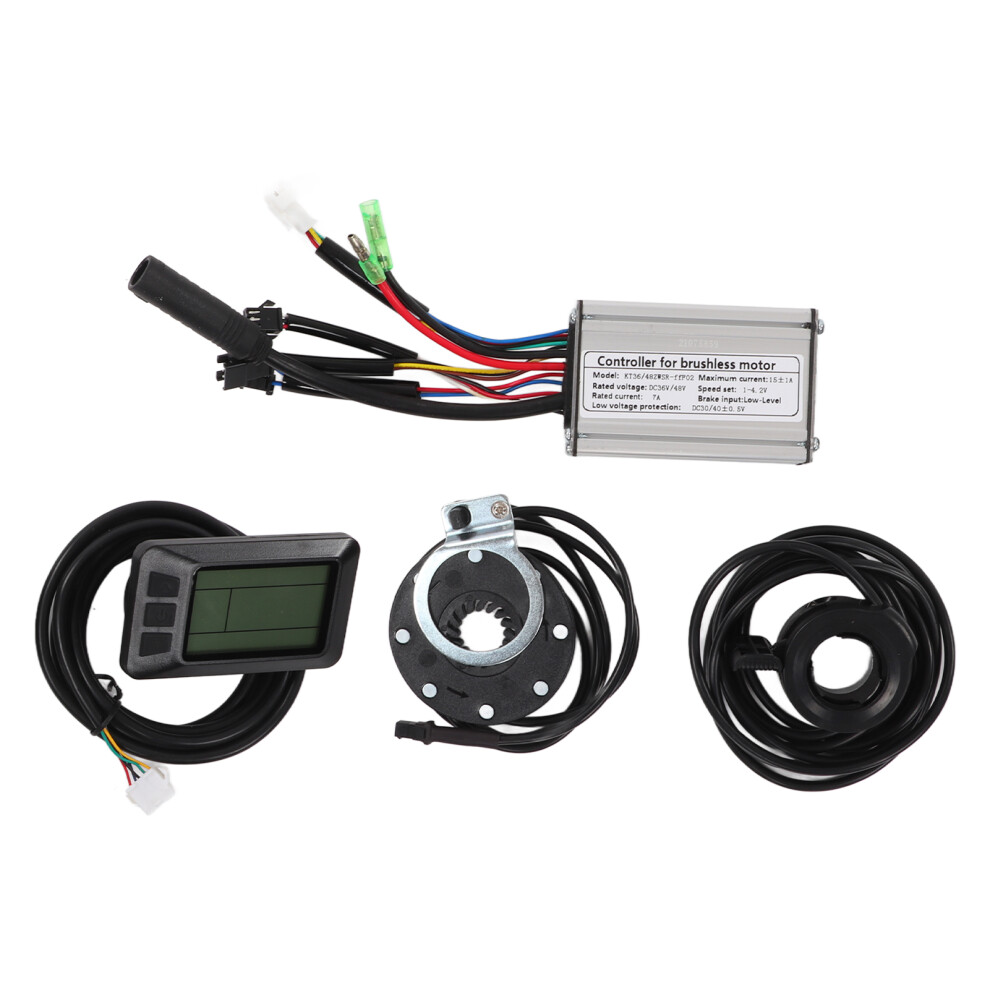

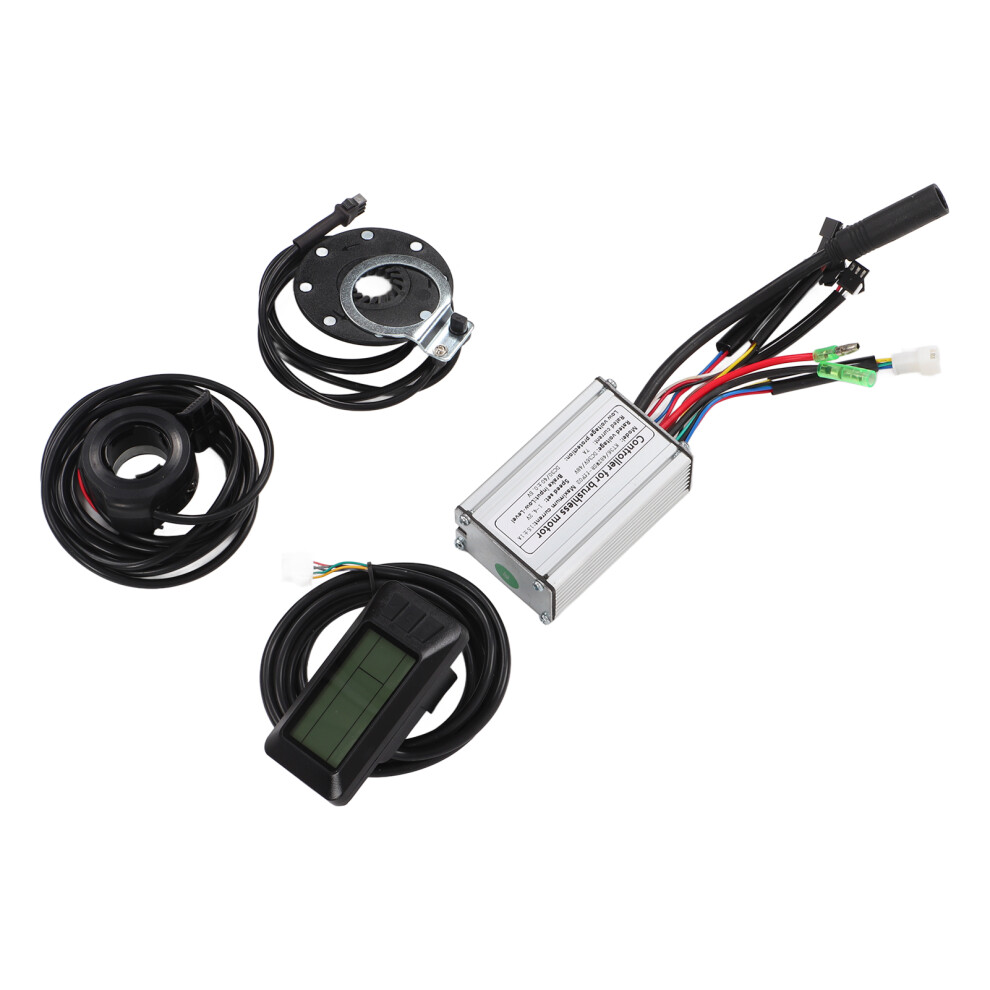

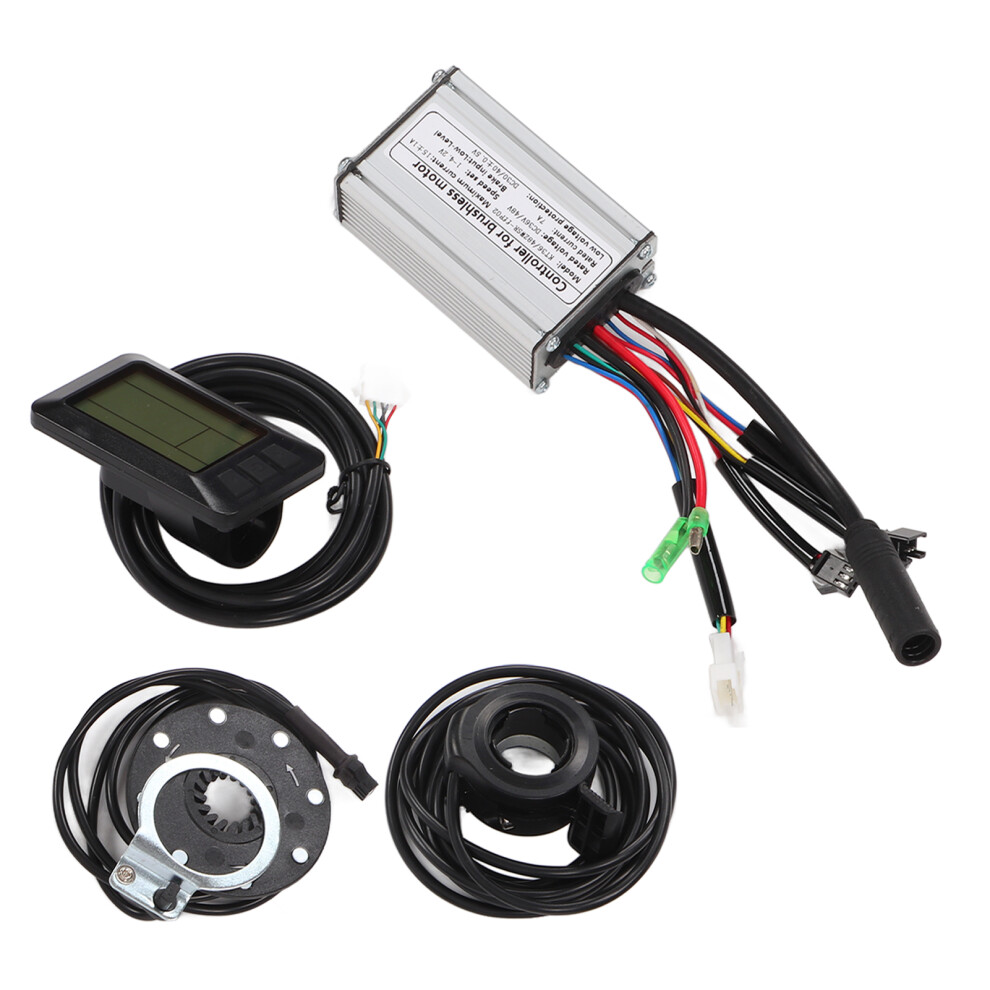

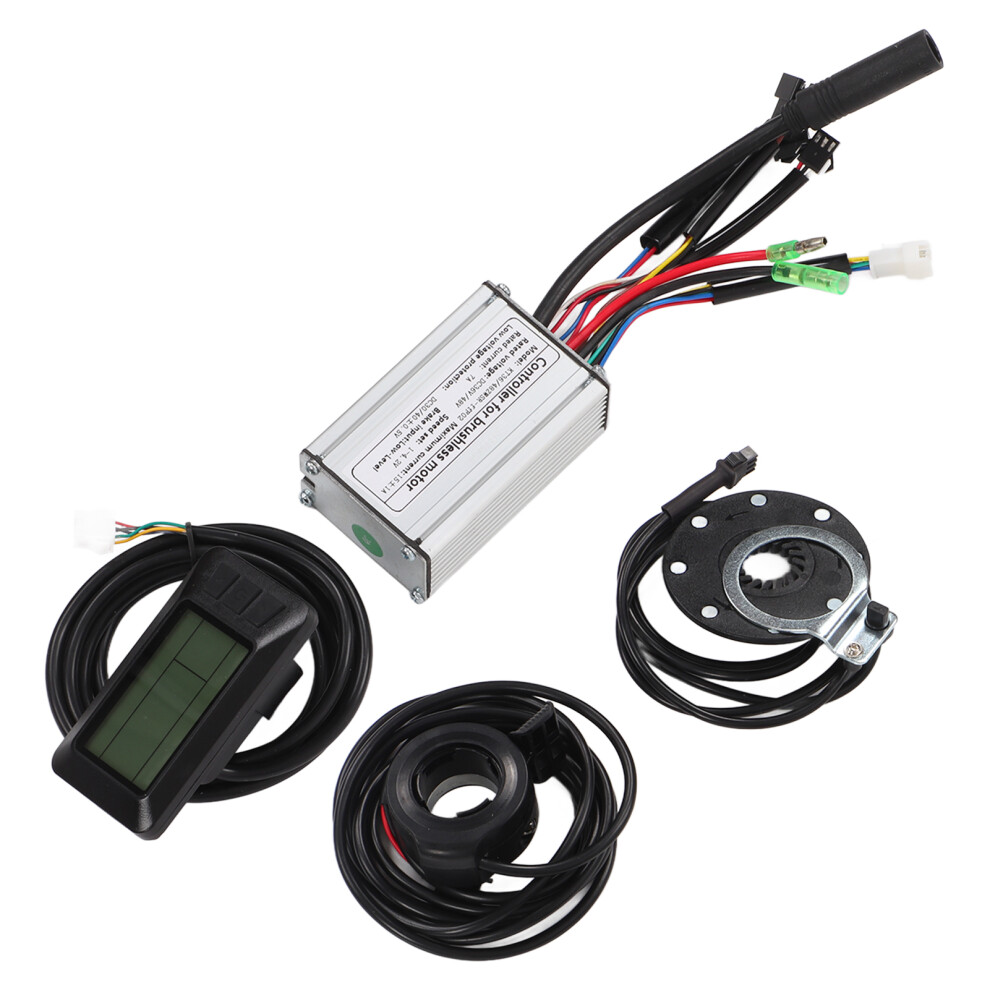

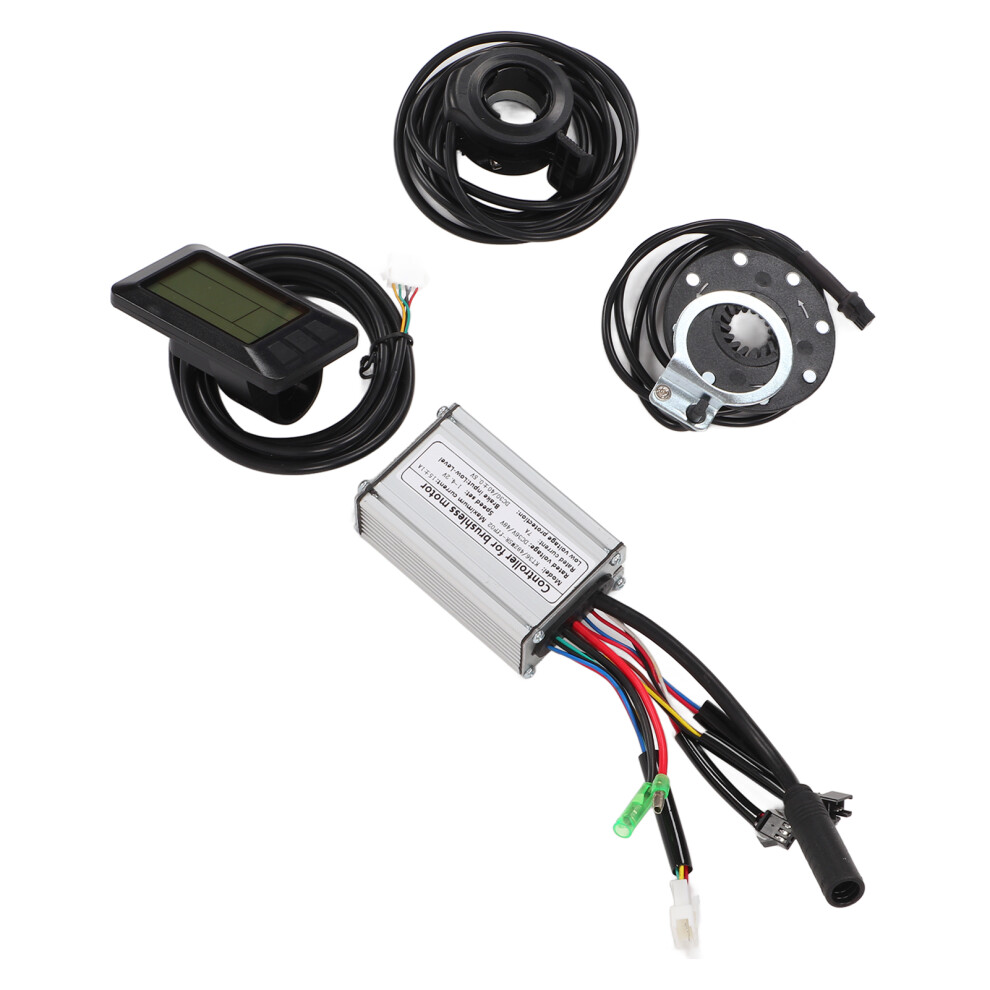

1、Rich Content: Electric bike conversion kit includes 15A square wave controller, LCD7U panel, 130X thumb throttle and 8C speed assist sensor, suitable for 36V/48V 250W brushless bicycle lithium battery modification. 2、Controller Housing: Controller outer shell is metal material with grooves design, that the case has good heat dissipation function, able to protect the internal circuit and avoid thermal overload. 3、Practical Tool: During riding, the LCD panel will display many useful data, such as power display, battery voltage, backlight display, headlight display, brake display, riding speed, maximum speed, total one way distance, power assist sensor sign, 6KM/H thrust assist, cruising function, etc. 4、Clear Display: While riding your bike, the LCD7U panel will display a lot of useful data of your bike, making it easier for you to view and clear about the state of your bike. 5、Sensitive Control: Bike motor controller kit can achieve stable speed and sensitive control of braking and directional changes, providing satisfying feeling.
Item Type: Bike Motor Controller Kit
Material: Aluminum Alloy + Plastic
Color: As Picture Shown
Application: For Electric Bike
Product Size: Controller Box: Approx.81x52x31mm/3.2x2.0x1.2in
Weight: Approx.512g/18.1oz
Controller Type: Square Wave Controller
Controller Connector Type: Common Connector (Except Motor Waterproof Connector)
Rated Current Of The Controller: 7A
Maximum Current Of Controller: 151A
Controller Speed Setting: 1-4.2V
Controller Brake Input: Low Level
Applicable Motor Power: 250W
1 x Motor Controller
1 x LCD7U Panel
1 x Panel Manual
1 x Thumb Throttle
1 x 8C Speed Assist Sensor
1 x Controller Wiring Manual
