36V/48V 250W 15A Brushless Motor Controller LCD4 Panel 130X Throttle

36V/48V 250W 15A Brushless Motor Controller LCD4 Panel 130X Throttle Description

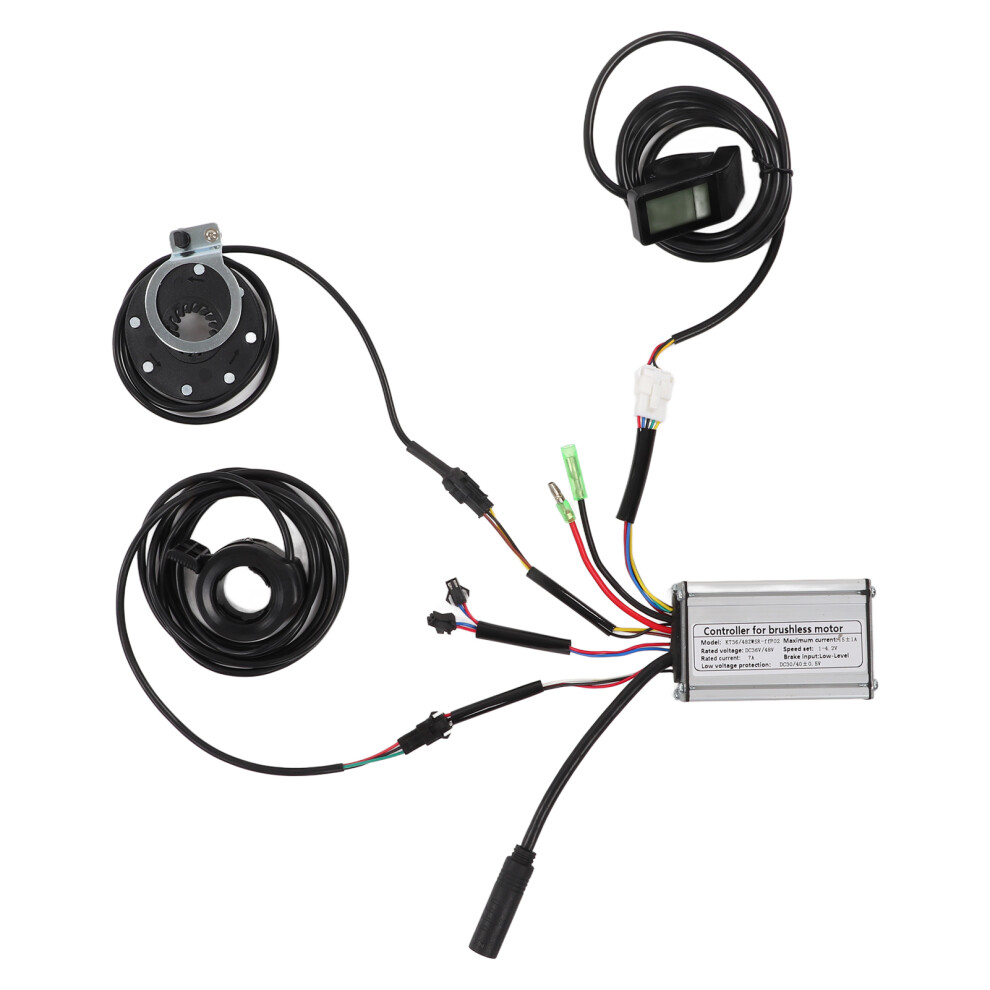

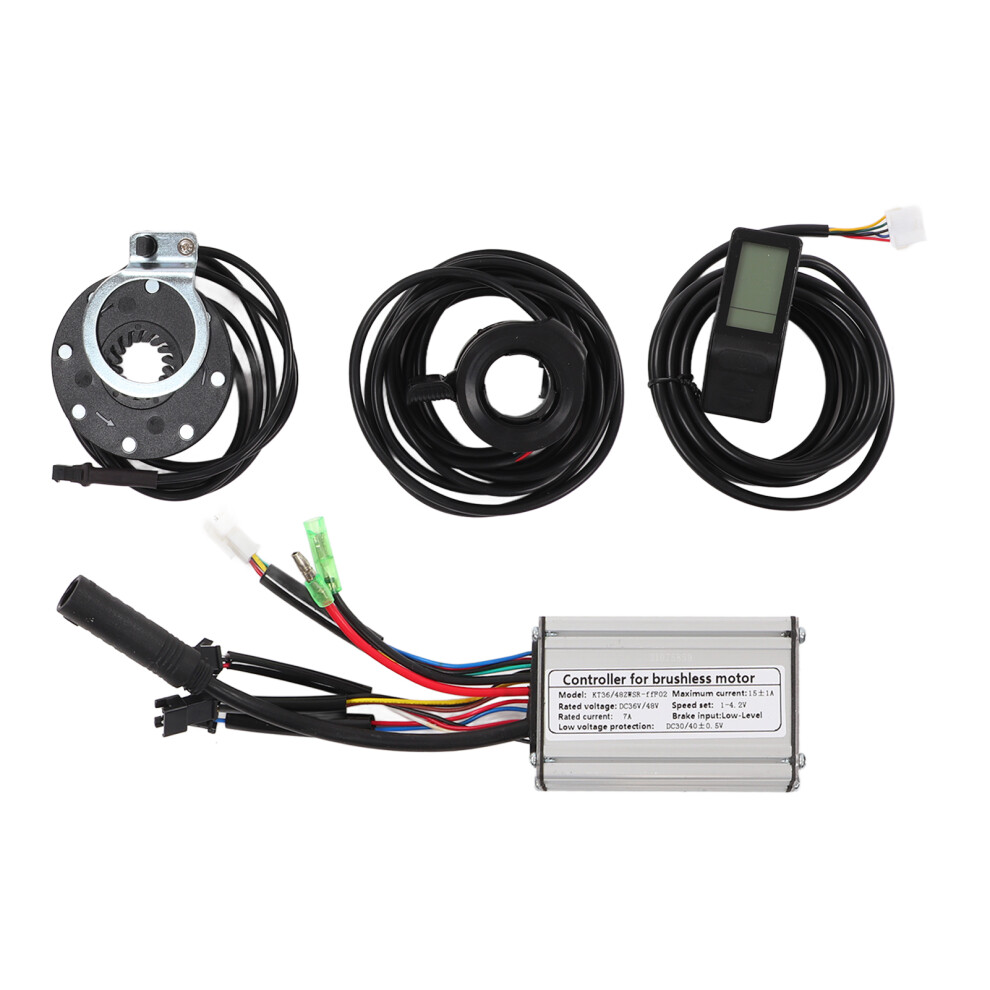

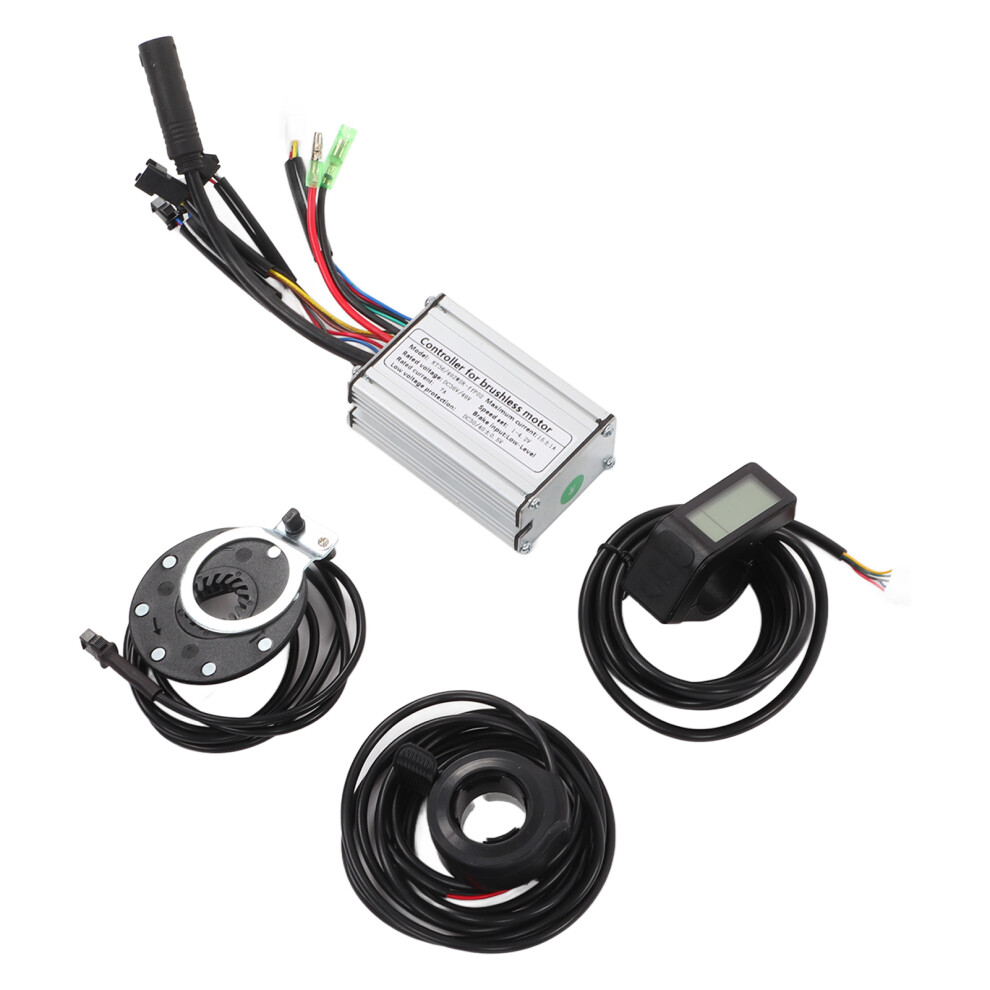

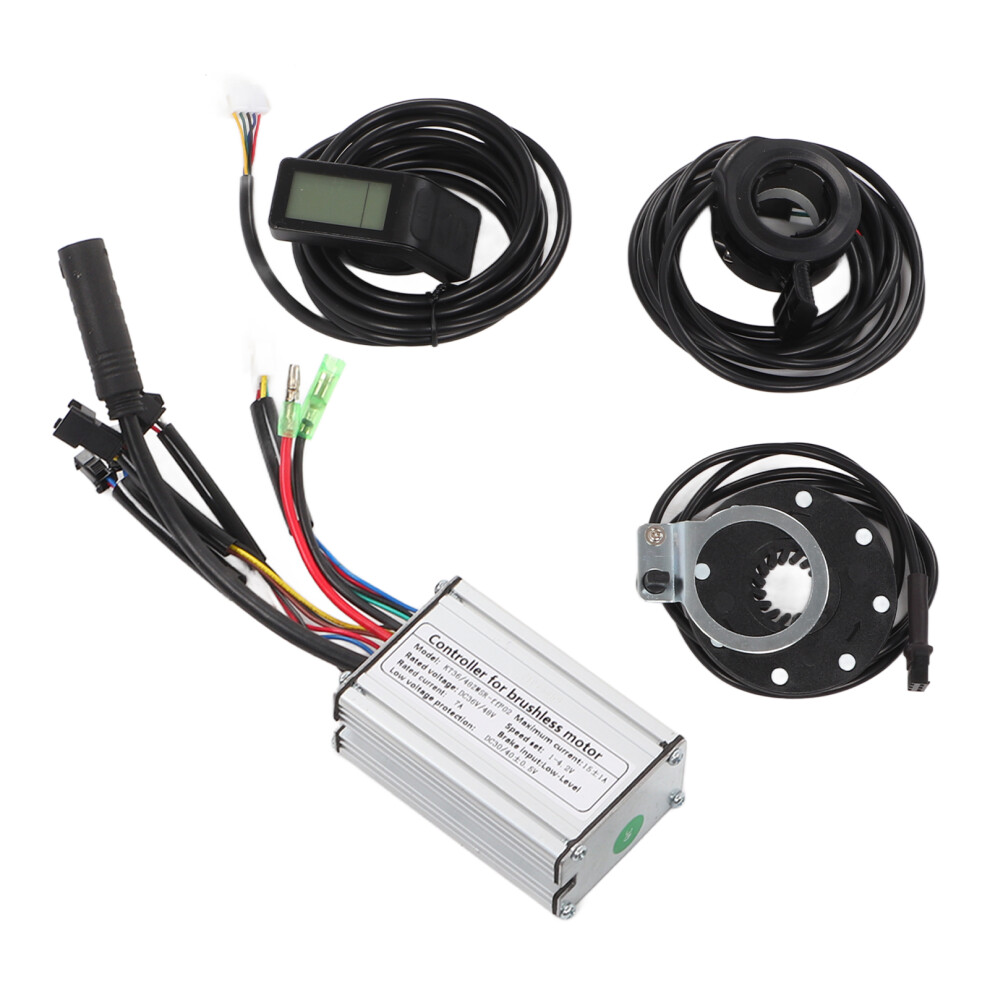

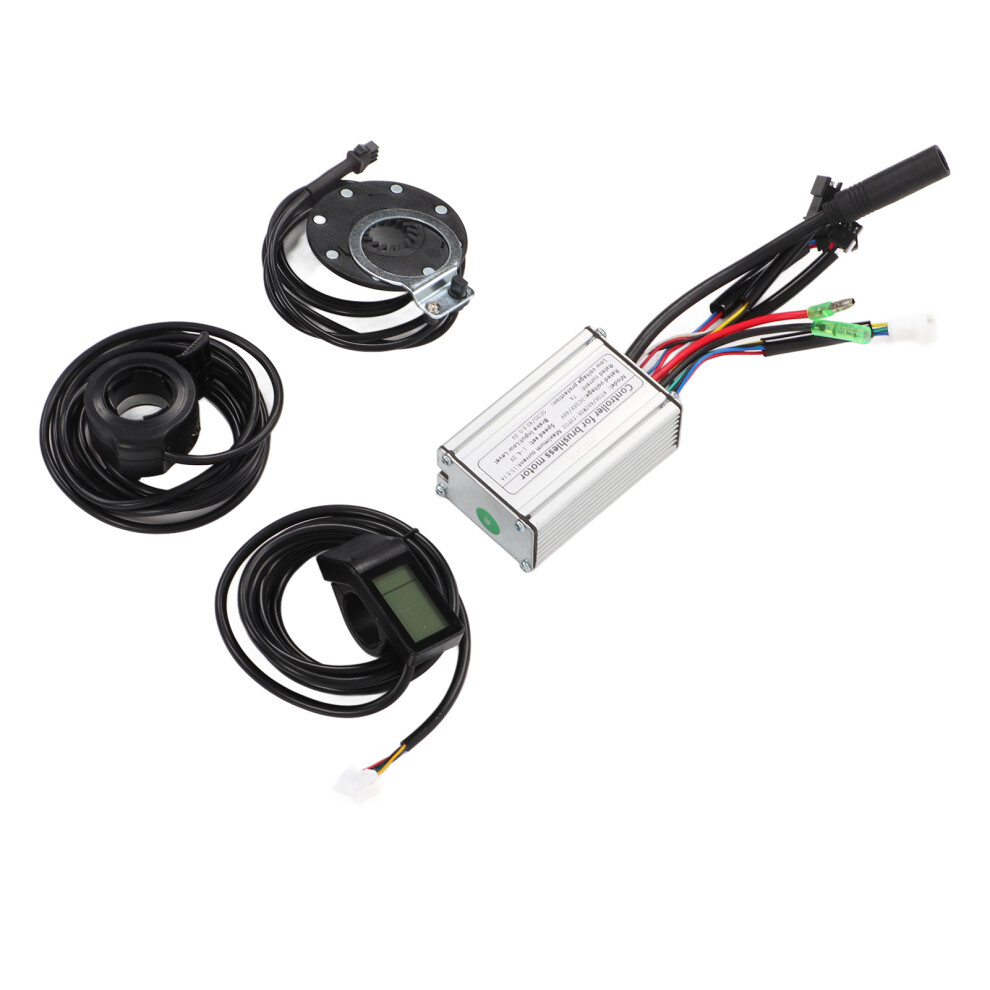

1、Controller Housing: Controller outer shell is aluminum alloy material with grooves design, able to protect the internal circuitry from thermal overload. 2、Clear Display: While riding your bike, the LCD4 panel will display a lot of useful data on your bike, making it easier for you to view and clear about the state of your bike. 3、Rich Content: Electric bike conversion kit includes 15A square wave controller, LCD4 panel, 130X thumb throttle and 8C speed assist sensor, suitable for 36V/48V 250W brushless bicycle lithium battery modification. 4、Practical Tool: During riding, the panel will display many useful data on your bike, such as power display, battery voltage, backlight display, headlight display, brake display, riding speed, maximum speed, total one way distance, power assist sensor sign, 6KM/H thrust assist, cruising function, etc. 5、Sensitive Control: Brushless motor controller can provide stable speed and sensitive control of braking and directional changes, providing a satisfying experience.
Item Type: Bike Motor Controller Kit
Material: Aluminum Alloy + Plastic
Color: As Picture Shown
Application: For Electric Bike
Product Size: Controller Box: Approx.81x52x31mm/3.2x2.0x1.2in
Weight: Approx.475g/16.8oz
Controller Type: Square Wave Controller
Controller Connector Type: Common Connector (Except Motor Waterproof Connector)
Rated Voltage Of The Controller: DC 36V /48V
Rated Current Of The Controller: 7A
Maximum Current Of Controller: 151A
Controller Speed Setting: 1-4.2V
Controller Brake Input: Low Level
Controller Low Voltage Protection: DC 30/400.5V
Applicable Motor Power: 250W
1 x Motor Controller
1 x LCD4 Panel
1 x Panel Manual
1 x Thumb Throttle
1 x 8C Speed Assist Sensor
1 x Controller Wiring Manual
