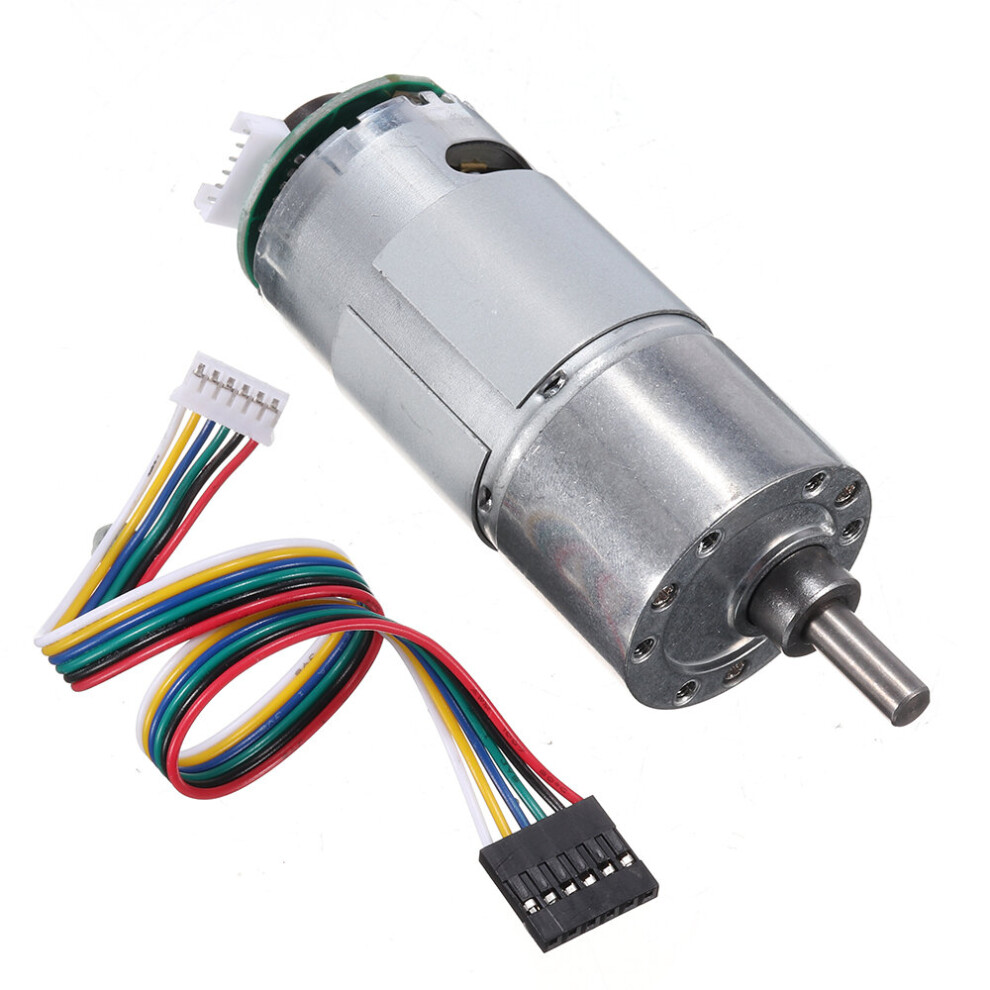

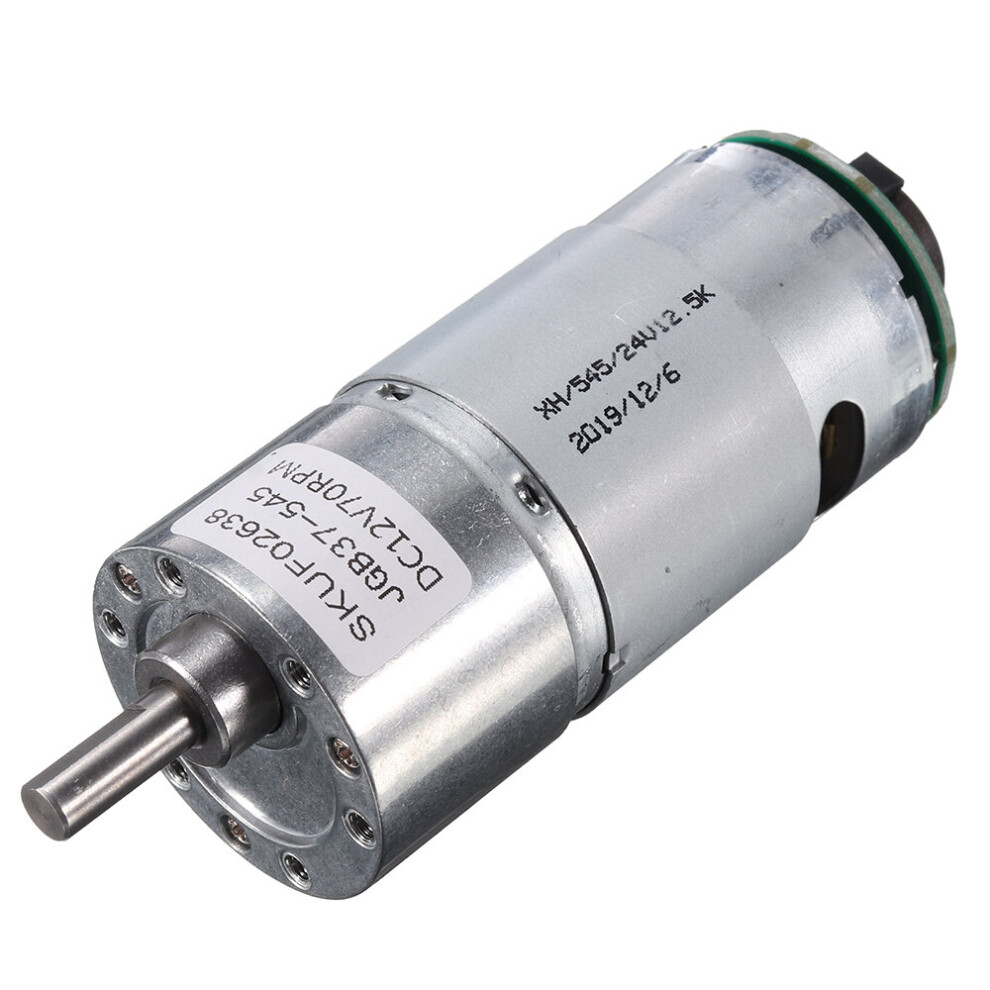

37GB-545 DC 12V 70RPM Gear Reducer Motor with Encoder Geared Reduction Motor

37GB-545 DC 12V 70RPM Gear Reducer Motor with Encoder Geared Reduction Motor Description

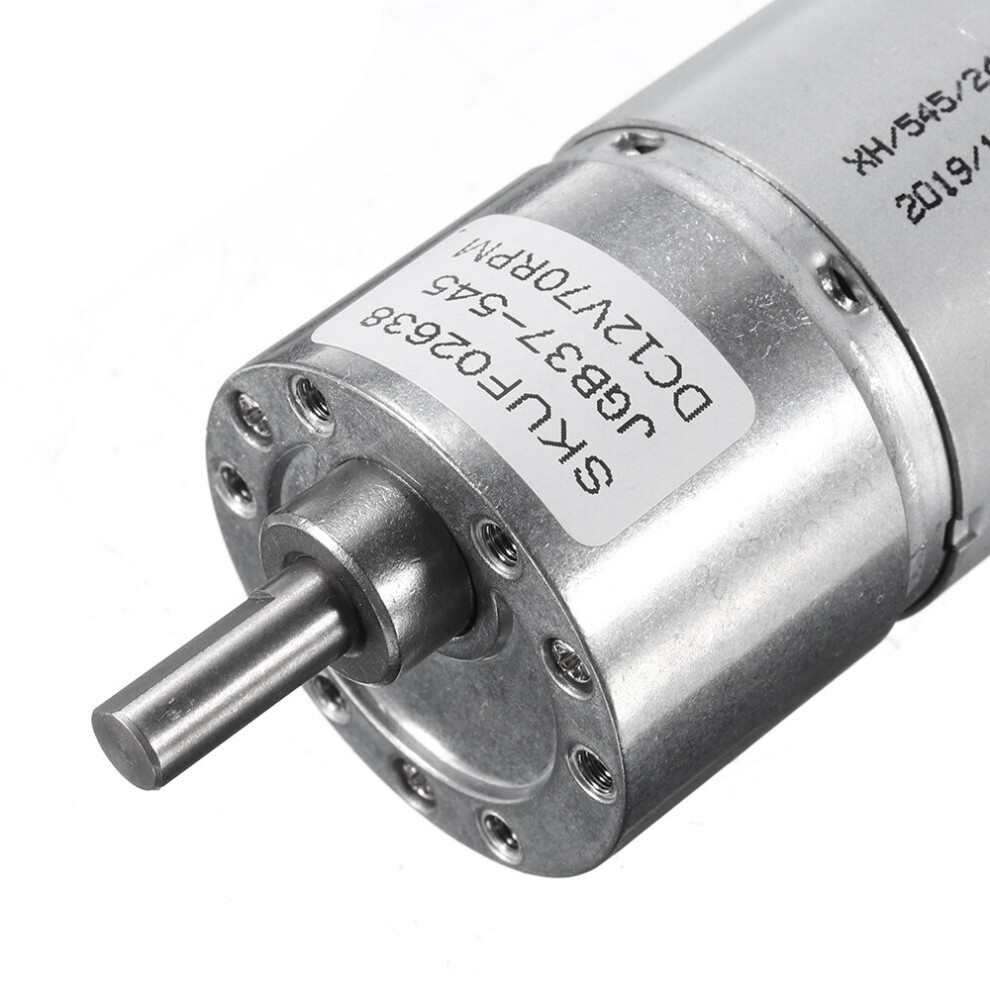

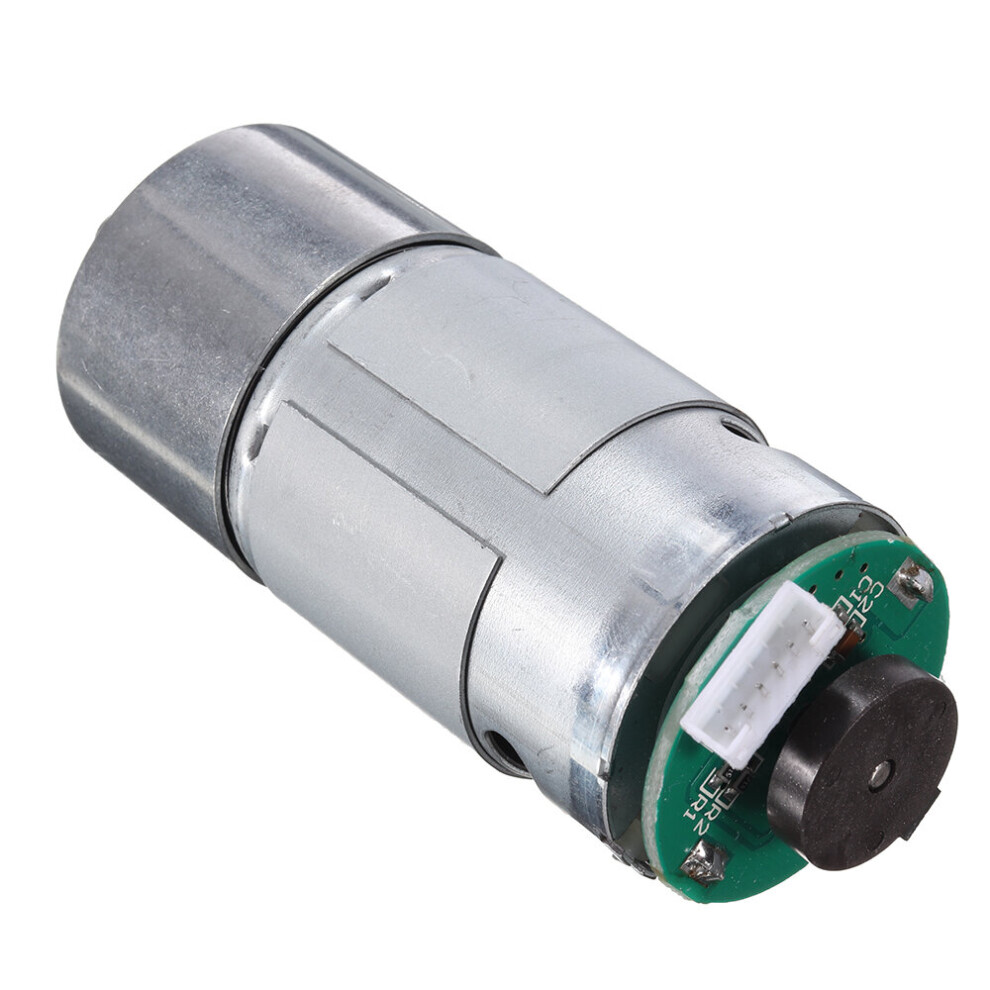

Descriptions:37GB-545 DC 12V micro gear reduction motor with encoder speed dial reducer Specification:Voltage: DC 12VSize(approach):Output Shaft Dia.: 6mmAxis Length: 12mmAxle Shaft Length: 21mmApplications: For intelligent self-balancing double-balanced two-wheeled vehicles, smart home appliances, robots, camera rocker electric paper-cutting paper machines, etc.Wiring:Red: Motor power + positive (change can control motor forward and reverse)Black: Code power - negative (positive and negative can not be connected incorrectly 3.3-5V)Yellow: Signal feedback (11 signals from the motor)Green: Signal feedback (11 signals from the motor)Blue: Encoder power + positive (positive and negative can not be connected incorrectly 3.3-5V)White: Motor power - negative (change can control motor forward and reverse)Parameter: Voltage RATIONo-loadRated-loadStall Current (A)  Speed(rpm)Â10%rpmTorque(kg.cm)Speed(rpm)Â10%rpmCurrent (A) Torque (kg.cm)Current (A) L Size (mm)DC 12.0V1:90â0.2707.258â1355.024Features:- All the gear of metal mechanismWear resistance, strong resistance to torsion, smooth transmission, compact structure.- D-shaped double axisD-shaped double shaft, excellent thermal conductivity.- Hall D-type encoder, 3-layer high-density molecular coating effectively isolates dust and has 10 times the life expectancy of ordinary layers.- Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.Package Included:1pc x 12V Micro Reduction Gear MotorMore Details:
