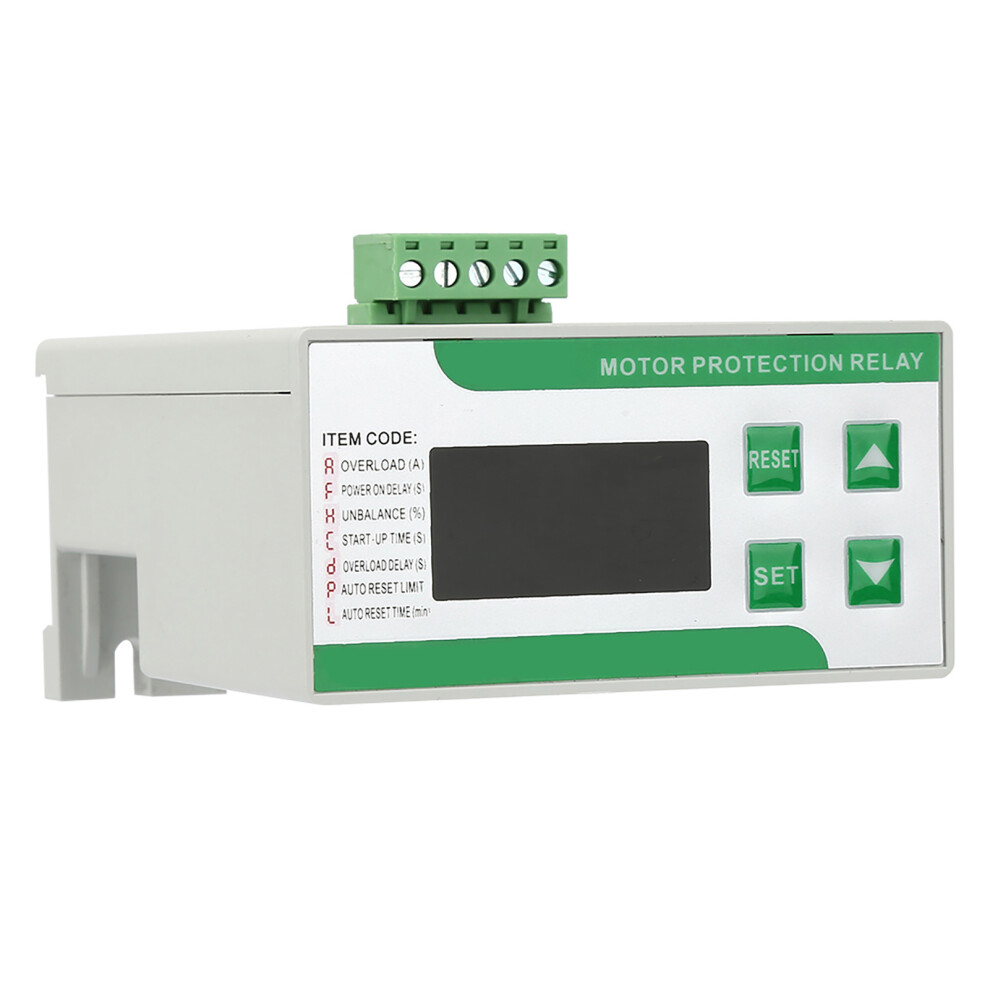

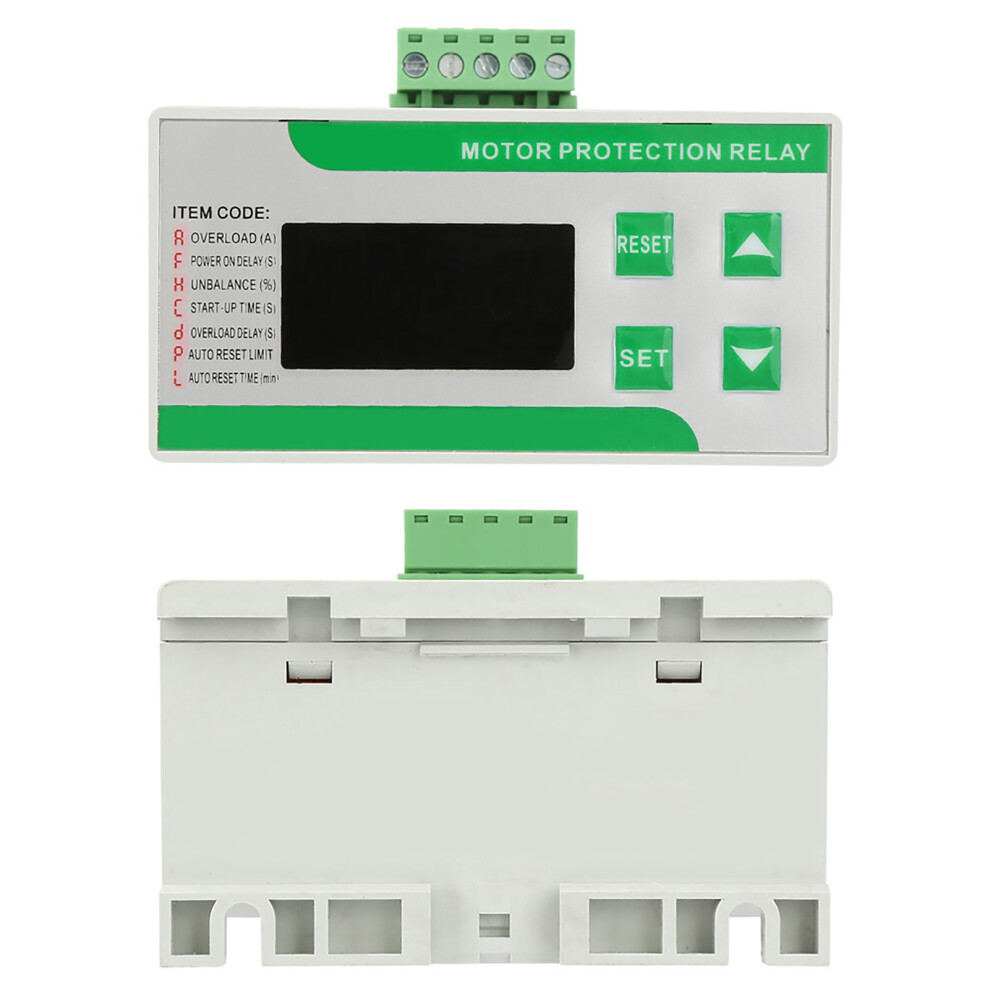

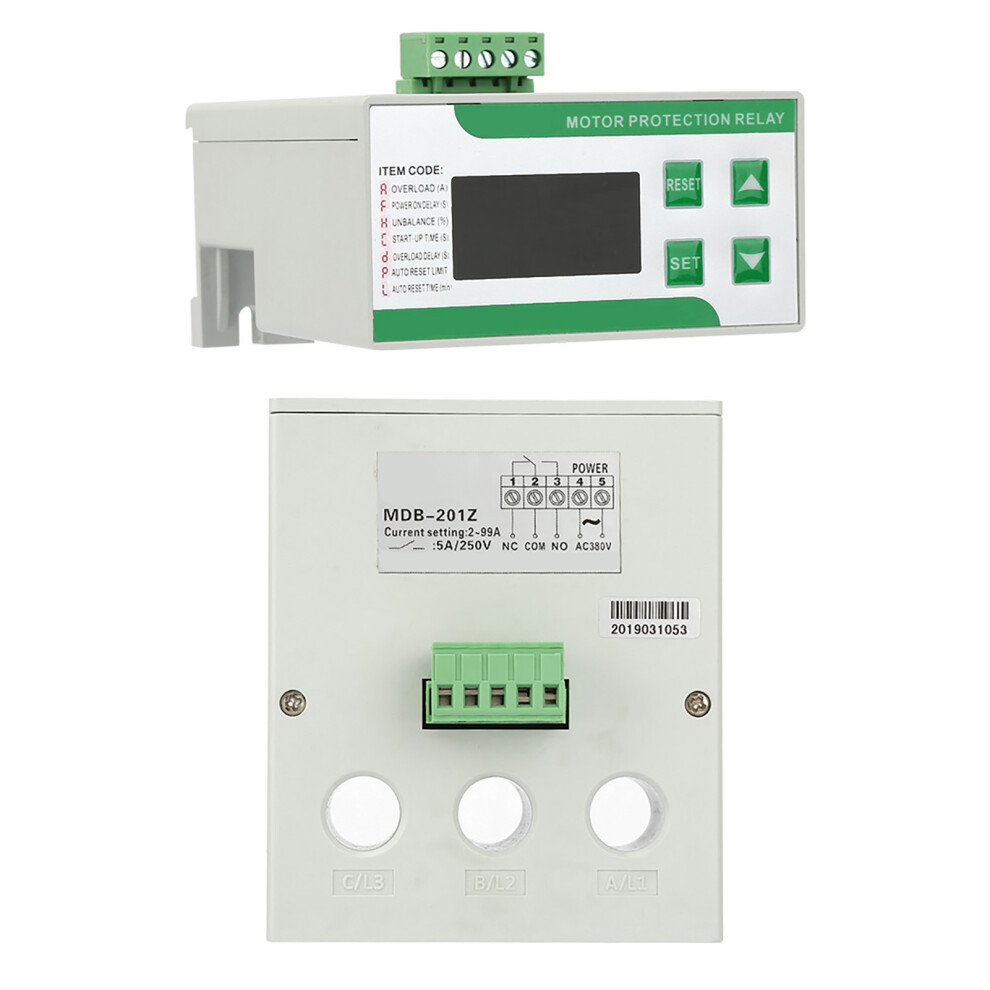

380V AC Digital Motor Protector 2-99A with Display

380V AC Digital Motor Protector 2-99A with Display Description

1、The product adopts integrated structure, compact size. 2、Data display adopts LED digital tube display and three-phase current real-time display. 3、The product has the functions of overload, Phase-break and current unbalance protection to better protect the safety of equipme 4、The reset mode of the product is optional: manual/automatic 5、Products are widely used in pumps, cranes, elevators, machine tools and other equipment.
Feature:
The product adopts integrated structure, compact size.
Data display adopts LED digital tube display and three-phase current real-time display.
The product has the functions of overload, Phase-break and current unbalance protection to better protect the safety of equipment.
Products are widely used in pumps, cranes, elevators, machine tools and other equipment.
Specification:

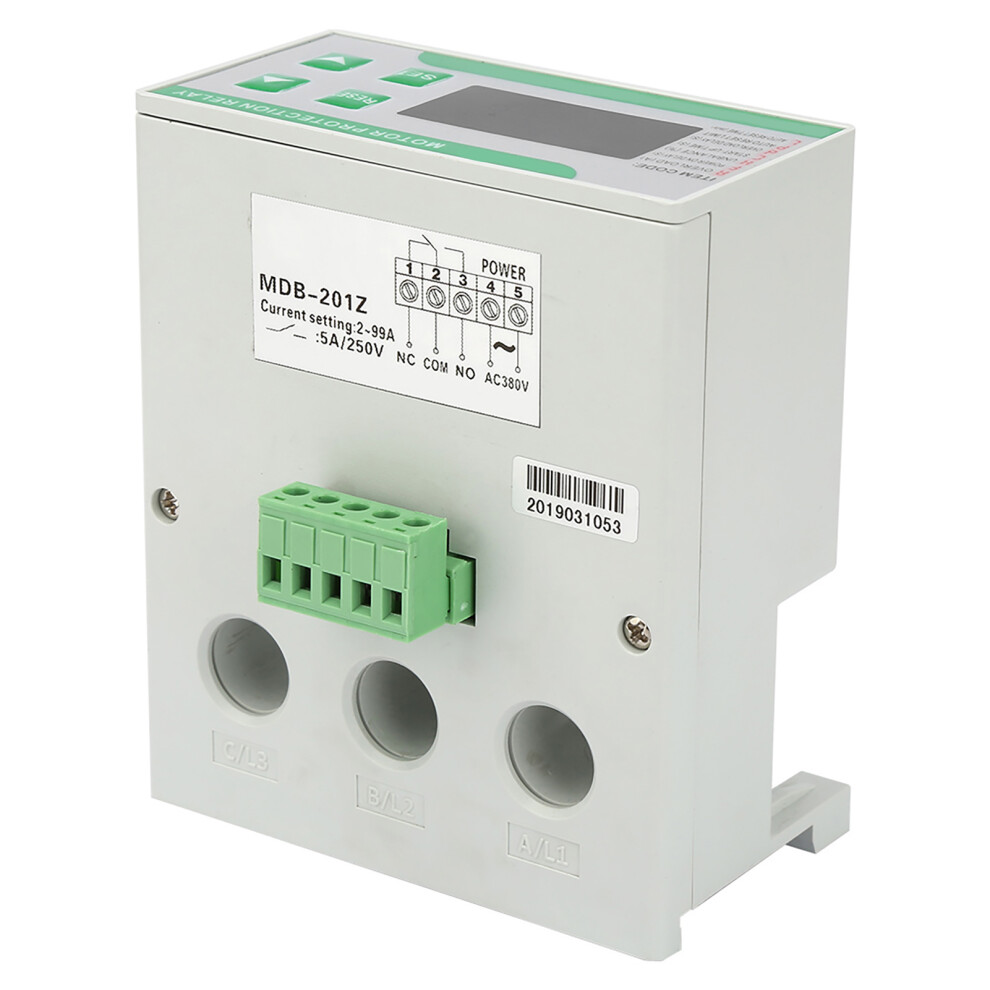

Model: MDB-201Z
Structure type: integrated
Frequency: 50/60Hz
Current range: 2-99A, 2%
Power-on delay: 0-999s
Unbalance: 0-40% (0 is off)
Startup time: 1-30s
Overload delay: 1-30s
Number of automatic resets: 0-99 times (0 is off)
Automatic reset time: 1-99 minutes

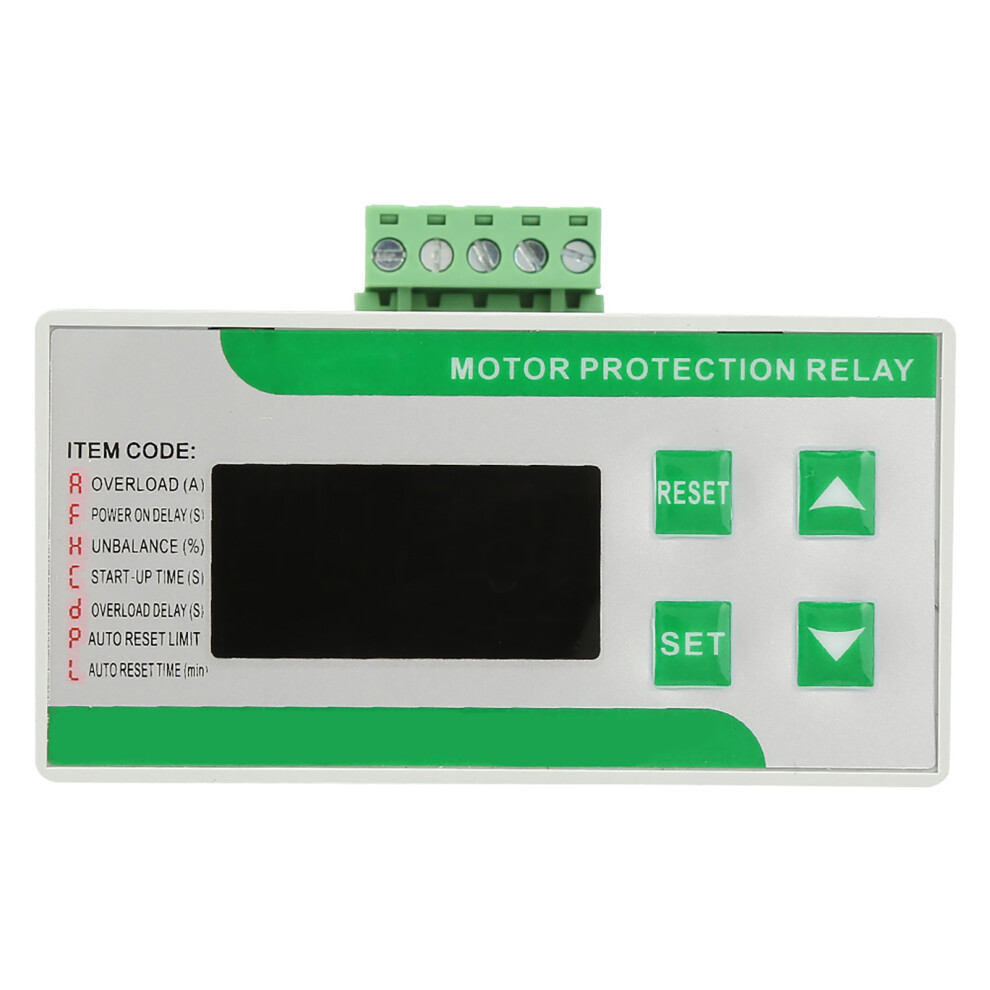

Indication mode: Three-phase current display in real time, LED light indicates each fault
Setting method: Direct digital setting (accurate, high precision)
Reset mode: manual reset, automatic reset, power-off reset
Contact form: 1 set of normally open normally closed passive contacts
Contact capacity: 5A/250VAC
Dimension: (length x width x depth): Approx. 90 x 40 x 106.5mm/3.5 x 1.6 x 4.2inch(display part)
Installation method: 35mm rail
Package list:
1 x Motor Protector
Note:
The actual product color may deviate from the photo due to light.
There may be a slight deviation in the measurement of product.
