(3AE) 2/3 Axis Grating Digital Milling Readout Electronic Scale Lathe Linear Machine or 3 Linear Scale

(3AE) 2/3 Axis Grating Digital Milling Readout Electronic Scale Lathe Linear Machine or 3 Linear Scale Description

Specifications:

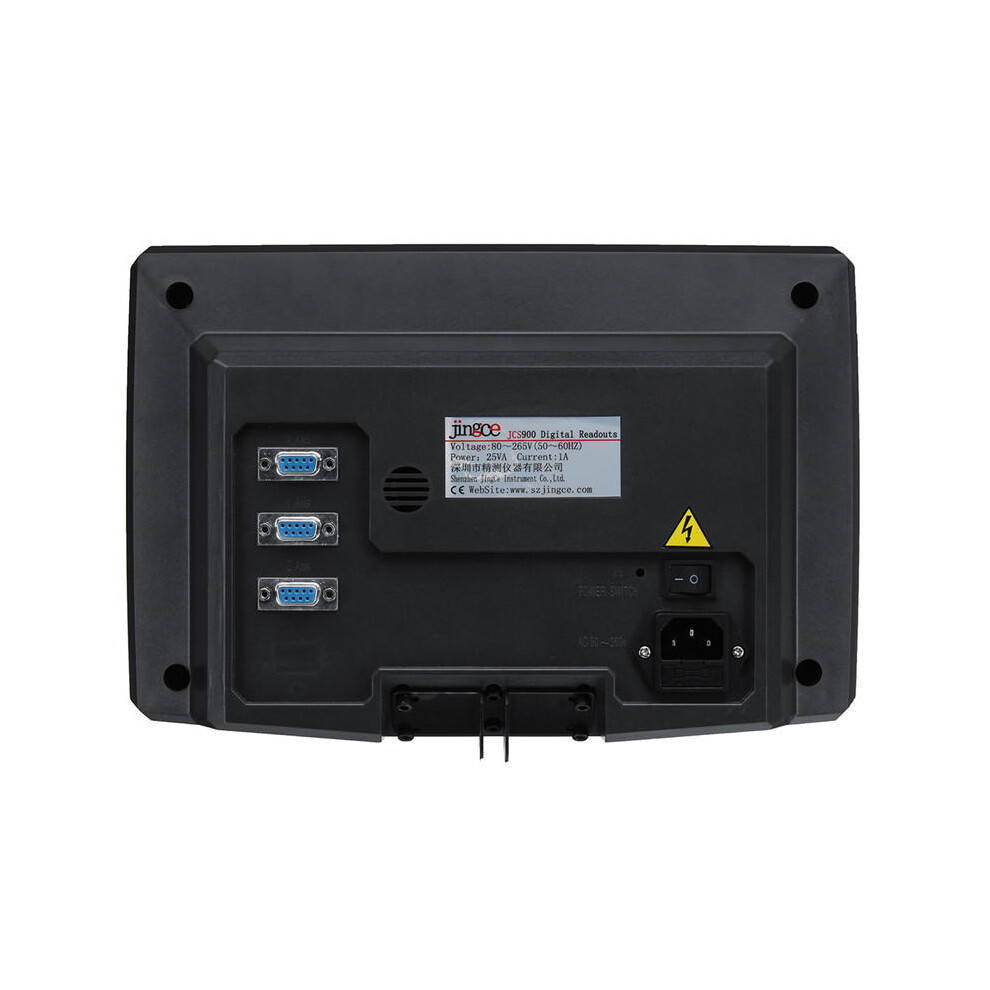

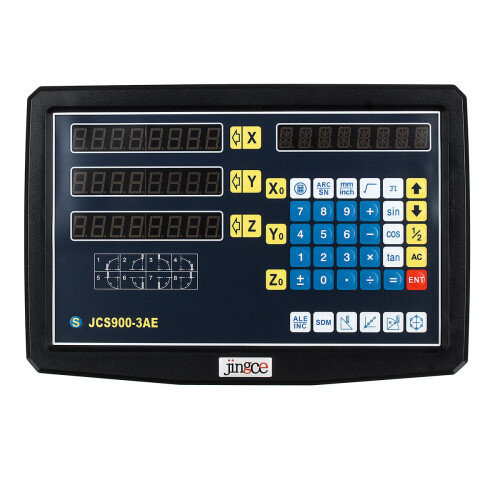

-Axis Digital Readout:
1. Measuring travel: 0-3020mm.
2. Accuracy class: 1um.
3. Measurement standards: engraved glass grating.
4. Operating voltage: 5V 5% DC.
5. Working speed: 1m / S (1um).
6. Acceleration: 60m / s.
7. Reference Operating Humidity: 90RH.
8. Grating pitch: 20um (0.020mm).
9. Measurement procedure: Incremental.
10. Signal mode: TTL.
11. Circuit characteristics: NPN.
12. Grating measurement system: transmission infrared optical measurement system, infrared wavelength 940nm.
13. Scanning frequency: 28kHz.
14. Anti-vibration: 50Hz-2KHz, 180m / s .
15. Impact: 16ms, 600m / s .
16. Displacement frictional resistance: 5N.
17. Protection class: IP53 / IP64.
18. Signal electrical connection: independent adapter cable (2.5M / 3M / 4M / 5M, 100M, can be connected to install the block)
Note: The above parameters are measured in the ideal environment. There may be some differences in practical application.

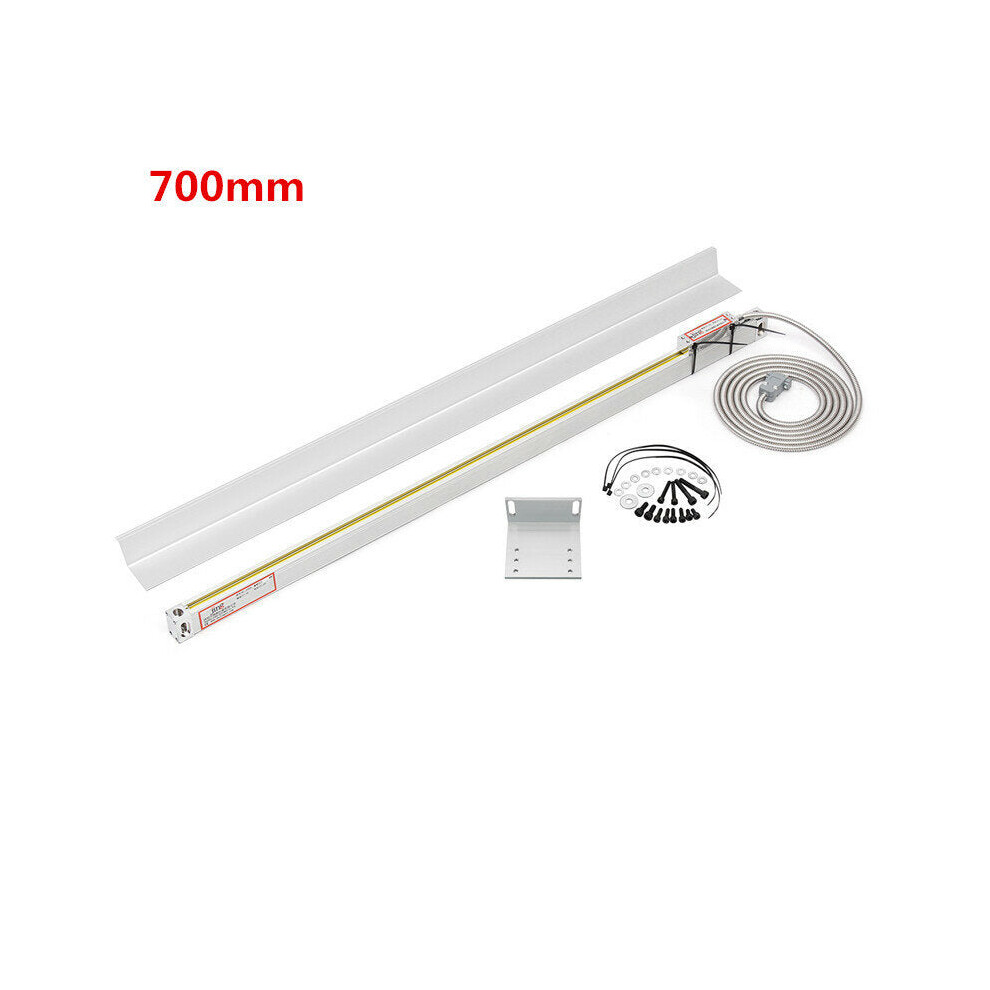

-TTL Linear Scale:

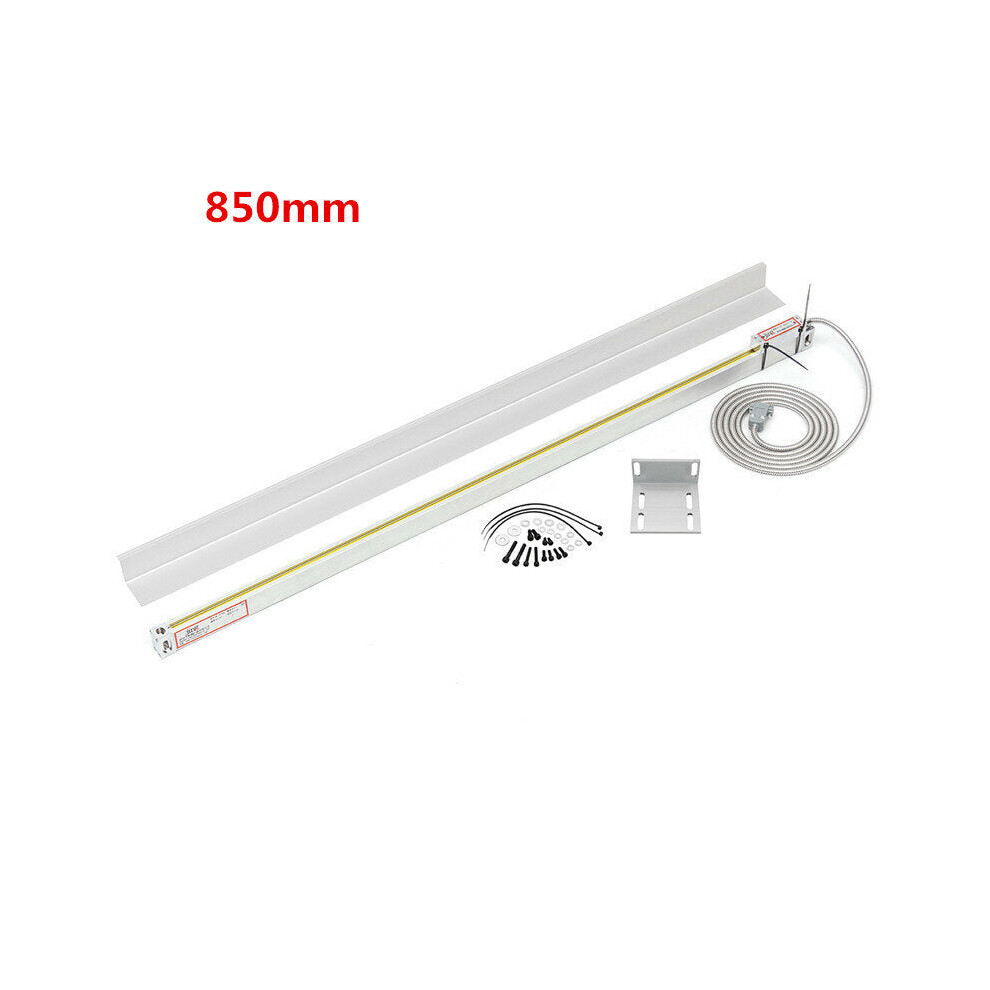

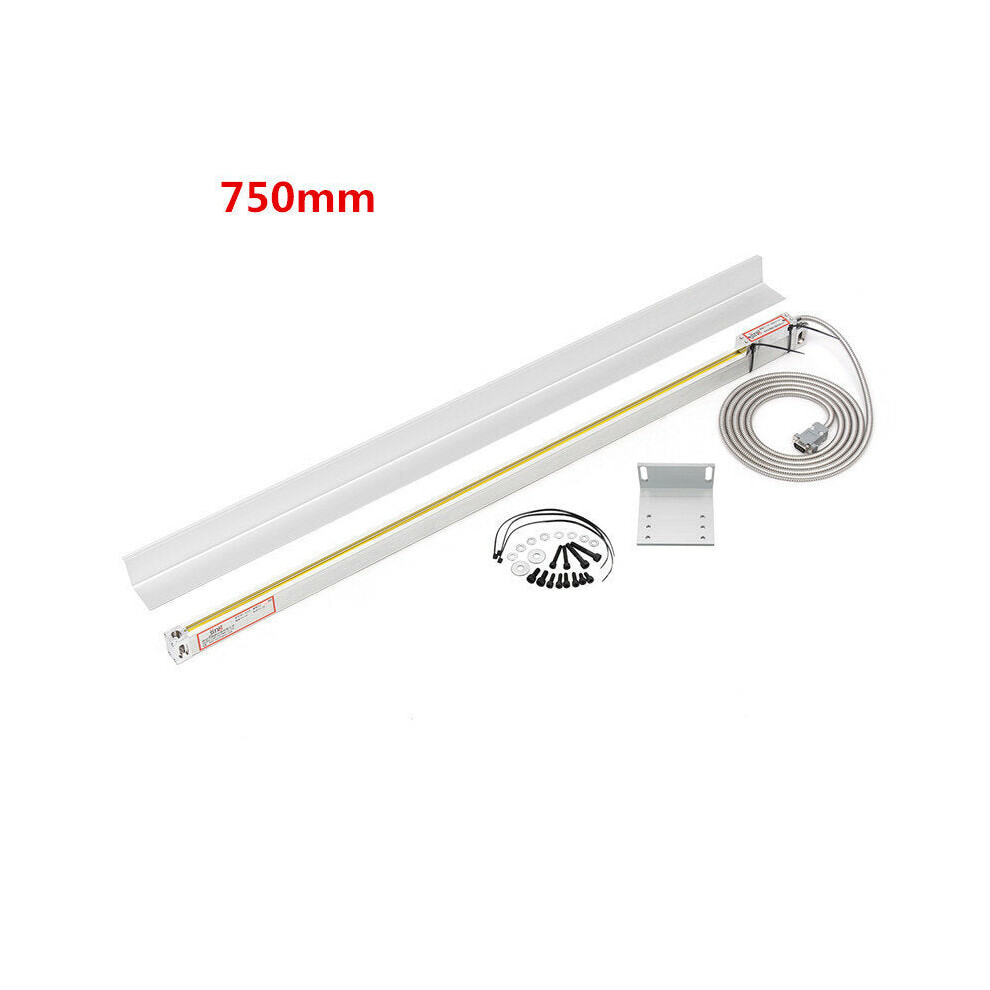

1.Physical length is differnt from the travel length 50/100,150,200,250,300,350,400,450,500, 550,600,650,700,750,800,850,900,950,1000mm 5um.
2.High Precision linear scale.
3.Resolution: 5um (0.005mm) 0.0002.
4.Signal: TTL square /wave EIA-442.
5. Grating pitch: 0.02mm (50LP/min).
6. Accuracy: 0.005 mm or 0.0002" (at 20 deg C).
7. Reference marks at interval of 50mm.
8. Response Speed: 60m/min or 40ins/sec.
Note: Buyers may choose any scale measuring length under 1000mm at this price.In fact,The scale can be made from 0-3000mm.Scale length above refers to the real travel of the linear scale. Actual physical length is 141mm longer than travel. One inch equuals to 25.4mm.

Features:
-The sliding part adopts the five-bearing system which has been proved to be the most reliable and durable. The main grating adopts 90-degree assembly, which is more accurate and accurate. -The repeatability of the measurement is more stable.

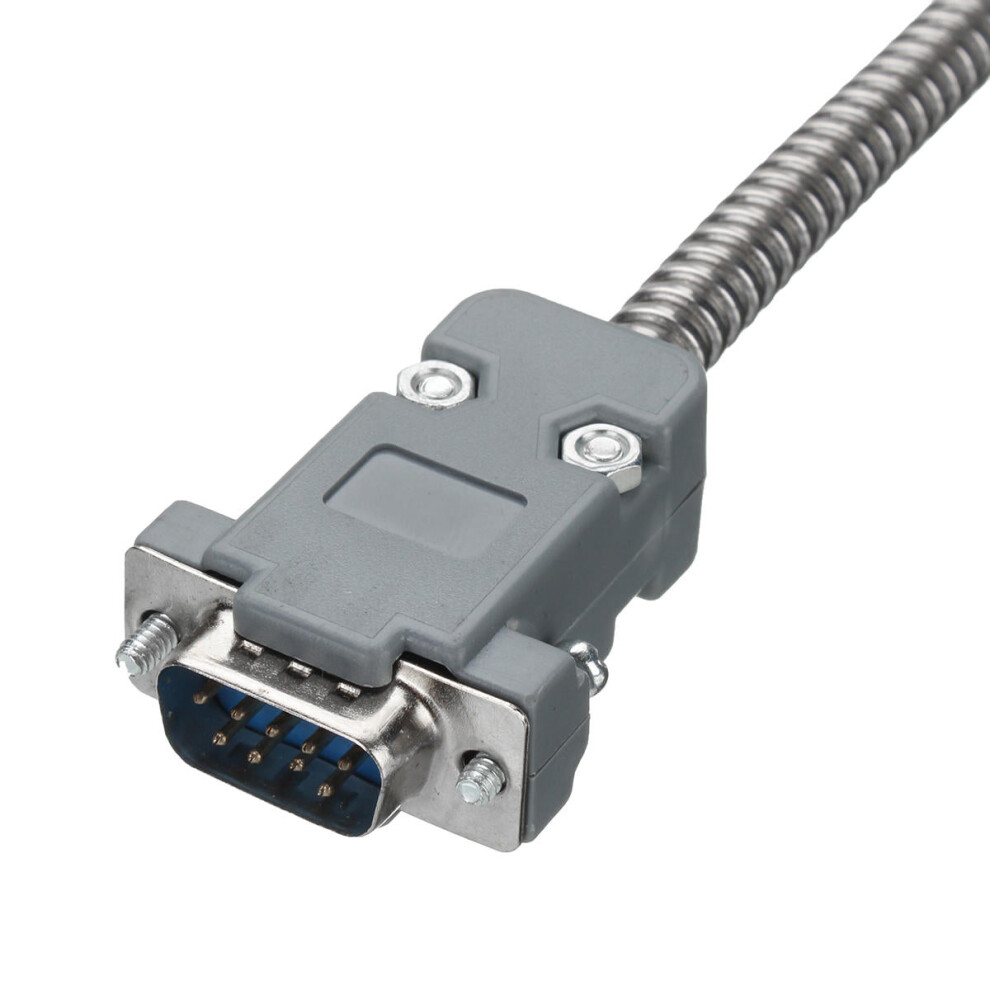

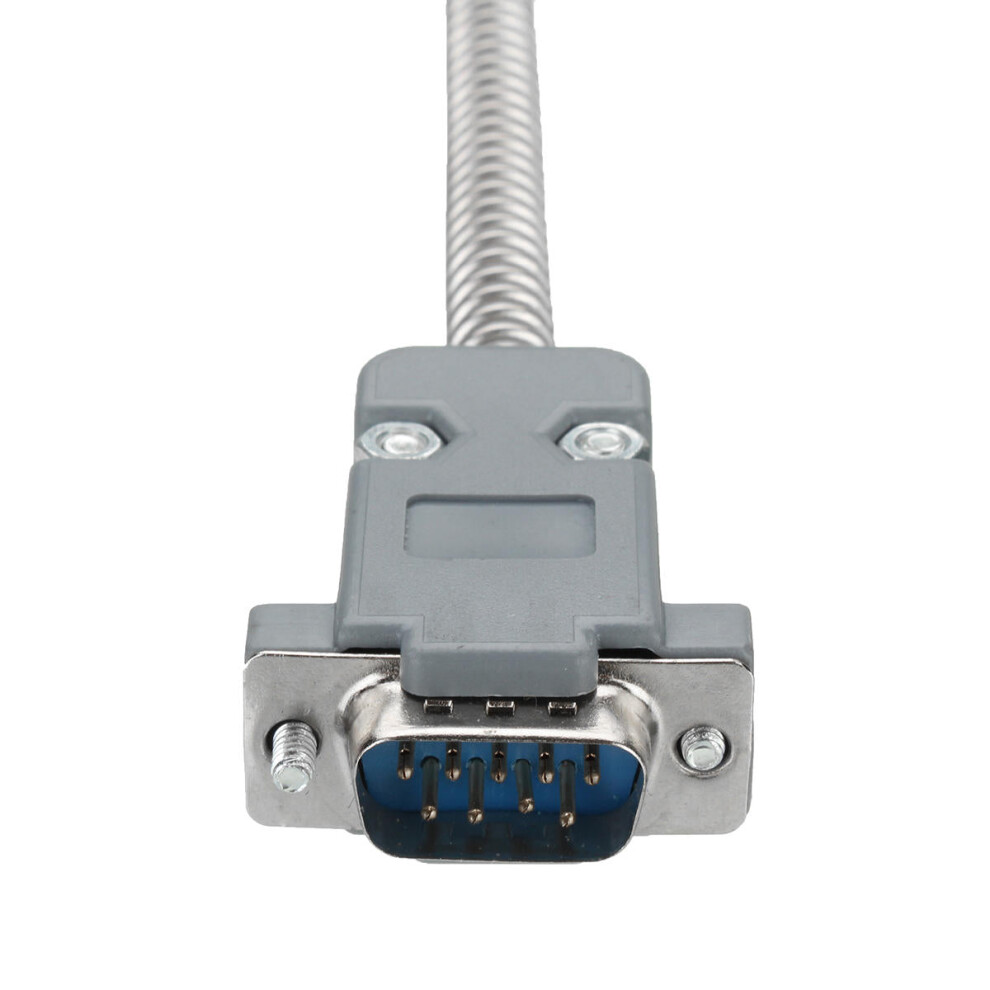

-The signal line adopts multi-layer isolation steel and metal soft shell protection, waterproof and anti-interference fine.
-Ruler body with aluminum die-casting, hard chrome plating, corrosion-resistant.
-Dust bar with special plastic, corrosion resistance, scratch resistance, friction resistance.
-Parts individual, installation, maintenance, easy maintenance, waterproof, dust-proof good, long service life.
-The sensor uses a glass precision metrology grating as the measurement reference.
-Multi-function, easy to operate, reliable and durable, so that the necessary processing of mechanical products.

Package Included:

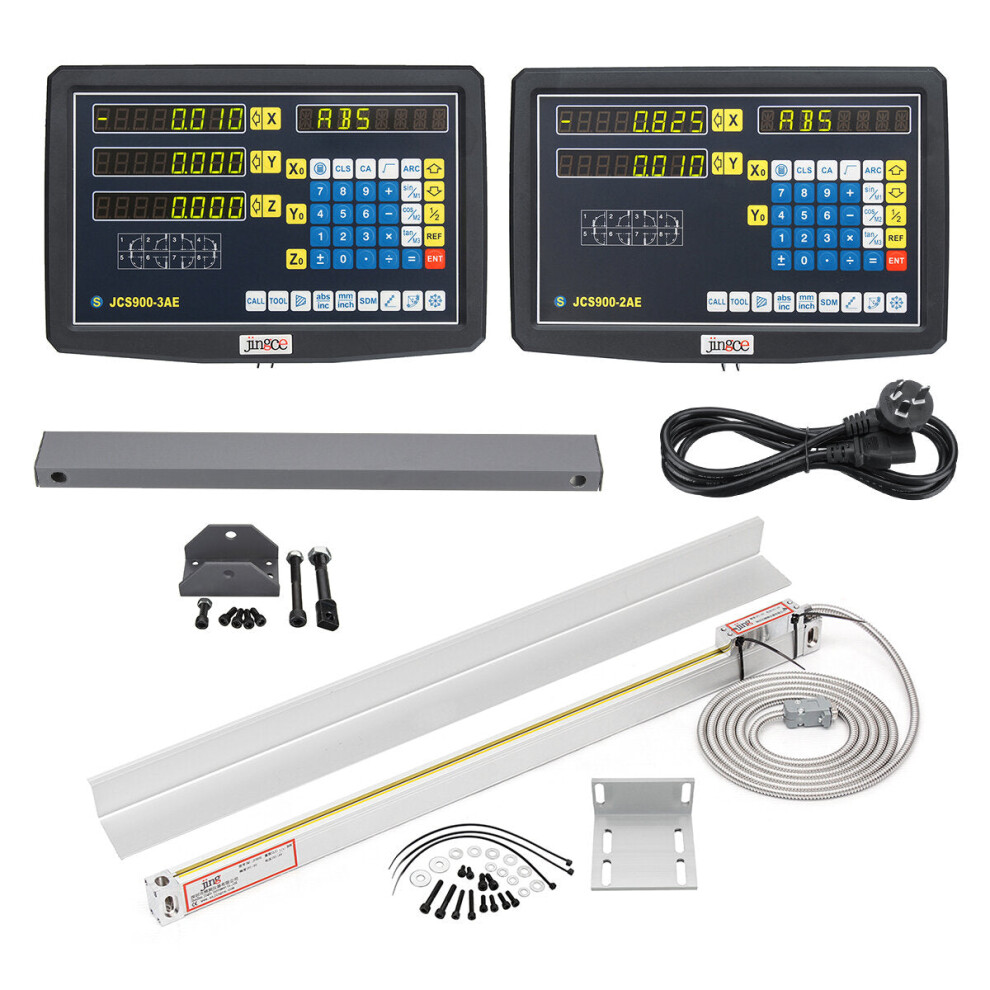

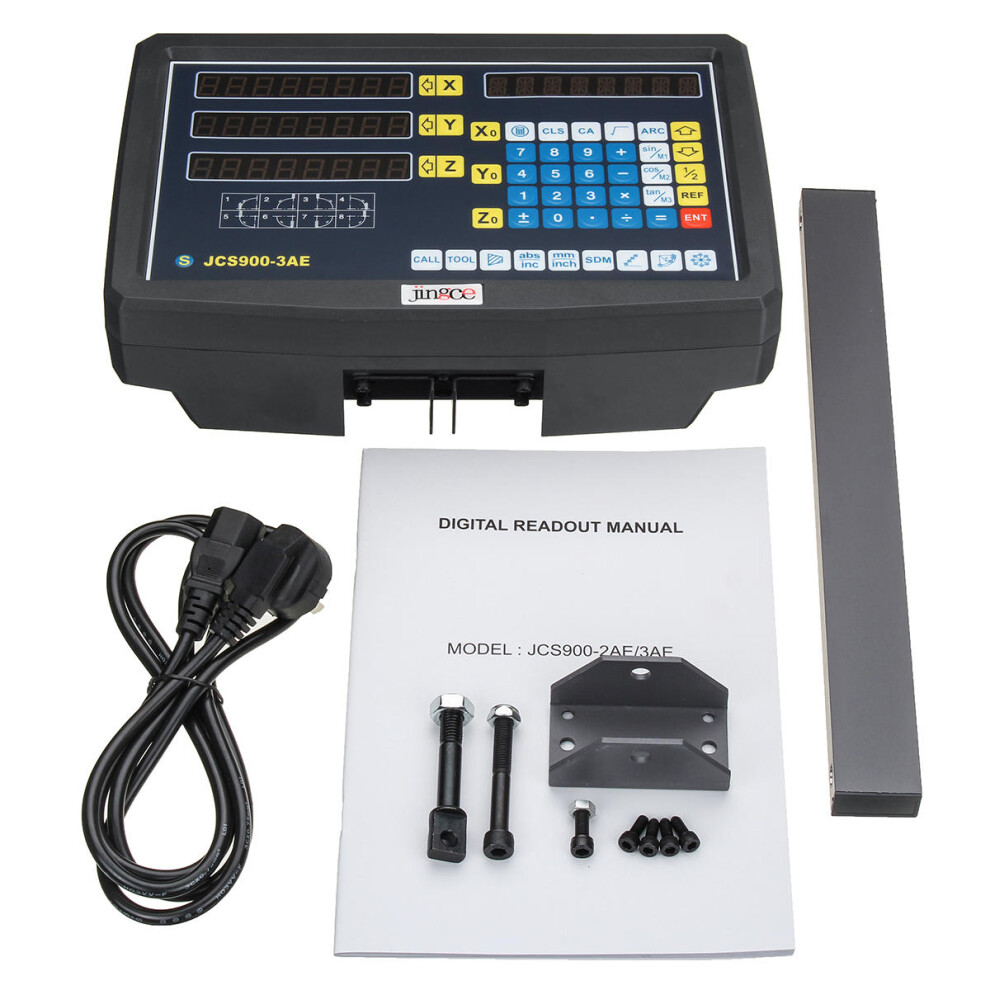

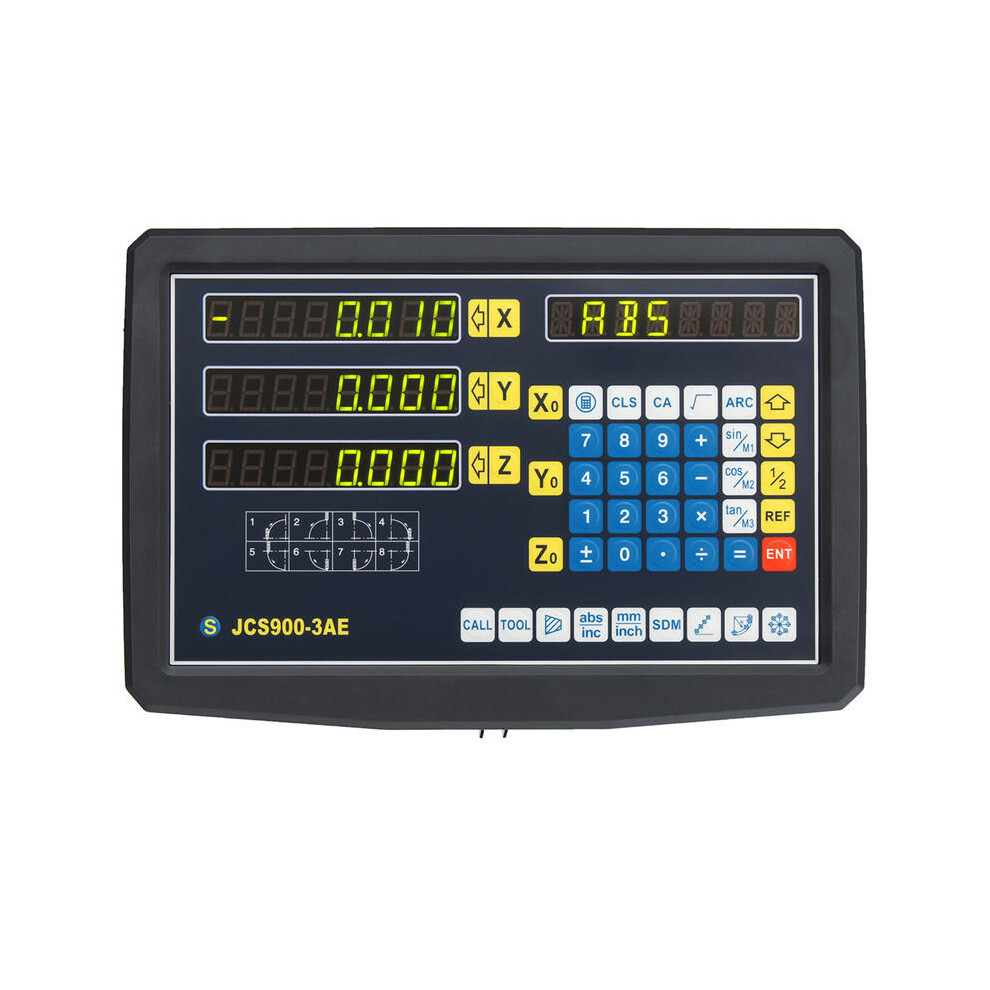

-Axis Digital Readout (2AE / 3AE).
1 x Axis Digital Readout.
1 x Set of brackets .
1 x Cable.
1 x User manual.
or (depends on your choice).

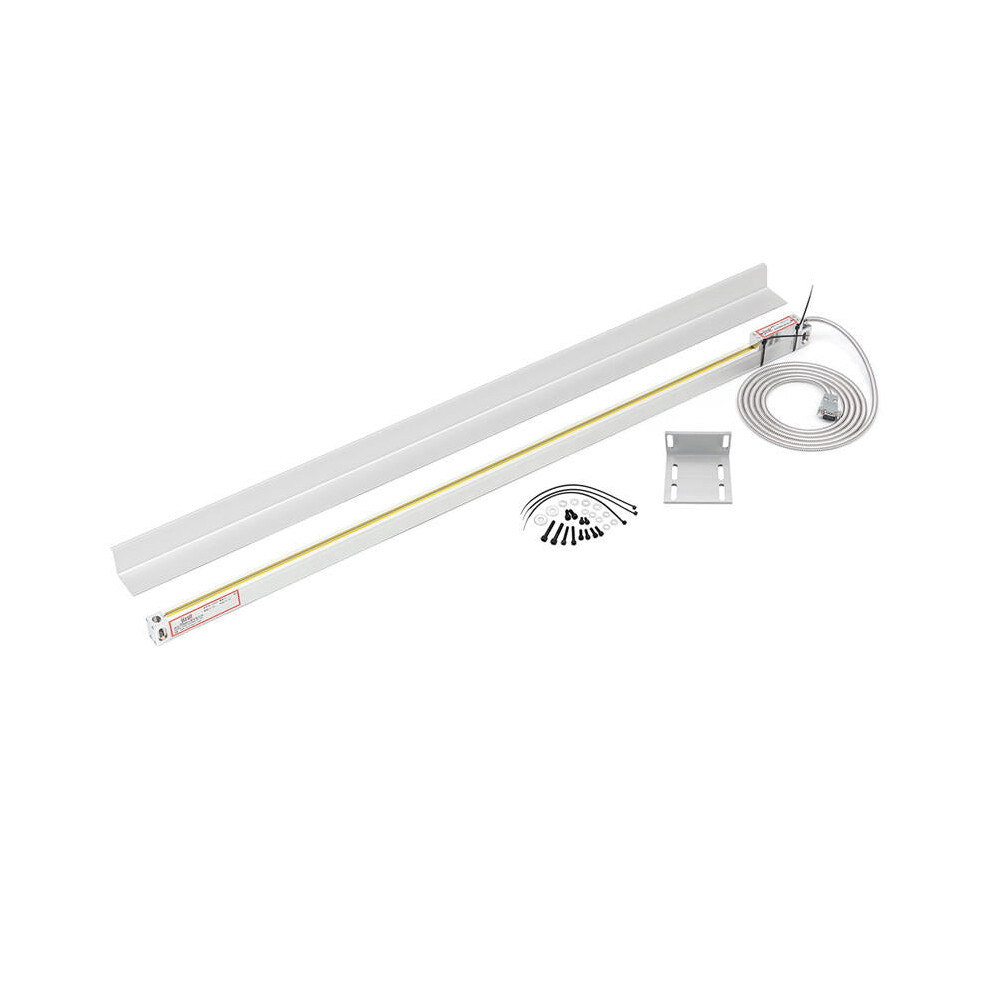

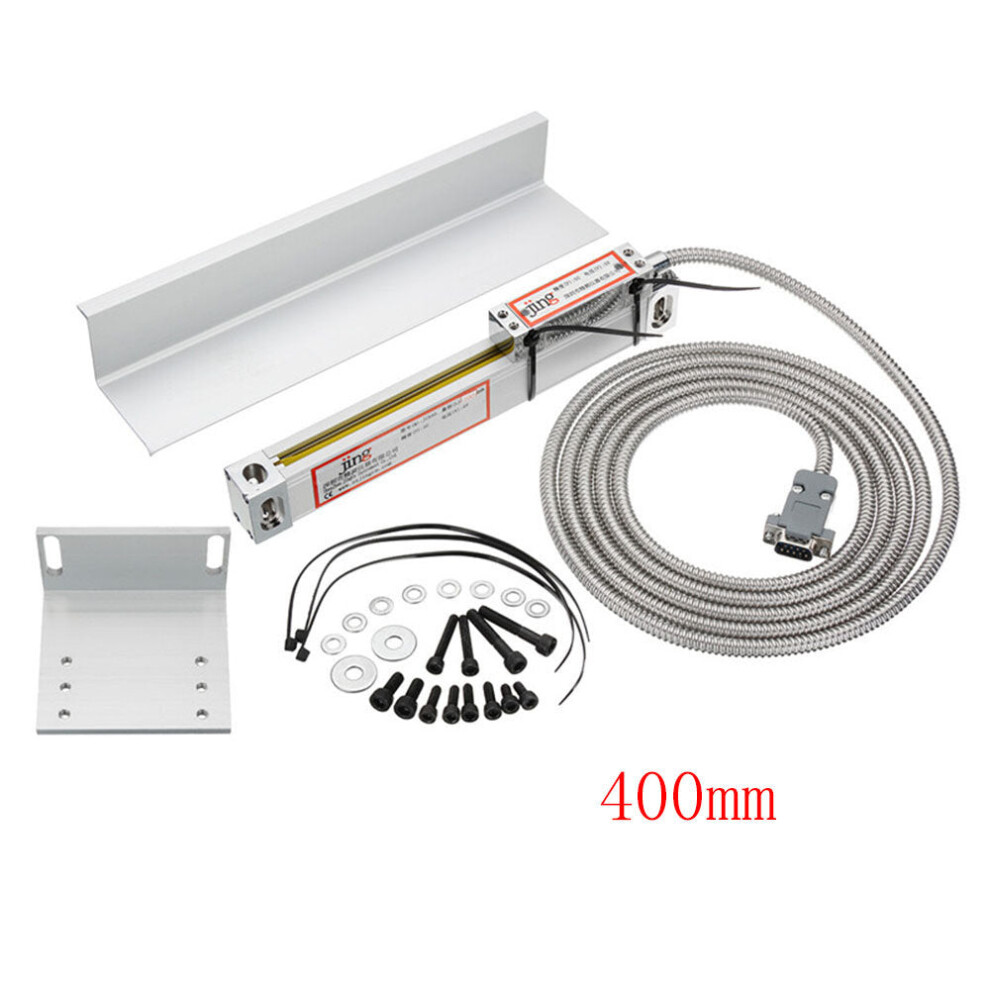

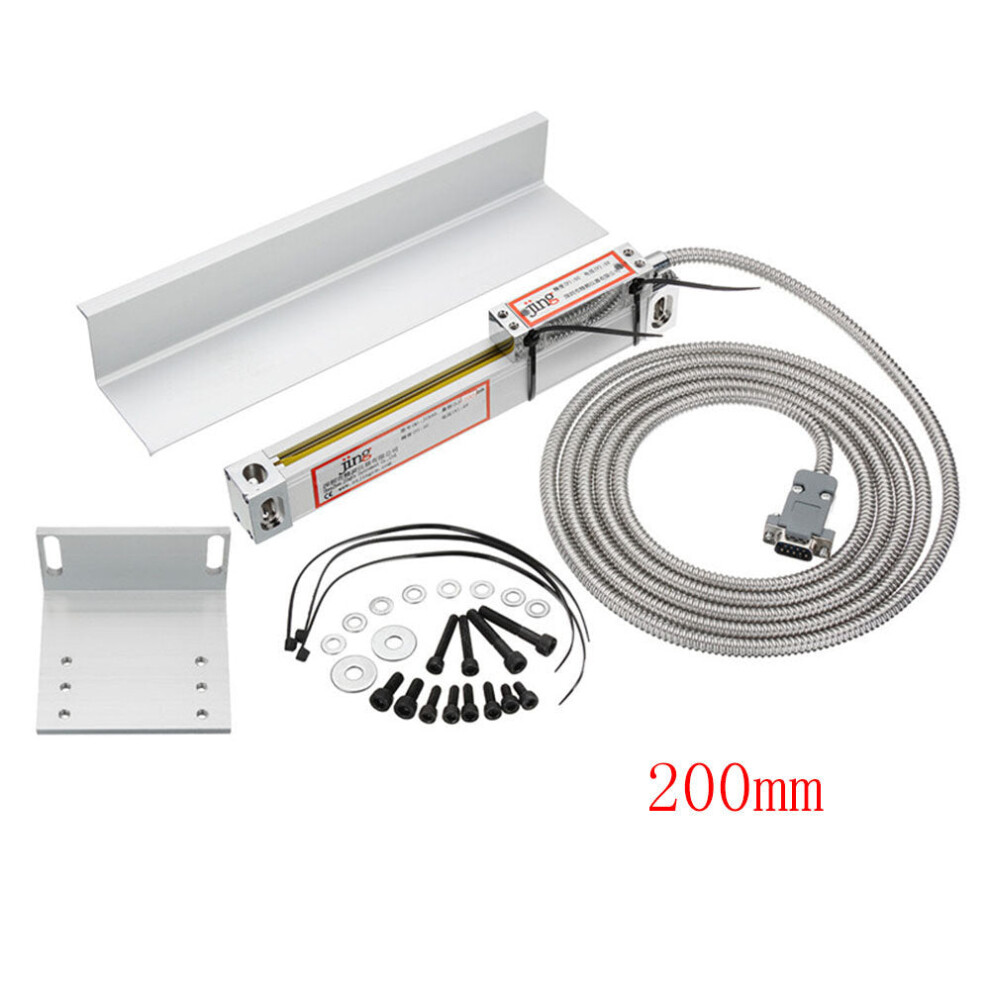

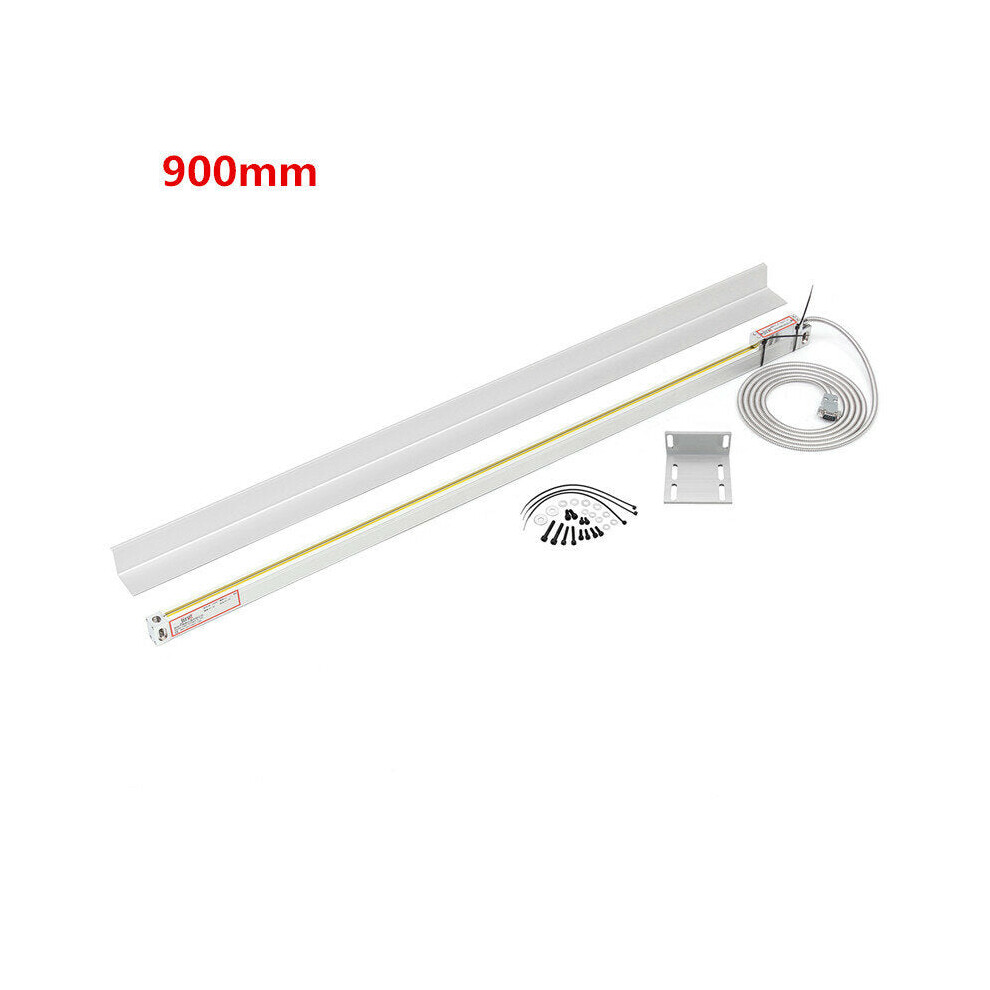

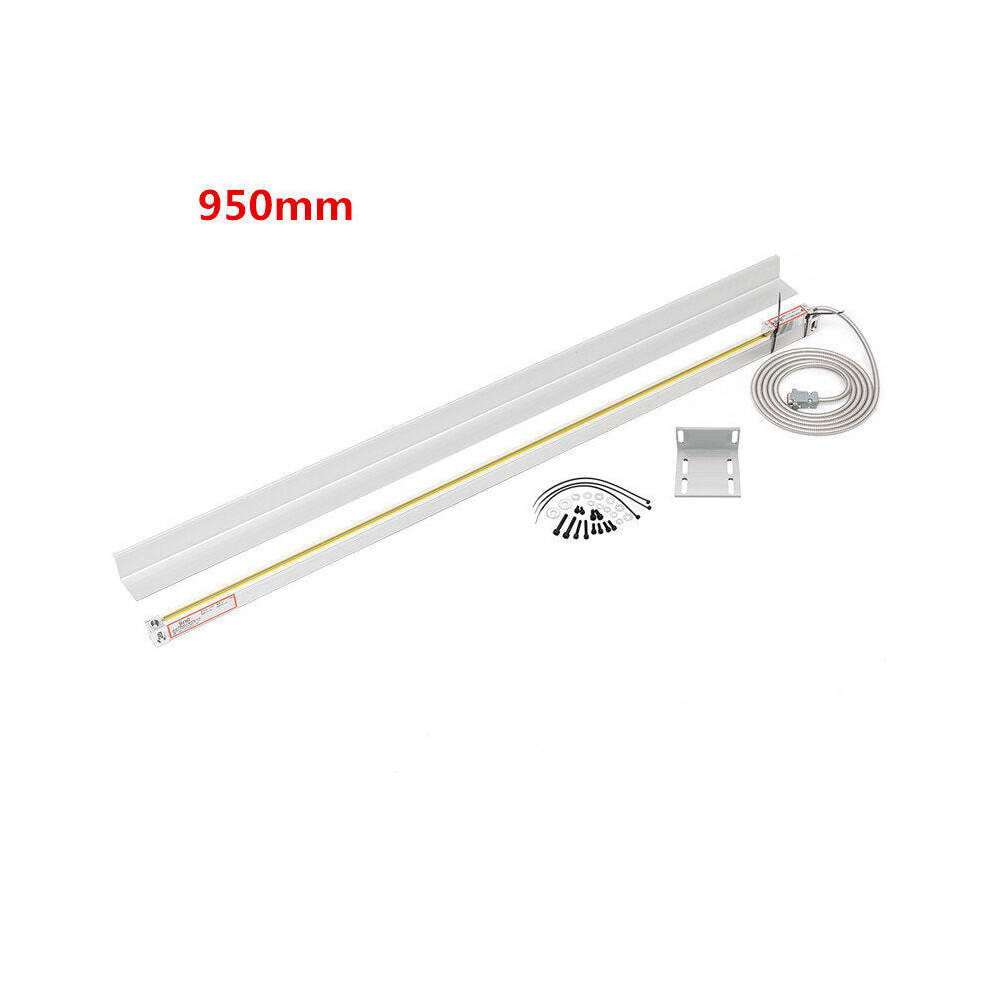

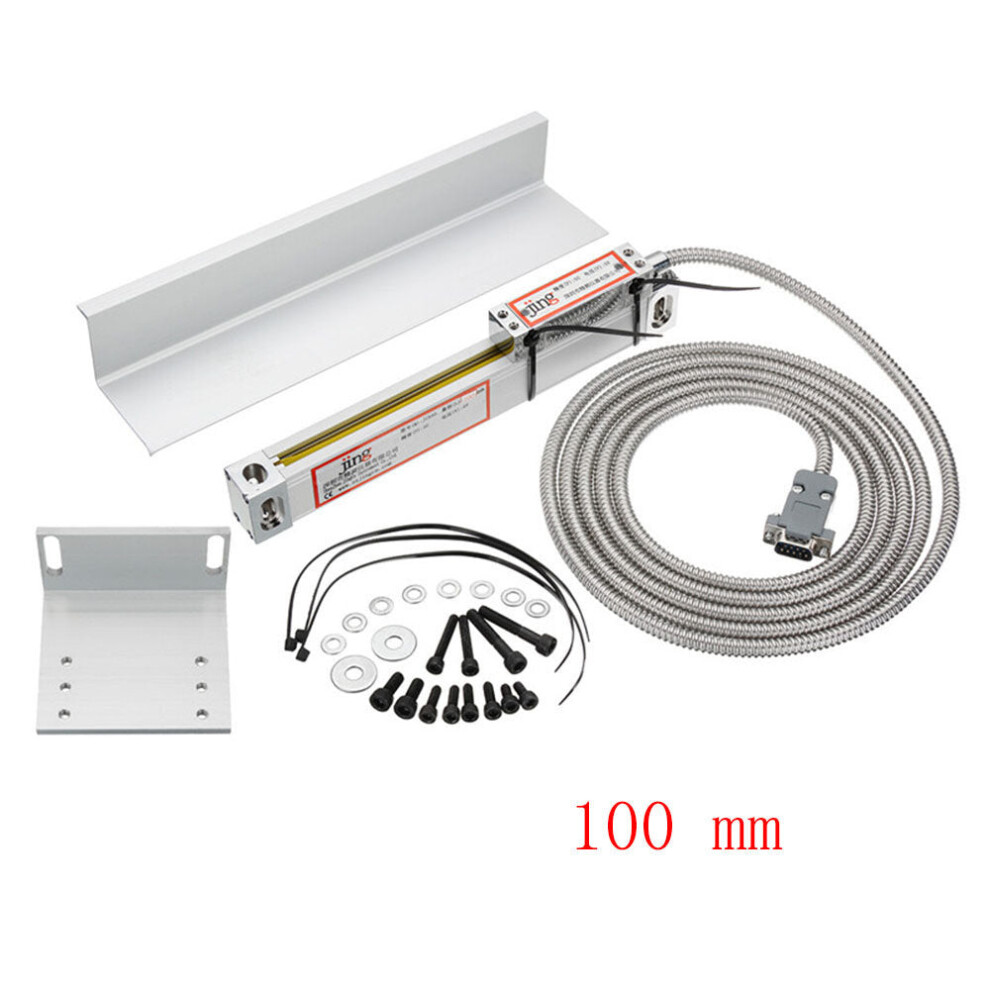

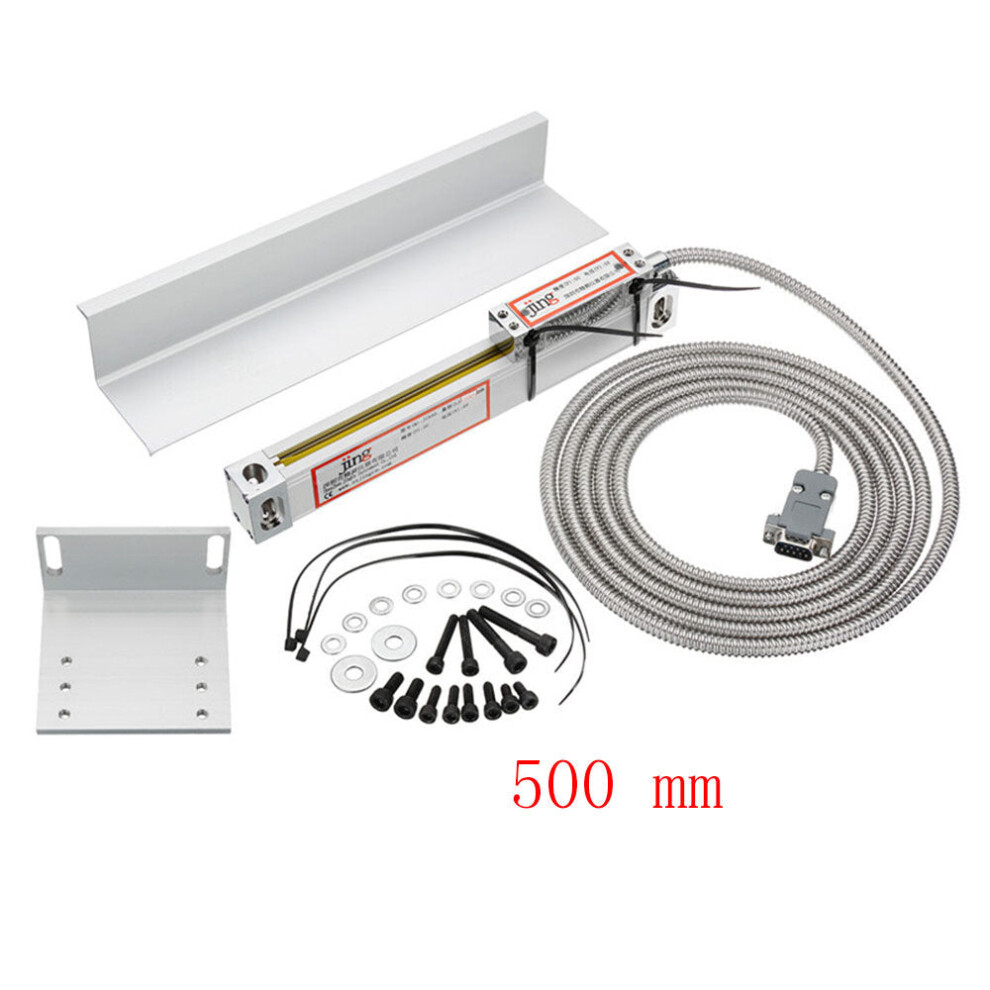

-TTL Linear Scale (50-1000mm).
1 x Linear Scale.

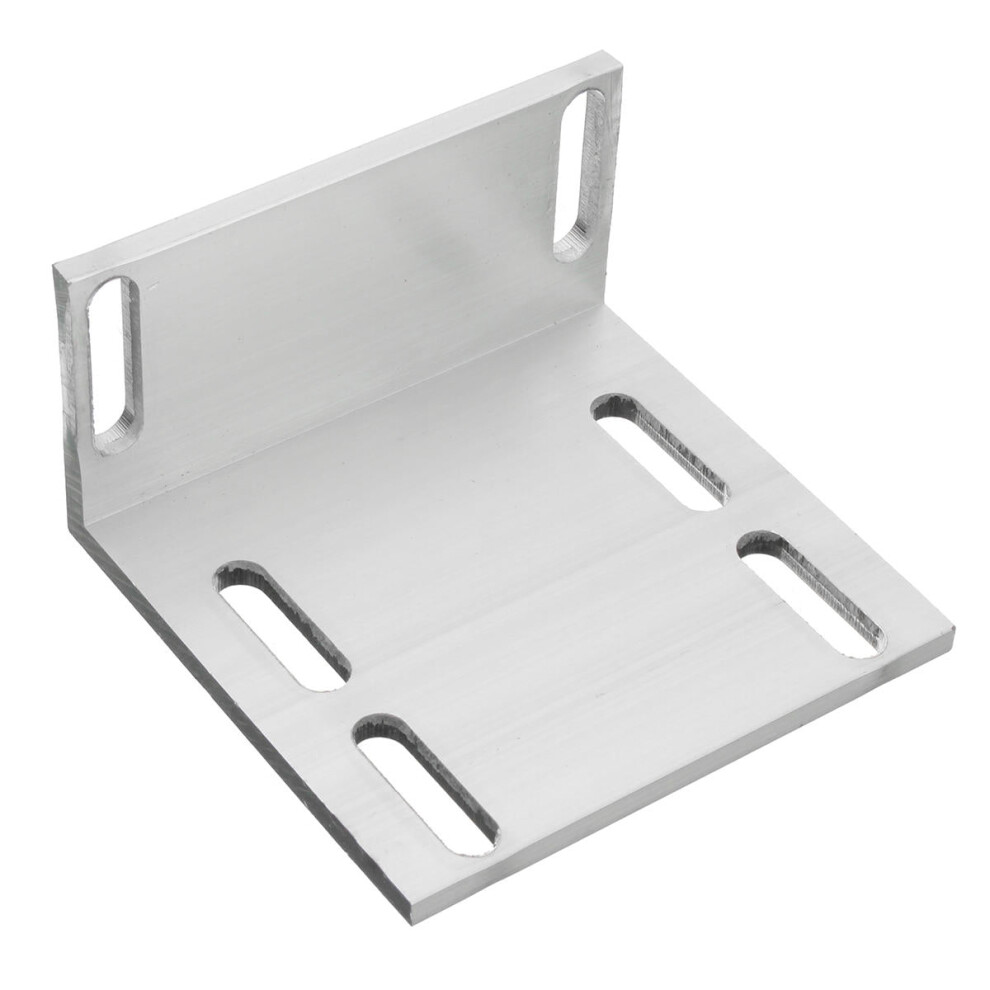

1 x L plate.
1 x Bracket.

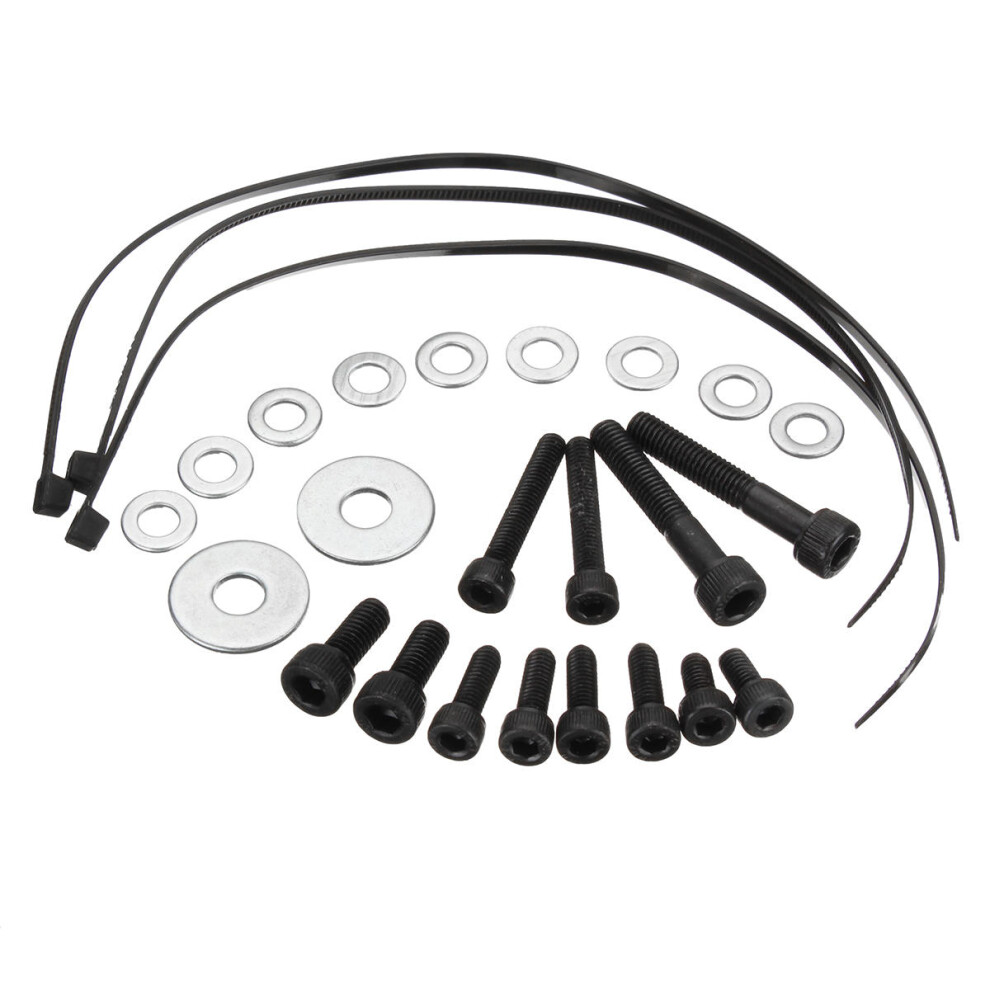

1 x bag of Screw
