3D Drawing Pen Filament ABS/PLA Tool Set Black

3D Drawing Pen Filament ABS/PLA Tool Set Black Description

1、Lightweight 3D pen, no burden using and carrying. 2、Intelligent control, even amateurs can freely paint. 3、The advanced nozzle with intelligent temperature sensing and heating function, and with low tip temperature. 4、8 digital speed controllers for more precise and stable extrusion. 5、A single press can continuously squeeze the flow, making it easier to graffiti.
Features:
Lightweight 3D pen, no burden using and carrying.
Intelligent control, even amateurs can freely paint.
The advanced nozzle with intelligent temperature sensing and heating function, and with low tip temperature.
8 digital speed controllers for more precise and stable extrusion.
A single press can continuously squeeze the flow, making it easier to graffiti.
Built-in nozzle for easier maintenance.
Specification:
Type: 3D Printing Pen Kit
Recommended temperature: for ABS filament: 180-210, for PLA filament: 160-180
Support material: 1.75mm PLA / ABS
Equipment output rated power: DC12V 3A 36W
Weight: Approx.
Size: Approx. 17.5 * 3 * 2cm

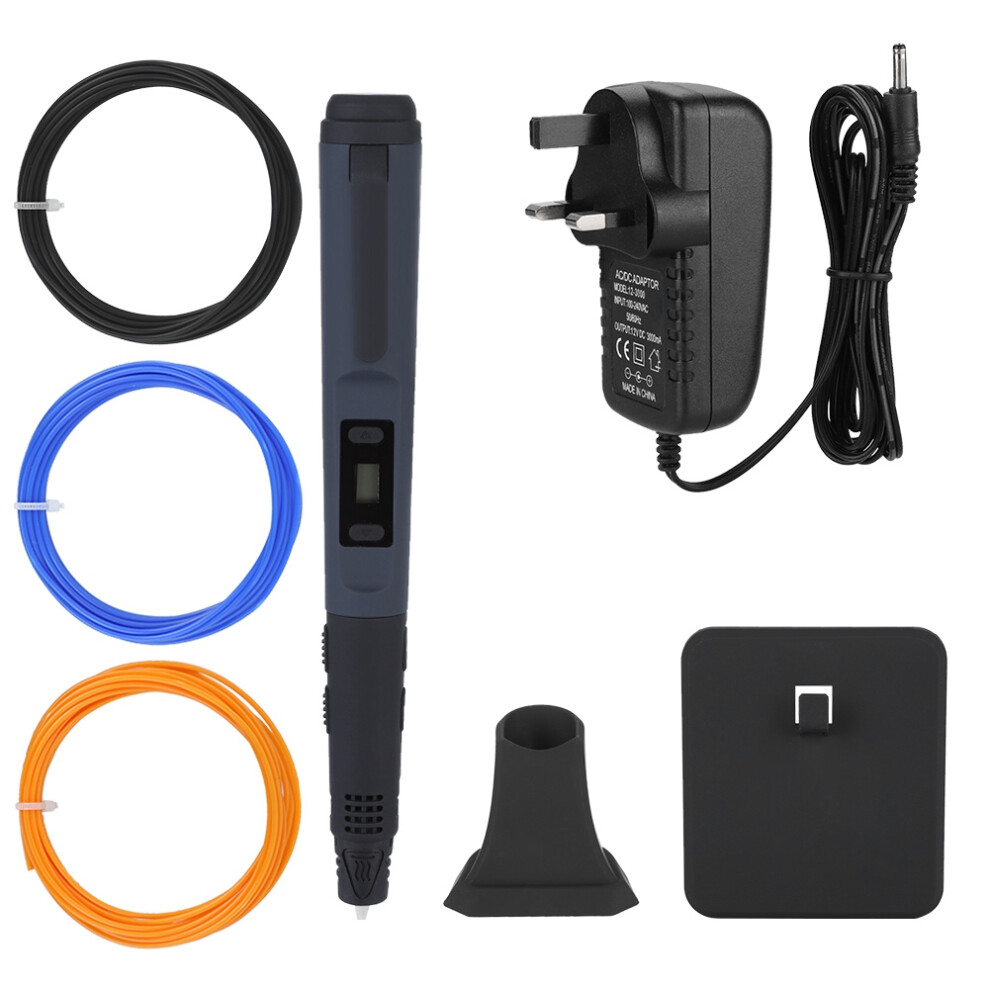

Package list:
1 * 3D Printing Pen
1 * Power Adapter
1 * Pen Holder
1 * Drawing Template Paper
1 * User Manual
3 * PLA Filaments(Random Color)
Note:
1. Please note that the PLA filaments are shipped in random colors.
2. Please allow slight error due to manual measurement. Thanks for your kind understanding.
How to Use the Pen:
Connect
the adapter to the power source, then insert the end of the adapter's
wire into the power hole of the 3D pen. The LED light is yellow to
indicate that the device is turned on and enters standby mode.
2. Material / Filament Selection
After
step 1, the LED screen displays ''PLA'' or ''ABS''. Press
''Material/Temperature Button'' to select the type of material you are
using. It must be the material used. The wrong choice may cause
potential malfunction. (Note: This device can extrude wood and work in
''PLA'' mode)
3. Warm up
After
selecting the material, press the ''Feed button'', the LED light is
red, indicating that it enters the warm-up mode, and the LED screen
displays the real-time heating temperature. When the LED changes from
red to green, you can start graffiti with the pen when the warm-up
process is over. (It takes about 30 seconds to warm up.)
4. Select the drawing speed
Press
the Speed ??Control button to select the most appropriate drawing
speed. (Note: 8 digital speed controls are from 1 to 8, 8 is the
fastest.) The processing speed button ONLY works when the drawing is
stopped and the LED light is green, and in other cases the processing
will be futile.
5. Loading
Insert
the selected material into the feed hole at the end of the pen and
press the ''Feed Button'' and the filament will be moved by the built-in
motor. When the molten material comes out of the nozzle, it means the
setting is successful, you can start graffiti now.
6. Create your work
The
device is designed with 8 speed controls. Please select the appropriate
drawing speed before graffiti. Different types of filaments have
different melting points. Please adjust the temperature in time
according to the extrusion status.
7. Extrusion flow function
Press
the ''Feed button'', the pen continues to squeeze out and flow, press
the ''Feed button'' again, the pen stops feeding. When the pen is used
continuously for 8 minutes, the pen will automatically stop feeding and
extruding.
8. Replace/unload materials
When
the LED is green, press and hold the ''Unload button'' for 3 seconds,
then release and the built-in motor will begin to remove material. When
the material stops moving backwards, gently remove the material from the
end of the pen and press the ''Unload button'' and the motor stops
reverse. (Intermittent fun moves will stop automatically after 1 minute
of work)
9. Finish the work
After
completing a drawing, remove all filaments to avoid adversely affecting
the normal use of the device in the future. (Note: The device is sturdy
and the equipment is great, but like all machine tools, rest after an
hour of continuous use to extend its life.)
