3D Finder Machining Center Cnc Milling Machine Three-Coordinate Precision Probe Centring Rod Tool Setter CF-38

3D Finder Machining Center Cnc Milling Machine Three-Coordinate Precision Probe Centring Rod Tool Setter CF-38 Description

Easy Battery Replacement:The CF-38's battery replacement is hassle-free, thanks to a simple plug-and- design.
Versatile Probe Direction:The 3D Finder's probe direction covers X Y +Z, making it suitable for various machining tasks.
Beginners Cnc Project|Push Rod Measuring Tools|High Precision Repeat Positioning:Achieve precise measurements with a repeat positioning accuracy of 0.005, ensuring consistent results.
Robust Construction:With a trigger life of 3 million times, this tool is built to withstand rigorous use in CNC milling.
Adjustable Center Deflection:Fine-tune your machining with the adjustable center deflection feature, ensuring optimal performance.

Product Name: Trigger 3D Finder
Item model number: CF-38
Repeat positioning accuracy: 0.005
Probe direction: X Y +Z
Probe safety stroke: X.Y plane 20, Z direction +2.5mm
Trigger life: 3 million times
Colour:As Shown
Material:Metal
Due to different batches, there may be differences in product appearance and printed text, which will not affect use
Installation of the probe:There is a wrench slot at the probe interface. When installing the probe, you must hold the probe to prevent it from rotating, otherwise the internal parts of the probe will be damaged.
Battery replacement:Remove the battery rubber plug, remove the battery with tweezers, replace the battery with a new one and install the battery according to the "" mark the side. After the replacement, plug the battery rubber plug tightly.

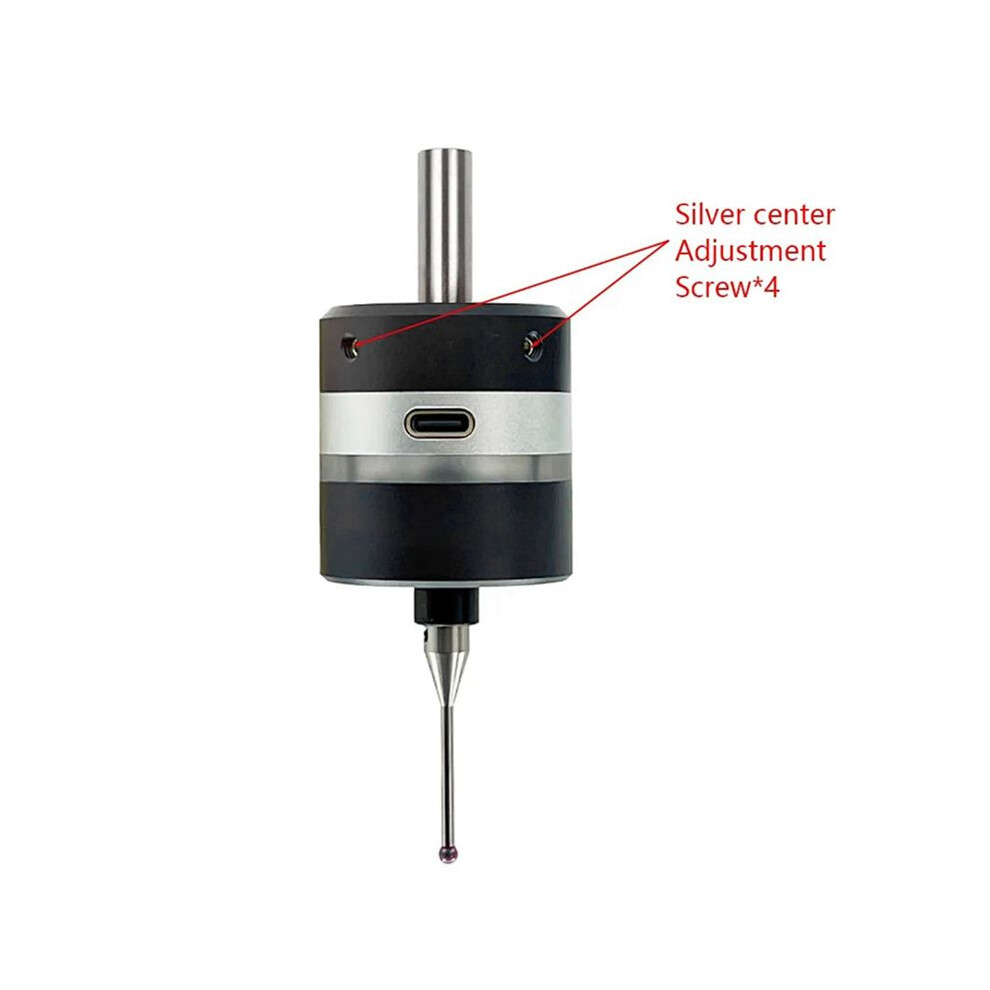

Adjustment of center deflection:The screw is the adjustment screw x 4

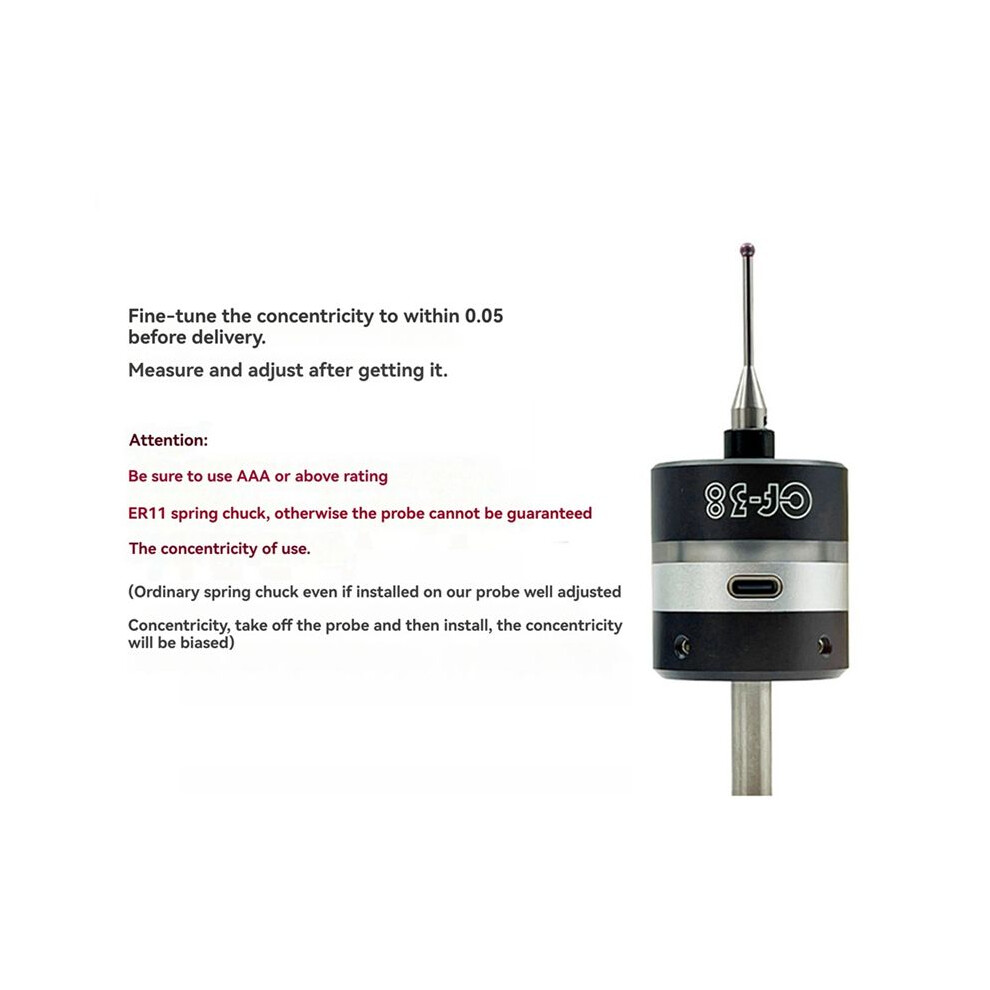

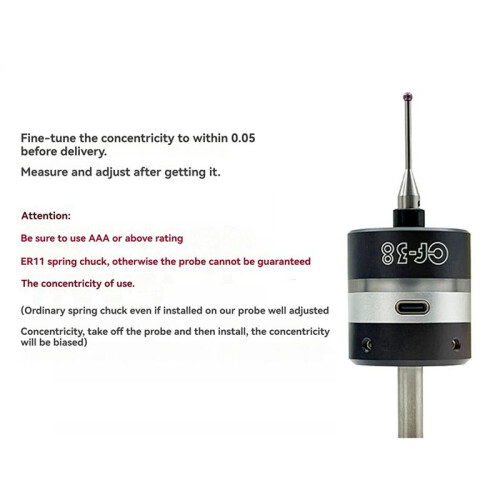

Use a dial gauge to measure the runout of the probe and adjust the runout to 0.

Package Contents:
1 * 3D Trigger Finder
