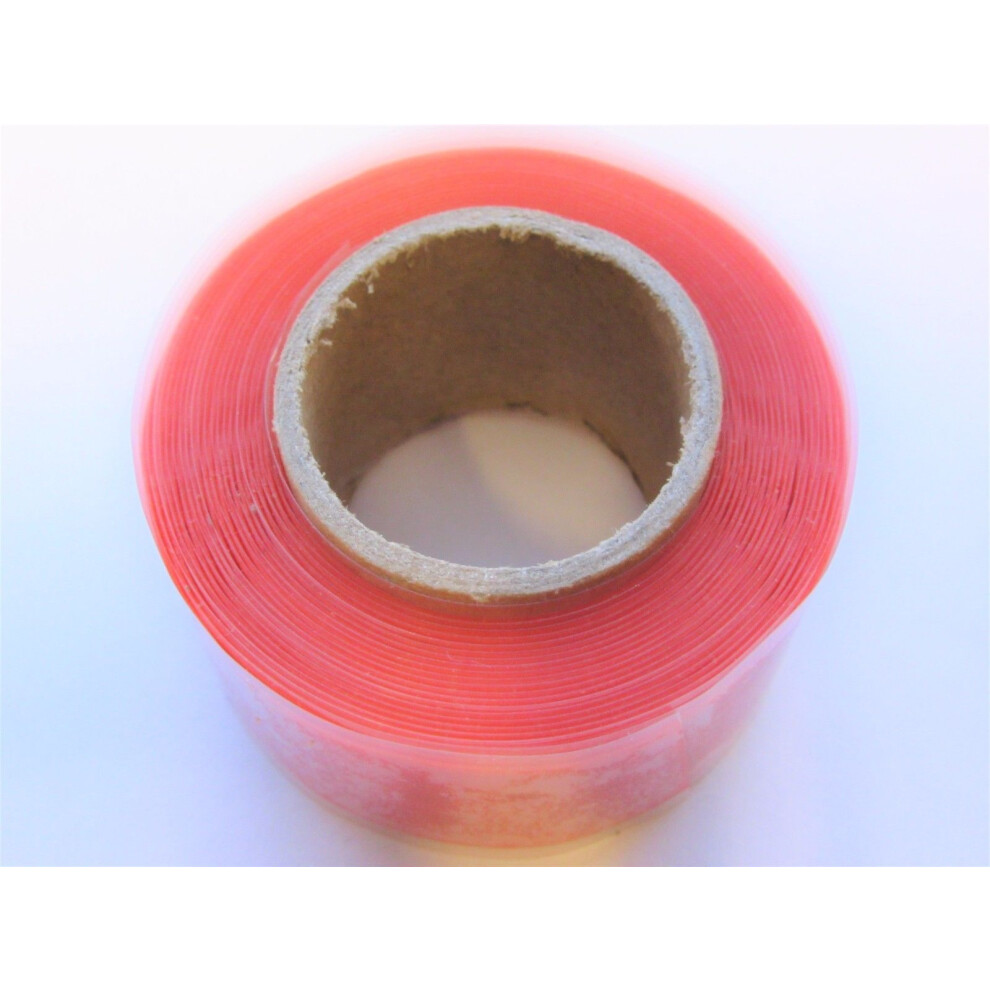

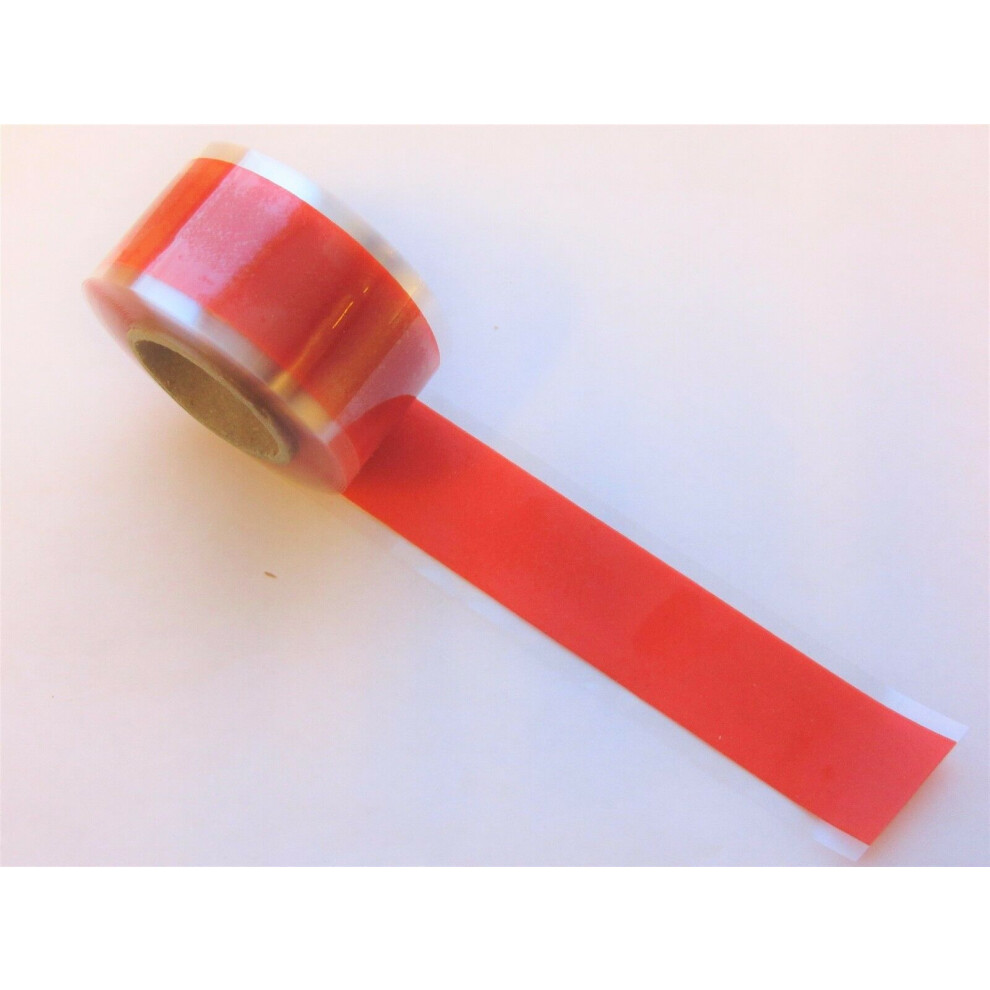

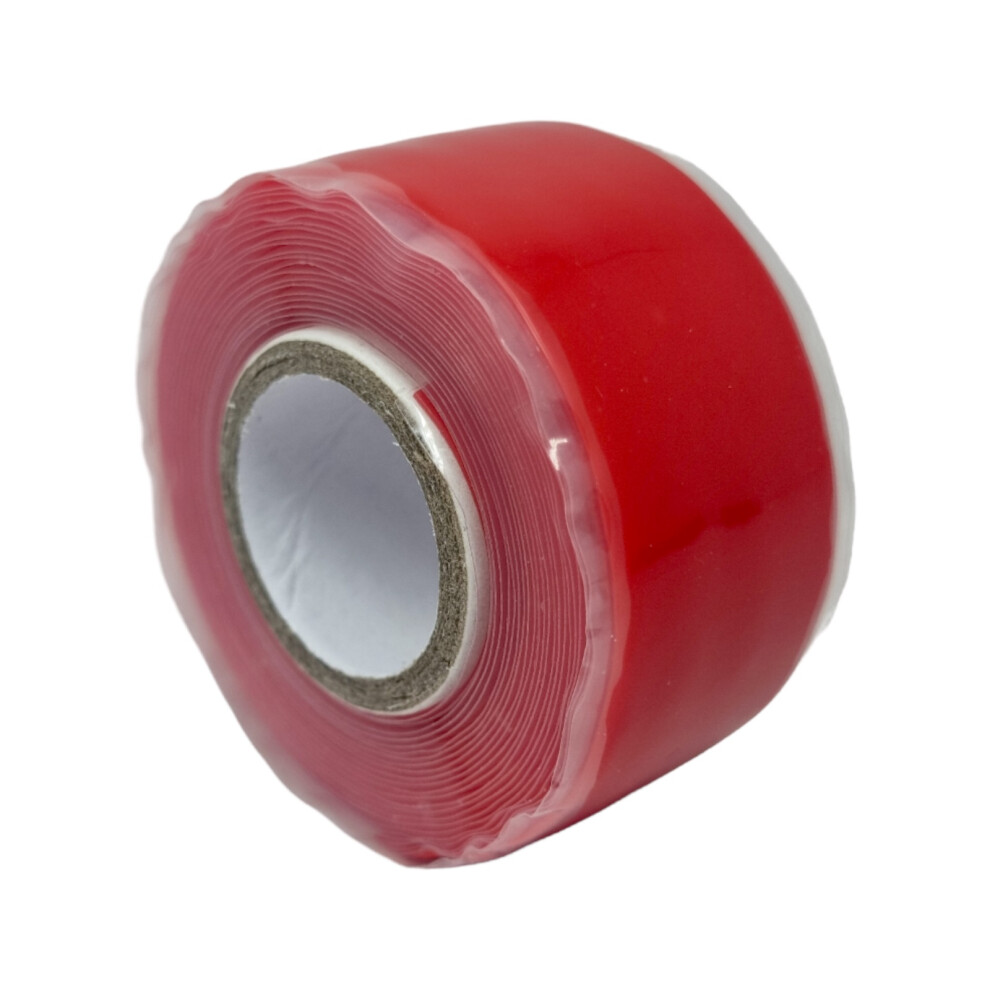

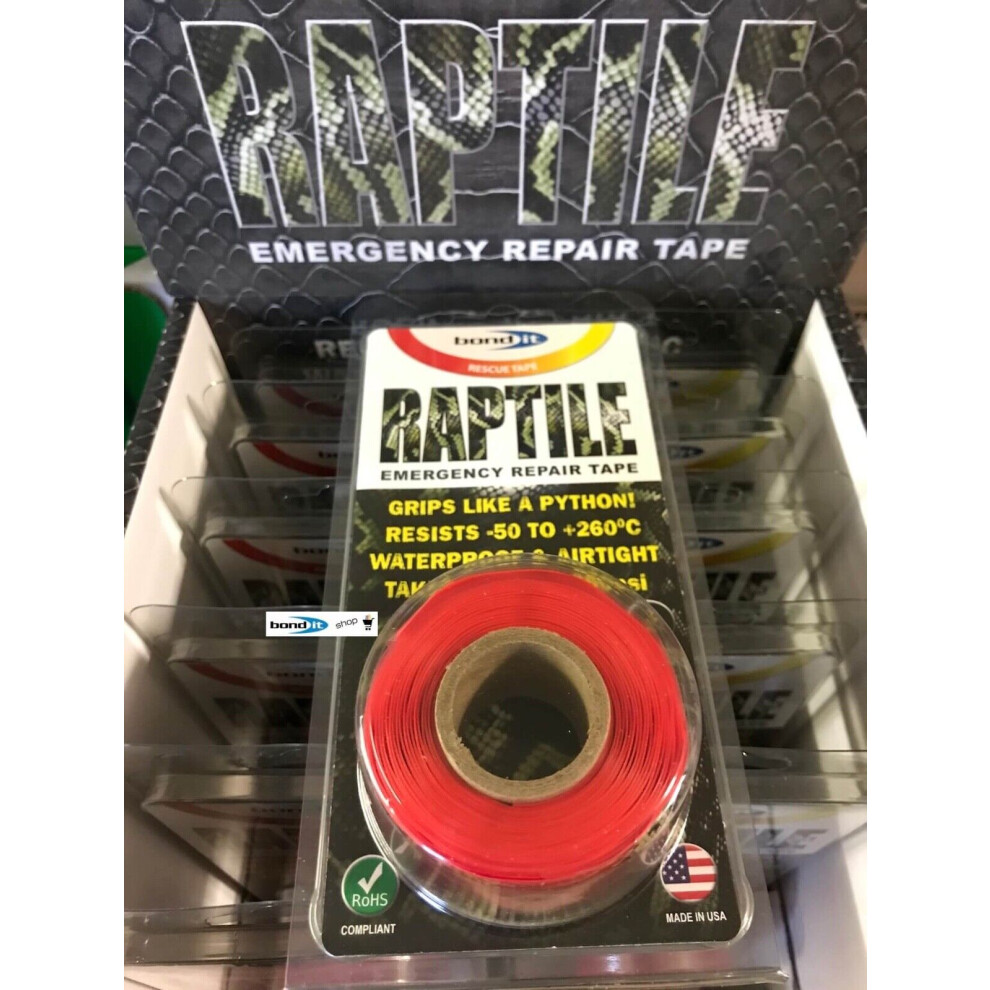

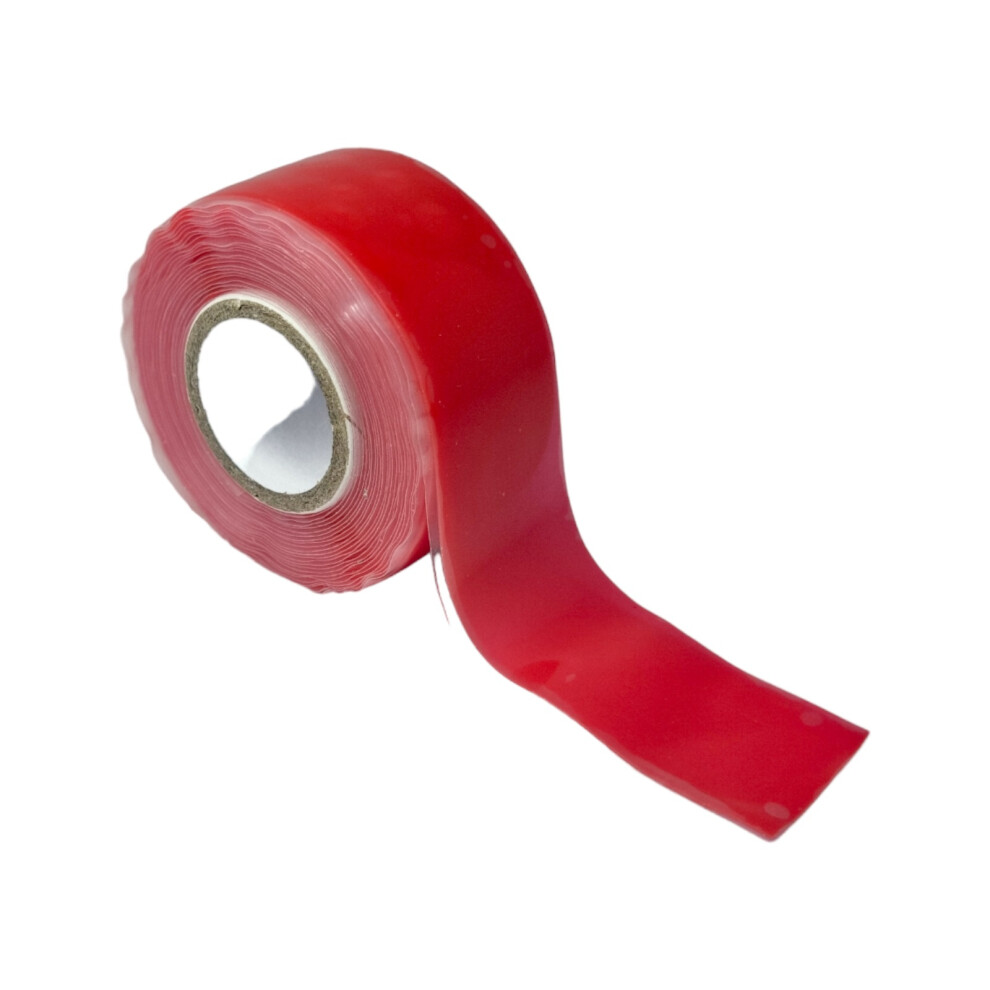

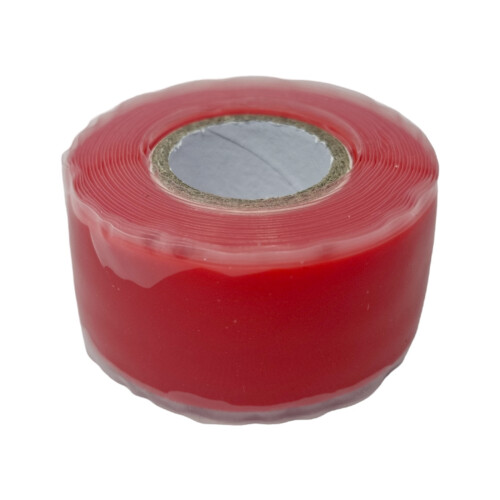

3m Raptile Emergency Repair Tape Silicone

Description:
RAPTILE TAPE is a self‐fusing silicone repair product with infinite uses. Resists fuels, oil, acids, solvents, salt
water, road salt and UV raysBenefits:
w Pressure resistant up to 8 Bar.
w Insulates 8,000 volts.
w Permanent seal.
w Waterproof ‐ airtight.
w Can be applied under water.
w Never gets gummy or sticky.
For repairing leaks on plumbing and hoses in a flash. It can be
used it to insulate electrical wiring and it can withstand a constant
working temperature of 200°C.

Uses
Suitable for emergency hose repair, pipe and plumbing repair,
electrical insulation, wiring harnesses, corrosion protection,
sealing connections & fittings, waterproofing, rigging applications,
whipping rope ends, marking lines and chain, emergency O-rings
and seals, tool handles and grips and much more!

Application
1. Wrap RAPTILE TAPE around project by stretching and overlapping
onto itself. Stretch to at least double its original length to
ensure a good bond. For high pressure leaks, stretch to the
maximum. The tighter RAPTILE TAPE is wrapped, the quicker and
stronger the bond.
2. Continue wrapping RAPTILE TAPE around project by overlapping
so that half the width is covered with the next wrap. The first
and last wrap should completely overlap onto the previous
wrap for a complete bond. Additional layers may be necessary,
and the same process should be used over the previous layers.
RAPTILE TAPE works on either side.
3. Most hose repairs can be repaired with 3-5 layers in thickness,
and wrapping 3 to 5 inches in each direction away from the
leak.
4. Repositioning RAPTILE TAPE can only be done in the first few
seconds after wrapping. Attempting to reposition RAPTILE TAPE
after 1 minute or longer is not recommended. RAPTILE TAPE is
not reusable.
5. Additional RAPTILE TAPE can be applied over project at any time
in the future6. RAPTILE TAPE does not stick to the surface of a project, and
therefore it does not matter whether the surface is clean or
dirty. As long as you can overlap RAPTILE TAPE onto itself, it will
work, even if the surface is wet, dirty, or oily. You should avoid
getting dirt or oil between the layers, however, as this will
interfere with the bonding surface. RAPTILE TAPE can be cut with
a utility knife or scissors, and will never leave any sticky residue
behind like traditional adhesive tapes because there's no
adhesive!

Limitations
RAPTILE TAPE is not designed to be a permanent repair and there
are no guarantees as to how long the repair will last.

Roll Size
Approx. 2.5cm wide x 3m x 0.5mm roll length.

Colours
RAPTILE TAPE Red.

Storage Conditions
For the longest shelf life, it should be kept at room temperature
and away from direct light or heat. However, these factors only
slightly alter the shelf life. Even when stored improperly, RAPTILE
TAPE should last for many years. Our customers have reported that
our self-fusing silicone kept for decades will still work extremely
well!

Health & Safety
Please refer to separate material safety data sheet for full
handling, use and storage instructions. Keep out of reach of
children. It is the users responsibility to determine suitability for
use. If in doubt contact our Technical Department for advice.

Note: this information is for general guidance only, since site conditions
and labour are beyond our control. It is recommended that users make
their own tests to determine suitability.
