3M Under Sink Drinking Water Filter Kit with AP2-C405-SG -Filter

3M Under Sink Drinking Water Filter Kit with AP2-C405-SG -Filter Description

Under Sink Drinking Water Filter Kit (With 3M AP2-C405-SG Rated Filter) FULL DIY System With Chrome Tap

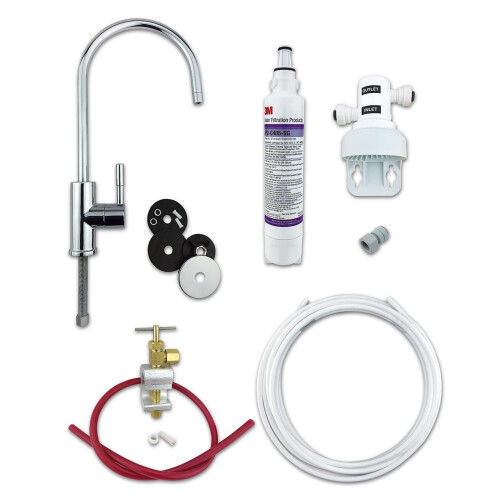

The 3M AP2-C405-SG cartridge is tested and certified by NSF International to meet or exceed NSF/ANSI Standards 42 & 53 You are buying the whole system, which includes:


Saddle valve for connection to mains piping.

1 x Tap reducer fitting for ¼ inch pipe connection.

3 Meters of ¼ inch water pipe (white).

1 x 3M/Cuno AP2-C405-SG Water Filter.

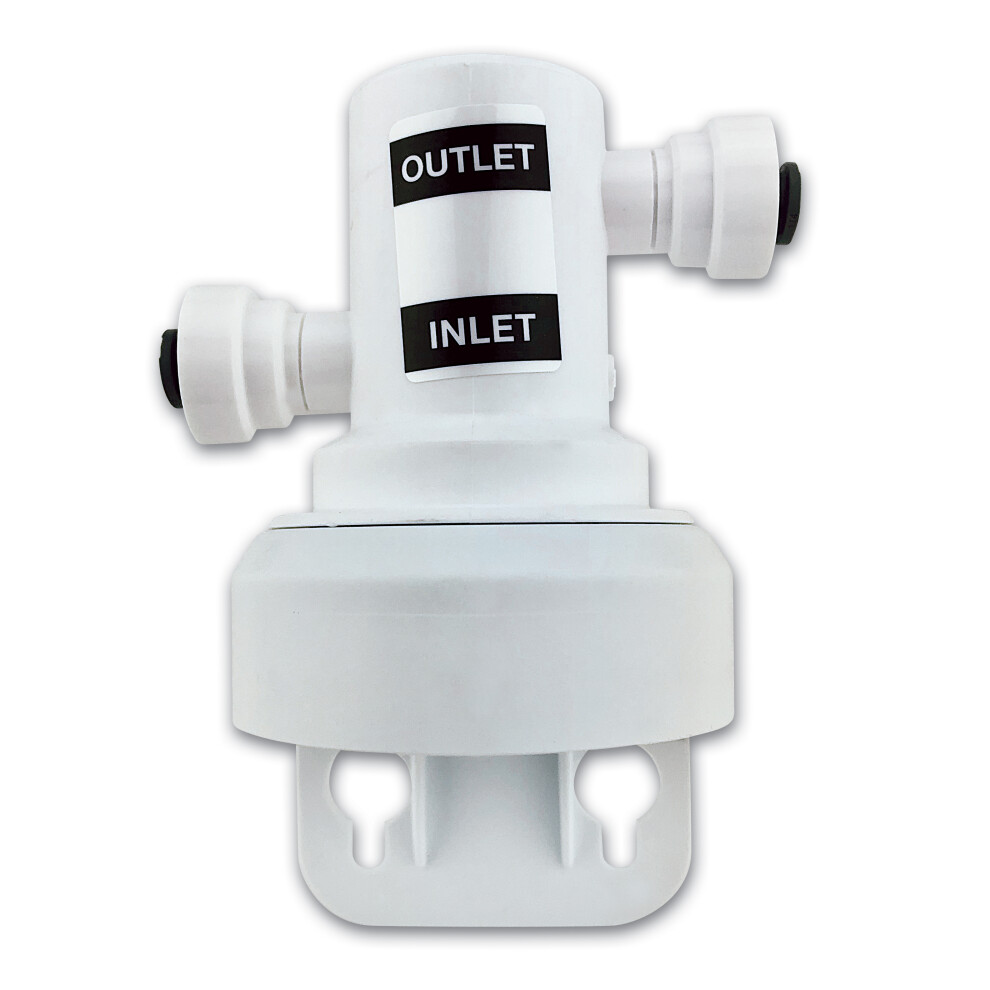

1x 3M AP2 head.

1 x Chrome Tap.

Set of easy to follow installation instructions.

Technical Specifications:

AP2-C405-SG Filter Flow Rate
1.9 Litres Per Minute / 0.5 Gallons Per Minute

Operating Pressure
Minimum: 25 psi / 1.7 bar Maximum: 120 psi / 8.2 bar

Operating Temperature
Minimum: 4.4°C / 40°F Maximum: 37.7°C / 100°F Taps Approximate Dimensions
Tap Dimensions may vary depending upon selection, please contact us if unsure.
Reach
Approx 120mm

Height from surface to top of tap
Approx 220mm

Stem Through Surface Approx 70mm
The taps have a 70mm stem and although designed to fit onto your sink, should fit through most modern-day worktop and kitchen sink tops.

Tap Operating Pressure
Min: 0.5 Bar / 7.5 psi Max: 8.5 Bar / 123 psi Disclaimer This is a DIY installation system, however it is strongly advised that the fitter should have a general knowledge of practical plumbing.
If in any doubt please consult a plumber.
Finerfilters Ltd. cannot take responsibility for damage caused by user error.
