3M Under Sink Water Filter Kit with AP2-C405-SG Filter FULL DIY System

3M Under Sink Water Filter Kit with AP2-C405-SG Filter FULL DIY System Description

Under Sink Drinking Water Filter Kit (With 3M AP2-C405-SG Rated Filter) FULL DIY System The 3M AP2-C405-SG cartridge is tested and certified by NSF International to meet or exceed NSF/ANSI Standards 42 & 53 You are buying the whole system, which includes:

3M Under Sink Drinking Water Filter Kit (Bacteria Rated Filter) Full DIY System

• This system uses the latest mini-filter from 3M/Cuno, with a quick twist fit for an easy and dry six-monthly filter change.
• The AP2-C405-SG is one of the most versatile filters in the market. It has a 0.5-micron carbon block, making it bacteria rated.
  It has heavy metal removal media, allowing metals such as lead to be removed from the water.
• The SG in the model refers to scale reduction, meaning it contains polyphosphate which is a scale inhibition media.
  Finally, the carbon block main body is highly effective at removing Chlorine which removes the foul taste, smell and odour attributed to it as well as particulate sediment and suspended solids from the water.
  All this is a space-reducing compact filter with a larger capacity.
• This filter is perfect for those looking for a compact filter unit that handles most of the water's worst contaminants. You can be sure with this filter, most bases are covered and you will be receiving some of the best quality water that can be produced from a water filter. Replacement cartridges are relatively inexpensive due to the specification of the filter, and the ttwist-fitcartridge makes filter changes quick and dry.

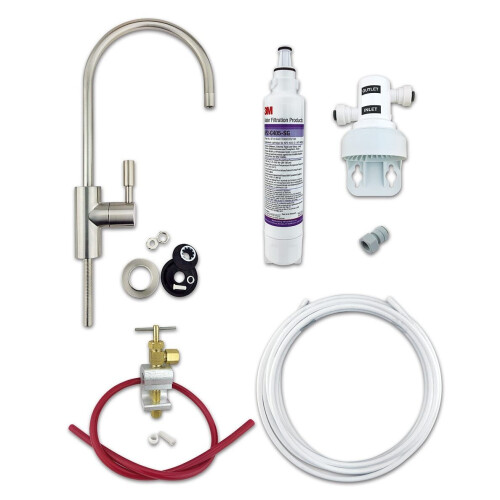

Brushed Nickel Tap.

Saddle valve for connection to mains piping.

1 x Tap reducer fitting for ¼ inch pipe connection.

3 Meters of ¼ inch water pipe (white).

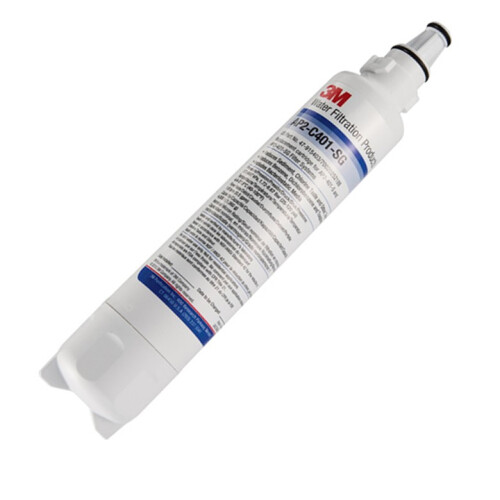

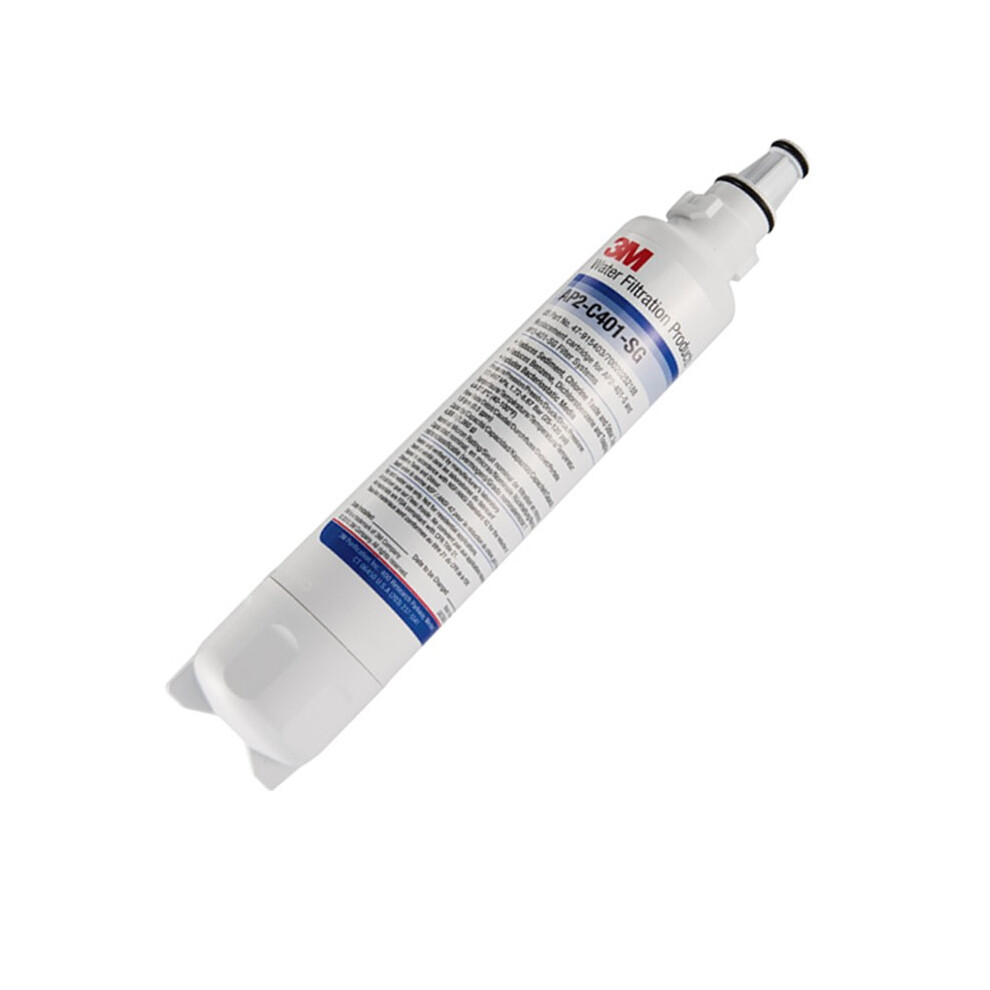

1 x 3M/Cuno AP2-C405-SG Water Filter.

1x 3M AP2 head.

Set of easy to follow installation instructions.

Technical Specifications:

AP2-C405-SG Filter Flow Rate
1.9 Litres Per Minute / 0.5 Gallons Per Minute

Operating Pressure
Minimum: 25 psi / 1.7 bar Maximum: 120 psi / 8.2 bar

Operating Temperature
Minimum: 4.4°C / 40°F Maximum: 37.7°C / 100°F Taps Approximate Dimensions
Tap Dimensions may vary depending upon selection, please contact us if unsure.
Reach
Approx 120mm

Height from surface to top of tap
Approx 220mm

Stem Through Surface Approx 70mm
The taps have a 70mm stem and although designed to fit onto your sink, should fit through most modern-day worktop and kitchen sink tops.

Tap Operating Pressure
Min: 0.5 Bar / 7.5 psi Max: 8.5 Bar / 123 psi Disclaimer This is a DIY installation system, however it is strongly advised that the fitter should have a general knowledge of practical plumbing.
If in any doubt please consult a plumber.
Finerfilters Ltd. cannot take responsibility for damage caused by user error.
