3X 19Inch 1U Pass-Through 24 Port CAT6 Cable Adapter Jack

3X 19Inch 1U Pass-Through 24 Port CAT6 Cable Adapter Jack Description

Product Type: CAT6 24-port patch panel, unshielded
Main technical parameters:: Phosphor bronze, silver plated (20 - 50uiLZh), suitable for cables of 22, 24 and 26AWG (0.64, 0.5 and 0.4mm), with a life of not less than 250 times.

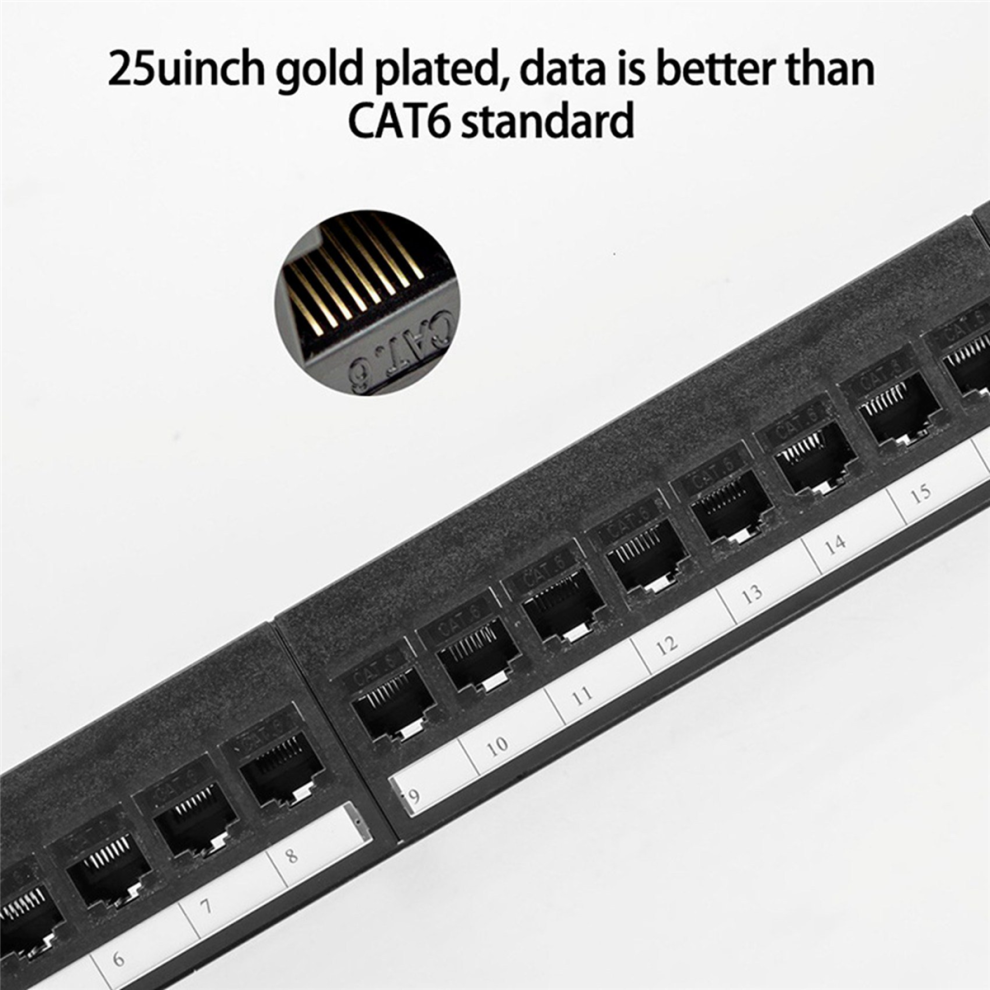

8-line pin: phosphor bronze, gold-plated (20 - 50uiLZh), plug and socket can be re-plugged no less than 750 times
Flame retardant: injection molded with PPO+PC to meet standards
Contact resistance: no more than 2.5m ohm under normal atmospheric pressure (without body resistance)

Insulation resistance: not less than 1000M ohm under normal atmospheric pressure conditions
Electrical strength: DC 1000V (AC, 700V) No breakdown and arcing in 1 minute
Standard: Designed and manufactured according to standard ISO/IEC11801; /EIA568
This modular patch panel, 24 modules are straight-through modules free of wire, can be directly plugged into cable, easy to install and operate
colour: black
Material: metal + plastic
size: 482mm

Package Contents:

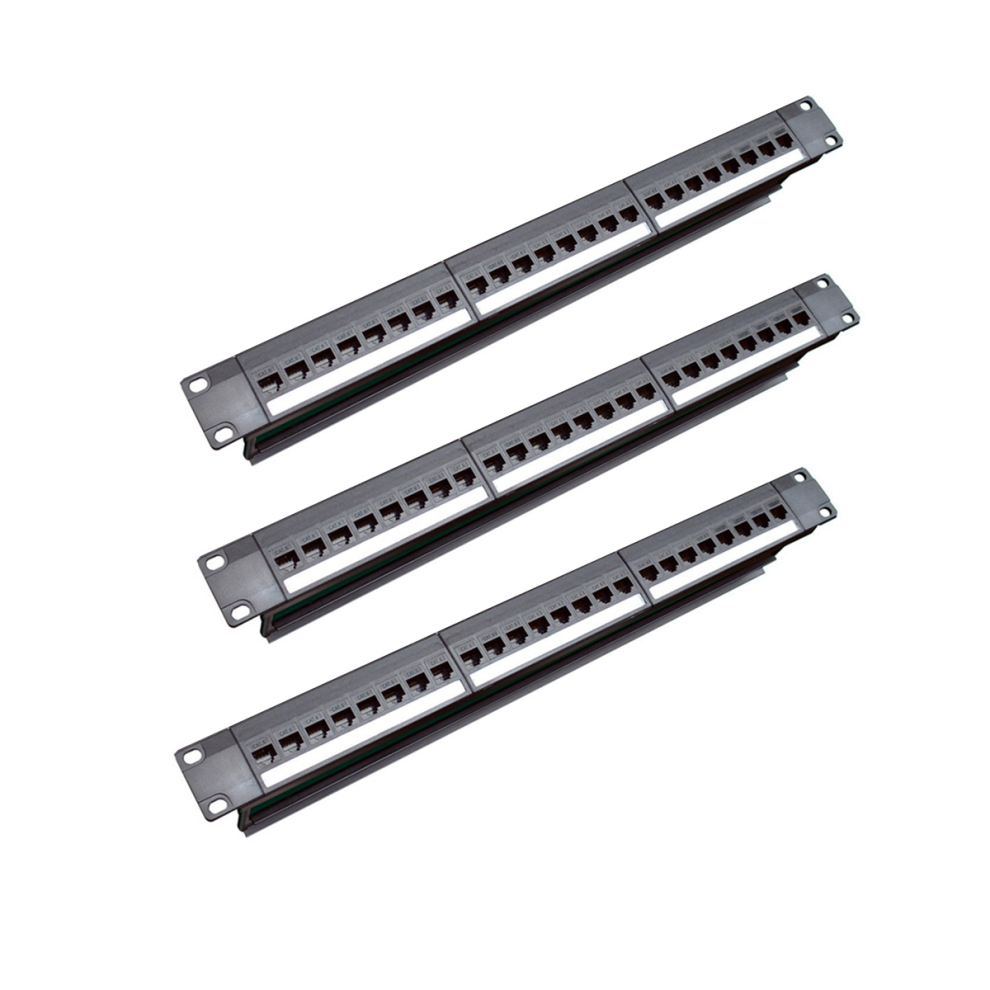

3 x 24 Port CAT6 Patch Panel

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
