3X MAX31856 Thermocouple Module Blue Board A/D Converter SPI Interface High for

3X MAX31856 Thermocouple Module Blue Board A/D Converter SPI Interface High for Description

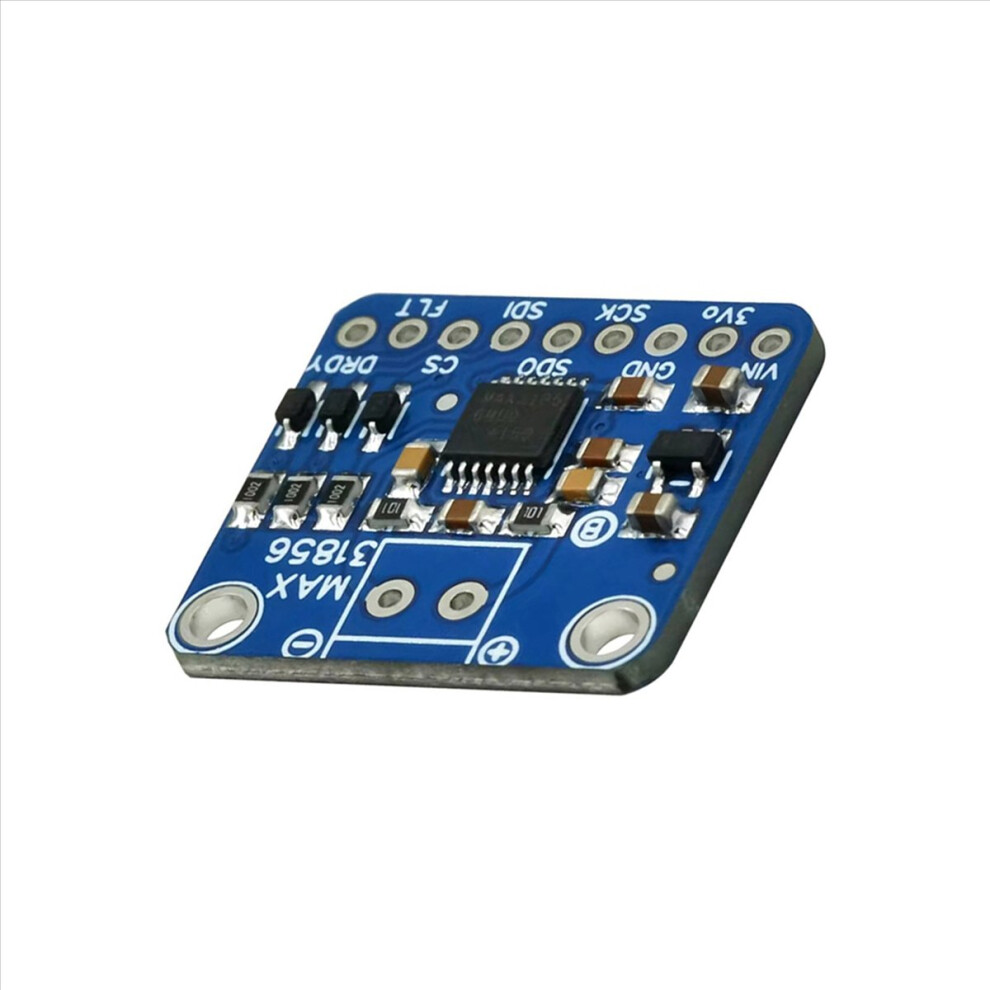

Thermocouple Module,It is an A / D converter using the MAX31856 IC. Thermocouples, which measure with high , give mV analog output and these signals cannot be detected by microcontrollers. This card converts the signals to digital data with high and allows you to transfer them to your microcontroller with SPI communication protocol.
Generally, different A / D converters and amplifiers are used for different types of thermocouples, while this module is compatible with all types of thermocouples (K, J, N, R, S, T, E, B). It is compatible with development boards such as for and with the feature of supporting SPI interface.
Technical Specifications
Provides High Accuracy Thermocouple Temperature Readings
Automatic Linearization Correction Including 8 Types of Thermocouples

Color: Blue
Material: Plastic
0.15% (max, -20 - +85) Full Scale Linearity
19-Bit, 0.0078125 degree Thermocouple Temperature Resolution
+0.7 degrees C (max. -20 degrees C to +85 degrees C) accuracy
Thermocouple inputs are protected against overvoltage conditions up to 45V
System Fault Management and Troubleshooting Simplifications
Open Thermocouple Detection
Low Temperature Diagnostics
50Hz / 60Hz Noise Rejection Filtering System
TSSOP Package 14-Pin
Weight: 15.0g

Package Contents:

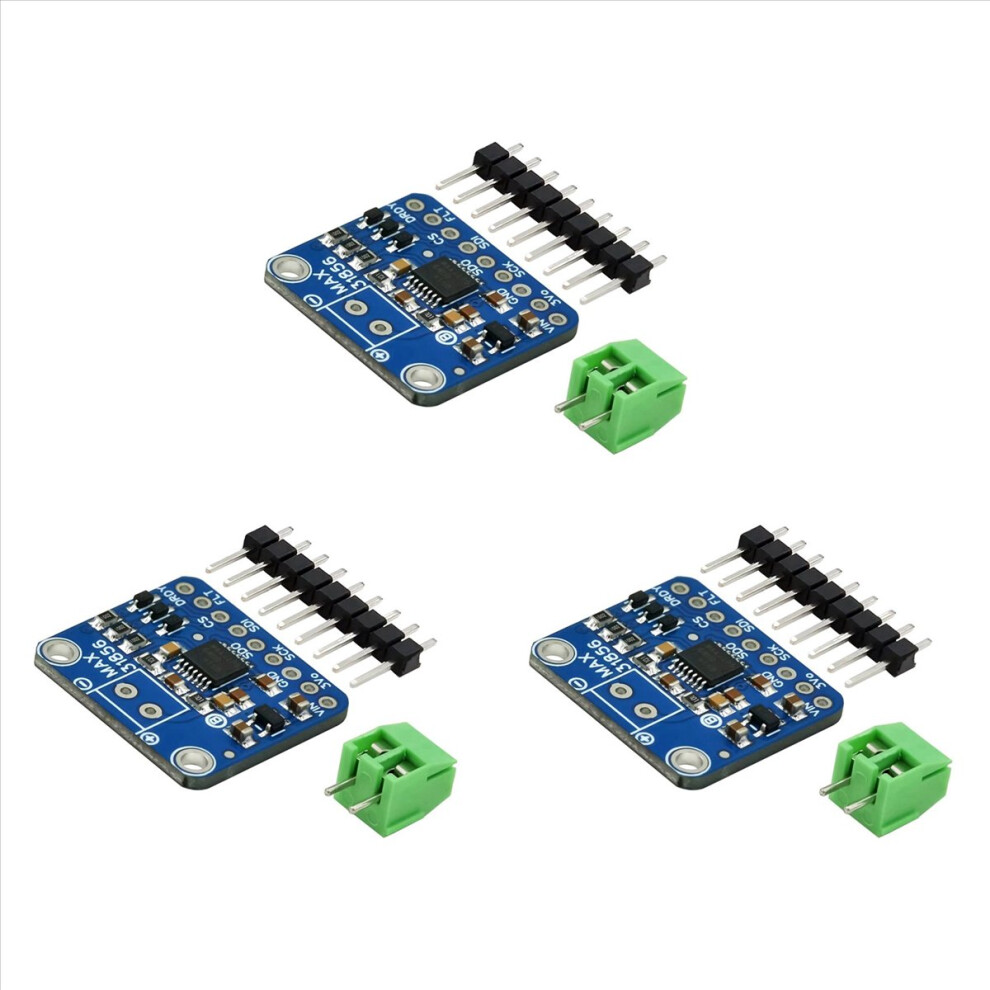

3 x MAX31856 thermocouple module set

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
