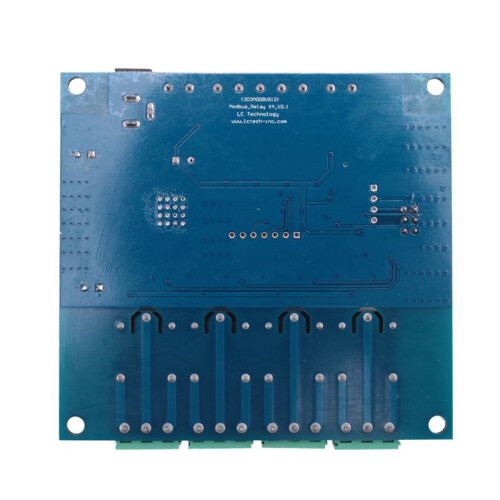

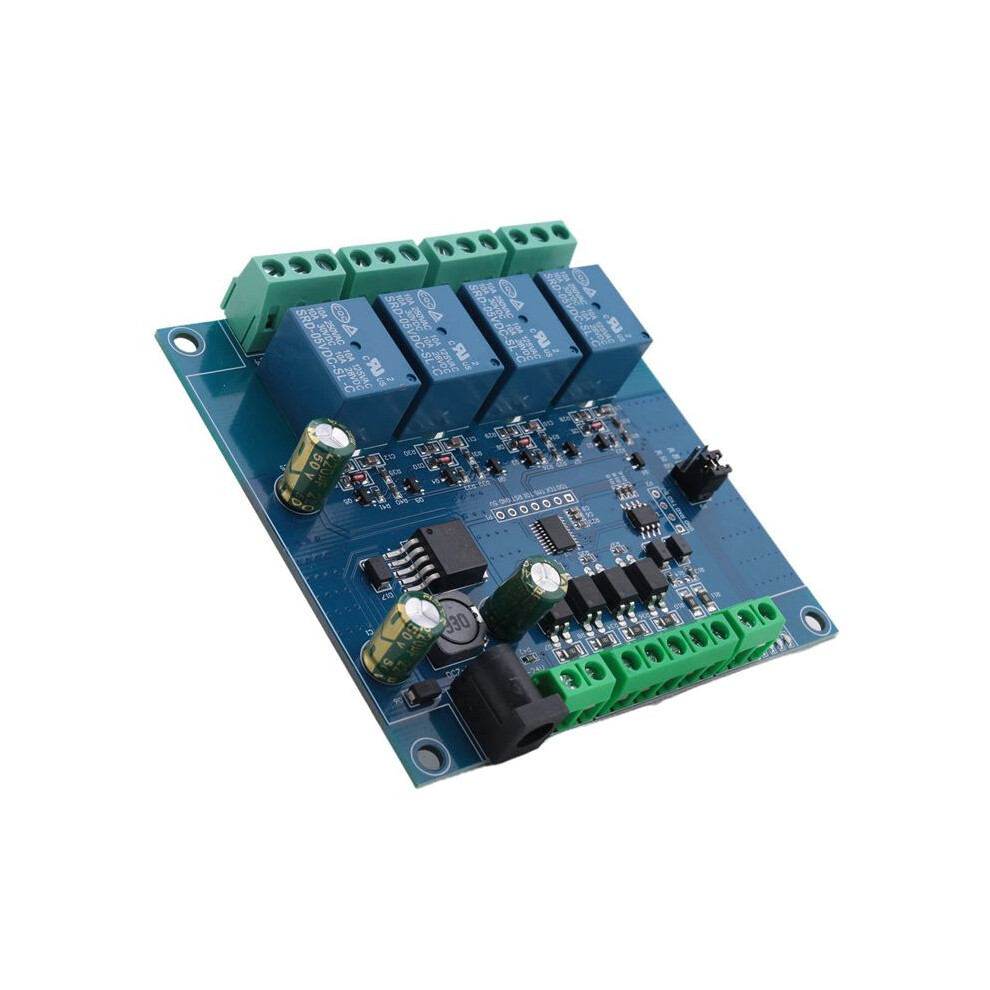

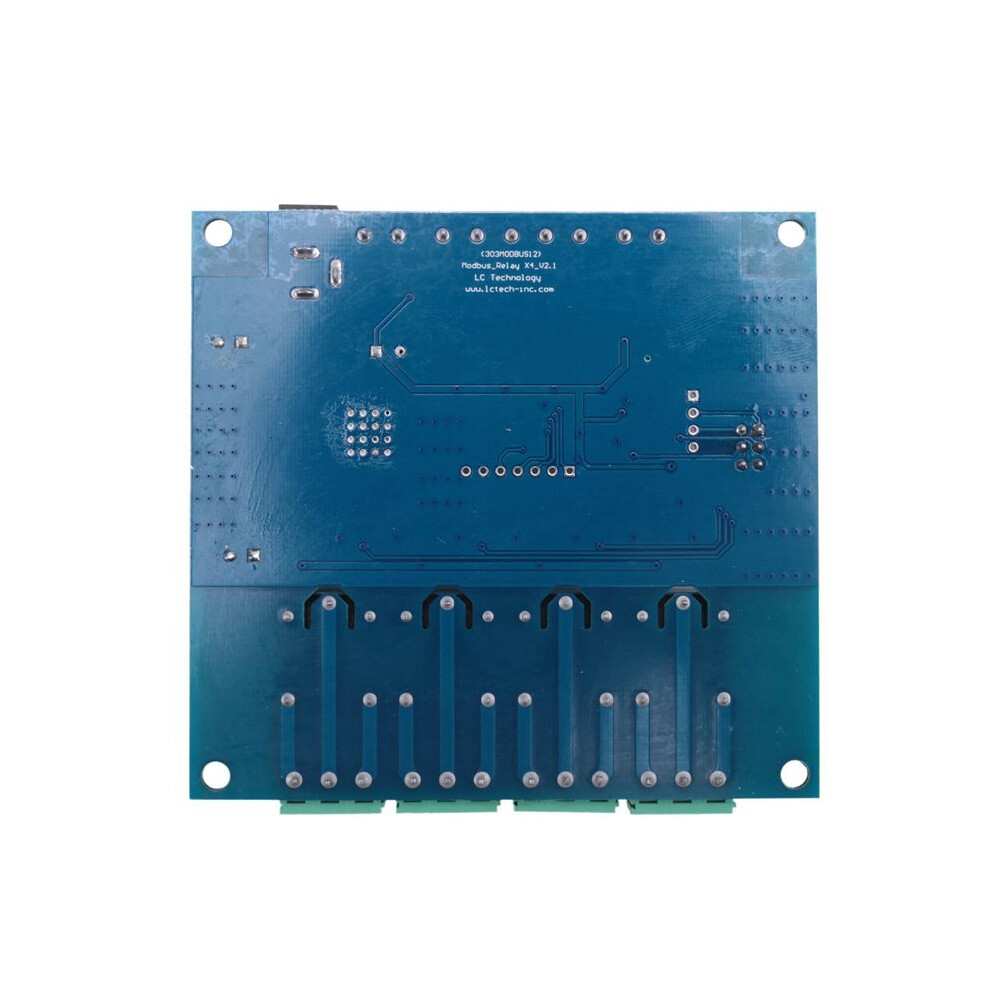

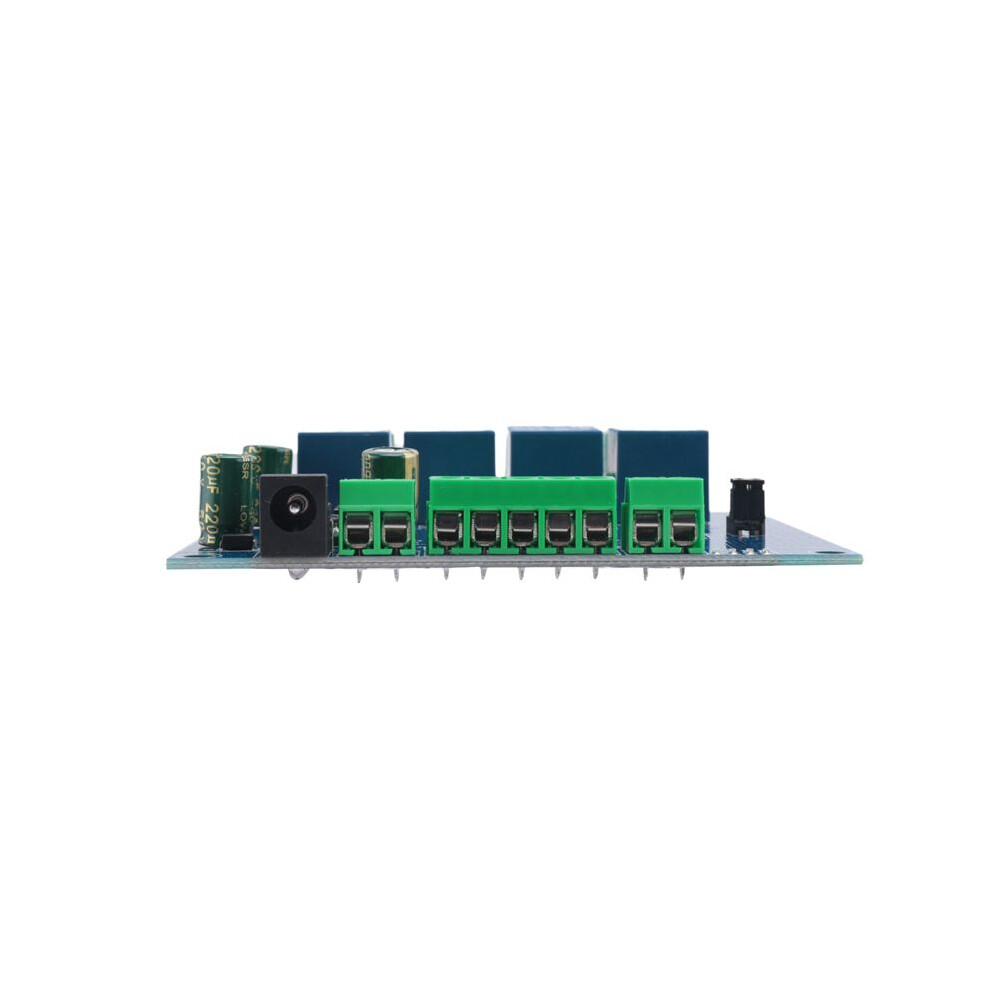

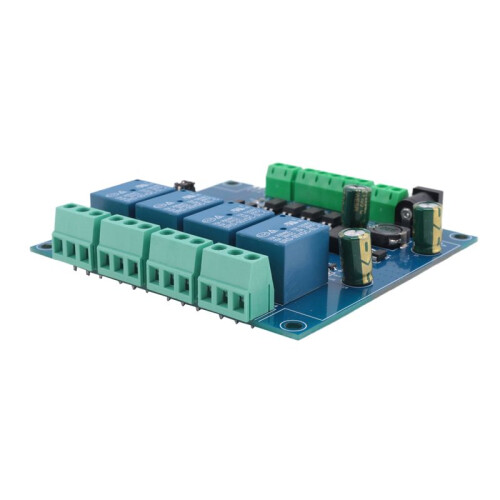

3X Modbus Rtu 4 Ch Relay Module Input 485 Ttl Uart Communication 4-Channel Input 7-24V Relay Module
Brand Melitt
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 133,000 Trustpilot reviews and an 'Excellent' rating
£20.61
£33.24
38% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Thu 10th - Sat 12th Sep
Sold by: WuLinshop
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- Description:LC 4 channel Modbus relay module equipped with mature and stable 8-bit MCU and RS485 level communication chip,adopt standard MODBUS RTU format RS485 communication protocol. It can realize 4bit input signal detection and 4bit relay output. It can be used for digital detection or power control occasions.
- Features:1.Support Modbus RTU protocol;2.Support RS485/TTL UART interface
- 3.Output indicator in multi mode;4.Address can be set
- 5.Support input reverse connection protection
- 6.Relay switch output;7.Support parameter memory function
3X Modbus Rtu 4 Ch Relay Module Input 485 Ttl Uart Communication 4-Channel Input 7-24V Relay Module Description
Description:LC 4 channel Modbus relay module equipped with mature and stable 8-bit MCU and RS485 level communication chip,adopt standard MODBUS RTU format RS485 communication protocol. It can realize 4bit input signal detection and 4bit relay output. It can be used for digital detection or power control occasions.
Features:1.Support Modbus RTU protocol;2.Support RS485/TTL UART interface
3.Output indicator in multi mode;4.Address can be set
5.Support input reverse connection protection
6.Relay output;7.Support parameter memory function
Parameters:
1.Item name: 4CH Modbus Relay Module
2.Work voltage: 7V~24V
3.Baud rate:4800/9600/19600bps(default 9600bps)
4.Optocoupler input signal: 3.3V~30V
5.Set address:1~255
6.Relay contorl mode: /OFF,Delay_ON,Delay_OFF mode
7.Delay : 0~6553.5s
8.Load: AC 250V 10A or 28V 10A
9.Protocol:Modbus RTU
10.Interface:RS485/TTL UART
11.Control channel: 4channel
12.Operating Temperature:-20 Celsius~85 Celsius
13.Operating Humidity:5%~95%RH
colour:
Material: PCB
size: 93x90x20mm
Package Contents:
3 x Modbus RTU 4 CH Relay Module
Details
| OPC | PXGSVZ5 |
|---|---|
| Brand | Melitt |
| Codes | 6031910969747 (EAN) |
Product Data
| Height | 2cm |
|---|---|
| Width | 10cm |
| Length | 10cm |
| Weight | 0.2625kg |
| Colour | blue |
| Material | PCB |
