3X Poe Splitter Injector Passive Dc Power Over Eth Description

Description 1:rj45 connector
Description 2:poe splitter for ip camera
Description 3:poe injector for security ip camera
Description 4:poe connector for ip camera
Usage1:wall mount adapter of poe power

Function 1:mini poe splitter
Function 2:mini injector
To achieve best performance of a Wireless LAN, the location of
Access Point(AP) must be carefully chosen.In most cases, finding
a power supply for AP is a common obstacle.
Power over Ethernet(PoE) technology provides the perfect power
solution to help overcome these obstacles.In Ethernet, four pairs
of C5 or C5E twisted pairs are used as the medium for transmission.
The actual data transmission, however,only takes up 4-pairs of wires
(pairs 1-8). PoE technology utilizesthe remaining pairs(pairs 4-5 and
7-8 to conduct electricity.
Data PIN:1/2,3/6
Power PIN:4/5+ and 7/8-
Data in:Connects PC/HUB/Switch
Ethernet Data rate:10/100
Ethernet Cable:/EIA 568 Cat.5
Ethernet Cable Connector:RJ-45
Operating Temperature:0- 40 Degree
Storage Temperature:-40-70 Degree
Operating Humidity:10%to80% RH
Storage Humidity:5%to90% RH
Note this one is for 10M/100M,without adapter, with out earthnet and power
connectiong cables.
colour:black
Dimensions:50mm x 25mm x 25mm
material:ABS+ electronic components

Package Contents:

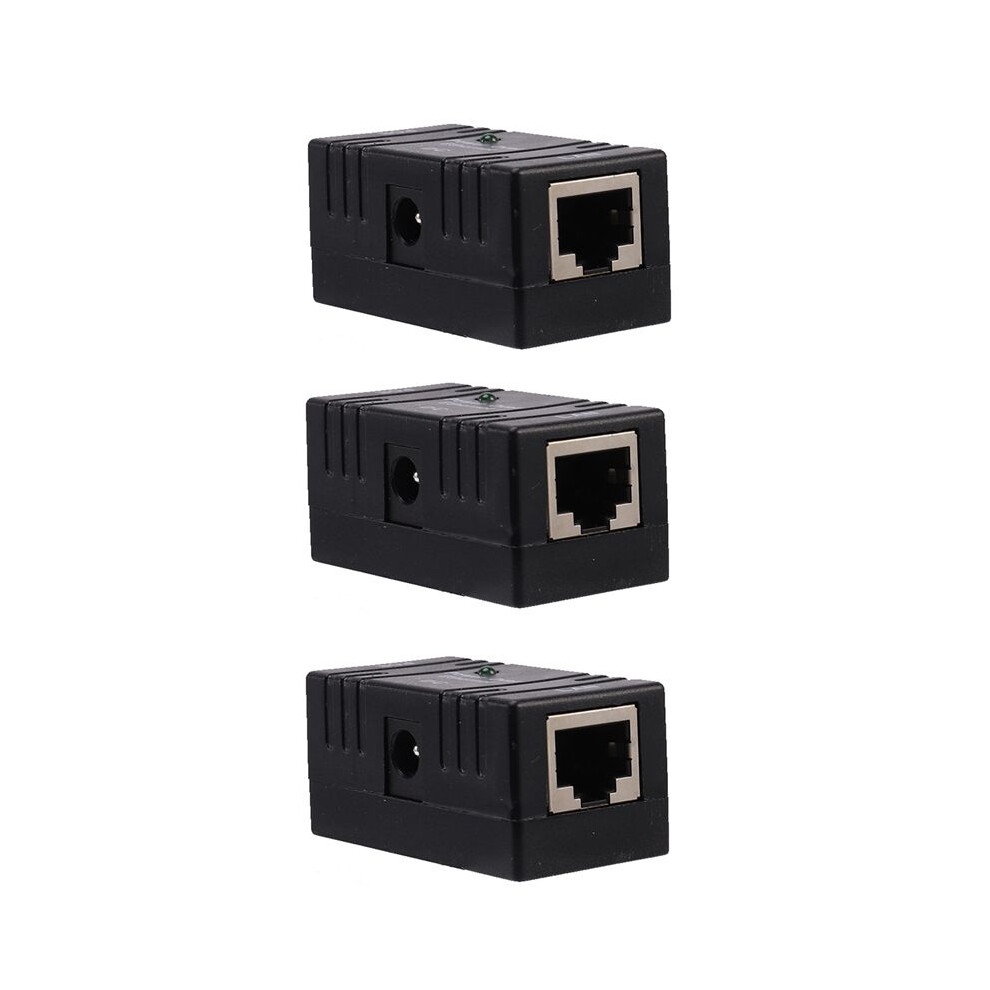

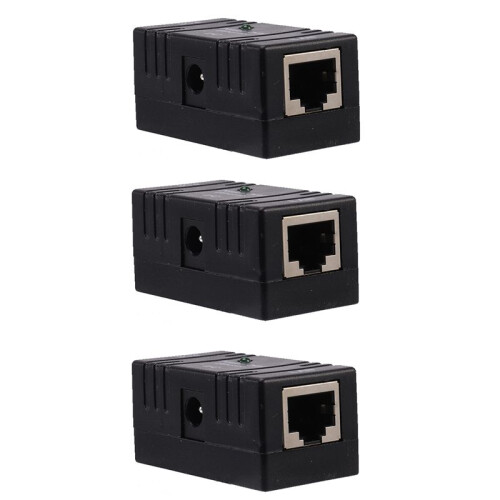

3 x PoE injector Splitter

Only the above package content, other products are not included.
