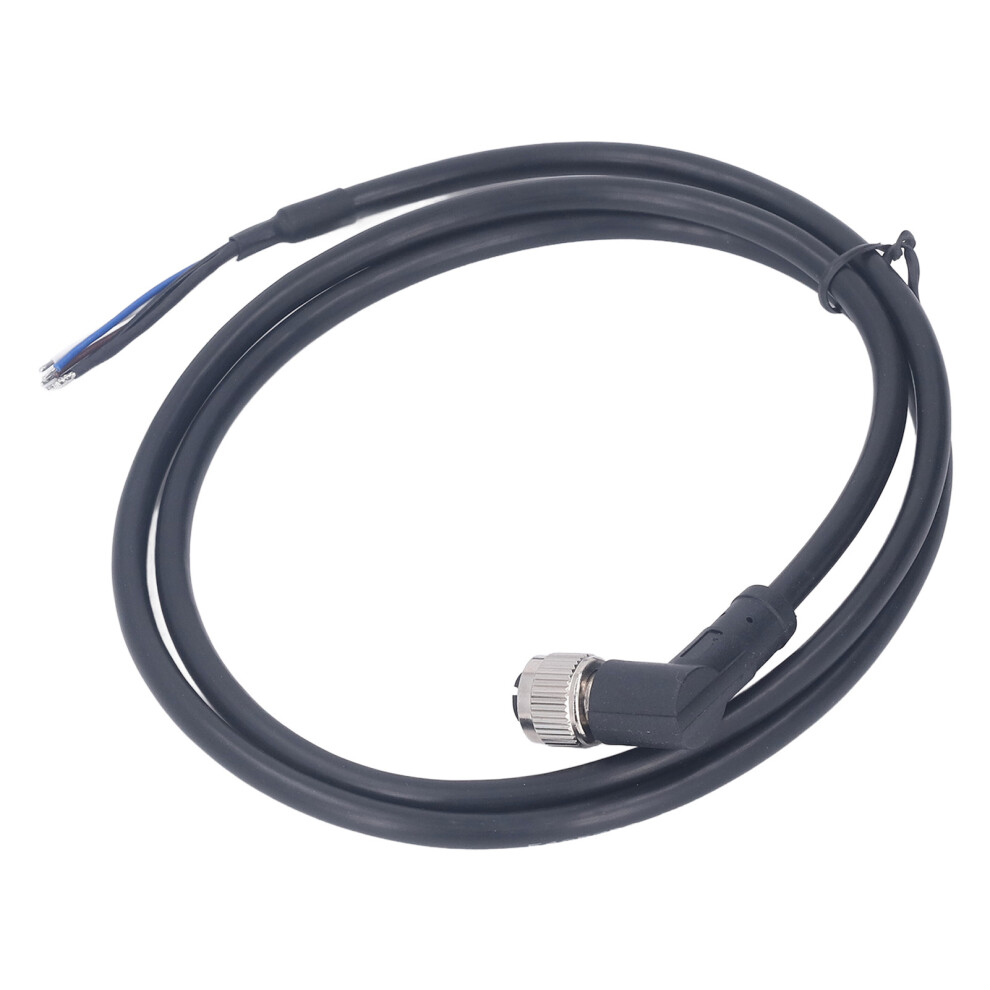

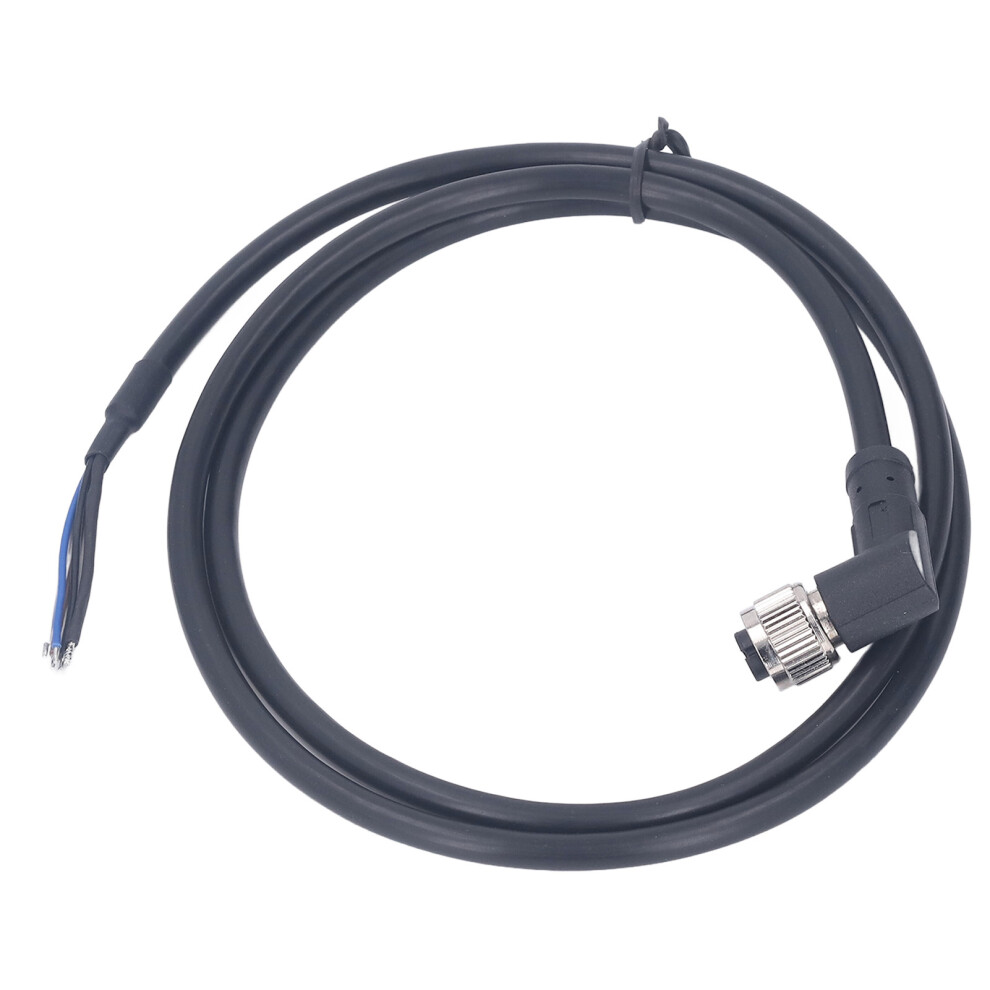

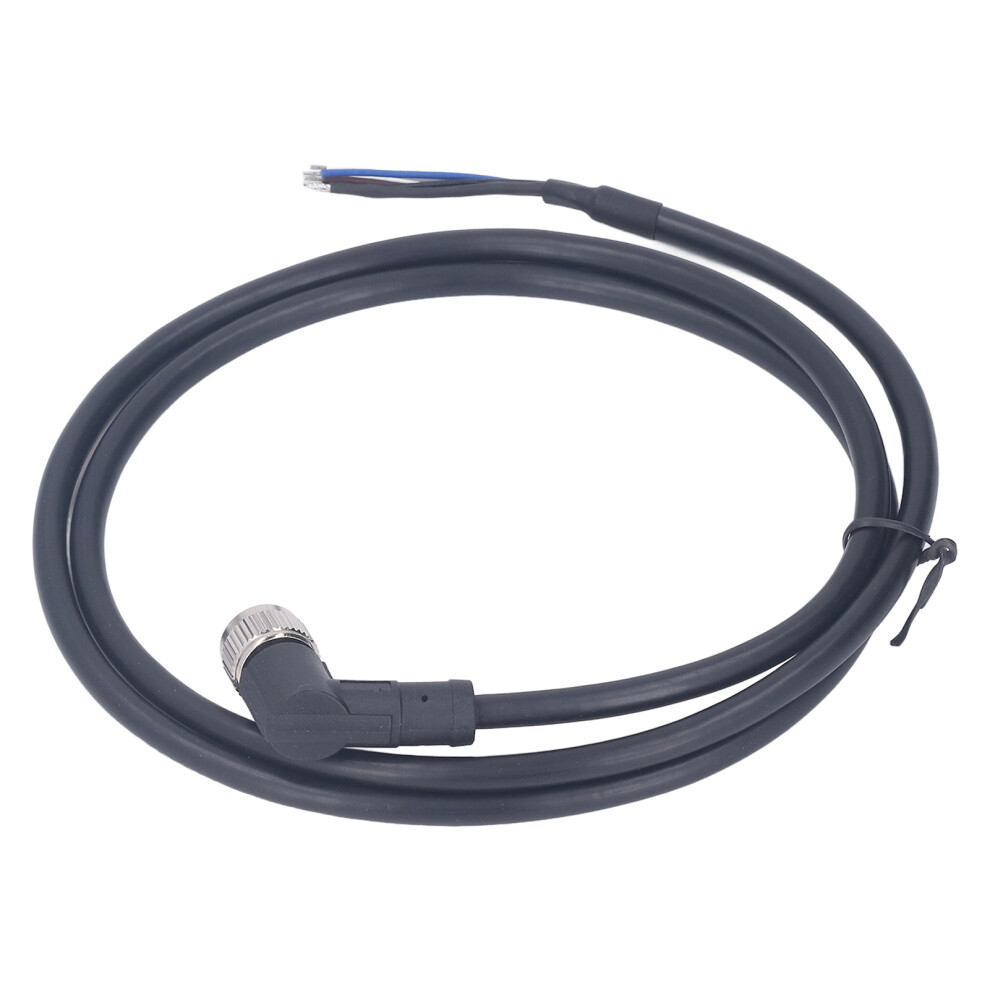

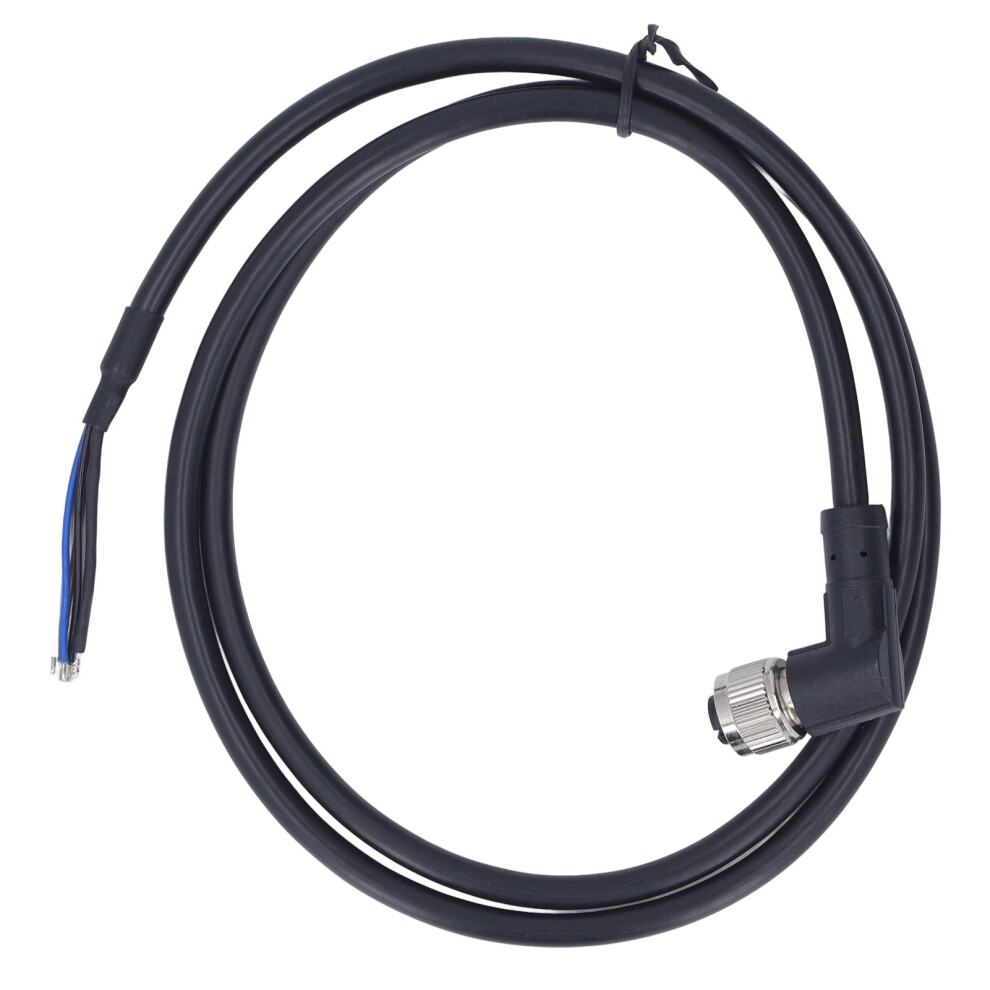

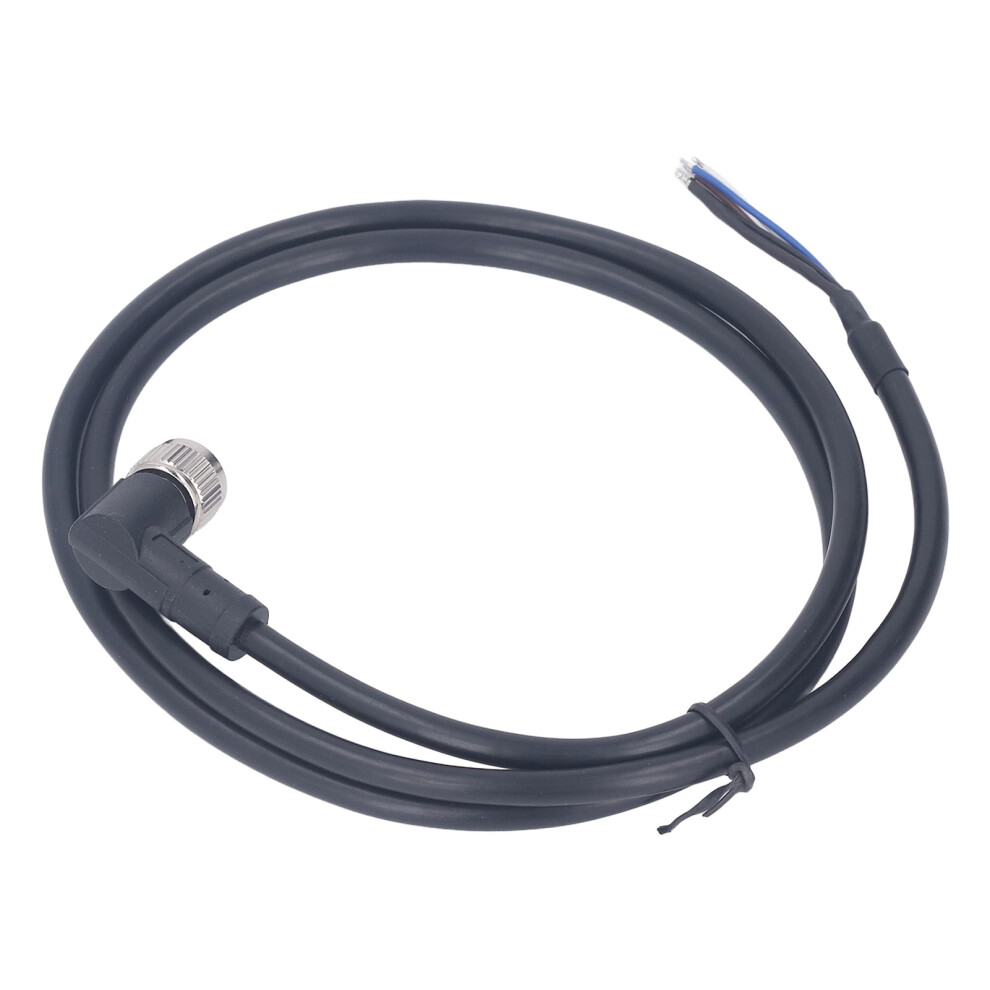

4 Pin 22AWG Right Angle Waterproof Aviation Sensor Cable

4 Pin 22AWG Right Angle Waterproof Aviation Sensor Cable Description

1、EASY TO CONNECT: The cable head provides a fast and convenient connection between on site equipment and terminal connections, with flexible and convenient plug and play capabilities; No tools are required for installation and disassembly. 2、DATA AND SIGNAL TRANSMISSION: 12mm threaded joints are durable, while ensuring the stability and reliability of data and signals; 4 pin male connector cable insulation and flame retardant; Thread locking mechanism, anti vibration locking design. 3、CONNECTOR CABLE: Single ended female connector, featuring 4 pin gold plated, A code, IP67 waterproof, LED connector, 22AWG, 1m, field wiring. 4、SAFE AND RELIABLE: The 1m 22AWG aviation connector cable is made of PVC sheath, which is fireproof and flame retardant, with good insulation performance and safer insertion and extraction. The waterproof 12mm industrial sensor connector adopts all copper nickel plated metal screw sleeves and pure copper gold plated contacts, which are sturdy, corrosion resistant, and durable, while ensuring the stability and reliability of data and signals. 5、DIY USE: Single ended aviation connector cables allow you to choose the connector type on the other end according to your needs. A wider DIY range can help you with field wiring. 6、APPLICATION: The aviation sensor connector cable meets the requirements of sensor equipment and actuator equipment in automation applications. The aviation socket cable can be easily connected to proximity switches, flow monitoring devices, logistics factory automation, fieldbus modules, fieldbus components, sensor devices, light curtains, and device actuators.
Item Type: Aviation Connector Electrical Sensor Cable
Material: PVC, Copper Nickel Plated Metal
Number of Cores: 4
Line Length: Approx. 1m / 3.3ft
Rated Current: 4A
Conductor Specification: 22AWG
Contact Impedance: Less than or equal to 5MQ
Insertion and Dialing Frequency: Greater than or equal to 500 times
Standard: IEC61076 2 101
Applicable Temperature: -25 to 80
Waterproof Grade: IP67
1 x
Aviation Connector Electrical Sensor Cable
